How Meta's f4 Architecture Cuts Warm Storage Replication Overhead to 2.1x

When Meta's infrastructure engineers allocate storage for billions of aging user photos, they face a strict physical limit. Hard drives inevitably fail, and copying data to survive those failures consumes exabytes of expensive disks. Their provisioning decisions dictate exactly how many massive datacenters the company must build and power.[1][8]

For years, the company relied on a brute-force replication strategy to guarantee no image was ever lost. Every file uploaded to the platform was duplicated multiple times across different servers and geographic regions. This approach prioritized immediate availability over hardware efficiency, treating all data as equally critical and equally active.[3][4]

That legacy system, known as Haystack, required 3.6 bytes of physical disk space for every single byte of actual user data. If users uploaded one petabyte of photos, Meta had to purchase, install, and power 3.6 petabytes of hard drives. At a global scale, this replication overhead became financially unsustainable.[1][5]

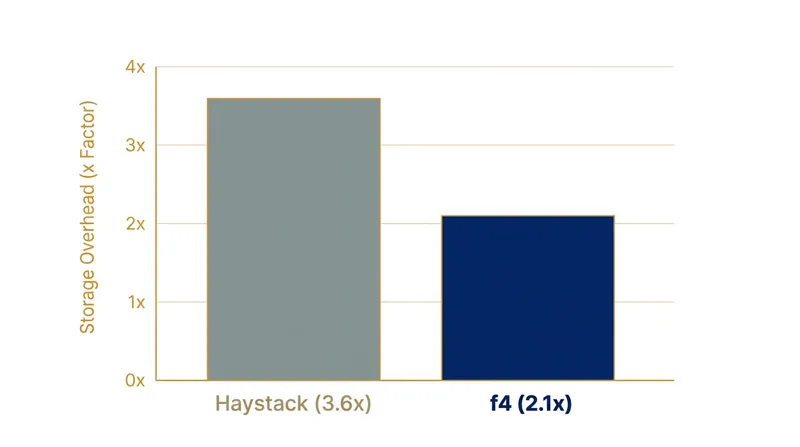

To halt this exponential hardware growth, engineers designed a replacement architecture called f4, specifically targeting older, less frequently accessed files. By deploying advanced mathematical encoding techniques, the new system slashed the physical storage requirement from 3.6x down to 2.1x. This transition saved the company massive amounts of capital expenditure.[1][2]

Defining warm storage constraints

The fundamental insight behind f4 relies on the natural lifecycle of social media content. When a user posts a photo, it receives intense traffic for a few days, requiring high-speed, heavily replicated storage to serve millions of immediate views. Engineers classify this highly active content as hot data.[1][6]

However, after roughly three months, the access rate for that same photo drops to almost zero. It transitions into warm data, meaning it is rarely requested but must remain permanently available if a user scrolls back through their timeline. Warm data is capacity-bound rather than performance-bound.[2][5]

Storing warm data on the legacy Haystack architecture wasted immense resources. Haystack was designed to maximize input and output operations per second, keeping multiple full copies ready to serve concurrent requests. Warm data simply does not generate enough traffic to justify that level of operational readiness.[3][4]

"The transition from hot to warm data changes the fundamental bottleneck from IOPS to capacity," notes the technical review published by Distributed Computing Musings. Once the traffic subsides, the primary engineering challenge shifts from serving the file quickly to storing it as cheaply as possible without losing it.[6]

Replacing copies with calculated parity

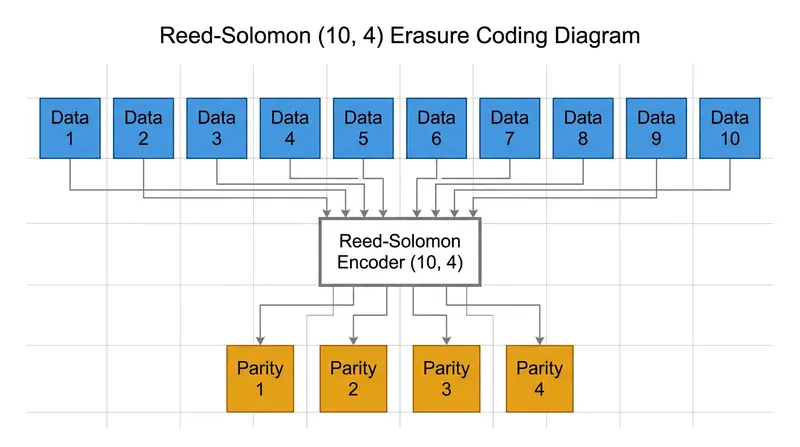

To reduce the local storage footprint, f4 abandons full-file replication in favor of Reed-Solomon erasure coding. Instead of keeping three identical copies of a file, the system mathematically divides the original data into ten distinct blocks. It then calculates four additional parity blocks based on that data.[1][2]

This specific configuration is known as a 10,4 Reed-Solomon encoding scheme. The mathematical properties of the parity blocks ensure that the original file can be perfectly reconstructed even if any four of the fourteen total blocks are destroyed. The system achieves high durability without brute-force duplication.[1][5]

Erasure coding dramatically alters the physical hardware requirements within a single datacenter. Because the system only stores 14 blocks to protect 10 blocks of actual data, the local storage overhead drops to 1.4x. This is a massive efficiency gain compared to the traditional 3x local replication used previously.[1][3]

This efficiency comes with a strict computational tradeoff. If a hard drive fails, reading the file requires fetching the surviving blocks and using processor cycles to mathematically rebuild the missing pieces. This reconstruction latency is perfectly acceptable for warm data, but it would cripple a hot storage system.[2][6]

The engineering review by Umbrant highlights this exact compromise in the architecture. "Erasure coding trades CPU and network bandwidth during reconstruction for a massive reduction in storage capacity," the analysis explains. Meta accepted slower failure recovery times in exchange for buying significantly fewer hard drives.[3]

Surviving regional network collapses

Local erasure coding protects against individual hard drive crashes and server rack power failures. However, it provides absolutely no protection if an entire datacenter goes offline due to a hurricane, a severed fiber trunk, or a catastrophic grid failure. Geographic redundancy remains a strict requirement for user data.[1][8]

Traditional geographic redundancy involves taking the locally protected data and copying it entirely to a second datacenter hundreds of miles away. If Meta simply copied the 1.4x Reed-Solomon footprint to another region, the total overhead would immediately double to 2.8x. That number was still too high for their efficiency targets.[1][5]

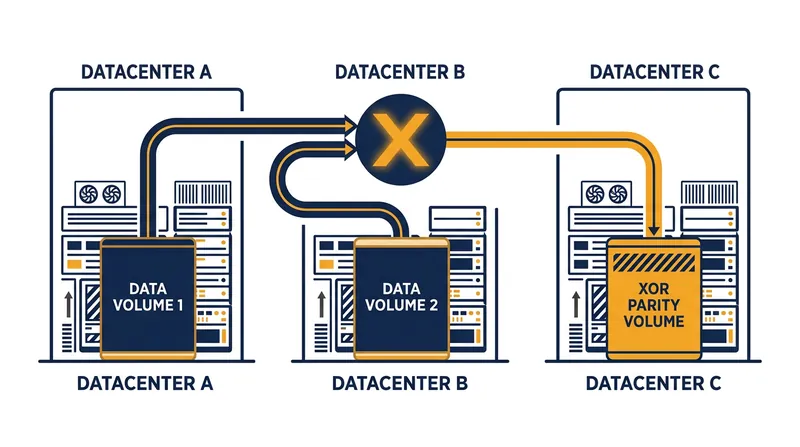

To solve the geographic replication problem without doubling the hardware, engineers introduced a technique called Geo-XOR striping. Instead of mirroring data, this method applies a logical exclusive-OR operation across entire storage volumes located in different geographic regions. It creates a single parity volume that protects multiple datacenters.[1][2]

The Geo-XOR system pairs a data volume in one datacenter with a completely different data volume in a second datacenter. It calculates the XOR parity of those two volumes and stores that resulting parity volume in a third, geographically distinct datacenter. This creates a resilient triad of facilities.[1][6]

XOR logic across geographic boundaries

If the first datacenter burns down, the system can still recover the lost photos. It retrieves the surviving data volume from the second datacenter and the XOR parity volume from the third datacenter. By running the XOR calculation in reverse, it perfectly reconstructs the destroyed volume.[2][5]

This geographic parity calculation is what finally drives the total storage overhead down to 2.1x. The system stores two actual data volumes at 1.4x overhead each, plus one XOR parity volume also at 1.4x overhead. Dividing that total 4.2x footprint across the two underlying data volumes yields exactly 2.1x.[1][8]

"The combination of local Reed-Solomon encoding and cross-region XOR striping is what makes f4 uniquely efficient," explains the architectural breakdown by The Morning Paper. By layering two different mathematical recovery techniques, the system survives both routine disk failures and catastrophic regional outages simultaneously.[2]

Implementing this dual-layered parity requires strict physical isolation rules to prevent correlated failures. When the system distributes the 14 local Reed-Solomon blocks, it must ensure no two blocks land on the same server rack or share the same network switch. A single power supply failure cannot be allowed to destroy multiple blocks.[1][3]

The f4 architecture also distinguishes between transient network drops and permanent hardware death. If a server stops responding, the system waits for a specific timeout period before declaring the drives officially dead. This prevents the cluster from wasting massive amounts of network bandwidth rebuilding blocks that were simply rebooting.[1][6]

Isolating hardware failure domains

When a drive is confirmed dead, a background process called the rebuild coordinator takes over. It throttles the reconstruction traffic to ensure that rebuilding lost parity blocks does not overwhelm the network switches. The system prioritizes serving user requests over restoring its own internal fault tolerance.[1][5]

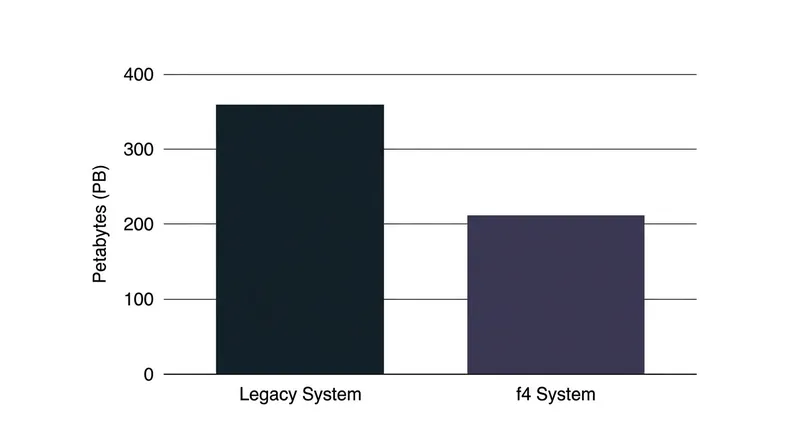

The financial implications of moving from 3.6x to 2.1x overhead are staggering at exabyte scale. For every 100 petabytes of warm photos stored, Meta avoids purchasing 150 petabytes of raw hard drives. This translates directly into fewer server racks, smaller datacenter footprints, and vastly reduced electricity consumption.[4][8]

Despite its efficiency, the f4 architecture is not a universal solution for all storage needs. The heavy reliance on parity calculations makes it entirely unsuitable for small files, rapidly changing databases, or highly viral new content. It is a specialized tool built for a very specific phase of the data lifecycle.[3][6]

As Meta's infrastructure continued to evolve, the lessons learned from f4 influenced the next generation of storage. The USENIX presentation on the Tectonic filesystem reveals how engineers eventually merged these concepts into a single exascale platform. Tectonic dynamically applies different encoding schemes based on real-time access patterns.[7]

The f4 system proves that software mathematics can effectively replace physical hardware when deployed correctly. By understanding exactly how users interact with aging photos, engineers traded unnecessary speed for massive capacity gains. The architecture remains a definitive case study in optimizing distributed systems at planetary scale.[1][8]
