Precomputed State Transitions Unlock Fractional-Bit Compression in Zstandard Without Division Latency

Data centers now store and transmit petabytes of data using a fraction of the bandwidth previously required, without sacrificing processing speed. This shift occurred because a mathematical breakthrough eliminated the need for central processing units to perform slow division operations during data compression.[2][4]

By replacing complex arithmetic with precomputed lookup tables, modern algorithms achieve theoretical limits of data density at hardware speeds. The technique allows systems to pack data into fractional bits, bypassing the computational bottlenecks that defined earlier compression standards.[3][7]

"The performance of data compression algorithms is usually a trade-off between compression ratio and speed," researchers noted in a 2015 IEEE Xplore paper. Asymmetric Numeral Systems broke that compromise, offering the speed of older methods with the precision of advanced mathematics.[8]

The whole-bit limitation of Huffman coding

For decades, developers relied on Huffman coding to shrink files, a method introduced in 1952 that assigns short binary codes to common characters and long codes to rare ones. This approach is incredibly fast because computers can read the whole-bit codes directly from memory.[8]

However, Huffman coding suffers from a fundamental mathematical flaw that wastes storage space. It forces every symbol to consume at least one entire bit, even if its true information value is a fraction of a bit.[4][8]

If a specific character appears so frequently that it mathematically requires only 0.4 bits to represent, Huffman coding still assigns it a full 1.0 bit. That 0.6-bit rounding error compounds across billions of characters, inflating file sizes by up to 20 percent in highly predictable datasets.[4][6]

To reach the absolute limit of data compression—known as Shannon entropy—an algorithm must be able to assign fractional bits to symbols. Until recently, achieving this required abandoning the speed of Huffman coding entirely and relying on heavy computational lifting.[5]

The division bottleneck of arithmetic coding

The traditional solution for fractional-bit compression is arithmetic coding, which represents an entire message as a single floating-point number between zero and one. As the algorithm processes each character, it narrows the numerical range.[4]

This narrowing mechanism effectively packs fractional bits into the final output, achieving near-perfect compression ratios. However, arithmetic coding introduces a severe performance penalty that makes it unsuitable for real-time network traffic.[4][7]

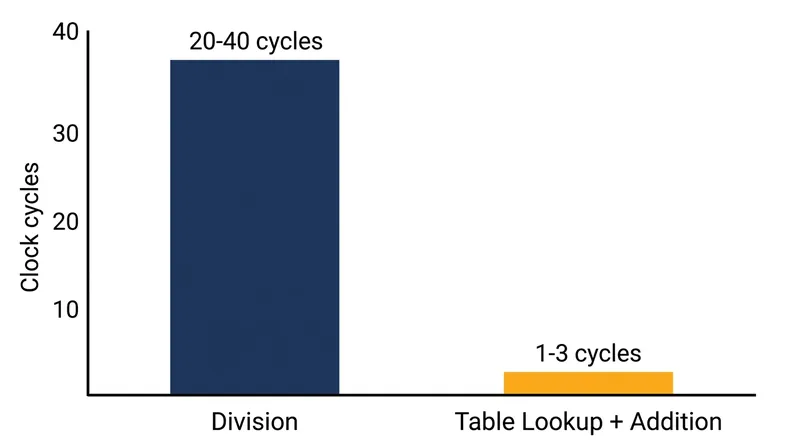

Narrowing the numerical range requires the CPU to perform continuous division and multiplication operations for every single symbol processed. Division is notoriously slow, often consuming 20 to 40 clock cycles per operation compared to the single cycle needed for basic addition.[6][7]

"Arithmetic coding is computationally expensive because it requires divisions," explained developer Yann Collet in his 2013 technical breakdown. This computational latency forced engineers into a permanent compromise between speed and storage efficiency.[3]

Developers could choose Huffman coding for high-speed network traffic, accepting larger file sizes, or they could use arithmetic coding for long-term storage, accepting sluggish compression speeds. A unified solution remained elusive for decades.[2][8]

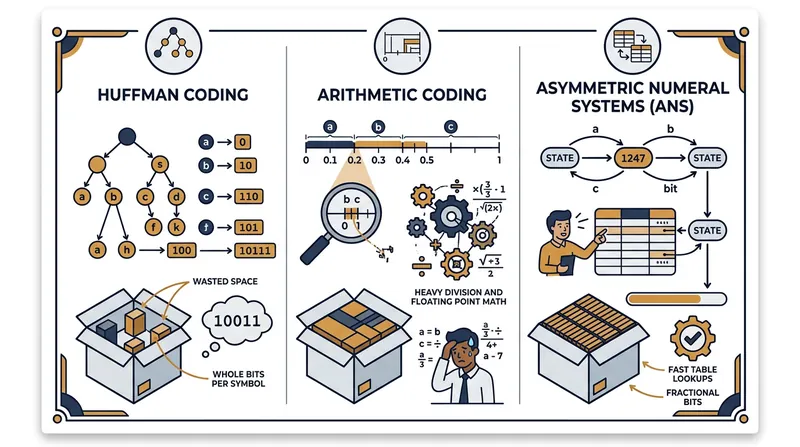

Asymmetric Numeral Systems and the single state integer

That binary choice collapsed when Jagiellonian University researcher Jarek Duda published the Asymmetric Numeral Systems (ANS) family of algorithms between 2006 and 2013. ANS introduced a novel mathematical structure to the compression landscape.[4][5]

The algorithm combines the fractional-bit optimality of arithmetic coding with the execution speed of Huffman coding. It achieves this by tracking the entire compression process using a single natural number, rather than a floating-point range.[4][7]

Instead of narrowing a range, ANS encodes information by applying a specific mathematical function to the current state integer based on the incoming symbol. The state integer grows as data is compressed.[4][7]

To keep the number within a manageable range, the algorithm periodically extracts bits from the state integer and writes them to the output file. The brilliance of ANS lies in its mathematical asymmetry.[6]

The function applies different scaling factors depending on the probability of the symbol. This allows frequent characters to increase the state integer by only a fraction of a bit's worth of value, perfectly matching their Shannon entropy.[5][6]

Finite State Entropy and precomputed tables

While the math behind ANS is elegant, calculating the exact state transitions on the fly would still require division, defeating the purpose of the algorithm. Developer Yann Collet solved this practical hurdle in 2013.[3]

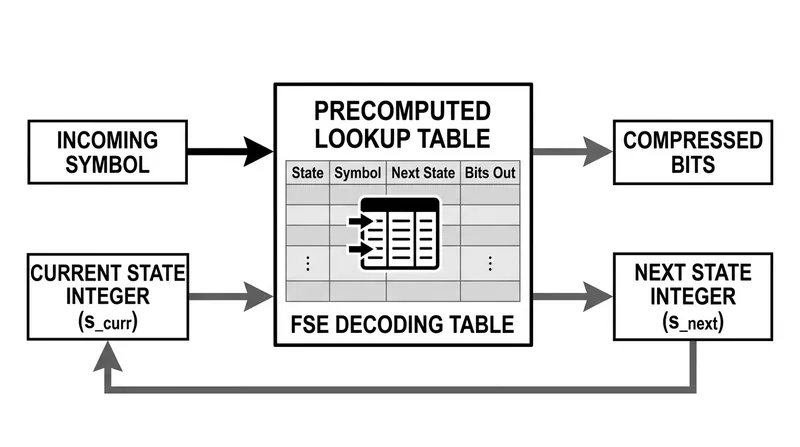

Collet created Finite State Entropy (FSE), an implementation of ANS that precomputes the state transitions before compression begins. FSE analyzes the data to determine symbol probabilities and generates a comprehensive lookup table.[3][6]

This table maps every possible combination of current state and incoming symbol to the exact next state and the specific bits that need to be output. It moves the heavy mathematical lifting into a brief setup phase.[3][7]

During the actual compression phase, the CPU simply reads the incoming symbol, looks up the precalculated result in the table, and updates the state integer. This reduces the complex fractional-bit math to a sequence of fast memory lookups.[3][7]

"FSE replaces the division with a table lookup," Collet noted, explaining how the algorithm bypasses the CPU's arithmetic bottleneck. The state transitions execute using only bitwise shifts and simple additions, consuming just a few clock cycles.[3]

Zstandard's implementation at scale

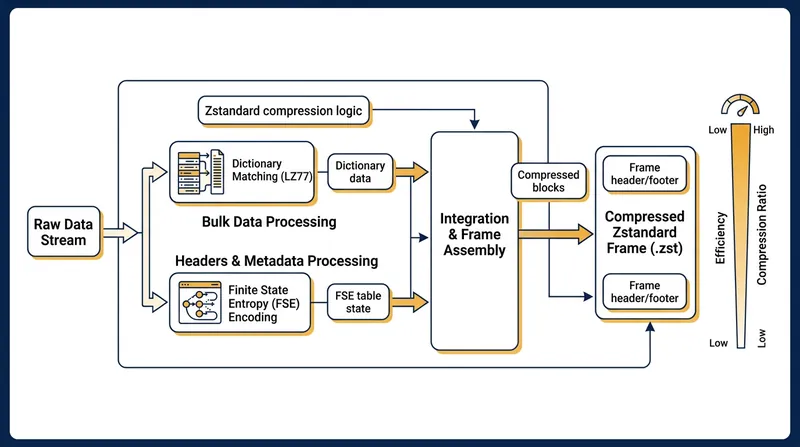

Collet subsequently integrated FSE into Zstandard, a compression algorithm deployed by Meta in 2016 to handle massive data center workloads. Zstandard uses FSE specifically to compress the headers and metadata of data blocks.[1][2]

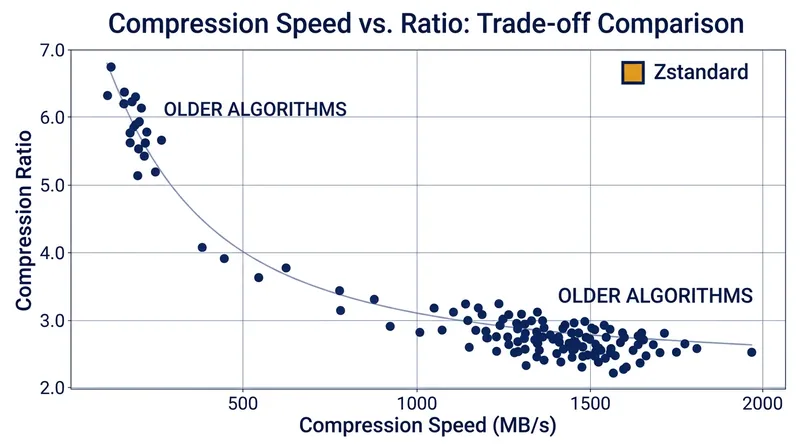

By eliminating the division latency, Zstandard processes data at speeds exceeding 400 megabytes per second per core. It matches or beats the compression ratios of much slower algorithms, fundamentally altering data center economics.[1][2]

The precomputed tables fit neatly into the CPU's fast L1 cache, ensuring the memory lookups do not become a new bottleneck. This architecture allows systems to compress data on the fly as it moves across networks.[2][9]

The fractional-bit efficiency ensures that highly predictable data streams are packed as tightly as mathematically possible. Meta reported in 2016 that Zstandard reduced the size of its core datasets by 36 percent compared to older algorithms.[2]

The Internet Engineering Task Force formalized Zstandard in RFC 8878, cementing its role in global internet infrastructure. The specification details how the FSE tables are transmitted alongside the compressed data to enable rapid decompression.[1]

The broader impact on data infrastructure

The adoption of ANS and FSE extends far beyond Zstandard. Apple integrated the technology into its LZFSE algorithm for iOS and macOS, while the Linux kernel adopted it for internal memory compression.[8][9]

This shift highlights a recurring theme in computer science: the most significant performance gains often come from restructuring algorithms to avoid hardware bottlenecks. Moving the math into a precomputation phase unlocked previously impossible speeds.[5][7]

As data volumes continue to grow exponentially, the ability to achieve Shannon entropy limits without sacrificing processing speed remains critical. The single state integer and its precomputed tables have quietly rewritten the rules of global data storage.[2][4]
