Why Pacemaker Crosstalk Shortens Ventricular Intervals Without Hardware Deficits

Inside an electrophysiology clinic, a technician watches a programmer screen as a patient's dual-chamber pacemaker delivers a routine atrial pulse. Instantly, the ventricular pacing spike follows just 110 milliseconds later, drastically shorter than the programmed 200-millisecond delay. The patient's heart rate briefly stutters.[1]

To an untrained observer, the device appears to be malfunctioning, firing its ventricular lead far too early. The immediate clinical assumption is often a hardware failure or a sensing deficit within the right ventricle. Yet, the diagnostic logs reveal the ventricular lead is operating flawlessly.[3]

This phenomenon is known as pacemaker crosstalk, a spatial electrical illusion that forces the device's safety algorithms to intervene. The ventricular pacing interval inverts—shortening instead of lengthening—precisely because the sensing hardware is acute enough to detect a signal it was never meant to hear.[1][2]

The Anatomy of a False Signal

Dual-chamber pacemakers operate in what cardiologists call DDD mode, utilizing two distinct leads anchored in the right atrium and the right ventricle. The device maintains a strict chronological sequence, delivering an electrical stimulus to the atrium and waiting for the ventricle to respond.[1]

This waiting period, known as the atrioventricular delay, is typically programmed to 200 milliseconds to mimic a healthy human heart. If the ventricular lead detects a native heartbeat during this window, it inhibits its own pacing output to avoid interfering with the heart's natural rhythm.[1][3]

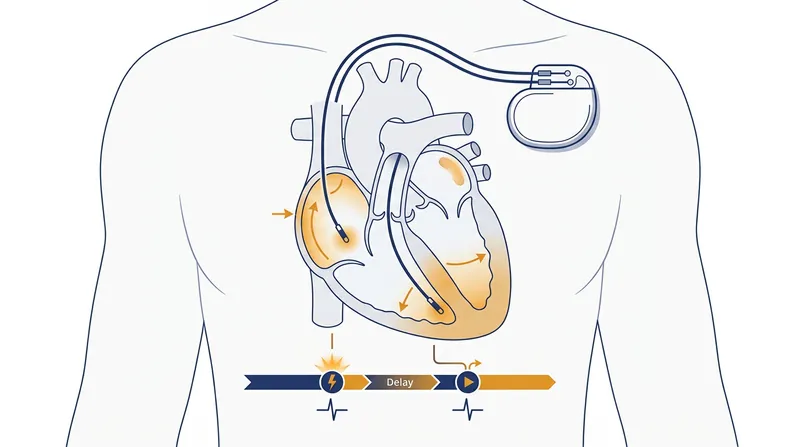

Crosstalk occurs when the high-voltage electrical pulse delivered to the atrium bleeds through the cardiac tissue and is detected by the ventricular lead. The ventricular sensor misinterprets this atrial pacing artifact as a native ventricular contraction, triggering an immediate algorithmic response.[2]

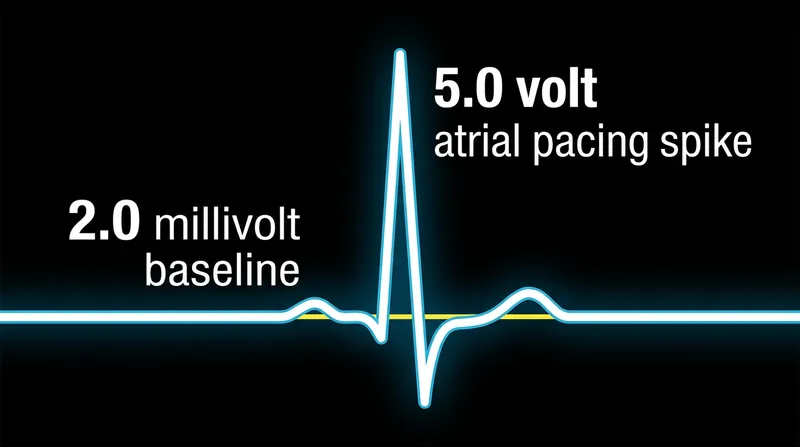

"Crosstalk is not a failure of the sensing circuit, but a failure of spatial isolation," notes the Heart Rhythm Society's pacing guidelines. The ventricular lead, often set to a highly sensitive 2.0-millivolt threshold, simply registers the 5.0-volt atrial pulse echoing across the septum.[1]

If the pacemaker were to follow its standard logic upon sensing this false signal, it would inhibit the ventricular pace entirely. In a patient entirely dependent on the device, this inhibition would result in ventricular asystole—a complete absence of a heartbeat.[2][3]

The Ventricular Safety Pacing Window

To prevent this catastrophic outcome, biomedical engineers developed a mandatory override known as Ventricular Safety Pacing. This algorithm creates a dedicated temporal window immediately following every atrial paced event, fundamentally altering how the device processes early signals.[2]

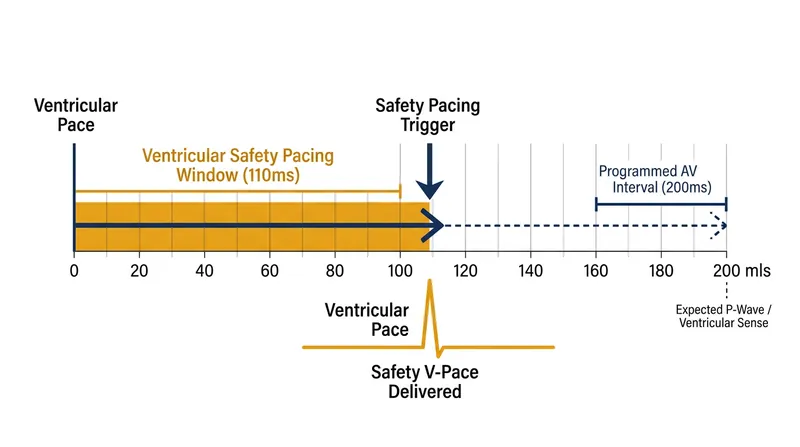

The safety window typically spans the first 110 milliseconds after the atrial pulse is delivered. The pacemaker's logic dictates that no physiological ventricular contraction can occur that quickly after an atrial beat, meaning any signal detected in this window must be electrical interference or crosstalk.[1][2]

When a signal breaches the 2.0-millivolt sensing threshold during this 110-millisecond window, the pacemaker abandons its programmed 200-millisecond delay. Instead of inhibiting the output, the device forces a ventricular pace at exactly the 110-millisecond mark to guarantee cardiac output.[2][4]

This safety mechanism ensures the patient's heart continues to beat, but it drastically compresses the pacing cycle. The interval between the atrial and ventricular contractions is suddenly cut nearly in half, creating a noticeably early beat that can sometimes be felt by the patient as a palpitation.[3]

Because the safety pace is delivered at 110 milliseconds, it safely falls outside the heart's vulnerable repolarization period. Pacing during the vulnerable period can trigger dangerous arrhythmias, making the precise timing of the safety algorithm a critical safeguard against sudden cardiac arrest.[2]

Why Intervals Invert

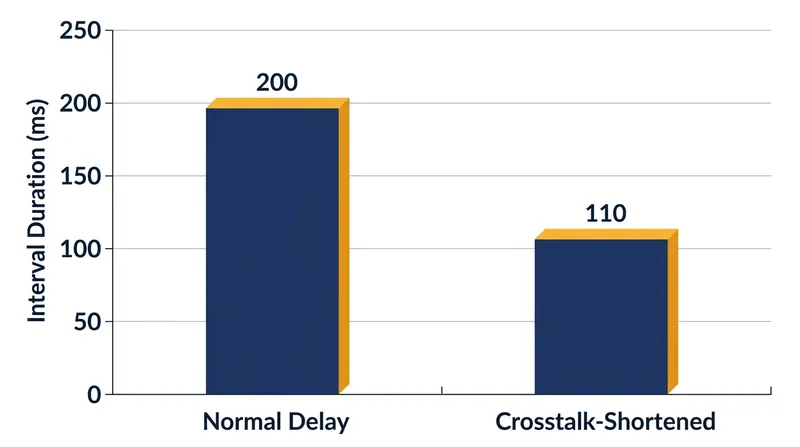

The term inversion in this context refers to the paradoxical shortening of the expected pacing interval. Rather than the ventricular pace occurring at the end of the 200-millisecond delay, the detection of crosstalk snaps the interval backward to the 110-millisecond boundary.[1][4]

On a standard 12-lead electrocardiogram, this inversion manifests as a tightly coupled pair of pacing spikes. The visual presentation often mimics a premature ventricular contraction, leading clinicians to initially suspect that the patient's heart is generating ectopic beats rather than the pacemaker intervening.[3]

Device troubleshooting protocols emphasize that this shortened interval is the definitive signature of crosstalk. When the interval locks precisely at 110 milliseconds following an atrial pace, it confirms the safety algorithm has successfully intercepted a false signal.[1][3]

This inversion happens entirely without a sensing deficit. A sensing deficit, or undersensing, occurs when a lead fails to detect a genuine cardiac signal, usually due to scar tissue, lead displacement, or a programmed sensitivity threshold that is too high.[2]

In a crosstalk scenario, the ventricular lead is demonstrating oversensing—it is detecting too much, not too little. The hardware is functioning at peak efficiency, capturing the 5.0-volt atrial stimulus exactly as its 2.0-millivolt sensitivity parameters instruct it to do.[1][2]

Clinical Adjustments and Blanking Periods

While the Ventricular Safety Pacing algorithm prevents cardiac arrest, chronic crosstalk is not an ideal operating state. The shortened 110-millisecond interval compromises the heart's mechanical efficiency, reducing the amount of blood the ventricles can pump with each artificially compressed beat.[3]

To resolve the issue, electrophysiologists rely on a programmable feature called the ventricular blanking period. This is a brief window of absolute blindness—typically lasting between 12 and 40 milliseconds—triggered the exact millisecond the atrial lead fires its pulse.[1][2]

During this 12-to-40-millisecond blanking period, the ventricular sensing circuit is completely disconnected from the device's logic board. The pacemaker intentionally ignores any electrical voltage crossing the lead, allowing the massive 5.0-volt atrial pacing artifact to dissipate before the sensor is reconnected.[1]

If the blanking period is programmed too short, the tail end of the atrial pulse will still be detected, triggering the 110-millisecond safety pace. If it is programmed too long, the pacemaker risks missing a genuine, early premature ventricular contraction.[2][3]

Clinicians can also eliminate crosstalk by lowering the atrial pacing output from 5.0 volts to 3.5 volts, reducing the size of the electrical echo. Alternatively, they can decrease the ventricular sensitivity, raising the detection threshold from 2.0 millivolts to 3.0 millivolts so the lead ignores weaker signals.[1][3]

The Engineering Trade-Off

The interplay between crosstalk, blanking periods, and safety pacing represents a fundamental engineering compromise in cardiac rhythm management. Manufacturers must balance the need for acute sensitivity to native heartbeats against the risk of detecting the device's own internal electrical noise.[2][4]

Modern devices detailed in a 2025 clinical review now feature dynamic blanking periods. These algorithms automatically measure the duration of the atrial pacing artifact on a beat-to-beat basis, extending or shortening the ventricular blindness window to match the exact electrical environment of the patient's heart.[2]

Despite these advancements, the 110-millisecond Ventricular Safety Pacing window remains a mandatory, unalterable feature in nearly all dual-chamber pacemakers. It serves as the ultimate fail-safe, ensuring that an electrical illusion never results in a lethal failure to pace.[1][2]

Understanding this mechanism strips away the mystery of the inverted pacing interval. The shortened cycle is not a symptom of a failing battery, a fractured lead, or a degraded sensing circuit, but the precise execution of a life-saving mathematical rule.[3][4]

By forcing the ventricular pace early, the device prioritizes guaranteed cardiac output over optimal mechanical timing. It is a testament to the fact that in cardiac electrophysiology, an early beat is always preferable to no beat at all.[2][4]
