How Meta's Haystack Architecture Bypasses POSIX Inodes to Read Photos in a Single Disk Seek

When a user requests an older photo on a social network, the performance bottleneck is rarely the network transfer. The true delay occurs at the storage layer, where locating a specific file forces the mechanical disk head to physically move. This mechanical movement, known as a disk seek, dictates the system's maximum throughput.[1]

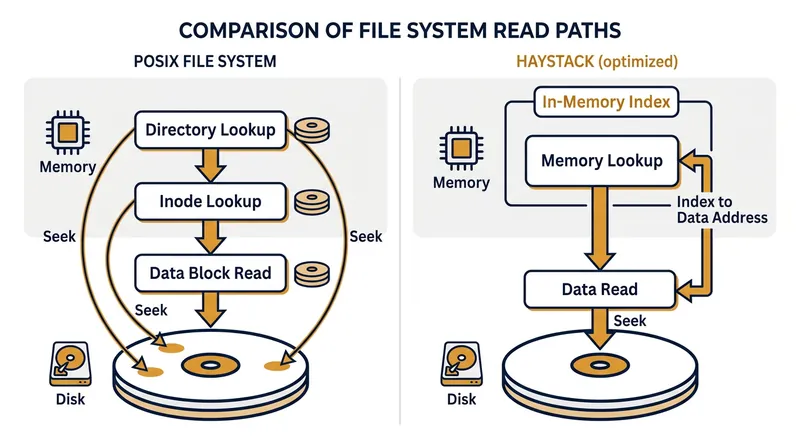

In a standard POSIX file system, retrieving a single file requires multiple disk seeks just to read the metadata. The system must traverse the directory tree, locate the file name, and read the corresponding inode from the disk. Only after these metadata operations complete can the disk head move to the actual image payload.[1][2]

Meta's Haystack architecture bypasses this POSIX metadata traversal entirely by keeping a custom index in standard server memory. By mapping a photo's unique identifier directly to a physical offset within a massive contiguous file, the system eliminates directory lookups. This guarantees that retrieving an image requires exactly one disk seek.[1][3]

The Limits of Network Attached Storage

Before developing Haystack in 2010, Facebook relied on commercial network-attached storage appliances running over the NFS protocol. Each photo was stored as an individual file within a standard directory structure. As the platform scaled to billions of images, this general-purpose approach began to buckle under the sheer volume of metadata.[1][4]

The core issue was not the size of the photos, but the number of them. A standard file system allocates an inode for every single file, storing permissions, ownership, and access timestamps. For a photo-sharing application, this metadata is entirely useless, yet it consumes hundreds of bytes per image and requires dedicated disk operations to read.[2][3]

When a server attempted to fetch a photo, it often had to perform three separate disk seeks. It read the directory metadata, loaded the inode into memory, and finally read the file contents. Multiplied across millions of requests per second, these redundant seeks caused severe disk thrashing and choked the storage cluster's throughput.[2]

The Long Tail Cache Problem

A common industry assumption is that a Content Delivery Network can absorb this read pressure by caching popular files. While these networks successfully serve the most frequently accessed profile pictures and viral posts, they cannot hold the entire historical archive in memory. This creates a persistent challenge known as the long tail.[1][2]

The long tail consists of older, rarely accessed photos that users occasionally scroll back to view. Because these images are requested infrequently, they are quickly evicted from the edge cache. Consequently, a massive volume of requests still falls through to the backing storage servers, forcing them to retrieve the files from physical disks.[2]

Caching the file system metadata in RAM was also mathematically impossible under the old architecture. A standard XFS inode consumes approximately 600 bytes of memory. For a cluster holding hundreds of billions of images, caching just the inodes would require hundreds of terabytes of RAM, rendering the hardware costs economically unviable.[3][5]

Consolidating Files into Physical Volumes

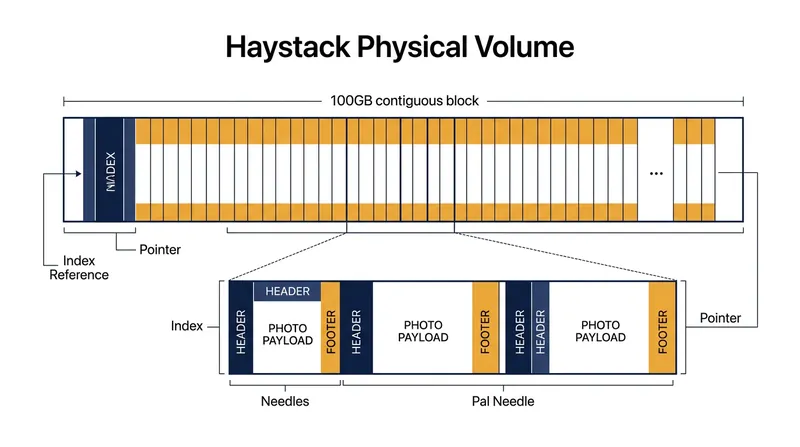

To solve the metadata bloat, the Haystack engineering team abandoned the concept of storing one photo per file. Instead, they designed an object store that aggregates millions of individual photos into massive, pre-allocated files called physical volumes. Each physical volume is typically 100 gigabytes in size.[1][2]

Within these massive volumes, individual photos are stored sequentially as data blocks called needles. Each needle contains a short header, the actual image payload, and a footer. Because the photos are packed tightly together within a single file, the underlying operating system only needs to maintain a single inode for the entire 100-gigabyte volume.[2][3]

This consolidation drastically reduces the burden on the underlying XFS file system. Rather than managing millions of file descriptors and directories, the operating system manages just a few dozen massive files per server. The responsibility for locating a specific photo shifts from the operating system to the custom Haystack application layer.[2]

The In-Memory Needle Offset

The true breakthrough of the Haystack architecture is its custom in-memory index. Because the system no longer relies on POSIX inodes, it tracks the location of each photo using a highly optimized, 32-byte data structure. This structure maps a 64-bit photo key to a specific 32-bit offset and 16-bit size within the physical volume.[3][5]

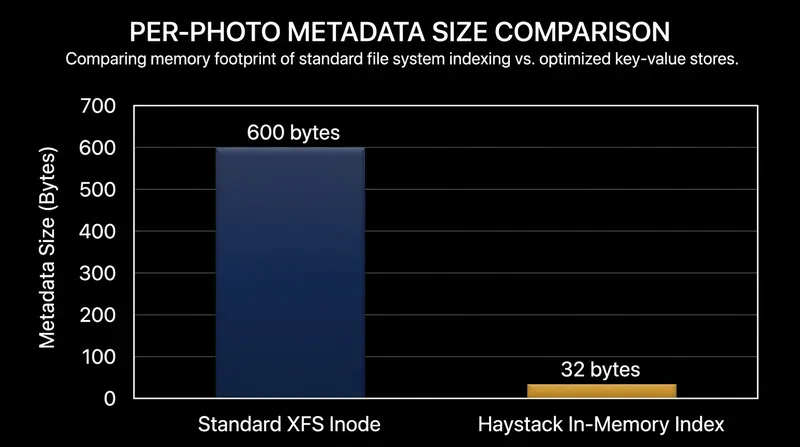

Shrinking the per-photo metadata from a 600-byte inode to a 32-byte index fundamentally changes the hardware economics. The entire index for a fully loaded storage server can now fit comfortably within a few gigabytes of standard RAM. The server never has to query the disk to find out where a photo lives.[3][5]

When a read request arrives, the Haystack Store machine consults this in-memory index instantly. It identifies the exact byte offset where the photo begins and issues a single read command to the disk. The mechanical read head moves exactly once, retrieves the payload, and returns the image to the user.[1][2]

Handling Writes and Deletions

Haystack achieves this streamlined read performance by strictly enforcing an append-only write pattern. When a user uploads a new photo, the system simply appends the new needle to the end of the active physical volume. It then updates the in-memory index to reflect the new photo's offset and size.[2]

Because photos are never modified in place, the system avoids the fragmentation and complex block allocation that plague traditional file systems. If an application needs to overwrite an image, it simply appends a new needle with the same photo key. The in-memory index is updated to point to the newest offset, effectively abandoning the old data.[2]

Deletions are handled with a similarly lightweight approach known as lazy deletion. When a user deletes a photo, Haystack does not immediately erase the data or reclaim the disk space. Instead, it flips a single bit in the in-memory index and sets a deleted flag on the needle's header in the physical volume.[2][3]

This lazy deletion ensures that write operations remain purely sequential, preserving the disk's write throughput. The storage servers periodically run a background compaction process, known as garbage collection. This process copies all valid, non-deleted needles into a new physical volume and reclaims the space left behind by the deleted images.[2]

The Directory and Cache Layers

While the Haystack Store manages the physical disks, two other components complete the architecture. The Haystack Directory serves as the central brain of the cluster. It maintains the mapping between logical volumes and the specific physical machines that host their replicas, ensuring fault tolerance across different data centers.[1][2]

When a web server needs to upload a photo, it asks the Directory for a write-enabled logical volume. The Directory load-balances these write requests across the fleet, directing traffic away from volumes that are nearing their 100-gigabyte capacity. Once a volume is full, the Directory marks it as read-only.[2]

The Haystack Cache sits between the external network and the storage servers, acting as an internal buffer. It is organized as a distributed hash table and specifically caches photos fetched from write-enabled machines. This protects the active storage nodes from heavy read traffic, allowing their disk heads to focus entirely on appending new uploads.[2][3]

Engineering for Hardware Realities

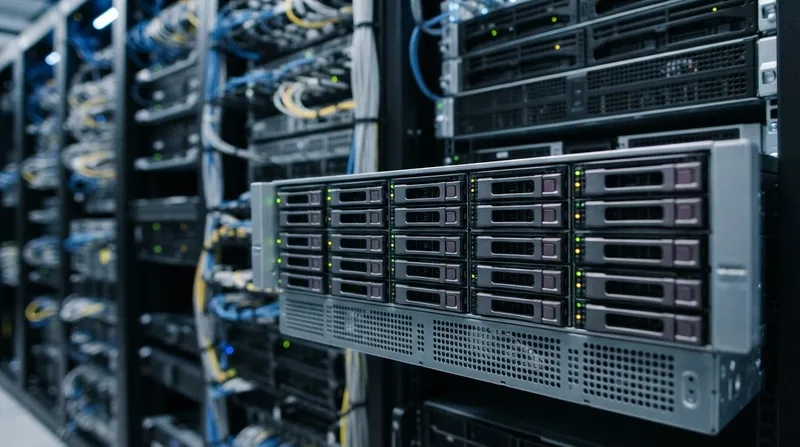

The Haystack architecture demonstrates the performance gains possible when software is explicitly co-designed with hardware constraints. By acknowledging that mechanical hard drives are seek-bound rather than throughput-bound, the engineering team optimized the entire stack to eliminate unnecessary disk head movement.[5]

The system strips away the universal abstractions of standard operating systems, discarding features like hierarchical directories and granular file permissions. In exchange for this loss of general utility, the architecture delivers a highly specialized object store capable of serving millions of images per second at a fraction of the traditional hardware cost.[5]

Ultimately, the transition from network-attached storage to in-memory needle offsets allowed the platform to scale its media infrastructure sustainably. By reducing the metadata footprint by over 94 percent, the architecture ensures that the slowest component of the server is only queried when it is time to deliver the actual data.[5]

Reconstructing the Index on Reboot

Because the 32-byte needle offsets live entirely in volatile RAM, a server reboot clears the index. To recover, the Store machine must reconstruct the mappings before it can serve requests. It does this by sequentially reading the massive physical volume from start to finish.[2]

Reading a 100-gigabyte file sequentially is significantly faster than performing random seeks, but it still takes time. To accelerate the reboot process, the server periodically writes an asynchronous checkpoint of the in-memory index to a separate file. Upon startup, the machine loads this checkpoint and only scans the physical volume for needles appended after the checkpoint was saved.[2][3]

This recovery mechanism highlights the resilience of the append-only design. Even if the checkpoint file is corrupted or lost, the raw data remains safe within the physical volume. The system can always rebuild its metadata from scratch, ensuring that a software crash never results in the permanent loss of user photos.[5]
