Bypassing Linux sk_buff Allocation at the NIC Driver: Katran Cuts Layer 4 Load Balancing Overhead by 70 Percent

When a 64-byte network packet arrives at a standard Linux server operating at 100 gigabits per second, the system has roughly 100 nanoseconds to decide its fate. At this extreme velocity, traditional software routing mechanisms quickly become the primary bottleneck for data center traffic, struggling to keep pace with the hardware.[2]

Before the kernel can even read the destination IP address, it typically allocates a complex metadata structure called an sk_buff from the SLUB allocator. This 200-to-300-byte object holds pointers to the raw packet data and tracks every field the network stack could possibly need for processing.[2]

The sk_buff meticulously tracks which physical interface the packet arrived on, the protocol header offsets, cryptographic checksums, and precise timestamps. While this extensive metadata is essential for standard socket delivery, generating it for every single incoming packet incurs a massive computational penalty at hyperscale volumes.[7]

At 148 million packets per second, the sheer volume of these memory allocations completely saturates the CPU. The system ultimately spends significantly more time allocating, initializing, and freeing memory structures than it does actually inspecting, filtering, or routing the underlying network traffic.[2]

As the CPU struggles to keep up, context switches spike, system time dominates the processor, and the hardware receive ring eventually overflows. When this overflow happens, the network interface card silently drops packets before the application layer even registers that they arrived on the server.[2]

The eXpress Data Path

Meta engineered Katran to bypass this exact memory bottleneck entirely. Operating as an open-source Layer 4 network load balancer, Katran intercepts incoming traffic at the earliest possible moment in the server's hardware pipeline, long before the standard Linux networking stack takes control of the packet.[3]

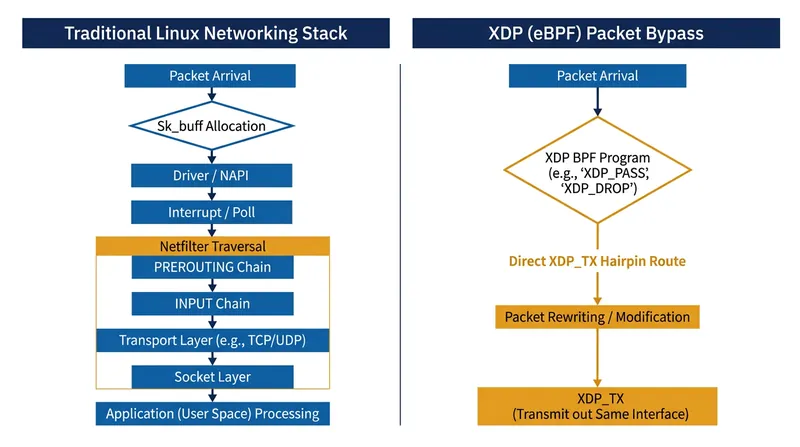

The software hooks directly into the network interface card driver's receive path, immediately after direct memory access completion. At this specific stage, the packet is still just raw bytes sitting in the hardware's receive ring buffer, completely untouched by the operating system's memory managers.[7]

Katran utilizes a Linux kernel feature called eXpress Data Path (XDP) to execute custom extended Berkeley Packet Filter (eBPF) bytecode at this precise interception point. The kernel's built-in verifier rigorously checks this code to ensure it runs safely without crashing the system or accessing unauthorized memory.[5]

Because this eBPF program runs before the kernel initializes the standard networking stack, it never triggers an sk_buff allocation. The packet successfully avoids the complex netfilter chains, expensive routing lookups, and standard socket delivery mechanisms entirely, preserving vital CPU cycles.[5]

Instead of relying on kernel routing, the XDP program simply reads the raw packet header in place. It hashes the 5-tuple—the source and destination IP addresses, the specific ports, and the protocol—to identify the unique network connection and determine exactly where the traffic should go.[1]

Hashing and Hairpinning

To select a backend server for the connection, Katran employs an extended version of Maglev hashing. This specialized algorithm provides a highly stable, near-uniform mapping from the incoming network flow to a specific physical machine operating within the massive data center pool.[6]

Maglev hashing shifts gracefully when the backend server pool inevitably changes. If a server is added to the cluster or removed for maintenance, the algorithm does not reshuffle every existing connection, preventing widespread disruption and dropped connections across the entire server fleet.[6]

Katran also maintains a small least-recently-used cache of recent flows directly in per-CPU memory maps. Under heavy memory pressure, the software intelligently drops the cache and recomputes the hash, trading a small amount of CPU time to maintain strict, predictable memory limits on the load balancer.[6]

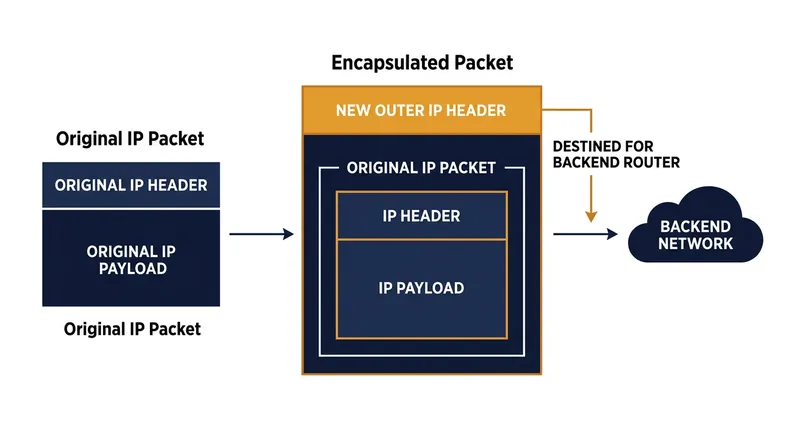

Once the appropriate backend is chosen, Katran encapsulates the original packet within an outer IP header addressed to the target machine. This IP-in-IP encapsulation technique perfectly preserves the original client source address, ensuring the backend server can reply directly to the user without routing back through Katran.[6]

Finally, the eBPF program issues an XDP_TX command to the hardware. This specific instruction tells the network card to hairpin the modified packet directly back out the exact same physical interface it arrived on, leaving the Linux kernel entirely unaware that the packet ever existed.[2]

The Hardware Reality Check

While eBPF is frequently marketed as a universal networking cure-all, Katran’s signature performance relies strictly on underlying hardware compatibility. The software is not a magical, drop-in appliance that will automatically accelerate packet processing on every standard Linux server in a corporate data center.[4]

The 70 percent overhead reduction only materializes if the network card driver explicitly supports Native XDP. This specific hardware mode allows the eBPF program to run directly inside the driver context, maximizing the performance gains by intercepting the packet before any kernel structures are built.[4]

If the hardware lacks Native XDP support, the system automatically falls back to Generic XDP. In this software fallback mode, the eBPF program executes only after the sk_buff is already allocated by the kernel, severely limiting the utility of the entire architecture.[4]

Running in Generic XDP entirely defeats the primary purpose of the kernel bypass. The heavy memory allocation penalty is paid in full, the expensive context switches still occur, and the heavily advertised performance gains of the Katran load balancer evaporate almost instantly.[4]

Furthermore, standard XDP requires incoming packets to fit perfectly within a single 4,096-byte memory page. On specific Intel network drivers, the maximum transmission unit limit is even stricter, capping at 3,046 bytes and requiring careful, deliberate network configuration to prevent fragmented packets from dropping.[4]

The Arithmetic of Scale

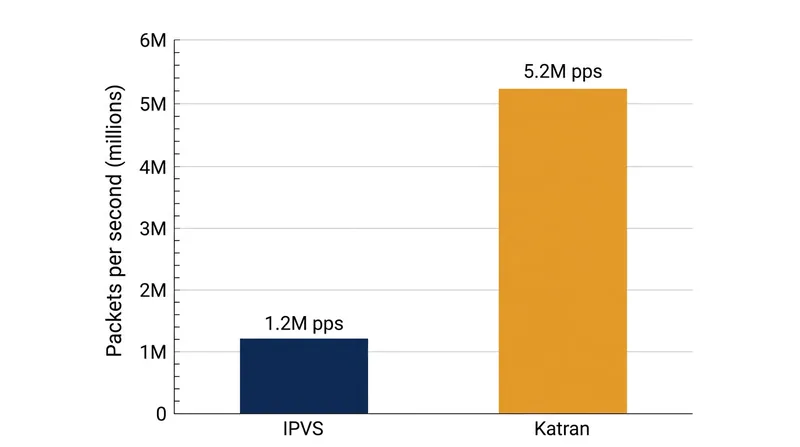

When Native XDP is available and properly configured, the performance arithmetic is stark. Traditional software load balancers like IPVS, which rely heavily on the standard kernel stack, peak at roughly 1.2 million packets per second when operating on a single CPU core.[1]

By eliminating the memory allocation and context switches entirely, Katran processes an impressive 5.2 million packets per second on that exact same core. This represents a massive 4.3-fold throughput increase over the native Linux load balancer, fundamentally changing the economics of edge routing.[1]

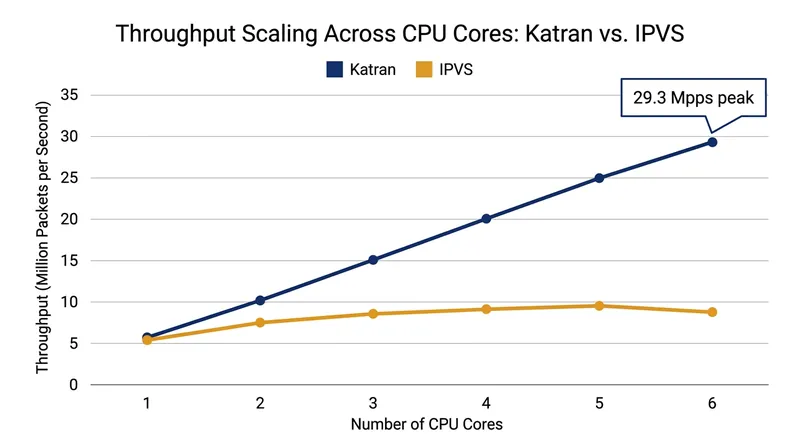

Across six CPU cores, IPVS scales to handle 7.3 million packets per second. Katran, operating without shared locks and maintaining state in isolated per-CPU maps, scales linearly to process a staggering 29.3 million packets per second on the same hardware footprint.[1]

This linear scaling is exactly what allows Meta to expose thousands of backend servers as a single virtual IP address. It handles hundreds of millions of concurrent connections without requiring the deployment of expensive, proprietary hardware appliances at the edge of the network.[3]

The per-packet savings define the entire architectural advantage. A userspace balancer copies each packet from kernel memory to user memory and back, locking shared state along the way. Katran does neither, processing the packet in place and eliminating lock contention entirely.[6]

The Future of Edge Routing

The broader technology industry is rapidly adopting this driver-level interception model. Cloudflare utilizes a similar XDP-based system called L4Drop for volumetric DDoS mitigation, identifying and dropping massive waves of attack traffic before it consumes any meaningful system resources on the edge servers.[5]

By eliminating the sk_buff allocation, a single core running XDP can drop up to 26 million malicious packets per second. The server's CPU remains entirely free to process legitimate application traffic, even during massive, sustained network assaults that would cripple traditional firewalls.[4]

Deploying these advanced systems requires deep expertise in Linux networking, custom compilation toolchains, and command-line debugging tools. It is complex infrastructure engineering, requiring operations teams to understand exactly how their specific network cards interact with the kernel's lowest-level memory managers.[6]

Ultimately, Katran demonstrates that the fastest way through the Linux networking stack is to avoid entering it altogether. By pushing routing logic down to the hardware driver, infrastructure engineers can reclaim vital CPU cycles and dedicate them entirely to actual packet delivery.[1][8]
