How Compressor Bleed Air Creates an Insulating Boundary Film to Protect Jet Turbines

The fundamental constraint of modern aviation is thermodynamic: to generate sufficient thrust, a jet engine must burn fuel at temperatures that destroy its own components. The gas entering the high-pressure turbine routinely exceeds 1,700°C.[2]

That temperature is roughly 300°C to 500°C hotter than the melting point of the nickel-based superalloys used to forge the turbine blades. If the combustion gases actually touched the bare metal, the blades would liquefy in seconds.[1]

The only reason commercial flight exists is because those gases never make contact. The engine relies on a continuous, microscopic cushion of cooler air to separate the inferno from the hardware.[5]

This mechanism is known as film cooling, and it represents the absolute limit of current materials science. It requires bleeding high-pressure air from the compressor and forcing it through the blades themselves.[3]

If that airflow is interrupted for even a fraction of a second, the thermal boundary collapses. The engine's survival depends entirely on maintaining this invisible shield during every moment of operation.[5]

The Thermodynamic Paradox

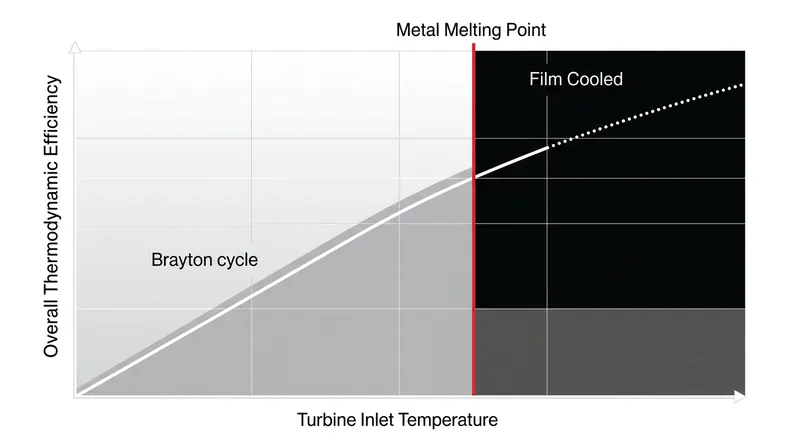

The push for hotter engines is not a marketing gimmick; it is a strict requirement of physics. According to the Brayton cycle, which governs gas turbines, thermal efficiency rises directly with the turbine inlet temperature.[2]

Power output and thermal efficiency increase as engineers push the combustion gases closer to 2,000°C. Advanced gas turbines now routinely operate in environments that vaporize standard industrial metals.[2]

However, the yielding point of advanced blade materials remains stubbornly anchored around 1,200°C to 1,350°C. Engineers have exhausted the periodic table trying to find metals that can survive these conditions natively.[1]

Even growing blades as single crystals—eliminating the grain boundaries where microscopic fractures begin—only buys a marginal increase in heat tolerance. The metal alone cannot survive the environment it operates within.[1]

The aviation industry often markets new engine models by touting their exotic superalloys. But the reality is that metallurgy lost the temperature race decades ago, forcing designers to rely on active aerodynamic shielding instead.[5]

Bleeding the Compressor

To build this shield, engineers steal air from the engine before it reaches the combustor. As air enters the front of the engine, the compressor squeezes it, raising its pressure and temperature.[3]

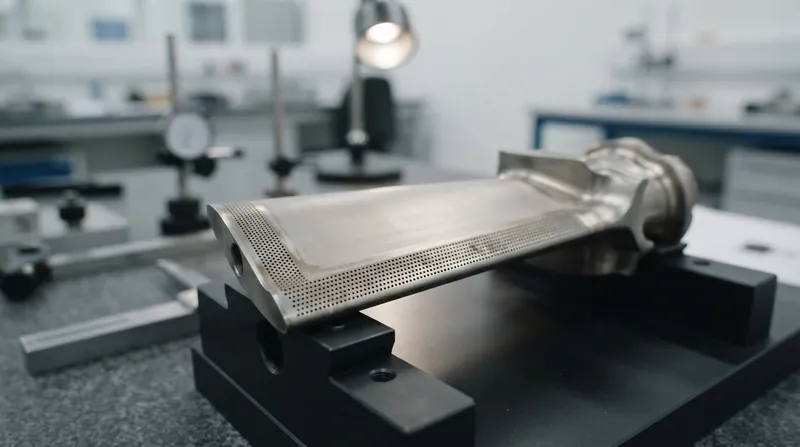

A fraction of this compressed air—typically 3% to 5%—is bled off and routed around the combustion chamber. Because it bypasses the fire, this air remains at roughly 600°C to 800°C.[3]

While 700°C air sounds blisteringly hot, it is effectively a coolant when compared to the 1,700°C exhaust gases. This compressor bleed air is channeled into the hollow cores of the spinning turbine blades.[1]

Inside the blade, the air navigates a serpentine maze of internal channels lined with ribs and pin-fins. This internal cooling extracts heat from the metal through forced convection before the air is ejected.[1]

But internal cooling alone is insufficient to bridge a 500°C thermal deficit. The air must eventually exit the blade, and how it exits is the defining feature of modern turbine survival.[5]

Constructing the Boundary Film

The surface of a modern turbine blade is perforated with thousands of microscopic, laser-drilled holes. These holes are angled precisely so that the exiting air does not shoot straight out into the gas stream.[1]

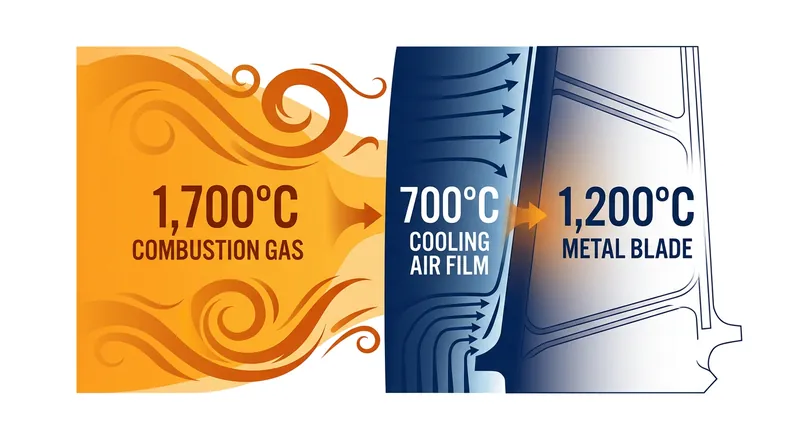

Instead, the cooler air is ejected tangentially, hugging the curved surface of the blade. This creates a continuous, flowing boundary layer—a film of 700°C air wrapped around the 1,200°C metal.[1]

"Cold-air is constantly bled out of these holes, creating a cushion of air around the blade that insulates the metal," explains the Cambridge University materials science report.

This film physically displaces the 1,700°C combustion gases, preventing them from transferring their thermal energy. The metal survives because it only ever interacts with the cooler boundary layer.[1]

A single high-pressure turbine stage can feature over 100,000 of these cooling holes, operating in perfect synchronization. The manufacturing precision required to drill them into curved superalloys often relies on femtosecond lasers.[5]

The Ceramic Overcoat

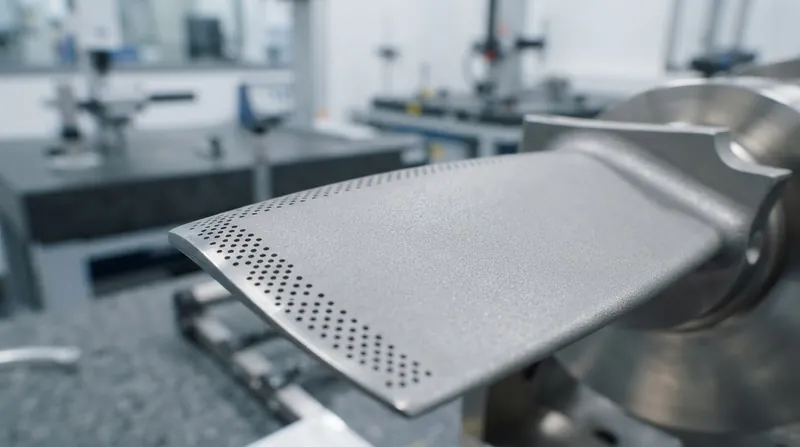

Film cooling does not work in isolation. The boundary layer is paired with a thermal barrier coating, typically made of yttria-stabilized zirconia, which is sprayed directly onto the blade's exterior.[1]

This ceramic layer has exceptionally low thermal conductivity. It acts like an industrial oven mitt, slowing the transfer of whatever heat manages to penetrate the air film before it reaches the metal substrate.[1]

The combination of the ceramic coating and the air film creates a steep temperature gradient. The gas stream is 1,700°C, the outer ceramic surface is cooler, and the metal beneath remains safely below its melting point.[5]

The heat flux level and distribution across the blade surface change dynamically based on the engine's thrust setting. Maintaining this gradient requires a delicate, continuous balance of air pressure and fuel flow.[2]

If the ceramic coating chips, or if dust and volcanic ash clog the microscopic cooling holes, the local temperature spikes instantly. The blade will begin to melt, triggering a catastrophic engine failure.[1]

The Cost of Cooling

While film cooling enables unprecedented thrust and fuel efficiency, it introduces a severe parasitic drag on the engine. Every kilogram of air bled from the compressor is air that cannot be burned with fuel.[3]

"The desire to produce a high engine efficiency demands a high turbine inlet temperature, but this causes problems as the turbine blades would be required to perform and survive," notes the Stanford University engineering documentation.[4]

Engine manufacturers constantly struggle to minimize this bleed requirement. Using 5% of the compressor's output for cooling represents a massive loss of potential power, but reducing it risks melting the hardware.[5]

Future engine designs aim to push turbine inlet temperatures toward 2,000°C, which will require even more sophisticated cooling geometries. Engineers are testing transpiration cooling, where the entire blade surface is porous.[1]

Until those porous materials become commercially viable, the aviation industry remains entirely dependent on film cooling. Every commercial flight operates on the razor's edge of this thermal boundary, trusting a microscopic layer of air.[5]
