How Meta's Llama 3.1 405B Architecture Actually Works

Inside the architecture of Meta's Llama 3.1 405B, exactly 126 transformer blocks sit stacked between the input token embeddings and the final output projection head. That specific depth—combined with 405 billion parameters—creates a computational geometry so massive that it cannot fit into the memory of any single commercial server. Training a network of that scale requires distributing the workload across thousands of GPUs, a process that forces compromises in how memory and compute are managed.[1]

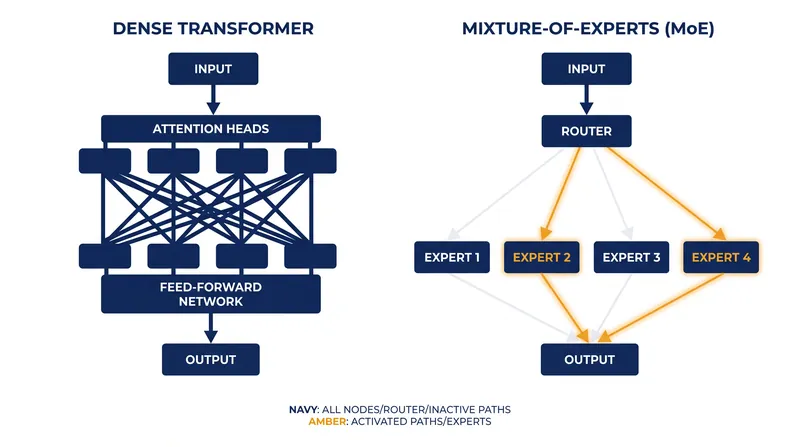

When Meta released the model in July 2024, the artificial intelligence industry expected a Mixture-of-Experts (MoE) architecture, a design that routes data through specialized sub-networks to save compute. Instead, the engineering team built a standard dense, autoregressive, decoder-only transformer. The decision was deliberate. "The Mixture-of-Experts (MoE) architecture is intentionally excluded, prioritizing stability and scalability in the training process," DataCamp researchers noted in their technical breakdown.[1][2]

A dense 405-billion-parameter model means every single parameter is activated for every token generated. This brute-force approach requires immense computational power, but it eliminates the routing complexities and load-balancing failures that often plague MoE models during training. To make this dense architecture viable at scale, Meta implemented several specific mathematical optimizations at the layer level.[1][2]

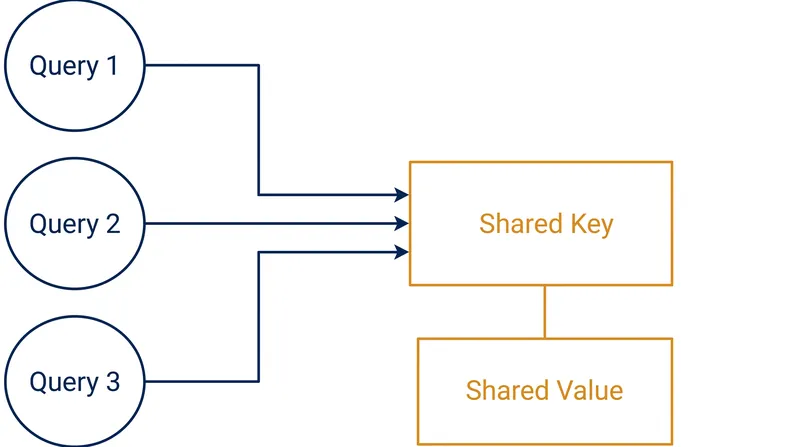

The most significant of these optimizations is Grouped-Query Attention (GQA). In a standard multi-head attention mechanism, every query head has its own dedicated key and value head, which consumes massive amounts of memory during inference. GQA groups multiple query heads to share a single key-value pair. This reduces the size of the key-value cache during decoding, allowing the model to process information much faster without a catastrophic drop in reasoning quality.[1]

To handle long documents, the architecture utilizes Rotary Position Embeddings (RoPE). Traditional transformers struggle to remember the exact position of words when the text gets too long. RoPE encodes positional information dynamically, allowing Llama 3.1 405B to maintain a context window of 128,000 tokens—roughly equivalent to a 300-page book. This extended context is critical for enterprise applications like code analysis and document summarization.[1][2][3]

Inside the feed-forward layers, the model replaces the standard ReLU activation function with SwiGLU (Swish-Gated Linear Unit). SwiGLU adds a gating mechanism that improves the model's expressiveness, allowing it to capture more complex linguistic patterns. Meanwhile, Root Mean Square Layer Normalization (RMSNorm) is applied across the network to stabilize the training gradients while reducing computational overhead.[1]

Training this architecture required a dataset of 15 trillion tokens, with a knowledge cutoff of December 2023. The pre-training phase exposed the model to a vast, multilingual corpus, teaching it grammar, facts, and reasoning patterns. Because the model is so large, the training infrastructure relied on a combination of tensor parallelism, pipeline parallelism, and data parallelism to partition the 126 layers across clusters of H100 GPUs.[1][4]

Following the initial pre-training, the model underwent Supervised Fine-Tuning (SFT) and Direct Preference Optimization (DPO). SFT involves training the model on specific, high-quality instruction datasets, while DPO aligns the model's outputs with human preferences without the complexity of training a separate reward model. This alignment phase is where the model learned to follow instructions, use tools, and refuse harmful prompts.[1][2][4]

The resulting performance rivals proprietary models. On the MMLU (Massive Multitask Language Understanding) benchmark, Llama 3.1 405B achieved a macro-average accuracy of 85.2%, and it scored 96.1% on the ARC-Challenge. These metrics demonstrate robust reasoning capabilities, particularly in mathematics and coding tasks.[1]

However, the true utility of the 405B model is not as a consumer chatbot, but as a distillation engine. "The knowledge and emergent abilities of the 405B model can be distilled into a smaller model, blending the capabilities of a large 'teacher' model with the fast and cost-effective inference of a 'student' model," IBM analysts explained. Meta actively encourages developers to use the 405B model to generate synthetic data for training smaller, more efficient models like the 8B and 70B variants.[3][4]

This distillation process is crucial because running inference on a 405-billion-parameter dense model is prohibitively expensive for most organizations. It requires multiple high-end GPUs just to load the weights into memory. By transferring the reasoning patterns of the 405B model into an 8B model, developers can deploy advanced artificial intelligence capabilities on edge devices like smartphones and laptops.[1][2]

The release of Llama 3.1 405B also sparked a debate about the definition of open source in artificial intelligence. While Meta distributes the model weights and inference code freely under a custom license, the 15-trillion-token training dataset and the exact training infrastructure code remain proprietary. The Open Source Initiative has argued that models lacking open training data do not meet the strict definition of open source, though the industry broadly accepts the open weights paradigm as a practical compromise.[4][5]

To address safety concerns at this scale, Meta integrated Llama Guard 3, a multilingual safety model designed to filter harmful content. The instruction-tuned versions of the 405B model are heavily optimized to refuse requests that violate safety guidelines, utilizing techniques like Reinforcement Learning from Human Feedback (RLHF) to maintain alignment.[1][2][4]

The architecture's native support for tool use represents another significant capability. The model is fine-tuned to generate tool calls for search engines, code interpreters, and mathematical reasoning engines. This allows the model to execute Python code or query external databases to verify facts before generating a response, bridging the gap between static language models and active autonomous agents.[1][3]

The engineering choices behind Llama 3.1 405B highlight a broader trend in foundation model development. By rejecting the complexity of Mixture-of-Experts in favor of a massive, dense transformer, Meta prioritized predictable scaling laws and training stability over theoretical inference efficiency. The 126 transformer blocks stand as a testament to the sheer scale required to push the boundaries of autoregressive language modeling.[1][5]
