How Directed Acyclic Graphs Separate Causation from Correlation in Observational Data

To calculate whether a policy, a drug, or a business decision actually caused an outcome using observational data, researchers must first satisfy a strict mathematical constraint: they must block 100 percent of the alternative pathways through which correlation could flow. That condition—known formally as the backdoor criterion—requires mapping the entire system of variables before running a single calculation.

Currently, that mapping relies on Directed Acyclic Graphs (DAGs), a visual algebra that forces analysts to explicitly declare what they believe about the world before the data can speak. If a single confounding pathway remains open, the resulting estimate is mathematically invalid.[4]

This constraint is the quiet reality behind the growing enterprise hype surrounding "Causal AI." Enterprise software vendors increasingly market tools that promise to move beyond the pattern-matching of Large Language Models—which often contain hundreds of billions of parameters—and automatically discover the "why" behind customer churn or supply chain failures.

But distinguishing what has actually shipped from what is merely announced reveals a significant gap. Current machine learning systems operate almost exclusively in a statistical, model-free mode. To achieve causal reasoning, the system requires a model of reality to guide it—a model that, for now, must be supplied by human domain experts.[1][3]

The fundamental challenge in causal inference is that causal effects cannot be directly observed. In a randomized controlled trial, researchers can physically force an intervention and hold all other factors constant. But in observational data, researchers can only observe what happened to each individual. They must deduce the counterfactual: what would have happened if the treatment had been different. Writing in an August 2025 technical overview, IBM researchers noted that without randomization, lurking variables known as confounders can easily create the illusion of a causal relationship where none exists.[1]

Historically, the standard statistical approach to confounding was simply to adjust for every measurable variable. Epidemiologists and econometricians would build massive regression models, throwing in 15 to 20 demographic and health factors, hoping that controlling for more variables would isolate the true effect. But this approach is fundamentally flawed. In 2011, computer scientist Judea Pearl won the Turing Award for proving that adjusting for the wrong variables can actually introduce bias rather than eliminate it. The solution he championed was the Directed Acyclic Graph.[2][3]

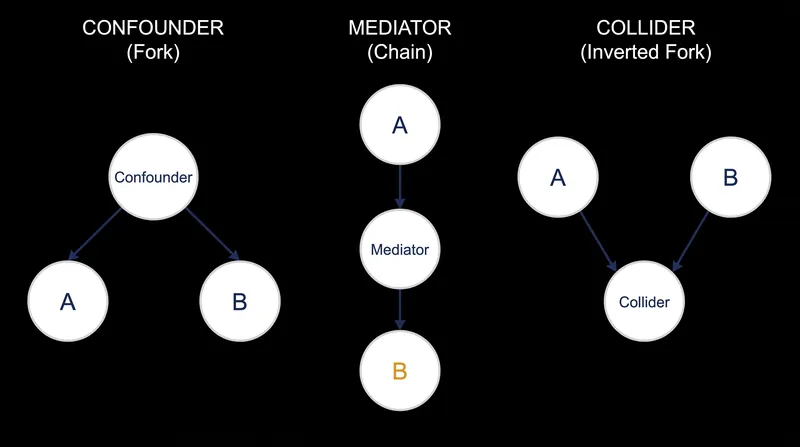

A DAG is a visual representation of causal assumptions. It consists of nodes, which represent variables, connected by directed arrows, which represent causal relationships. The graph is "directed" because causality flows in one direction, and "acyclic" because it contains 0 feedback loops.

If variable A causes variable B, an arrow points from A to B. Speaking on the Mindscape podcast in May 2022, Pearl described this relationship at the 16-minute mark in the simplest possible terms: the receiving variable simply "listens to" the transmitting one. "The barometer deflection listens to the atmospheric pressure," Pearl explained. "The rooster listens to the glow in the sky. That's the only relationship, it's a very primitive one."[3]

While the arrows in a DAG declare a causal effect, the most powerful assumptions are the arrows that are missing. The absence of an arrow between two variables is a strong mathematical assertion that no direct causal relationship exists between them. By drawing the graph, researchers create a complete map of every possible way that information can travel through the system. This map allows them to identify "backdoor paths"—routes that connect the treatment to the outcome through a shared cause, creating a spurious correlation.[4]

Pearl famously compared confounding to water in a pipe. The correlation flows freely through open pathways, and to isolate the true causal effect, researchers must block the water somewhere along the way. If even 1 backdoor path is left open, the correlation flowing through it will contaminate the final estimate. To block a path, researchers must condition on—or statistically adjust for—at least 1 variable along that specific route.[4]

This is where the visual algebra of the DAG becomes a strict mathematical calculus. The graph dictates exactly which variables must be adjusted for to satisfy the backdoor criterion. But crucially, it also dictates which variables must be left alone.

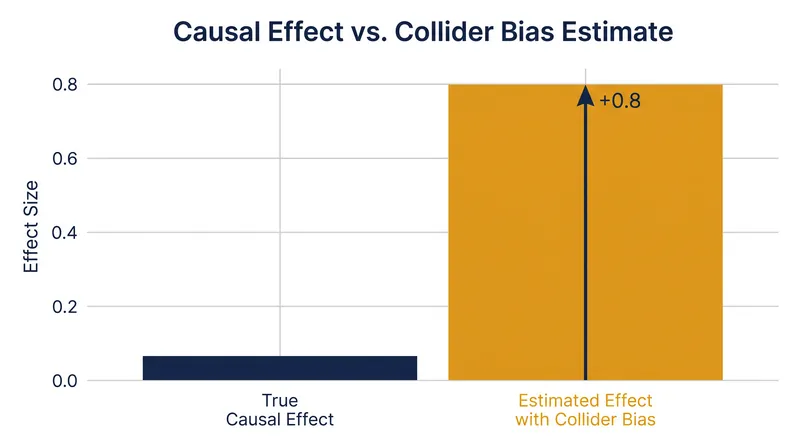

If 2 independent causes both influence a 3rd variable, that third variable is known as a "collider." A collider naturally blocks the flow of correlation between the two causes. However, if a researcher statistically adjusts for 1 single collider, they inadvertently open the valve, creating a false correlation between the two independent causes.[2]

The discovery of collider bias explains why the traditional approach of controlling for every available variable frequently produces incorrect results. By blindly adding variables to a regression model, researchers were routinely adjusting for colliders and opening backdoor paths that nature had already closed. The DAG provides the exact recipe for avoiding this trap, specifying the minimum set of variables required to isolate the causal effect without introducing new biases.[2]

Despite its mathematical rigor, the DAG framework has a profound limitation that marketing materials for Causal AI rarely acknowledge. The graph itself cannot be proven by the data. As outlined in a September 2024 reference guide by The Decision Lab, establishing causality requires accounting for limitations in observational data that algorithms cannot automatically resolve. The data can sometimes tell you if your graph is definitively wrong—by testing conditional independencies that the graph implies—but it can never prove that your graph is definitively right.

If the human-supplied DAG is incorrect, the causal estimates it produces will be mathematically precise but entirely wrong. The calculus of causation only guarantees correct answers if the graph accurately reflects the underlying data-generating process. This means that causal inference remains an inherently subjective exercise, requiring researchers to explicitly declare their assumptions and defend them against peer critique. The math cannot save a flawed theory of reality.[1]

The next frontier for the field is "causal discovery"—the attempt to use machine learning algorithms to automatically deduce the correct DAG directly from observational data. While some progress has been made using Bayesian additive regression trees and noise models over the last 3 to 5 years, the capability remains highly constrained. For the foreseeable future, separating causation from correlation will require human experts to sit down, draw the nodes, and explicitly map what listens to what.[1][4]
