How Magnetic North's Drift Forces Airports to Renumber Their Runways

A pilot's compass must perfectly match the painted number on the asphalt below, or the entire instrument landing system fails to align. When a heavy jet descends through thick fog, the crew relies on the magnetic heading broadcast by the runway to match their instruments exactly. If that condition holds, the plane lands safely.[2]

Right now, at airports around the world, that fundamental alignment is drifting out of sync. The Earth's magnetic field is in constant motion, driven by swirling liquid iron in the outer core. This geomagnetic secular drift pulls magnetic north away from true north, shifting the compass headings that govern global aviation.[1]

Because aviation relies on magnetic headings rather than geographic true north, this planetary shift has highly localized consequences. When the drift crosses a critical mathematical threshold, an airport has no choice but to shut down its landing strips, grind off the old paint, and assign the runway a brand new identity.[4]

The Ten-Degree Rule

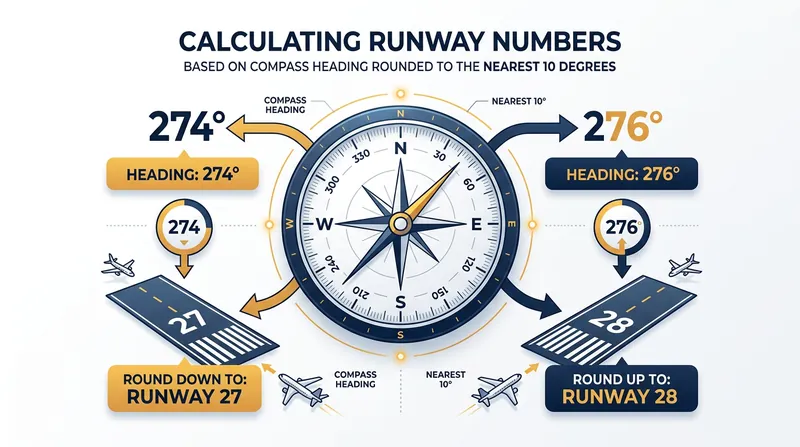

Runway numbers are not sequential or arbitrary. They are literal compass headings with the final zero dropped. A runway pointing due east, at 90 degrees on a compass, is designated Runway 09. If you turn your aircraft around and take off the opposite way, you are facing west at 270 degrees, making that same strip of asphalt Runway 27.[2]

The system relies on rounding to the nearest ten degrees. A runway with a precise magnetic heading of 274 degrees rounds down to 270, becoming Runway 27. If it sits at 276 degrees, it rounds up to 280, becoming Runway 28.[2]

This rounding mechanism creates a hard five-degree boundary. As long as the magnetic heading stays within a five-degree window, the painted number remains accurate. But the moment the Earth's magnetic pole wanders far enough to push the local heading across that halfway mark, the runway's official designation instantly becomes obsolete.[2]

The Pace of the Wandering Pole

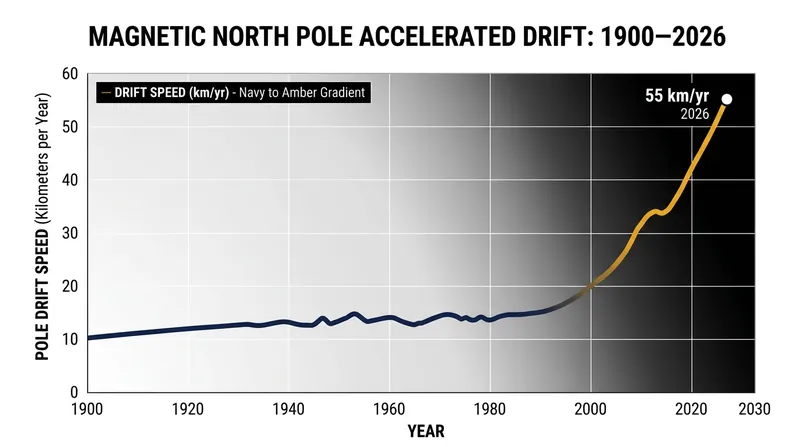

Magnetic north does not stay still. Over the last century, the pole has meandered across the Canadian Arctic, and in recent decades, its pace has accelerated. According to the National Oceanic and Atmospheric Administration (NOAA), the pole is currently sprinting toward Siberia at roughly 55 kilometers per year.[1]

To track this movement, NOAA and the British Geological Survey jointly publish the World Magnetic Model (WMM). This mathematical representation of the Earth's field is updated every five years, serving as the definitive reference for civilian aviation authorities worldwide.[1]

"The magnetic pole is moving faster than at any time in recorded history, which forces us to update the World Magnetic Model more frequently to ensure safe navigation," explains Arnaud Chulliat, a geophysicist affiliated with NOAA.[5]

For a pilot sitting on the tarmac, this planetary movement translates to a slow, steady rotation of the compass needle. In many parts of North America and Europe, local magnetic variation shifts by about 0.1 to 0.15 degrees every year.[1]

It sounds infinitesimal, but it accumulates. At a rate of 0.15 degrees per year, a runway will experience a full degree of magnetic shift every seven years. Give it three or four decades, and that slow creep will push the heading right across the five-degree rounding threshold.[3]

The Recalibration Process

Changing a runway number is a massive logistical undertaking that goes far beyond a fresh coat of paint. When an airport hits the threshold, administrators must coordinate the switch with the Federal Aviation Administration (FAA) or their local civil aviation authority to ensure the change propagates through the global system.[2]

Every piece of navigational infrastructure tied to that runway must be recalibrated. Instrument Landing System (ILS) beacons, which guide aircraft down the glide path, are physically adjusted to broadcast the new magnetic alignment.[4]

On the ground, maintenance crews work through the night to physically alter the airport. They water-blast the massive white numerals off the asphalt—each number stands over 60 feet tall—and paint the new designation. Taxiway signs, holding position markers, and terminal maps are all swapped out before the first morning flight.[2]

Updating the Global Map

The physical changes at the airport are only half the battle. The new runway identity must be injected into the digital bloodstream of global aviation. Flight management computers in tens of thousands of aircraft require software updates to recognize the new heading.[4]

If a pilot's digital chart says they are cleared to land on Runway 19, but the asphalt below them reads 20, the discrepancy triggers immediate safety alerts. To prevent this, changes are synchronized with the 28-day Aeronautical Information Regulation and Control (AIRAC) cycle, ensuring every pilot and air traffic controller in the world switches to the new data on the exact same day.[4]

We have seen this play out at major hubs recently. In 2022, Tampa International Airport closed its primary landing strips to change Runway 18R/36L to 19R/01L. Oakland International and London Stansted have undergone similar runway renumbering in the past decade.[3]

As the pole continues its sprint, more airports built during the mid-20th century aviation boom are finding their original headings pushed past the breaking point. The infrastructure remains stationary, but the invisible grid it relies upon has moved out from under it.[3]

Why Not Use True North?

With the advent of GPS, a frequent question is why aviation still relies on a shifting magnetic field rather than fixed geographic true north. The answer lies in redundancy and the physical reality of the aircraft.[4]

GPS is highly accurate, but it relies on fragile satellite signals that can be jammed, spoofed, or lost during a solar storm. A magnetic compass, however, is a physical instrument governed by the Earth itself. It requires no electricity and cannot be hacked.[2]

Furthermore, aircraft naturally align themselves with the wind, and wind patterns are deeply tied to the Earth's physical orientation. By keeping the foundational navigation system tied to the magnetic field, aviation maintains a fail-safe backup that has guided pilots safely home for over a century.[4]

Until a completely unjammable, universally adopted alternative exists, the aviation industry will continue its slow dance with the Earth's core. The numbers on the asphalt will keep changing, one five-degree shift at a time, ensuring that when a pilot looks down through the clouds, the compass and the concrete tell the exact same story.[3]
