Why Aircraft Bleed Air Systems Cool Engine Tap-Offs to 200°C Before Air Conditioning Packs

When you reach up to adjust the overhead vent on a transatlantic flight, the crisp breeze rushing over your face feels entirely disconnected from the jet engines outside. Yet that air began its journey at a blistering 500 degrees Celsius—a magnitude of heat hot enough to melt lead. It enters the aircraft's pneumatic system as a searing, high-pressure hazard.

At cruising altitude, the atmosphere outside the aircraft sits at a lethal minus 50 degrees Celsius. To make this thin air breathable, the jet engine acts as a massive compressor, squeezing the ambient air until it is dense enough to sustain human life.

This compression generates immense thermal energy. By the time the air is tapped, or bled, from the engine's fifth and ninth compressor stages, it has reached those blistering temperatures. "Leaving the engine's compressor section at temperatures up to 1,000 degrees Fahrenheit... it needs to be tamed," notes a 2022 technical review by the Aircraft Owners and Pilots Association.[2]

This raw bleed air is far too hot to pipe directly into the fuselage. Routing 500-degree Celsius air through the wings would melt the aircraft's aluminum ducting and destroy the delicate environmental systems. More critically, it would introduce a catastrophic fire risk.

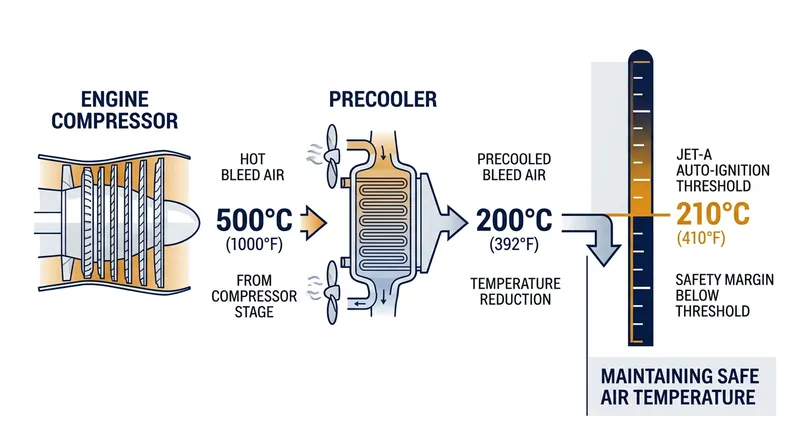

Before the air can leave the engine pylon, it must be aggressively cooled. Engineers rely on a dedicated component called a precooler to drop the temperature to exactly 200 degrees Celsius. This specific number is not arbitrary; it is a precise thermal ceiling dictated by the chemistry of aviation fuel.

The Auto-Ignition Threat

The ducting that carries bleed air from the engines to the cabin snakes directly through the aircraft's wings. These wings double as the plane's primary fuel tanks, holding thousands of gallons of Jet-A aviation fuel.

Jet-A is highly stable, but it has an auto-ignition temperature of approximately 210 degrees Celsius. If a heat source exceeds this threshold, the fuel vapors can spontaneously combust without any spark or open flame.

A ruptured bleed air duct inside the wing could easily expose these vapors to extreme heat. To eliminate this risk, the Federal Aviation Administration enforces strict thermal boundaries for any equipment operating near the fuel reserves.

Advisory Circular 25.981-1D, last updated in 2018, establishes 400 degrees Fahrenheit, or 204 degrees Celsius, as the maximum allowable surface temperature for components adjacent to fuel tanks. By capping the bleed air at 200 degrees Celsius, the precooler builds in a vital safety margin.[1]

Even in the event of a severe duct leak, the escaping air remains physically incapable of igniting the surrounding fuel. The 200-degree limit ensures that a mechanical failure in the pneumatic system does not escalate into an uncontrollable fire.

How the Precooler Works

To achieve this massive temperature drop in a matter of milliseconds, the precooler acts as a highly efficient air-to-air heat exchanger. It is typically mounted inside the engine strut, serving as the thermal gatekeeper between the turbine and the airframe.

The precooler resembles a curved automotive radiator, constructed from tightly packed titanium plates and fins. It relies on the engine's massive front fan to provide a constant supply of freezing bypass air.

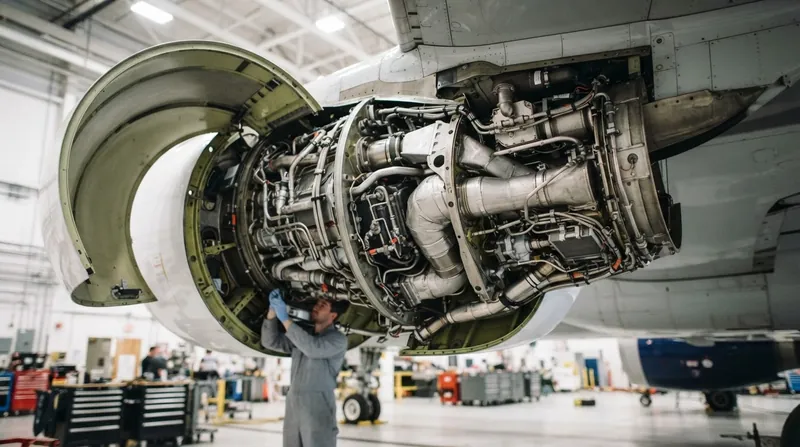

As the 500-degree bleed air flows through the internal channels of the precooler, the cold fan air rushes over the exterior fins. This cross-flow strips the excess heat away, venting it harmlessly out the back of the engine nacelle.

A thermostatic valve constantly monitors the output and adjusts the flow of the cooling fan air. Whether the engines are idling during descent or roaring at maximum takeoff thrust, this valve keeps the exiting bleed air locked at the safe 200-degree target.

Preserving the Ozone Converters

Fire safety dictates the absolute ceiling, but the delicate materials in the aircraft's downstream systems also demand this 200-degree limit. The first component the cooled air encounters inside the fuselage is often the ozone converter.

At 35,000 feet, the atmosphere contains elevated levels of ozone. If left untreated, this ozone would cause respiratory distress for passengers and rapidly degrade the plastic fibers used in the aircraft's air separation modules.

The converter uses a specialized catalytic core to break the ozone down into breathable oxygen. However, this precious-metal catalyst is highly sensitive to thermal damage and will fail if exposed to extreme heat.

Parker Aerospace, a leading manufacturer of these systems, rates its ozone converters for a maximum operating temperature of 260 degrees Celsius. Pushing raw, uncooled compressor air into this unit would instantly destroy the catalyst.[3]

By strictly regulating the bleed air to 200 degrees Celsius, the precooler ensures the ozone converter can operate efficiently for tens of thousands of flight hours. This protects both the passengers' lungs and the aircraft's inerting systems.

From 200 Degrees to Sub-Zero

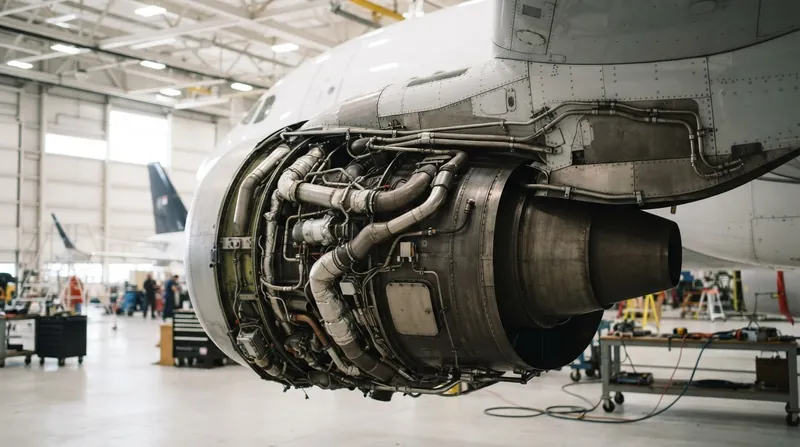

Once safely past the wings and the converters, the 200-degree air finally reaches the Environmental Control System packs. These massive air conditioning units are typically hidden in the lower belly of the fuselage, just ahead of the landing gear.

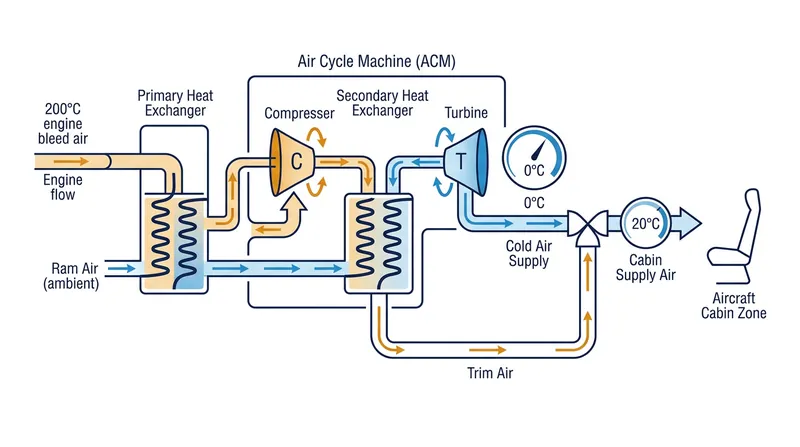

Here, the air undergoes a radical thermodynamic transformation. The system utilizes an Air Cycle Machine, which operates on an inverse Brayton cycle, to extract the remaining heat and pressure from the air.[4]

The machine forces the air through primary and secondary heat exchangers, cooled by outside ram air, before expanding it rapidly through a spinning turbine. This expansion drops the air temperature from 200 degrees Celsius down to near freezing.

The process simultaneously wrings out all the moisture, preventing the cabin from filling with thick fog during the flight. The resulting air is bone-dry and often drops below zero degrees Celsius as it exits the turbine.

Finally, this freezing air is mixed with a carefully metered amount of the original 200-degree trim air. This blend achieves the exact 20-degree Celsius temperature requested by the flight crew, completing the air's journey from the searing engine core to the quiet passenger cabin.
