The 50-Meter Threshold: How Runway Visual Range (RVR) Actually Dictates Low-Visibility Landings

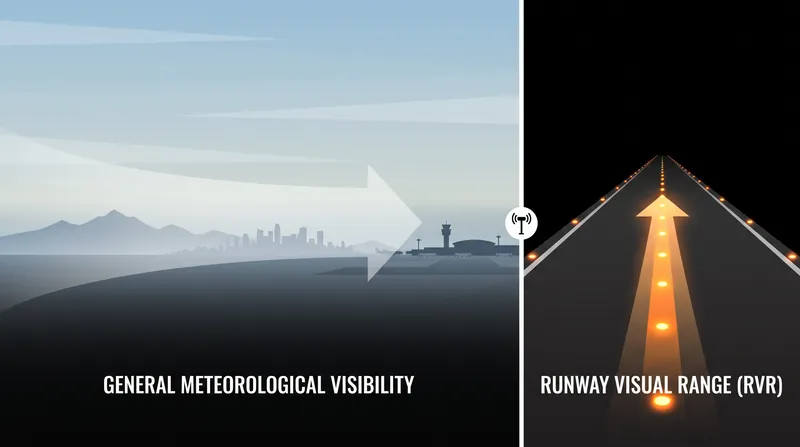

When you look out an airport terminal window into a dense, gray fog bank, you are observing general meteorological visibility—a broad, omnidirectional estimate of how far a standard object can be seen across the horizon. But for the flight crew preparing to land your 300-ton commercial jet, that general observation is largely irrelevant. The metric that actually dictates whether your flight can legally approach the tarmac is Runway Visual Range (RVR). Unlike prevailing visibility, RVR is a highly specific, instrument-derived measurement that calculates exactly how far a pilot positioned on the centerline can see the runway's surface markings and high-intensity lights.[1]

The distinction between these two measurements is often the dividing line between a routine arrival and a frustrating diversion. A weather report might indicate a prevailing visibility of two statute miles across the airfield, suggesting manageable conditions for your travel plans. However, if a localized fog bank settles directly over the active runway's touchdown zone, the RVR could plummet to 600 feet or less. Because RVR accounts for the intense luminance of approach lighting systems—which can cut through obscuration far better than natural daylight—it provides the definitive mathematical threshold for low-visibility operations.[1][2]

To capture this precise data, airports rely on specialized optical sensors installed directly alongside the runway, rather than a human observer squinting through the mist. Historically, observers would stand near the threshold and count the number of visible edge lights to estimate the range. Today, the aviation industry utilizes automated transmissometers and forward-scatter sensors. Transmissometers operate as two-unit systems, emitting a calibrated light beam from a projector to a receiver to measure exactly how much light is absorbed or scattered by atmospheric particles like fog, snow, or heavy rain.[2]

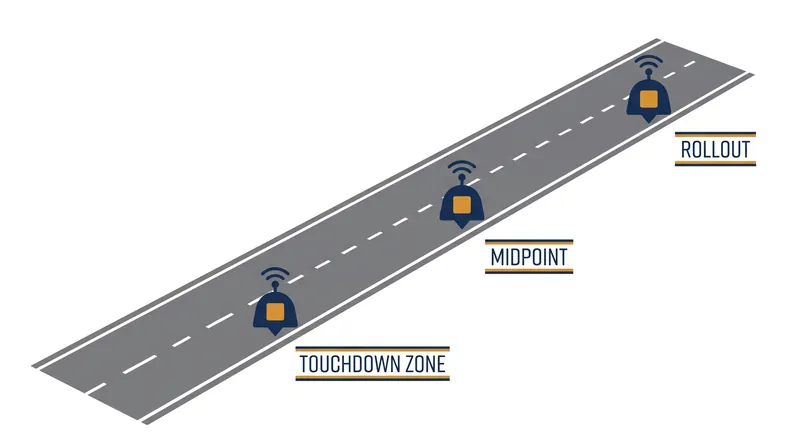

These sensors are strategically positioned at up to three critical points along the pavement: the touchdown zone, the midpoint, and the rollout end. For example, major hubs like Seattle-Tacoma International Airport utilize all three sensor positions to support their high-capacity instrument approaches. The touchdown zone sensor is the most critical, as it governs the initial phase of the landing where the aircraft meets the earth. The data collected by these instruments is continuously fed to air traffic controllers and broadcast to pilots via automated weather reports. In North America, the Federal Aviation Administration (FAA) reports RVR in feet, typically in increments of 100 or 200 feet, while international regulators report the value in meters.[1][5]

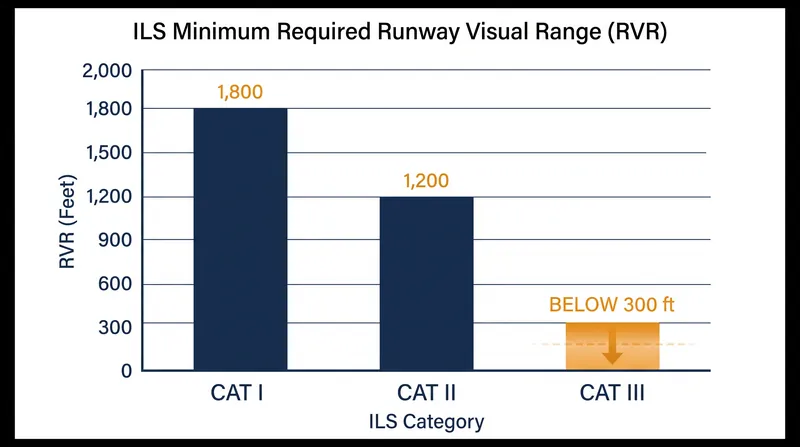

The RVR value directly corresponds to the Instrument Landing System (ILS) categories, which define the strict regulatory minimums for low-visibility approaches. A standard Category I (CAT I) approach generally requires an RVR of at least 1,800 to 2,400 feet (roughly 550 meters) and allows the pilot to descend to a decision height of 200 feet above the ground. If the runway environment is not clearly visible through the cockpit window at that exact altitude, the crew must abort the landing, apply takeoff thrust, and execute a missed approach.[3][4]

As visibility deteriorates and the fog thickens, the requirements become exponentially more stringent. Category II (CAT II) operations lower the decision height to a mere 100 feet, requiring an RVR of 1,200 feet (about 300 meters). To legally fly a CAT II approach, both the aircraft and the flight crew must hold specific, rigorous certifications, and the airport must be equipped with specialized centerline and touchdown zone lighting. The margin for error at this stage is virtually nonexistent, demanding seamless coordination between the aircraft's automated systems and the pilot's visual acquisition of the runway.[3][4]

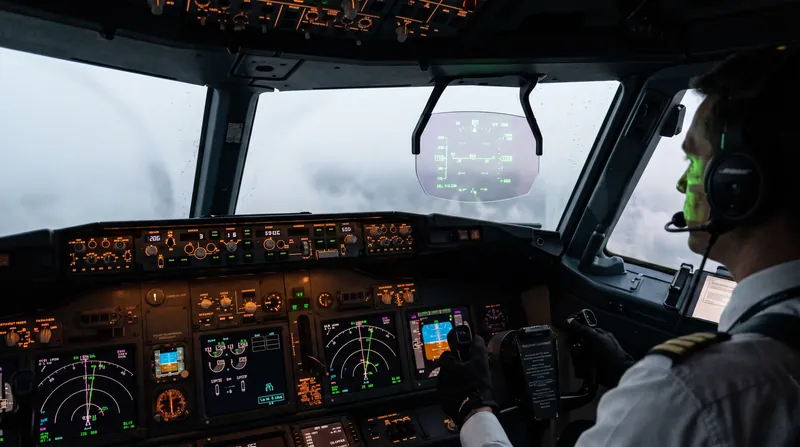

The ultimate test of low-visibility aviation occurs under Category III (CAT III) conditions, where the RVR drops below 300 meters and can reach as low as 50 meters (roughly 150 feet) or even zero. In these scenarios, human eyes simply cannot process visual references in time to manually flare and land the aircraft. Instead, the aircraft relies entirely on autoland technology. Multiple redundant autopilots track the ILS radio beams with pinpoint accuracy, managing the descent, flare, and touchdown automatically. The pilot's role shifts from flying the aircraft to meticulously monitoring the systems, ready to intervene if a failure occurs.[4][6]

The implementation of RVR and ILS categories ensures that aviation safety is never compromised by the pressure to maintain travel schedules. When a dispatcher reviews a weather forecast indicating dense fog, they are not looking at a definitive closure; they are analyzing an RVR window. If the RVR is below the required minimums for the aircraft's certified category, the approach is legally prohibited. This rigid framework explains why flights are often delayed or diverted even when the fog appears to be lifting at the terminal—the instruments must confirm that the mathematical safety threshold has been met before the wheels can touch the pavement.[1][6]

The physics behind RVR measurement highlight the complexity of the system keeping your flight safe. A forward-scatter sensor, which has largely replaced older transmissometers in the United States, uses a single integrated unit that emits an infrared beam into a small volume of air. A receiver, positioned at an off-axis angle, measures the amount of light scattered by water droplets or ice crystals. By calculating the extinction coefficient of the atmosphere, the system's computer derives the visibility with remarkable precision.[2]

However, atmospheric opacity is only one part of the RVR equation. The final reported value also factors in the ambient background luminance—whether it is bright daylight or pitch-black night—and the exact intensity setting of the runway edge and centerline lights. Because the human eye's contrast sensitivity changes depending on the background, a runway operating its lights at maximum intensity at night will yield a significantly higher RVR than the same runway in identical fog during the day.[2]

When an airport lacks functioning RVR sensors, or if a sensor goes offline, flight crews cannot simply substitute the general meteorological visibility into their approach calculations. Aviation regulators provide a strict mathematical bridge known as Converted Meteorological Visibility (CMV). By multiplying the reported visibility by a specific regulatory factor—which varies based on the runway's lighting infrastructure and the time of day—pilots can derive a legal substitute for RVR to keep operations moving.[1][3]

Yet, this conversion has hard regulatory limits. As noted in a 2025 technical review by meteorological equipment manufacturer Vaisala, "Precise RVR assessments become mandatory when visibility dips below 800 meters, according to the ICAO." CMV cannot be used if the airport is actively reporting an RVR value, nor can it be applied for takeoff minimums or when the required RVR is below that 800-meter threshold. In those critical low-visibility regimes, only a direct, instrument-measured RVR is legally acceptable.[2][3]

The operational ripple effects of low RVR extend far beyond the cockpit, directly impacting your time at the boarding gate. When visibility drops and Low Visibility Procedures (LVP) are enacted, the entire choreography of the airport changes. Aircraft require significantly greater spacing both in the air and on the ground. The protective zones around the ILS antennas must be kept entirely clear of taxiing aircraft to prevent signal interference, which forces arriving planes to clear the runway much further down the tarmac.[4][6]

This increased spacing drastically reduces the airport's hourly arrival and departure capacity. An airport that normally handles 60 landings an hour might be restricted to 20 or fewer when the RVR drops to CAT II or CAT III minimums. Consequently, even if your aircraft is fully equipped for an autoland and the runway is certified for it, your flight might still be delayed simply because the airport cannot safely accommodate the normal volume of traffic under LVP constraints.[2][6]

The financial and operational stakes of RVR compliance are immense for the airlines you fly with. Carriers invest millions of dollars to equip their fleets with Head-Up Displays (HUDs) and fail-operational autoland systems, and they spend countless hours training crews in simulators to maintain low-visibility currency. If a pilot's CAT III certification lapses, they are legally restricted to higher RVR minimums, which could force a diversion if the fog rolls in unexpectedly during your journey.[3][4]

Ultimately, the 50-meter threshold and the RVR system represent one of commercial aviation's greatest triumphs over the natural environment. By translating the subjective experience of "poor visibility" into an objective, continuously updated data stream, the industry has created a framework where 300-ton machines can safely find the earth when the pilots cannot see past their own wingtips. The next time a fog delay is announced, you can take comfort in knowing that the decision is governed not by guesswork, but by a precise optical measurement ensuring the runway is exactly where it needs to be.[1][6]
