How Inverter Microwaves Deliver Continuous Heat While Conventional Models Pulse Full Power

Appliance salespeople and manufacturer marketing materials routinely claim that setting a standard microwave to 50 percent power gently warms food at half strength. Engineering teardowns and thermal imaging reveal the exact opposite. A conventional microwave possesses only one output level—maximum—and simulates lower settings by violently toggling its magnetron on and off.[1][4]

When a user selects a defrost or simmer setting on a traditional unit, the internal power supply does not reduce the electrical current. Instead, a mechanical relay switches the 1,000-watt magnetron on for a few seconds, then completely off.[1]

During the active phase of this duty cycle, the food absorbs the full, unmitigated thermal assault of the appliance. The subsequent dead period allows conduction to pull that intense surface heat toward the frozen center before the next blast begins.[1][6]

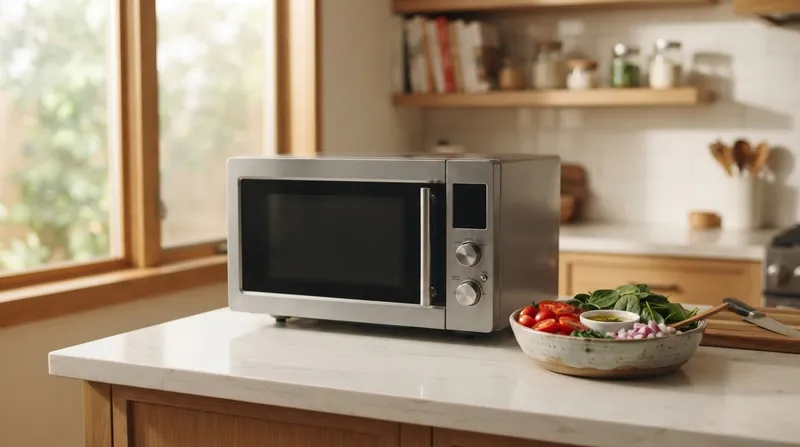

This binary operation explains why defrosting a chicken breast in a standard microwave often results in cooked, rubbery edges surrounding a rock-hard interior. The exterior simply cannot dissipate the 1,000-watt bursts fast enough during the off-cycle.[6]

The Mechanics of the Magnetron

The root of this limitation lies in the heavy magnetic transformer used in conventional microwave ovens since their invention. These traditional transformers step up standard 120-volt household current to the roughly 4,000 volts required to drive the magnetron tube.[1]

Because these transformers rely on fixed copper coils wrapped around an iron core, their voltage output cannot be dynamically adjusted. The magnetron either receives the massive voltage spike required to generate microwaves, or it receives nothing at all.[1]

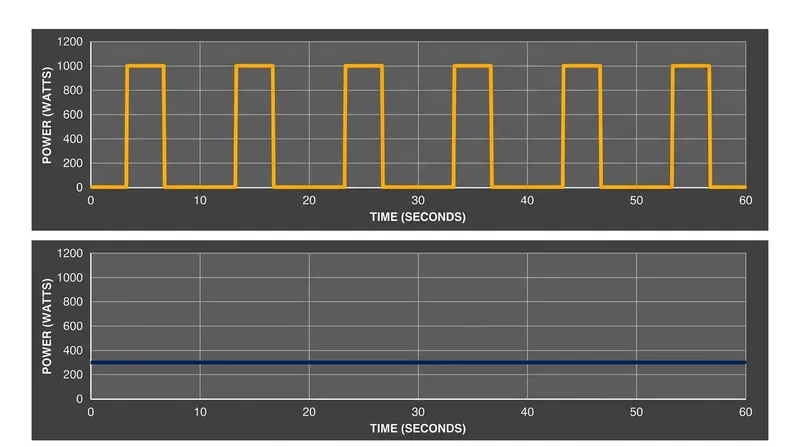

Appliance engineers refer to this as a fixed duty cycle. To achieve a 30 percent power level, the relay might power the magnetron for three seconds, shut it down for seven seconds, and repeat the loop until the timer expires.[1][3]

The acoustic signature of this process is obvious to anyone standing in a kitchen. The loud, low-frequency hum that kicks in and out during a low-power cycle is the physical sound of the heavy transformer engaging and disengaging under load.[4]

The Inverter Power Supply

Inverter technology replaces the bulky, heavy iron transformer with a compact solid-state circuit board. This modern power supply converts the incoming alternating current into direct current, then rapidly switches it back to high-frequency alternating current.[2]

By manipulating this high-frequency switching rate, the inverter board can precisely control the voltage delivered to the magnetron tube. This allows the appliance to actually output 300 watts of continuous microwave energy when set to 30 percent power.[2][3]

Panasonic pioneered this application in consumer microwaves during the late 1990s, and the company still manufactures the proprietary inverter components used by several other major appliance brands today. The technology fundamentally altered how the appliances manage thermal delivery.[2]

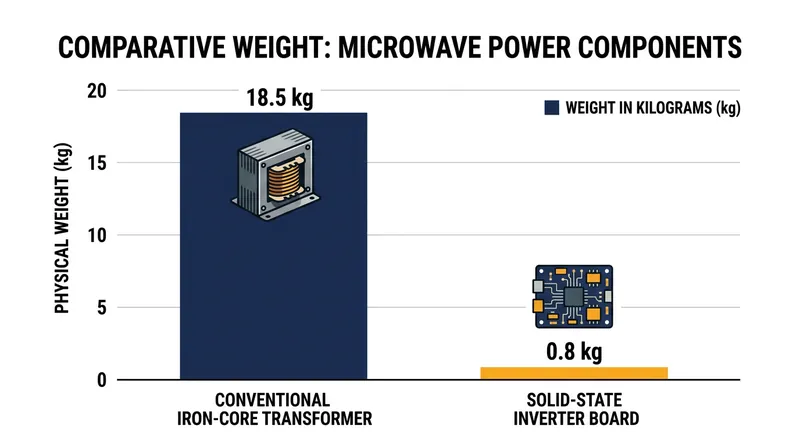

Because the solid-state board weighs ounces rather than pounds, inverter microwaves are noticeably lighter than their conventional counterparts. This weight reduction often translates to a slightly larger internal cooking cavity for the exact same exterior footprint.[2][4]

Thermal Impact on Food

The culinary difference between pulsed and continuous microwave energy becomes immediately apparent when melting butter or tempering chocolate. Continuous low-wattage delivery raises the lipid temperature evenly, preventing the sudden fat separation or scorching caused by 1,000-watt bursts.[6]

Thermal imaging of liquids heated via inverter technology shows a significantly tighter temperature gradient from the edge of the bowl to the center. Convection currents within the liquid establish a steady flow, rather than being disrupted by extreme thermal spikes.[3][6]

For reheating dense leftovers like casseroles or mashed potatoes, continuous modulated heat allows moisture to turn to steam at a controlled rate. This prevents the explosive steam pockets that typically splatter food across the ceiling of a conventional microwave.[6]

Defrosting raw meat represents the most demanding test of microwave performance. "Microwaves heat food unevenly, leaving cold spots where harmful bacteria can survive," states the USDA Food Safety and Inspection Service, highlighting the exact problem inverter technology attempts to solve.[5]

An inverter unit operating at a true 300 watts allows the meat's internal thermal conductivity to keep pace with the energy input. This steady approach thaws the center without denaturing the surface proteins, preserving the raw texture for actual cooking.[2][6]

Market Availability and Cost

Despite the clear performance advantages, inverter technology has not entirely displaced conventional heavy-transformer designs. The solid-state components remain more expensive to manufacture, pushing inverter models into a higher retail price bracket.[4]

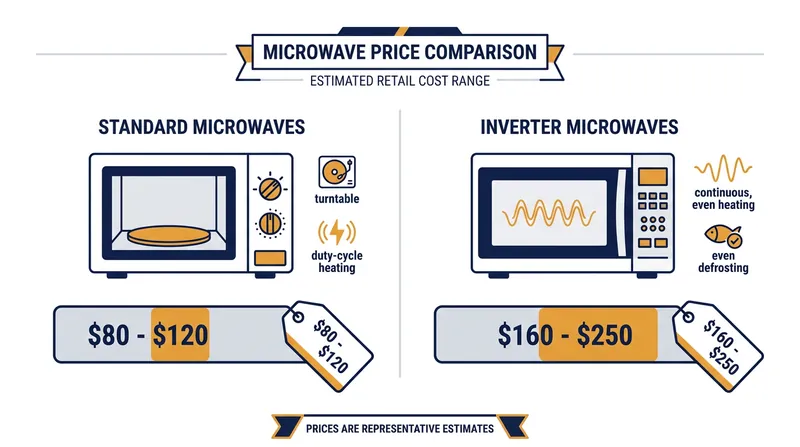

A standard 1.2-cubic-foot countertop microwave typically retails between $80 and $120. Upgrading to an inverter model of the same capacity generally increases the purchase price to between $160 and $250, depending on the brand and exterior finish.[3][4]

Shoppers looking for this feature must read the packaging carefully. Manufacturers prominently display the word "Inverter" on the front panel or door glass, as it remains a premium selling point that justifies the higher price tag.[4]

If a microwave's marketing materials boast about ten power levels without explicitly mentioning an inverter, the appliance relies on a traditional pulsing transformer. The heavy weight of the box in the store aisle serves as a reliable secondary confirmation.[4]

Durability and Trade-offs

While solid-state power supplies deliver superior heating, they introduce different failure modes to the appliance. Traditional iron-core transformers are incredibly robust and rarely fail, usually outlasting the magnetron tube itself by several years.[1][3]

Inverter boards, conversely, are sensitive to power surges and heat degradation over time. If the cooling fan fails or the side vents become blocked, the solid-state components can overheat and short out, requiring a complete board replacement.[3][4]

Repairing a failed inverter board often costs more than purchasing a new countertop microwave. Consequently, while the cooking performance is undeniably better, consumers should not necessarily expect an inverter model to outlive a cheaper conventional unit.[4]

For households that only use a microwave to boil water or pop popcorn on maximum power, the premium for an inverter provides zero benefit. The technology only proves its value for users who regularly rely on the appliance for defrosting or simmering.[4][6]
