Cordless Power Tools Shut Down With 30 Percent Charge Remaining Due to Voltage Sag

Your cordless circular saw stalling halfway through a sheet of dense plywood does not mean the battery is empty. The tool's internal computer has deliberately severed the power connection to prevent permanent chemical damage to the lithium-ion cells.[3]

This sudden shutoff happens because heavy workloads pull voltage down artificially, tricking the system into reading a dead battery while up to a third of the charge remains untouched. High-demand tools like grinders, circular saws, and rotary hammers require massive electrical current to maintain their motor speed under load.[1]

When a blade bites into wet lumber, the motor demands up to 40 amps of current instantly. This sudden pull forces the battery cells to work harder than their standard discharge rate allows, stressing the internal chemistry.[1][2]

Every lithium-ion battery pack contains a battery management system that monitors the exact voltage of each individual cell. A fully charged cell sits at 4.2 volts, and the system is programmed to cut power entirely if any cell drops below 2.5 volts.[2]

How Internal Resistance Tricks the Sensors

Allowing a cell to discharge past this 2.5-volt floor causes irreversible copper dissolution inside the battery. However, voltage is not a static measurement of capacity; it fluctuates based on the load applied, acting much like water pressure in a pipe.[2]

Standard power tool batteries are built using arrays of 18650 lithium-ion cells, which measure 18 millimeters wide and 65 millimeters long. These cells typically carry an internal resistance of about 20 to 25 milliohms each.[1][2]

Under light loads, like driving a standard wood screw, this internal resistance barely affects the output voltage. The tool draws current slowly enough that the battery can maintain a stable voltage curve throughout the entire discharge cycle.[2]

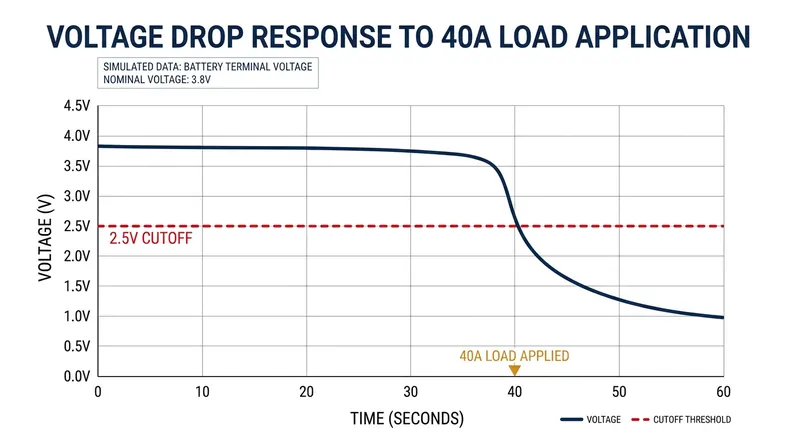

"When you pull 40 amps through a standard pack, that 20 milliohms of resistance creates a massive voltage drop across the cell," explains Dr. Aris Koutroulis in a 2025 IEEE paper on battery systems. "The BMS reads the sagging voltage, sees it hit 2.5 volts, and immediately opens the circuit to protect the pack."[1]

Why Larger Cells Prevent Premature Shutoffs

Once the tool shuts off and the heavy load is removed, the voltage immediately bounces back up to its true resting state. If you press the battery indicator button a few seconds after a stall, it will often show two out of four bars remaining.[3]

The pack still holds roughly 30 to 35 percent of its total energy capacity at this point. This premature cutoff forces users to swap batteries far more often than the actual energy consumption dictates, leading to unnecessary wear on chargers.[1][3]

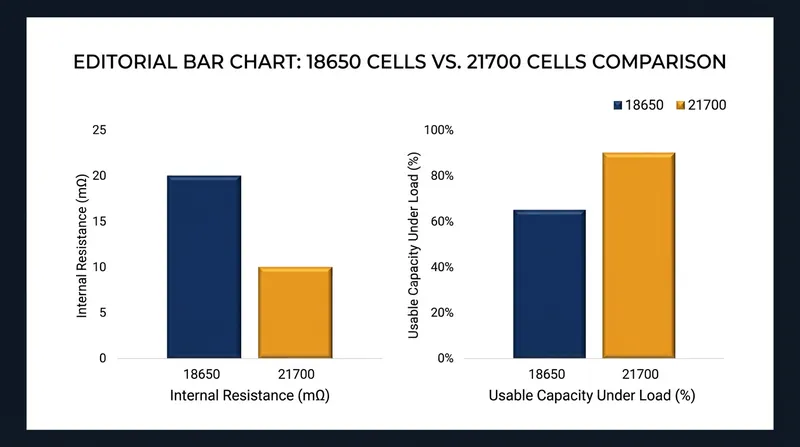

Tool manufacturers have solved this physics problem by shifting to larger 21700 lithium-ion cells for their premium battery lines. These cells are slightly wider and longer, but their internal chemistry and larger surface area drastically reduce internal electrical resistance.[1][2]

A typical 21700 cell measures closer to 10 milliohms of resistance. Cutting the internal resistance in half means the voltage sags only half as much under the exact same 40-amp load, keeping the tool running longer.[1]

Pairing Batteries With Tool Demands

A high-output battery powering a circular saw through wet lumber maintains a voltage well above the 2.5-volt cutoff threshold. Because the voltage stays elevated under load, the tool can access nearly the entire chemical capacity of the battery.[2][3]

High-output packs routinely deliver up to 90 percent of their stored energy before the resting voltage actually reaches the depletion floor. This makes them vastly more efficient for heavy-duty applications where standard packs would stall repeatedly.[1][3]

"The difference is entirely thermal and resistive," notes the Battery University educational reference guide. "Lower internal resistance means less energy is wasted as heat, keeping the voltage curve flatter and allowing the device to extract the full usable capacity of the lithium-ion chemistry."[2]

Not every cordless tool requires a high-output battery to function efficiently. Low-draw devices like impact drivers, flashlights, and finish nailers rarely pull enough current to induce significant voltage sag, allowing standard packs to perform perfectly.[3]

Cold Weather Amplifies Voltage Drops

Standard packs are often preferable for overhead work or tight spaces because they weigh significantly less. A compact 2.0-amp-hour battery provides plenty of runtime for an impact driver while keeping the tool balanced and reducing wrist fatigue.[3]

High-draw tools actively suffer when paired with standard batteries. Equipping an angle grinder or track saw with a high-output pack not only prevents stalling but actually increases the physical cutting speed of the motor by delivering higher sustained voltage.[1][3]

The cost difference reflects this capability on the retail shelf. A standard 5.0-amp-hour battery typically retails for around $120, while a high-output pack of the exact same capacity costs closer to $180, charging a premium for power delivery rather than total capacity.[3]

Environmental conditions heavily influence how severely a battery experiences voltage sag. Lithium-ion chemistry relies on the physical movement of ions through a liquid electrolyte, which thickens when the temperature drops below freezing.[2]

Pouch Cells and Solid-State Horizons

A battery that performs perfectly at 70 degrees Fahrenheit will experience massive voltage sag at 20 degrees. The cold-induced resistance stacks with the load-induced sag to instantly trip the cutoff sensor, frustrating contractors working outdoors in winter.[2][3]

Keeping batteries in a heated truck cab until the moment they are needed is the most effective way to bypass this limitation. Once the battery is actively discharging in the tool, its own internal resistance generates enough heat to keep the electrolyte fluid.[3]

Conversely, extreme heat triggers a different set of protections. If the internal thermistors detect cell temperatures exceeding 150 degrees Fahrenheit, the system will lock out the battery to prevent thermal runaway, often happening when hot packs are placed on fast chargers.[2]

The next evolution in cordless tool power is arriving in the form of pouch cells, which use stacked flat layers of anode and cathode material. This tabless design nearly eliminates internal resistance, allowing for massive 100-amp current delivery with almost zero voltage sag.[1][3]
