Gravity-Fed Locks at 26 Meters: Why the Panama Canal Flushes 200 Million Liters of Freshwater per Transit

Global logistics operators look at the Panama Canal's drought-stricken transit queues and see an obvious engineering failure: a waterway surrounded by two oceans that is somehow running out of water. To the shipping industry, the solution is simply to install massive industrial pumps and push seawater up into the locks to keep cargo moving.[5]

Panamanian hydrologists and public health officials view that exact proposal as a recipe for a national catastrophe. They argue that pumping seawater into the canal's central reservoir would instantly destroy the drinking water supply for millions of citizens.[3]

The tension stems from a fundamental misunderstanding of what the Panama Canal actually is. It is not a flat trench dug between the Atlantic and the Pacific, similar to the sea-level design of the Suez Canal.[1]

Instead, the canal is a massive, 26-meter-high freshwater staircase built over a mountainous continental divide. Ships do not sail through the isthmus; they are lifted over it using water stored in an artificial inland reservoir.[2]

Because the system relies entirely on gravity and rainfall, every vessel that crosses the continent flushes millions of liters of freshwater out to sea. Replacing that natural hydraulic engine with pumped seawater is blocked by insurmountable barriers of physics, energy, and ecology.[5]

The Mechanics of a Gravity Staircase

When a cargo vessel arrives at the canal, it enters a concrete lock chamber that measures 1,000 feet long and 110 feet wide. Massive steel gates close behind the hull, sealing the ship inside a watertight box.[2]

Deep inside the concrete walls, enormous culverts open to connect the chamber to Gatun Lake, which sits 26 meters (85 feet) above sea level. Gravity forces the lake water down through the culverts and up through the floor of the lock.[3]

The rising water lifts the ship without the use of a single mechanical pump. Once the water level equalizes with the next chamber, the forward gates open, and electric locomotives guide the vessel forward.[2]

This process repeats in three distinct steps until the ship reaches the elevation of Gatun Lake. After crossing the continental divide, the vessel enters another set of locks that drain the water downward, lowering the ship to the opposite ocean.[2]

The sheer volume of water required for this gravity-powered elevator is staggering. A single transit consumes approximately 200 million liters, or 52 million gallons, of freshwater, which is ultimately lost to the sea.[1]

The Mathematical Barrier to Pumping

During periods of severe drought, such as the El Niño cycle of 2023 and 2024, Gatun Lake's water levels drop precipitously. The Panama Canal Authority is forced to reduce daily transits from a normal capacity of 36 ships down to as few as 22.[5]

When these bottlenecks occur, critics inevitably ask why the canal cannot simply pump seawater up from the oceans to fill the locks. The answer lies in the sheer mass of the water involved.[5]

At a normal operating cadence of 36 transits per day, the canal consumes roughly 1.87 billion gallons of water every 24 hours. Pumping that volume of seawater would require lifting over 7 million metric tons of liquid 26 meters into the air daily.[5]

The electrical infrastructure required to maintain that continuous vertical lift would demand a massive baseload power draw. The original 1914 design avoided this energy penalty entirely by letting the Chagres River and tropical rainfall do the heavy lifting.[4]

Even if the Panamanian government could construct the necessary power plants and pumping stations, the hydraulic solution would immediately trigger a far more severe domestic crisis.[5]

The Threat to Panama's Drinking Water

Gatun Lake is not just a navigational channel for global maritime trade; it is the primary freshwater reservoir for the country. The lake provides drinking water for nearly 600,000 people, representing roughly 15 percent of the national population.[5]

If engineers pumped seawater into the locks, that salt would inevitably mix with the freshwater in Gatun Lake. "The Panama Canal has a constitutional mandate to manage lake water quality and quantity, with water for human consumption a top priority," the Panama Canal Authority stated in a 2024 operational briefing.[3]

Panamanian drinking water regulations strictly cap allowable salinity levels at 0.45 parts per thousand. Introducing billions of gallons of ocean water into the system would quickly push the reservoir past that legal threshold.[5]

Beyond human consumption, Gatun Lake supports a delicate tropical ecosystem that evolved in a freshwater environment. A sudden influx of marine salinity would trigger a mass die-off of freshwater fish, amphibians, and surrounding rainforest vegetation.[5]

The death of the surrounding rainforest would actually accelerate the canal's water shortages. The jungle canopy plays a critical role in generating the localized rainfall that replenishes the Chagres River watershed.[5]

The Neo-Panamax Salinity Creep

The threat of saltwater intrusion is not merely a theoretical scenario; it is an ongoing operational challenge. The canal is already battling rising salinity levels due to the mechanics of the newer, larger locks.[1]

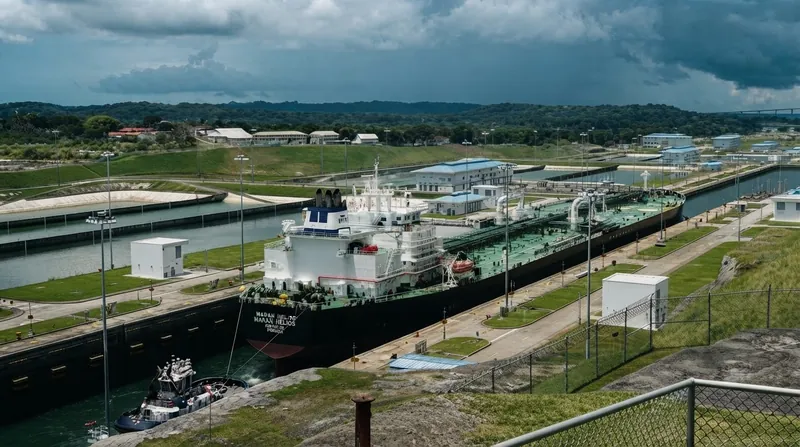

In 2016, the canal inaugurated the Neo-Panamax locks, which feature water-saving basins designed to recycle 60 percent of the water used in each transit. While these basins conserve volume, they also trap saltwater that enters the lower chambers from the ocean.[1]

As ships move upward through the locks, they drag a wedge of denser, heavier saltwater with them into the freshwater lake. Since the completion of the expansion project, researchers have tracked a steady increase in Gatun Lake's baseline salinity.[5]

According to hydrodynamic modeling, the lake's salinity rapidly increased from its historical average of 0.1 parts per thousand. By 2020, sensors recorded salinity concentrations temporarily breaching the 0.45 limit at specific monitoring stations.[5]

Researchers actively monitor 14 different locations within the lake to track this creeping salinization. If the current lock mechanics are already pushing the boundaries of water safety, intentionally pumping seawater is entirely off the table.[5]

Engineering Alternative Solutions

Because seawater cannot be used, the Panama Canal Authority must find other ways to secure its freshwater supply against a changing climate. The most immediate strategy involves deepening the existing navigational channels.[3]

By dredging the bottom of Gatun Lake, engineers can increase the reservoir's total storage volume without raising the surface elevation. This allows the canal to stockpile more rainfall during the wet season to survive prolonged dry spells.[3]

The authority is also exploring the possibility of damming the Indio River to create a completely new freshwater reservoir. This proposed project would pipe additional water into Gatun Lake, though it faces fierce opposition from local communities who would be displaced by the flooding.[5]

Desalination plants have been proposed as a way to provide drinking water to Panama City, which would free up more lake water for shipping. However, the infrastructure and energy required to desalinate water on a municipal scale remain prohibitively expensive.[5]

For the foreseeable future, the world's most critical maritime shortcut remains entirely dependent on the weather. Until a viable freshwater alternative is built, global supply chains will continue to rise and fall with the Panamanian rain.[5]

The Legacy of the Sea-Level Failure

The desire for a canal that does not rely on freshwater locks is not new; it was the original vision for the waterway. In the 1880s, French diplomat Ferdinand de Lesseps attempted to dig a sea-level canal across Panama, identical to his success at Suez.[4]

The French effort ended in catastrophic failure, bankrupted by the sheer volume of excavation required to cut through the mountainous continental divide. Frequent landslides in the deep trenches and rampant tropical diseases forced them to abandon the project.[4]

When American engineers took over in 1904, they realized that digging down to sea level was geographically impossible. Instead, they chose to dam the Chagres River, flooding the interior valleys to create Gatun Lake at an elevation of 26 meters.[4]

This decision birthed the gravity-fed lock system that operates today, transforming a geographical obstacle into a hydraulic advantage. The locks allowed the engineers to float ships over the mountains rather than digging through them.[2]

That brilliant 20th-century engineering compromise created the 21st-century water vulnerability. The Panama Canal will always be a freshwater bridge, bound by the limits of the tropical rain cycle.[5]
