How Itaipu Dam Uses Direct Current to Bridge Paraguay and Brazil's Incompatible Power Grids

The binding constraint for any cross-border power sharing is grid synchronization. If the alternating current does not pulse at the exact same frequency, connecting two national grids will trigger catastrophic equipment failure. Between Brazil and Paraguay, that condition fundamentally does not hold.[1]

Paraguay operates on a 50 Hertz electrical standard, a legacy of early European electrification efforts. Brazil, conversely, utilizes the 60 Hertz standard common across North America. This simple ten-cycle difference creates an absolute physical barrier to sharing raw electricity.[1]

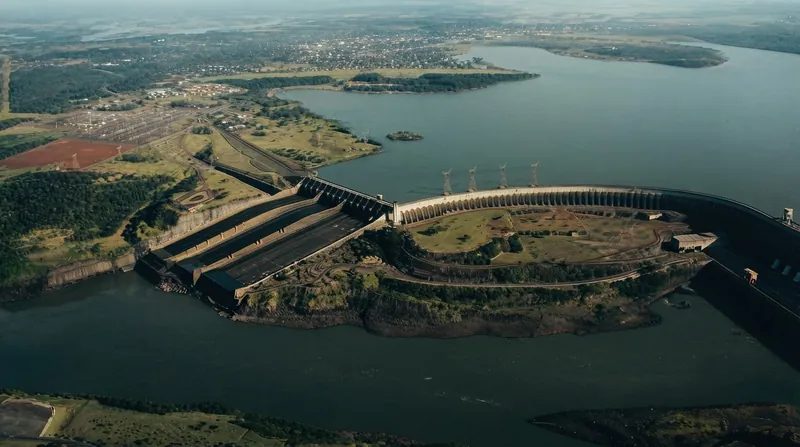

Yet, the two nations share the Itaipu Dam, a colossal hydroelectric facility spanning the Paraná River. The dam produces more electricity than almost any other plant on Earth, generating roughly 90 terawatt-hours annually. To share the output, engineers had to build a massive physical workaround.[1]

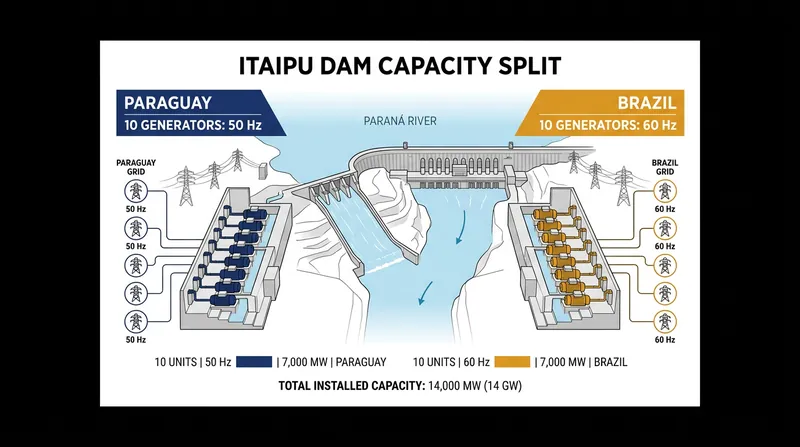

Itaipu physically divides its 20 massive generators down the middle. Ten turbines spin at 50 Hz exclusively for Paraguay, while the remaining ten spin at 60 Hz for Brazil. Because Paraguay consumes only a fraction of its half, it exports the massive surplus to Brazil.[1]

Moving that power requires stripping away its frequency entirely. The electricity must be converted to direct current at the border, transported hundreds of kilometers, and rebuilt as 60 Hz power. It is one of the largest electrical workarounds in human history.

The Physics of Incompatible Grids

Alternating current dominates global power grids because it is easily stepped up to high voltages for long-distance travel and stepped down for household use. However, interconnected AC systems must beat in perfect unison. A mismatched frequency introduces immediate chaos.[4]

If a 50 Hz power source is plugged directly into a 60 Hz grid, the mismatched sine waves violently clash. The resulting electrical interference would destroy transformers, melt transmission lines, and trigger cascading blackouts across both countries.[4]

When Brazil and Paraguay signed the treaty to build Itaipu in 1973, they faced this exact physical barrier. Neither country was willing or able to spend the billions required to convert their entire national grid to a single shared frequency.[2]

The compromise was to build a divided powerhouse. Inside Itaipu's cavernous generation hall, the physical turbines are identical, but the electrical generators they drive are wound differently. This allows the single dam to produce two distinct frequencies simultaneously.[1]

This solved the immediate generation problem, but it created a massive transmission bottleneck. Paraguay's population of roughly eight million people could not possibly absorb the 7,000 megawatts of capacity its ten generators provided, leaving a vast amount of stranded energy.[1][3]

The Scale of Paraguay's Surplus

Itaipu's sheer scale dwarfs Paraguay's domestic energy needs. The dam's 20 generators each have a nominal capacity of 700 megawatts, operating under a hydraulic head of 118 meters. The total installed capacity reaches a staggering 14,000 megawatts.[1]

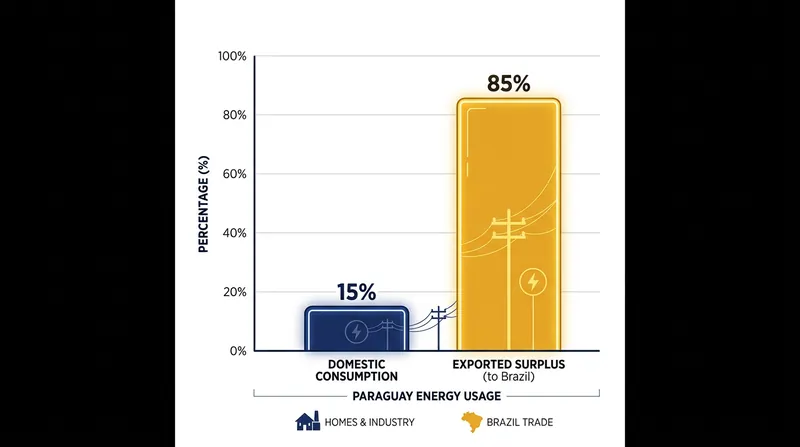

Paraguay utilizes only about 10 to 15 percent of the electricity its half of the dam generates. The remaining 85 percent constitutes a massive, continuous energy surplus that the country is obligated by treaty to sell to Brazil.[2][3]

This surplus is not a marginal figure; it represents thousands of megawatts of continuous power. It is enough electricity to power entire European nations, and Brazil relies heavily on it to feed its industrial heartland in the southeast.[3]

But Brazil cannot simply route Paraguay's 50 Hz surplus into its 60 Hz AC transmission lines. The energy must be fundamentally altered before it can cross the border and enter the Brazilian interconnected system safely.

The solution was High-Voltage Direct Current, or HVDC. By converting the alternating current into direct current, engineers could strip the electricity of its frequency, creating a neutral format capable of bridging the incompatible grids.

The Direct Current Workaround

To facilitate the export, the 50 Hz AC power generated on the Paraguayan side is routed to a massive substation in Foz do Iguaçu. This facility is located just inside Brazilian territory, sitting adjacent to the dam itself.[3]

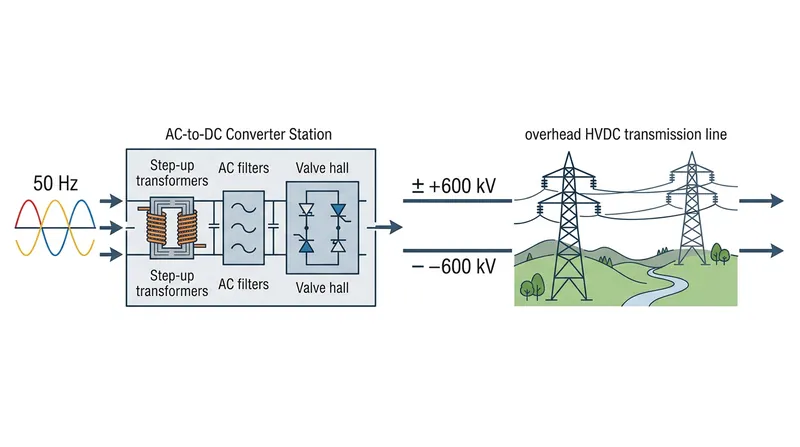

Here, specialized converter equipment intercepts the power. Originally supplied by the Swedish firm ASEA in the 1980s, the station uses massive thyristor valves arranged in twelve-pulse bridges to rectify the alternating current into direct current.[1]

Direct current flows continuously in one direction, meaning it has no frequency at all. Once the power becomes DC, the 50 Hz legacy of the Paraguayan generators is entirely erased, rendering the electricity compatible with any receiving grid.

The Foz do Iguaçu converter station was a landmark achievement in electrical engineering. When it was commissioned in 1984, it represented a massive leap forward in HVDC technology, handling voltages and power levels previously thought impossible.

The station prepares the power for a massive journey. The rectified electricity is stepped up to an extreme voltage of ±600 kilovolts, which minimizes the energy that will be lost as heat during long-distance transmission.

The 800-Kilometer Journey

Once converted, the power leaves the Paraná River basin and heads east toward Brazil's industrial core. It travels along two ±600 kV HVDC bipole overhead lines, stretching approximately 800 kilometers across the Brazilian landscape.[1]

These twin transmission lines are engineering marvels in their own right, designed specifically to carry the weight of a nation's surplus. Each bipole has a rated capacity of 3,150 megawatts, giving the total HVDC system a carrying capacity of 6,300 megawatts.

This capacity is highly intentional. The 6,300-megawatt limit aligns almost perfectly with the theoretical maximum surplus Paraguay can produce from its 7,000-megawatt generating capacity, acting as the physical ceiling for cross-border energy transfer.[1][4]

HVDC transmission is uniquely suited for this task. Beyond solving the frequency mismatch, direct current suffers significantly lower line losses over extreme distances compared to alternating current, making the 800-kilometer journey economically viable.

The lines terminate at the Ibiúna converter station, located near São Roque in the state of São Paulo. Here, the electricity must be transformed one final time before it can be used by Brazilian consumers.

Filtering the Harmonics

At the Ibiúna station, the process is reversed. The ±600 kV direct current is fed into massive inverters, which chop the continuous flow back into alternating current, this time perfectly synchronized to Brazil's 60 Hz grid.

However, this inversion process is not perfectly clean. The mechanical switching of the thyristor valves introduces electrical harmonics, which are dangerous distortions in the sine wave that can cause severe overheating and instability in the power system.

If left unchecked, these harmonics would degrade power quality, damage industrial motors, and interfere with communication networks across the Brazilian grid. The power utility, Eletrobras Furnas, must carefully manage this distortion to prevent cascading failures.

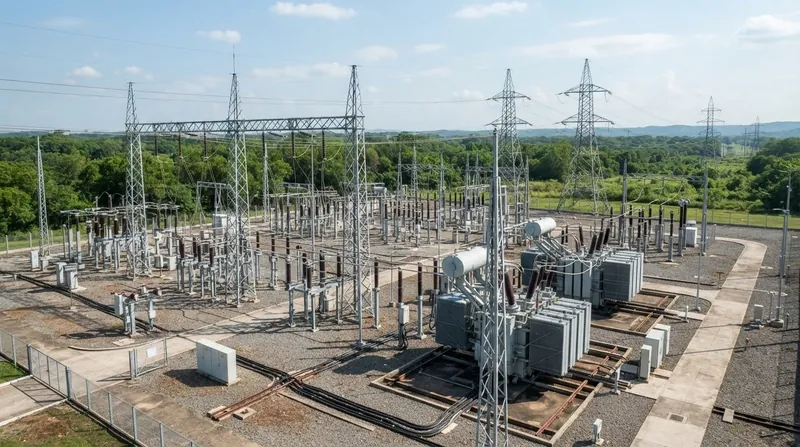

To clean the power, the Ibiúna station relies on extensive banks of harmonic filters. These massive capacitor and inductor arrays smooth out the jagged edges of the inverted current, ensuring the electricity meets strict quality standards.

Advanced monitoring systems continuously calculate the heat generated by these harmonics. Specialized relays, designed by firms like Schweitzer Engineering Laboratories, protect the converter station from catastrophic thermal damage, keeping the massive power flow stable.

The Geopolitics of the Converter

The physical reality of the HVDC system deeply intertwines with the geopolitical relationship between Brazil and Paraguay. The converter stations serve as the literal chokepoints of a multi-billion-dollar international energy trade, dictating the terms of economic cooperation.[2]

Because Paraguay lacks the infrastructure to route its 50 Hz surplus anywhere else, the physical engineering locks the two nations into a rigid dynamic. The HVDC lines point exclusively toward São Paulo, creating a captive market.[2]

This dynamic frequently sparks diplomatic tension. Paraguayan administrations have repeatedly sought to renegotiate the price Brazil pays for the surplus, arguing that the captive market artificially depresses the value of their clean energy.[2]

In recent years, the two nations have reached new agreements that slightly increase the compensation Paraguay receives. However, the underlying physical constraint remains unchanged, as the power can only flow where the converters allow it to go.[2]

Ultimately, the Itaipu Dam stands as a testament to both engineering ingenuity and the stubbornness of legacy standards. A simple ten-Hertz difference in national grids necessitated one of the largest and most complex electrical workarounds in human history.[4]

The Itaipu treaty, originally signed by military dictatorships, mandated that Paraguay sell its unused power to Brazil at a rate that covered construction debts. While the debt has since been retired, the physical infrastructure ensures the two grids remain permanently tethered.[2]

As both nations look toward future energy demands, the 50 Hz and 60 Hz divide will continue to define their shared grid. The massive converter stations at Foz do Iguaçu and Ibiúna remain the silent, beating heart of South American industrial power.[4]
