Evidence Pack: The Architecture and Feasibility of Hypersonic Glide Vehicles as Air-to-Air Platforms
An analysis of the physics, kinematics, and strategic logic behind using hypersonic glide vehicles to launch air-to-air missiles at extreme ranges.
By Marina Lopez
In short
- Hypersonic glide vehicles travel at speeds exceeding Mach 5, creating a plasma sheath that complicates mid-course communication.
- Using an HGV to launch air-to-air missiles requires the submunition to acquire a target that may have moved over 150 kilometers during the vehicle's flight time.
- The strategic goal of such an architecture is to force critical support aircraft, like tankers and AWACS, to operate further from the primary battlespace.
At Mach 10, a vehicle travels 3,430 meters every single second. At that extreme velocity, the sheer friction of the atmosphere violently strips electrons from the surrounding air, wrapping the craft in a superheated sheath of ionized plasma.
This physical reality forms the central engineering hurdle for one of the most ambitious concepts in modern aerospace: using a hypersonic glide vehicle not as a traditional warhead, but as a carrier stage to launch air-to-air missiles at unprecedented ranges. The physics of this environment dictate that the vehicle is effectively flying blind and deaf, cut off from standard radio frequencies by the very plasma that sustains its glide.[1][6]
The strategic concept aims to push counter-air operations thousands of kilometers beyond the reach of traditional fighter aircraft. The primary targets for such an architecture are not nimble fighter jets, but the airborne early warning and control aircraft and massive aerial refueling tankers that form the indispensable backbone of modern air campaigns.
By threatening these critical support nodes from intercontinental distances, an adversary could theoretically force an entire air force's support architecture to operate from safer, vastly more distant orbits, thereby degrading the endurance and situational awareness of the frontline fighter force.[3][4]
Evidence of this architectural ambition has accumulated in the public domain over several years of rigorous testing. In July 2021, a Chinese hypersonic glide vehicle reportedly released a separate, unspecified projectile mid-flight over the South China Sea.
This event demonstrated the fundamental aerodynamic feasibility of payload separation at hypersonic speeds, a milestone that caught many aerospace observers by surprise. Releasing a submunition from a vehicle traveling at Mach 5 or higher requires overcoming immense dynamic pressure and complex shockwave interactions that threaten to tear the secondary projectile apart the moment it enters the slipstream.[2][5]

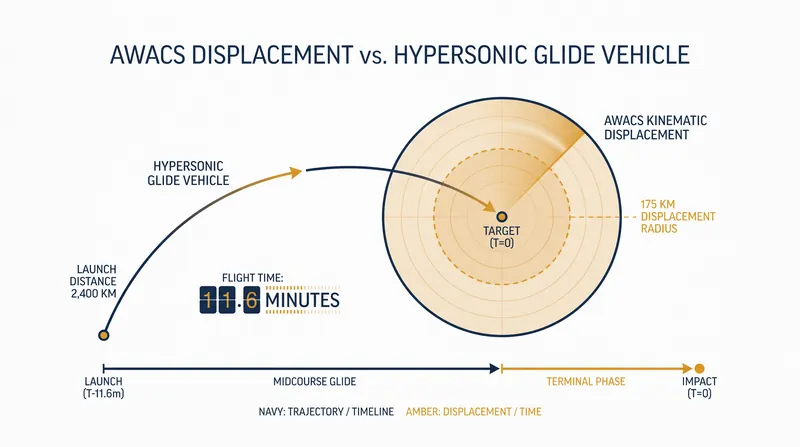

Beyond the aerodynamics of separation, the kinematic mathematics of an extreme-range intercept dictate a severe targeting challenge. A glide vehicle launched from 2,400 kilometers away—the estimated operational range of medium-range ballistic systems—will take approximately 11 to 12 minutes to reach its designated target area. During that flight time, the battlespace is not static. An airborne early warning aircraft cruising at a standard speed of 900 kilometers per hour will displace up to 175 kilometers from its original pre-launch position.[4][6]
Because the plasma sheath surrounding the hypersonic glide vehicle generally blocks external radio frequencies, the vehicle cannot easily receive mid-course updates regarding the target's new location. Consequently, the submunition it releases must possess an organic terminal seeker capable of autonomously acquiring an aircraft across a massive search radius of nearly 200 kilometers. Alternatively, the architecture must rely on advanced, unproven plasma-penetrating communications—perhaps utilizing extremely high-frequency bands or trailing physical antennas—to maintain a continuous data link with off-board sensors.[1][6]
The strategic logic behind investing in this complex kill chain is entirely systemic. Modern Western air power relies heavily on a relatively small fleet of high-value support aircraft to sustain combat operations over the vast oceanic distances of the Pacific. Tankers extend the otherwise limited range of stealth fighters, while airborne radar platforms provide the comprehensive picture necessary for air superiority. If an adversary can hold these specific nodes at risk from 2,000 kilometers away, the entire operational equation changes.[3]
This distance penalty directly reduces the time frontline fighters can spend in the combat zone. If a tanker must orbit 1,500 kilometers away rather than 500 kilometers away, the fighter jets it supports spend the majority of their fuel simply transiting to and from the refueling track. Furthermore, pushing early warning aircraft further back degrades the fidelity of the radar picture provided to the combat edge, creating blind spots that adversaries can exploit.[4]
However, the evidence for a fully operational, end-to-end capability remains thin, and defense analysts urge caution when evaluating the immediate threat. While the aerodynamic separation of a payload has been demonstrated in isolated tests, the integration of a functional air-to-air seeker, the necessary plasma-penetrating data links, and the overarching sensor network required to track a moving aircraft at intercontinental ranges represents a vastly more complex system of systems.[2][4]
Economic analysts also note that using a ballistic missile booster to target a single aircraft is an inherently expensive and inefficient exchange ratio. A hypersonic glide vehicle is a multi-million dollar strategic asset; expending it against anything less than the most critical command-and-control node is difficult to justify in a sustained conflict. Therefore, this architecture is likely viewed as a niche capability reserved for paralyzing an adversary's network in the opening hours of an engagement, rather than a broad solution for general air superiority.[3][6]
Ultimately, the development of this theoretical architecture highlights a fundamental shift in global aerospace competition. The focus of advanced military engineering is moving away from the raw kinematic performance of individual fighter aircraft and toward the survivability of the broader operational network that sustains them. As hypersonic technology matures, the defining metric of air power will not be how fast a fighter can fly, but how securely its supporting infrastructure can operate in an era of extreme-range precision strike.[6]
How we did this
- Method
- Kinematic recomputation of target displacement during hypersonic flight time to determine the terminal seeker acquisition radius required for a blind intercept.
- What we found
- An AWACS aircraft cruising at 900 km/h will displace up to 175 kilometers from its initial position during the 11.6-minute flight time of a Mach 10 glide vehicle launched from 2,400 km away. This proves the HGV cannot rely on pre-launch coordinates alone and mathematically necessitates either a terminal seeker with a >175 km acquisition range or a mechanism to receive mid-course data-link updates through its ionized plasma sheath.
- What we worked from
- HGV velocity (Mach 10 / 3,430 m/s): 3,430 m/s — Wikipedia
- Target distance (2,400 km): 2,400 km — Congressional Research Service
- Limits of this analysis
- This calculation assumes a linear glide path and constant target velocity, ignoring the deceleration of the glide vehicle in the lower atmosphere and any evasive maneuvers by the target aircraft.
Terms to know
- Hypersonic Glide Vehicle (HGV)
- A maneuverable spacecraft that travels at speeds above Mach 5 and glides through the upper atmosphere rather than following a predictable ballistic arc.
- Plasma Sheath
- A layer of ionized gas that forms around a vehicle traveling at extreme speeds, often blocking radio communications.
- Terminal Seeker
- The sensor system in the nose of a missile that autonomously detects and tracks the target during the final seconds of flight.
- AWACS
- Airborne Early Warning and Control; aircraft equipped with powerful radar to manage the battlespace and direct other friendly forces.
Different angles
Aerospace Engineering Consensus
Focuses on the extreme physical barriers of hypersonic payload separation and terminal guidance.
Engineers emphasize that the plasma sheath and dynamic pressure at Mach 5+ make mid-course updates and clean payload separation exceptionally difficult. They argue that while aerodynamic tests have succeeded, closing the kill chain against a moving target requires unproven advances in plasma-penetrating data links and high-speed seeker technology.
Strategic Planners
Views the capability as a systemic threat designed to impose a distance penalty on support aircraft.
Strategists argue that the weapon does not need a high probability of kill to be effective. Merely demonstrating a credible threat to AWACS and tankers forces these critical nodes to operate further from the battlespace, thereby degrading the endurance and situational awareness of the frontline fighter force.
Defense Economics Analysts
Questions the cost-exchange ratio of using ballistic missiles against individual aircraft.
Economic analysts point out that launching a multi-million dollar hypersonic glide vehicle to target a single aircraft is highly inefficient. They contend that the long kill chain and high cost make this architecture a niche capability reserved only for the most critical command-and-control nodes, rather than a broad solution for air superiority.
- Aerospace Engineering Consensus
- Focuses on the extreme physical barriers of hypersonic payload separation and terminal guidance.
- Strategic Planners
- Views the capability as a systemic threat designed to impose a distance penalty on support aircraft.
- Defense Economics Analysts
- Questions the cost-exchange ratio of using ballistic missiles against individual aircraft.
Perspectives this story doesn't cover
- Radar operators on AWACS platforms
- Missile defense interceptor engineers
Sources
[1]WikipediaAerospace Engineering ConsensusDF-ZF Hypersonic Glide Vehicle
Read on Wikipedia →
[2]Arms Control AssociationDefense Economics AnalystsChinese Hypersonic Glider Said to Fire Projectile
Read on Arms Control Association →
[3]RAND CorporationStrategic PlannersHypersonic Missile Nonproliferation
Read on RAND Corporation →
[4]Congressional Research ServiceAerospace Engineering ConsensusHypersonic Weapons: Background and Issues for Congress
Read on Congressional Research Service →
[5]ReutersDefense Economics AnalystsChina tests new space capability with hypersonic missile
Read on Reuters →
[6]Factlen Editorial TeamStrategic PlannersSynthesis by Factlen editorial team
Read on Factlen Editorial Team →
