Bone-Conducted Occlusion Versus a 6 dB Binaural Loss: Why Touring Vocalists Pull Out One In-Ear Monitor

In 1995, sound engineer Jerry Harvey engineered the first custom dual-speaker in-ear monitor for drummer Alex Van Halen. The technology replaced deafening stage wedges with sealed acrylic earpieces, fundamentally changing live sound. As Van Halen later described the absolute isolation, "It was like night and day."[4]

The technology rapidly spread through the touring industry, allowing musicians to hear a pristine, studio-quality mix while standing on an arena stage. Singers traded massive floor speakers for custom molds that sealed off the ear canal. This isolated them from the 110-decibel roar of the crowd and the drum kit.[1]

But this perfect acoustic isolation introduced a new, intensely physical problem specifically for vocalists. While the monitors successfully blocked the noise of the room, they inadvertently trapped something else inside the singer's head. The solution to one acoustic problem had created another.

Audiences soon noticed a strange tic: mid-song, a singer would reach up and yank one earpiece out, leaving it dangling on a wire. It looked like a technical glitch or a faulty mix. In reality, it was a desperate acoustic escape from a phenomenon known as the occlusion effect.

Trapping the Bone-Conducted Voice

When a person speaks or sings, sound does not just travel outward through the air. The vocal cords vibrate the bones of the skull and the jaw. This transmits low-frequency acoustic energy directly through the body and into the ear canal.

In an open ear, this bone-conducted energy simply escapes into the surrounding air. The singer hears their voice naturally, balanced evenly between the external air transmission and the internal bone transmission. The ear canal acts as an open vent.

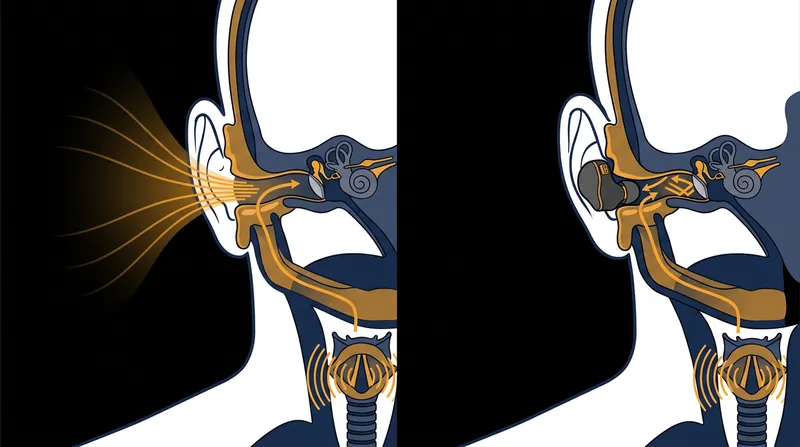

When a custom in-ear monitor completely seals the canal, that low-frequency energy hits a physical wall. It reflects off the acrylic monitor shell and bounces directly back onto the eardrum. The low frequencies have nowhere else to go.[1]

Audiologists call this the occlusion effect, and it amplifies the low frequencies of the singer's own voice by as much as 20 decibels. The result is a boomy, muffled sound that overpowers the rest of the audio. The singer's head effectively becomes a sealed resonant chamber.[1]

The sensation is frequently compared to singing underwater while the rest of the band is playing on land. This bone-conducted boom drowns out the delicate high frequencies of the monitor mix. It makes it incredibly difficult for the vocalist to judge their own pitch and tone.

Breaking the Acoustic Seal

To escape this suffocating resonance, singers instinctively pull one monitor out of their ear. Breaking the physical seal instantly vents the trapped low-frequency energy. The underwater effect clears, and the singer's voice sounds natural to them again.[1]

Opening one ear also reconnects the performer to the physical space of the venue. They can hear the crowd singing along, the natural reverberation of the arena, and the unamplified crack of the snare drum. It feels like a perfect compromise between isolation and awareness.

Vocalists often believe they are getting the best of both worlds: one ear for the pristine monitor mix, and one ear for the reality of the room. But neurologically, this split setup triggers a massive auditory penalty. The brain does not process asymmetrical audio efficiently.[1]

The 6 dB Binaural Summation Loss

Human hearing relies on a neurological phenomenon called binaural summation. When the brain receives the same acoustic signal in both ears simultaneously, it combines them. This central processing makes the sound appear significantly louder than it actually is.[2][5]

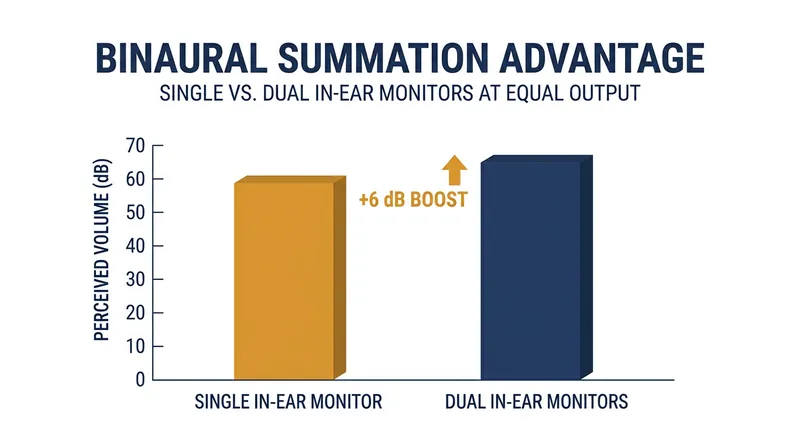

Research published in the Journal of the Association for Research in Otolaryngology demonstrates the power of this effect. At comfortable listening levels, the binaural advantage provides a perceived volume boost of up to 6 decibels. The brain effectively generates free volume without requiring any extra acoustic power.[2][7]

The moment a singer pulls out one earpiece, they instantly lose that neurological summation. The perceived volume of the monitor mix drops dramatically, even though the physical output of the remaining earpiece has not changed at all. The mix suddenly sounds weak and distant.[2][3]

This sudden drop in perceived volume creates a dangerous acoustic imbalance. The single monitor must now compete with the roaring stage volume flooding into the open ear. The singer is left struggling to hear the very mix that the monitors were designed to provide.[1]

Driving the Remaining Ear to Damage

To restore the lost 6 decibels and hear the mix over the crowd, the singer signals the monitor engineer. They ask to turn up the volume in the remaining earpiece. This is where the acoustic compromise becomes actively dangerous to the performer's hearing.[1]

"Personal monitoring devices, although miniature in size compared to stage monitors, are capable of producing harmful levels of up to 130 dBA at the eardrum," writes veteran audio engineer Keith Gordon in AudiologyOnline. Pushing the volume higher easily crosses the threshold into permanent damage.[1]

By driving the single monitor 6 decibels higher to compensate for the lost binaural summation, the singer exposes that ear to extreme sound pressure levels. Meanwhile, the open ear is completely unprotected from the ambient stage volume, which routinely exceeds 100 decibels.[1]

Furthermore, the body's natural defense mechanism against loud noise, the tympanic reflex, is compromised. The reflex is significantly less effective when only one ear is exposed to a loud stimulus. Both ears are left highly vulnerable to permanent sensorineural hearing loss.[1]

Engineering a Safer Stage

To keep both monitors in, modern audio engineers use ambient microphones positioned at the edge of the stage. These microphones capture the crowd noise and blend it directly into the singer's mix. This restores spatial awareness without requiring the singer to break the seal.

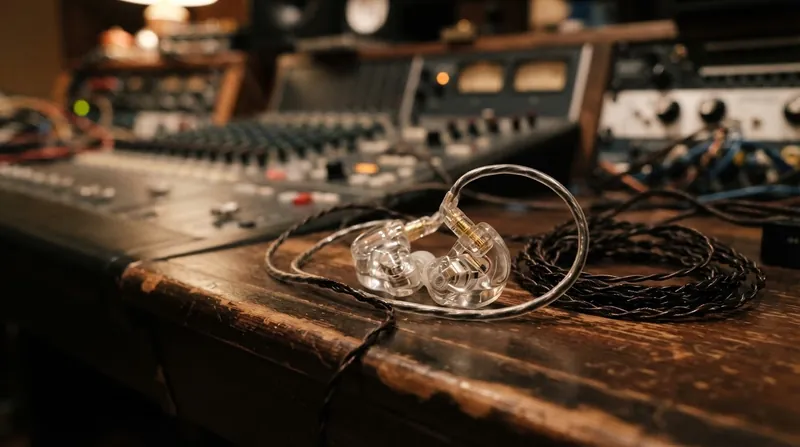

Manufacturers are also redesigning the physical monitors to combat the occlusion effect. By extending the custom acrylic mold past the second bend of the ear canal, they reduce the volume of trapped air. This deeper fit physically mitigates the boomy resonance before it starts.[1]

Newer technologies even incorporate dynamic piezoelectric vents built directly into the monitor shell. These microscopic vents can open and close electronically, allowing low frequencies to escape the ear canal while maintaining the isolation needed for the mix.

Until these advanced solutions become universal, the one-ear-out maneuver remains a staple of live performance. It is a visible tug-of-war between the acoustic physics of the human skull and the neurological processing of the brain. The singer is constantly balancing comfort against permanent hearing damage.
