Why Film Clapperboards Pair Visual Sticks With an Asymmetric Beep for Audio-Waveform Alignment

A track-and-field starting pistol pairs a sudden visual cue with a sharp acoustic crack to give timekeepers a unified point of origin. But a starting gun only has to trigger a single stopwatch. A film production slate must permanently lock two entirely separate digital data streams that are recorded on different devices, running at different speeds.[1]

Walk onto any professional film set today, and you will still see the iconic wooden or acrylic sticks snapping shut before the director calls action. Yet the physical clap is no longer the primary anchor for the editor. Modern smart slates emit a piercing, asymmetric electronic beep at the exact millisecond the sticks make contact.

This dual approach might seem redundant in an era of wireless timecode and synchronized digital clocks. The camera and the audio recorder are already sharing a continuous stream of metadata. But metadata can drift, cables can fail, and wireless signals routinely drop out in environments crowded with radio frequencies.[3]

When the digital handshake fails, the editor is left with raw video files and raw audio files that have no mathematical relationship to each other. They must be aligned manually on the timeline. That is where the physical sticks and the asymmetric beep become the ultimate, unhackable failsafe.[3]

The Physics of the Acoustic Delay

The necessity of the beep comes down to the unforgiving physics of sound propagation. Light travels to the camera lens almost instantaneously, but sound plods through the air at roughly 343 meters per second. That discrepancy creates a physical misalignment in the room before the data is even recorded.

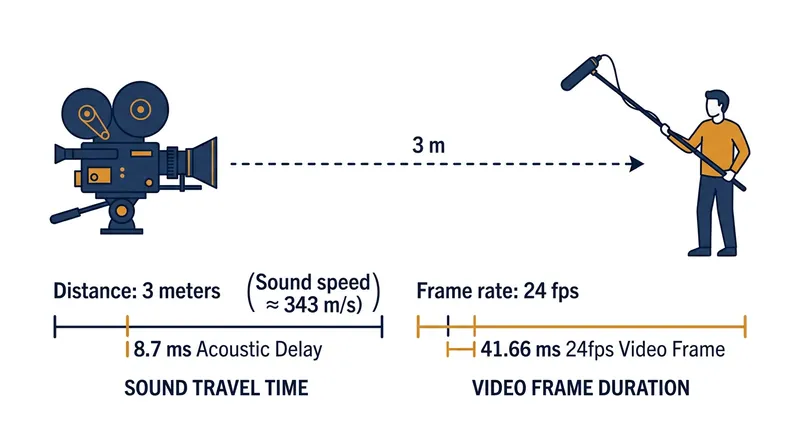

If a boom microphone is positioned three meters above an actor, the sound of the physical slate snapping shut takes about 8.7 milliseconds to reach the microphone capsule. Meanwhile, a standard cinema camera running at 24 frames per second captures a new image every 41.66 milliseconds.[1]

"The human auditory system will tolerate a sound that is up to 22 milliseconds late, but it will instantly reject a sound that is even 13 milliseconds early," notes the Audio Engineering Society's synchronization guidelines. That 8.7-millisecond acoustic delay consumes more than one-fifth of a frame's duration.[2]

By the time the acoustic crack reaches the microphone, the camera is already a quarter of the way into exposing the next frame. If the editor simply aligns the visual impact of the sticks with the peak of the acoustic clap, the dialogue will be subtly out of sync for the rest of the take.[3]

Designing the Asymmetric Waveform

To solve this sub-frame drift, audio engineers introduced the electronic beep, which is wired directly into the audio recorder or broadcast at a specific frequency. But a standard, symmetrical sine wave is useless for precise alignment. A sine wave curves gently upward, making it impossible to identify the exact millisecond it began.[4]

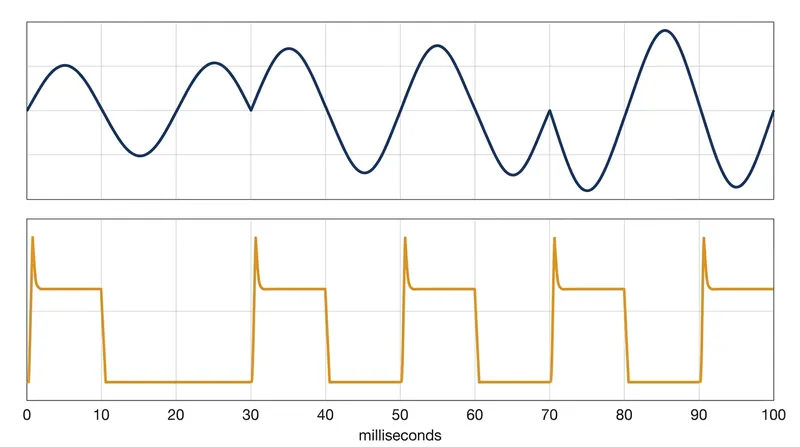

Instead, smart slates generate an asymmetric waveform, typically a square wave or a sawtooth burst. This creates a violent, vertical spike on the editor's audio waveform monitor. The attack is instantaneous, rising from silence to peak volume in a fraction of a millisecond.[4]

This sharp transient attack gives the assistant editor a definitive, unambiguous pixel to lock onto. They do not have to guess where the sound begins; the asymmetric spike forms a hard vertical wall on the timeline. They simply drag that wall to the exact frame where the visual sticks blur into contact.[3]

The beep is also strictly limited in duration, usually lasting exactly one frame, or 41.66 milliseconds at 24 frames per second. This provides a secondary visual check on the timeline. If the audio block is longer or shorter than the video frame, the editor instantly knows there is a sample-rate mismatch between the devices.[1]

Bridging the Sample Rate Divide

The precision required to align these streams is staggering when you look at the underlying math. Cinema cameras capture motion in discrete photographs, usually 24 of them every second. But professional audio recorders do not capture frames; they capture continuous samples.[1]

A standard production audio mixer records at 48,000 hertz, meaning it takes 48,000 individual snapshots of the sound wave every second. When you divide 48,000 by 24, you get exactly 2,000 audio samples for every single frame of video. The editor must align those 2,000 samples perfectly with the correct image.[1][3]

If the alignment is off by even half a frame—just 1,000 audio samples—the illusion of reality shatters. The audience will perceive that the actor's lips are moving independently of their voice. It is a deeply unsettling psychological effect that pulls the viewer entirely out of the narrative.[2]

The asymmetric beep cuts through this mathematical complexity. Because it is generated electronically by the slate's internal clock, it bypasses the acoustic delay of the room entirely. It provides a mathematically perfect anchor point that bridges the 24-frame visual world and the 48,000-sample audio world.[3]

The Legacy of the Clapperboard

The physical sticks themselves date back to the 1920s, when the transition to sound film first required a way to sync optical audio tracks with celluloid. The original clapperboards were simply two pieces of hinged wood, painted with high-contrast chevron stripes to be visible on grainy black-and-white film.[3]

Those high-contrast stripes remain standard today, though they are now often printed on backlit acrylic. The alternating black and white bands allow the editor to see the exact moment of impact, even if the slate is out of focus or caught in a motion blur. The visual contrast is just as crucial as the audio spike.

Modern smart slates, like those manufactured by Ambient Recording, combine this century-old visual design with highly precise temperature-compensated crystal oscillators. These internal clocks drift by less than one frame over a 24-hour shooting period, ensuring the electronic beep fires at the exact microsecond the sticks touch.

This hybrid approach—pairing a crude physical collision with a hyper-precise electronic signal—is a testament to the messy reality of film production. Technology has advanced exponentially since 1927, but cameras and microphones still occupy different physical spaces on a set.[3]

Until a single device can capture both pristine cinematic images and perfectly isolated dialogue from the same physical vantage point, the two streams will always remain separate. The asymmetric beep and the painted sticks will continue to serve as the essential bridge between them.[3]
