Why Thermal Budgets Force Backside Power Vias to Be Built Before Transistors

At exactly 400 degrees Celsius, the carefully arranged boron atoms inside a modern silicon transistor begin to drift out of position. This microscopic migration destroys the electrical properties of the switch, rendering the chip useless before it ever leaves the fabrication plant.[1]

That strict temperature limit, known in semiconductor manufacturing as the thermal budget, is currently forcing a massive overhaul in how the world’s most advanced processors are built. Foundries are moving power delivery to the back of the silicon wafer to save space.[1]

Getting that electricity through the bare silicon requires etching microscopic tunnels and filling them with conductive metal. Because depositing those specific metals requires ambient heat exceeding 450 degrees Celsius, manufacturing engineers can no longer build the delicate transistors first.[2]

"You are essentially trying to bake a cake, but the frosting requires a higher oven temperature than the sponge itself," explains Dr. Anne Verheyen, a materials integration specialist at the Imec semiconductor research institute in Belgium.

To solve this thermodynamic paradox, the entire semiconductor fabrication sequence is being inverted. These microscopic power vias must now be carved into the blank silicon and filled with metal long before the actual logic gates are ever formed on the wafer.[3]

Routing Power Through the Back

For the past sixty years, computer chips have been built like a city where all the plumbing and the roads sit directly on top of the buildings. Transistors are fabricated on the bottom layer, known as the front-end-of-line.[3]

Above them, up to twenty layers of microscopic copper wiring are stacked in the back-end-of-line to route both data signals and electrical power. As transistors shrank below the three-nanometer threshold in 2023, this shared highway became hopelessly congested.[3]

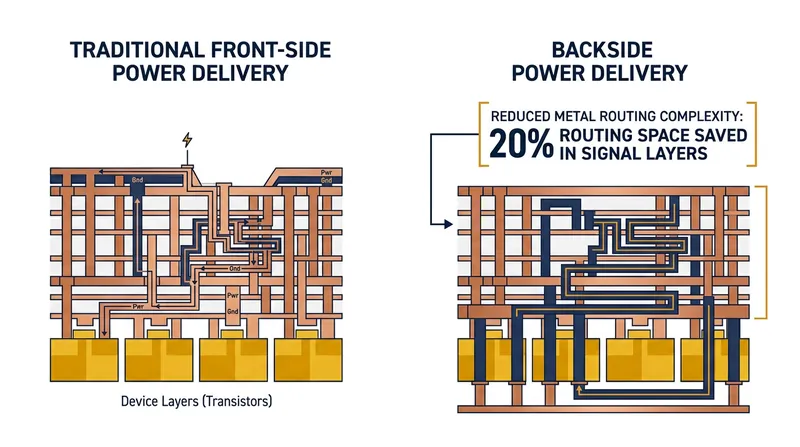

Power wires take up roughly 20 percent of the routing space on a modern processor. Moving them to the underside of the silicon wafer frees up immense room for signal routing, a technique marketed broadly as backside power delivery.[3]

Intel calls its implementation PowerVia, while TSMC refers to its upcoming version as Super Power Rail. Marketing materials promise double-digit performance gains, but they rarely mention the severe manufacturing constraints required to actually connect the two sides of the chip.[3][4]

To bridge the gap, foundries use nano-Through-Silicon Vias, commonly abbreviated as nTSVs. These are vertical shafts roughly 50 nanometers wide that punch directly through the silicon substrate to deliver electrical current straight to the transistor's source contact.

The Limits of Dopant Migration

A transistor works because its silicon crystal lattice is intentionally contaminated with specific impurities, a process called doping. Elements like phosphorus or boron are implanted into the silicon to create regions that either have extra electrons or lack them.[1]

The boundaries between these doped regions must remain incredibly sharp for the transistor to switch on and off efficiently. In a two-nanometer logic gate, a dopant atom drifting even a few nanometers out of place will permanently ruin the device.[1]

Heat is the enemy of this precision. When silicon is heated above 400 degrees Celsius, the added dopant atoms gain enough kinetic energy to diffuse through the crystal lattice, blurring the sharp electrical boundaries required for modern computing.[1][2]

"Once you form the transistor junctions, your thermal budget is permanently capped," notes a 2024 technical disclosure from Applied Materials. "Any subsequent processing step must stay below that critical temperature threshold to preserve the logic gate's electrical integrity."[2]

This creates an immediate conflict with the metals required for power delivery. Filling a 50-nanometer via without leaving microscopic air voids requires chemical vapor deposition, a process where precursor gases react to leave a solid metal film.[2]

Reversing the Fabrication Order

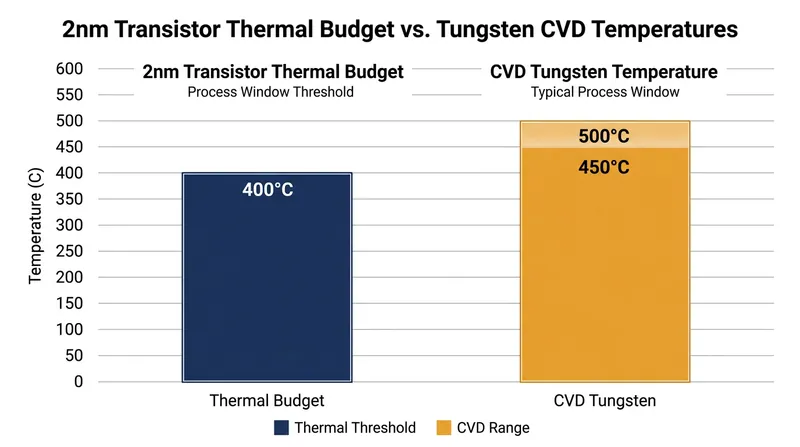

Tungsten is the preferred metal for these deep vias because it fills narrow aspect ratios flawlessly. However, the chemical vapor deposition of tungsten typically requires temperatures between 450 and 500 degrees Celsius to achieve the necessary electrical conductivity.[2]

If engineers build the transistors first and then attempt to etch and fill the tungsten vias, the 450-degree deposition process will cause the transistor dopants to migrate. The logic gates would be thermally destroyed before the power network is finished.[1][2]

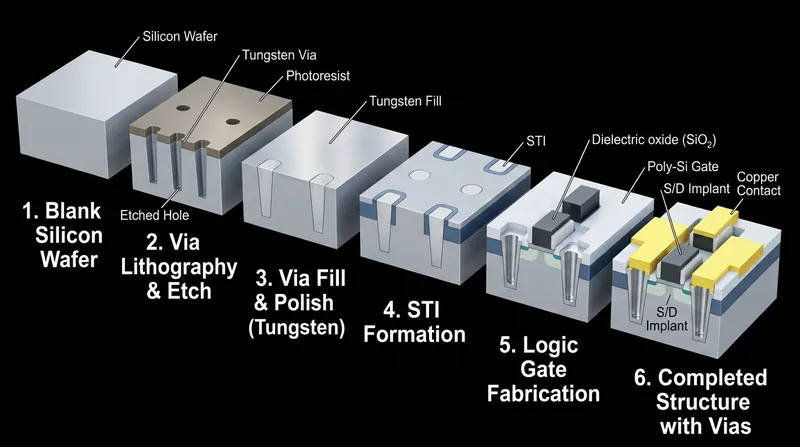

The only physically viable solution is to build the power vias first. In this inverted flow, the blank silicon wafer is etched and filled with tungsten nTSVs before any delicate transistor junctions are implanted into the crystal lattice.[3]

Because the blank silicon has no doped regions to protect, the foundry can safely bake the wafer at 500 degrees Celsius. The tungsten vias are fully formed and polished flat before the front-end-of-line transistor fabrication ever begins.

This sequence is known in the industry as a Middle-of-Line-first integration scheme. It ensures that by the time the temperature-sensitive dopants are finally introduced to the silicon, the high-heat metal deposition steps are already completed and safely in the past.[2][3]

The Materials Compromise

While building the vias first solves the thermal budget problem, it introduces a severe materials compromise for chip designers. Tungsten is highly resistant to heat, but its electrical resistance is roughly three times higher than that of copper.

Copper is the gold standard for power delivery because it conducts electricity with minimal loss. However, copper is a notorious contaminant in semiconductor manufacturing; if it diffuses into the surrounding silicon, it creates deep-level traps that short-circuit the chip.[1]

To use copper, foundries must line the via with a barrier metal like tantalum nitride. At a width of 50 nanometers, this barrier takes up so much volume that there is barely any room left for the actual copper core.

Furthermore, copper melts at a lower temperature than tungsten and expands significantly when heated. If copper vias were built before the transistors, the subsequent 400-degree transistor fabrication steps would cause the copper to expand and crack the surrounding silicon.[1]

"You are trapped between two physics problems," Verheyen's Imec research paper details. "You cannot put copper in early because it expands and contaminates, but you cannot put tungsten in late because its deposition heat destroys the logic gates."

Managing Wafer Thinning Risks

Because foundries are forced to use tungsten and build it early, they must manage the electrical resistance by keeping the vias as short as possible. This requires extreme wafer thinning techniques during the final stages of manufacturing.[3]

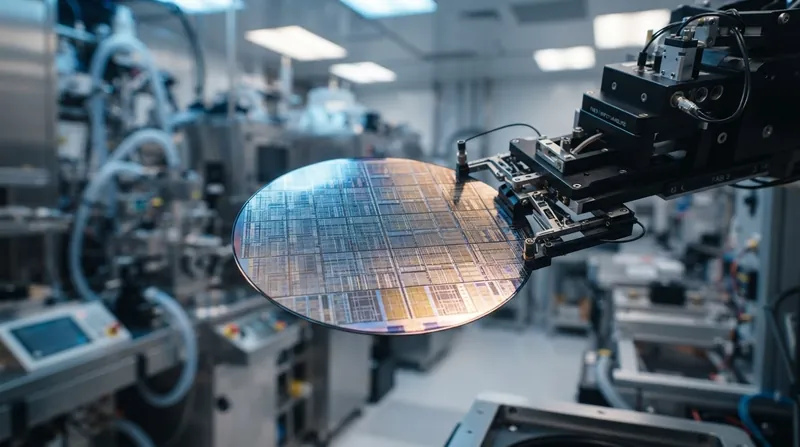

After the front-side transistors and signal wires are finished, the silicon wafer is flipped over and bonded to a glass carrier. The back of the wafer is then ground down mechanically until the buried tungsten vias are finally exposed.[3]

The wafer must be thinned to just a few micrometers, which is a fraction of the thickness of a human hair. If the grinding process is uneven by even a few nanometers, the vias will not connect properly to the backside power grid.[3]

Intel reported in 2023 that its PowerVia test chips achieved a yield greater than 90 percent, proving that this extreme thinning process can be done reliably at scale. TSMC plans to introduce its similar backside power process in 2026.[3][4]

Scaling Beyond Two Nanometers

As the industry looks toward the one-nanometer threshold expected by 2028, the thermal budget will only become more restrictive. Smaller transistors require even sharper dopant profiles, meaning their tolerance for heat will drop well below the current 400-degree limit.[1][4]

Equipment manufacturers are aggressively researching new low-temperature deposition chemistries. If a process could be invented to deposit high-quality metals at 300 degrees Celsius, the entire fabrication sequence could theoretically be flipped back to its original order.[2]

Until that chemical breakthrough occurs, backside power delivery will remain a delicate balancing act. The physical layout of the world's most advanced processors will continue to be dictated not just by where the wires fit, but by when they can safely be built.[4]

The transition represents the most significant change to semiconductor manufacturing since the introduction of FinFET transistors a decade ago. It proves that at the atomic scale, managing heat is just as critical as managing electricity.[3][4]
