Why High-Pressure Espresso Machines Choke Flow and Trigger Channeling

Home appliance manufacturers have spent decades marketing 15-bar and 20-bar espresso machines as the pinnacle of brewing technology. They promise that immense pressure forces richer flavor from the grounds. Buyers naturally assume that a stronger pump guarantees a thicker, more robust extraction in their morning cup.[3]

Fluid dynamics research reveals that this brute-force approach achieves the exact opposite result. When water pressure exceeds a critical threshold, the organic coffee bed physically compresses into a dense, impermeable barrier. This structural collapse actively chokes the flow of water rather than accelerating it.[1][2]

“If you increase the pressure, you compress the coffee bed, which reduces the flow rate and decreases the extraction yield,” writes computational chemist Christopher Hendon. His landmark 2020 study in the journal Matter demonstrates that more pressure does not equal more espresso.[1]

This phenomenon is known in physics as poroelastic compaction. Unlike rigid sand or gravel, roasted coffee grounds are highly porous, spongy organic structures. They readily deform and crush together when subjected to intense mechanical stress.[2]

The Physics of Puck Compression

When the pump engages, water hits the dry coffee bed and begins to build pressure. Up to about 8 or 9 bars, the water flows smoothly through the interstitial spaces between the grounds. It dissolves soluble flavor compounds efficiently along the way.[1]

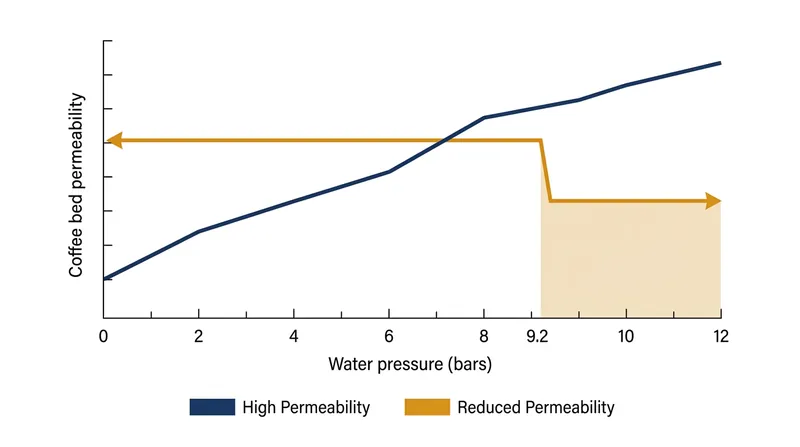

But as the pressure climbs past 9 bars, the mechanical force of the water physically crushes the coffee particles together. The tiny gaps that allow water to pass through suddenly collapse. This intense compression reduces the overall volume of the coffee puck by up to 14 percent.[2]

This structural collapse drastically reduces the bed's permeability. Instead of pushing more water through the coffee, the excessive pressure creates a solid wall. The flow rate slows to a sluggish drip, extending the brew time unnecessarily and ruining the extraction profile.[1][2]

The resulting restriction traps the water in the upper layers of the portafilter basket. The grounds at the top become severely over-extracted, releasing harsh, bitter tannins into the cup. Meanwhile, the tightly packed grounds at the bottom remain dry and completely under-utilized.

The Channeling Effect

Water under immense pressure will always seek the path of least resistance. When the compacted coffee bed refuses to let fluid pass evenly, the water violently forces its way through microscopic weak points in the puck. The structural integrity of the bed completely fails.[2]

This violent breakthrough creates localized fissures known as channeling. A high-pressure jet of water blasts through a single narrow pathway, bypassing the vast majority of the coffee grounds entirely. The water rushes through too quickly to extract meaningful flavor.[2]

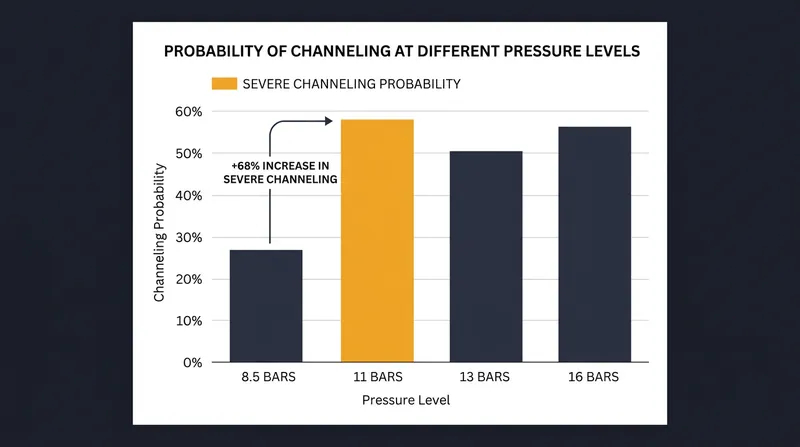

Studies published in Physics of Fluids indicate that the probability of severe channeling increases by 68 percent when extraction pressure rises from 8.5 bars to 11 bars. The visual evidence is often obvious to anyone using a bottomless portafilter to monitor their shots.[2]

Instead of a thick, unified cone of syrupy espresso gathering at the center of the basket, channeling produces erratic, high-velocity sprays. These thin jets shoot in random directions across the drip tray. The resulting cup tastes simultaneously sharp, sour, and hollow.[3]

Rethinking the Nine-Bar Standard

For over half a century, the Italian espresso tradition has held 9 bars of pressure as the absolute golden rule for a perfect extraction. This standard was established during an era when dark, oily roasts dominated the global coffee market. Those beans behaved very differently.

Darker roasts are highly brittle and shatter into relatively uniform, easily extracted particles during grinding. They offer significantly less resistance to the brewing water. This allows a 9-bar pump to push fluid through the bed without triggering catastrophic poroelastic compaction.[1]

Modern specialty coffee, however, favors much lighter roasts that preserve the bean's delicate floral and fruity acids. These denser, lighter beans require a finer grind setting to extract properly. That finer grind inherently increases the hydraulic resistance of the coffee bed.

When a home barista applies 9 bars of pressure to a finely ground bed of light-roast coffee, the compaction threshold is crossed almost immediately. The puck chokes, severe channeling ensues, and the delicate flavors are lost. The resulting shot is overwhelmingly bitter.[1][3]

Lower Pressure for Higher Yields

To combat this physical limitation, leading baristas and coffee scientists are now advocating for significantly lower extraction pressures. Dropping the pump output to 6 or 7 bars prevents the coffee bed from collapsing. The organic material retains its porous structure.[1]

At 6 bars, the water actually flows through the grounds at a faster, more consistent rate than it does at 9 bars. The structural integrity of the puck remains intact. This allows the fluid to wash evenly over every single particle in the basket.[1][2]

This gentle, even flow dramatically increases the overall extraction yield, pushing it closer to the ideal 20 to 24 percent range. The resulting espresso is noticeably sweeter and more balanced. It is entirely free of the harsh astringency caused by high-pressure channeling.[1]

Many modern prosumer espresso machines now feature variable pressure profiling to take advantage of this physics. They allow users to start the shot at a low pressure to gently saturate the puck before ramping up. This pre-infusion phase prepares the organic material for mechanical stress.[3]

Practical Steps for the Home Brewer

For those stuck with entry-level machines locked at 15 bars, mitigating compaction requires a change in preparation. Grinding slightly coarser reduces the initial resistance of the bed. This gives the water a chance to flow before the puck fully compresses.[3]

Reducing the total dose of coffee in the basket also provides the grounds with more physical room to expand as they absorb water. A smaller dose limits the severity of the compaction. The high-pressure water has less material to crush against the filter screen.[1][3]

Ultimately, the physics of poroelasticity prove that brewing exceptional coffee is a matter of finesse rather than brute force. The goal is to coax the soluble compounds out of the roasted bean. Crushing the grounds into submission only ruins the beverage.[2][3]

As the specialty coffee industry continues to embrace fluid dynamics, the marketing appeal of the 20-bar pump is rapidly fading. The best extraction happens precisely at the point where the water and the coffee cooperate. Pushing past that limit guarantees a worse cup.[3]
