Why Deficit Water Pulsing Stops Root Intrusion in Subsurface Irrigation

Replacing a ruined subsurface drip irrigation system costs a grower roughly $2,000 per acre, a capital expense that routinely wipes out the net profit of an entire harvest. That financial baseline dictates everything about how modern farms manage water. When the buried plastic lines fail, the entire field must be excavated.[2]

Subsurface drip irrigation buries water delivery lines directly in the root zone, typically 12 to 18 inches below the soil surface. This architecture eliminates evaporative loss, cutting total agricultural water consumption by up to 40 percent compared to traditional flood or overhead sprinkler methods.[4]

Burying the water source introduces a severe biological vulnerability. Plant roots are highly efficient moisture-seeking engines, driven by a biological mechanism called hydrotropism. If a buried emitter constantly weeps water, roots will inevitably grow directly into the plastic orifice, permanently clogging the system.[3]

"Once a root hair breaches the labyrinth of a drip emitter, the line is effectively dead, and no amount of acid flushing will clear it," notes Dr. Isaya Kisekka, an agricultural water management specialist at UC Davis. "You are fighting the fundamental biology of the crop."[2]

The Chemical and Physical Workarounds

The irrigation industry historically relied on chemical deterrents to protect its hardware. Manufacturers impregnated emitters with Trifluralin, a pre-emergent herbicide designed to stunt root tip growth upon contact. This approach treated the symptom rather than the underlying hydraulic attraction.

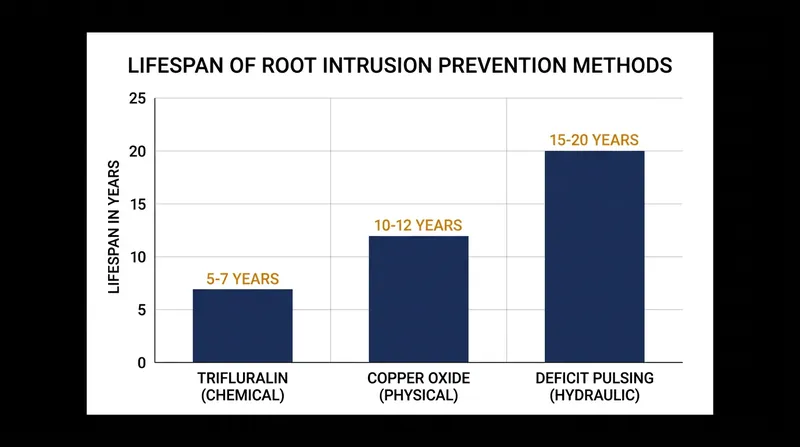

Herbicide-laced emitters degrade over time, typically losing their efficacy within five to seven years. Furthermore, tightening environmental regulations in the European Union and parts of the United States have heavily restricted the deployment of persistent soil chemicals in food production.[4]

Other systems utilize physical barriers, such as copper oxide plates built directly into the emitter housing. Copper naturally repels root growth, but integrating heavy metals adds significant manufacturing cost to the millions of miles of tubing required for commercial-scale agriculture.

The Mechanics of Deficit Pulsing

Deficit water pulsing abandons chemical and physical barriers entirely in favor of hydraulic manipulation. Instead of running irrigation pumps continuously to maintain a steady moisture level, controllers deliver water in short, high-pressure bursts followed by extended dry periods.[1]

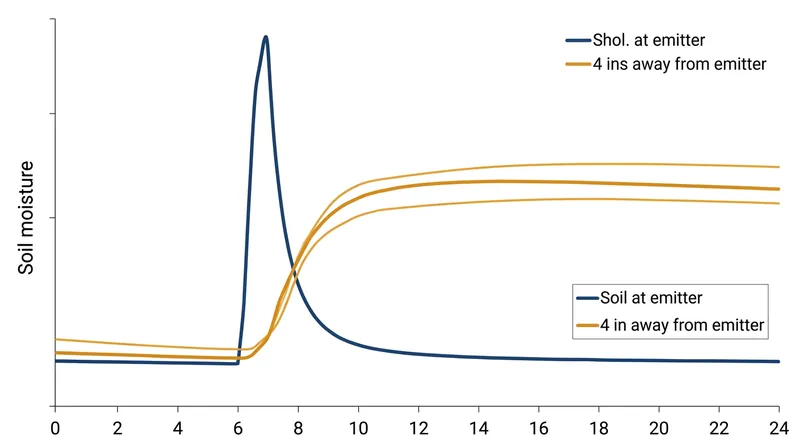

During a pulse, water exits the emitter rapidly, creating a saturated zone that pushes outward into the surrounding soil matrix. When the pump shuts off, the soil immediately adjacent to the emitter drains and dries first, while the bulk of the moisture continues moving outward via capillary action.[1]

This creates an inverted moisture gradient within the root zone. The wettest soil is no longer at the emitter itself, but rather in a damp halo several inches away. Roots, following the moisture, grow toward the halo and away from the dry plastic hardware.[3]

Engineering the Pulse Interval

The timing of these pulses must be precisely calibrated to the soil's specific hydraulic conductivity. In heavy clay soils, water moves slowly, requiring shorter pulses and longer resting intervals to prevent pooling at the emitter and suffocating the roots.

Sandy soils drain rapidly, demanding a completely different protocol. A 2024 field study published in Agricultural Water Management demonstrated that sandy loam required pulse frequencies three times higher than clay to maintain the protective dry zone around the hardware without losing water to deep percolation.[1]

"We are essentially tricking the plant into chasing a moving target," explains a 2025 technical bulletin from Netafim, a global irrigation manufacturer. "By the time the root senses the moisture, the water has already migrated away from our infrastructure."

Executing this trick requires maintaining line pressure between 15 and 45 PSI during the burst phase. This pressure ensures turbulent flow inside the emitter labyrinth, which clears fine silt particles while simultaneously pushing the wetting front far enough into the soil profile.

Distinguishing Capability from Marketing

Irrigation technology vendors frequently market pulsing controllers as a proprietary artificial intelligence breakthrough. In reality, the underlying physics of soil moisture gradients have been understood since the 1980s, and the math governing capillary action is entirely public domain.[5]

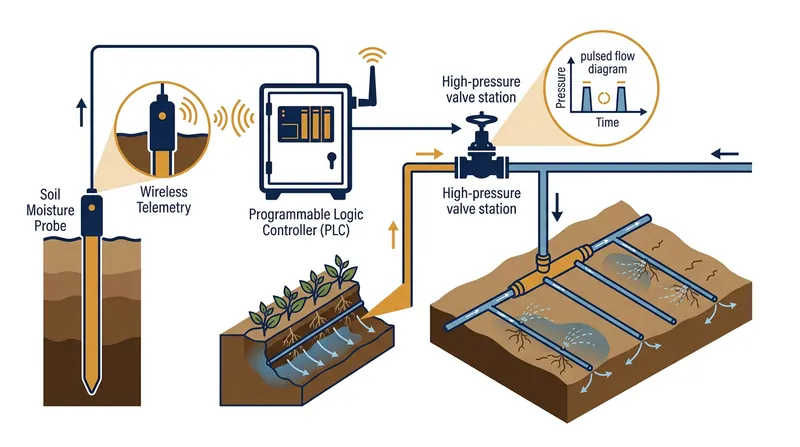

What has actually shipped to farms over the last three years is not a new hydraulic principle, but cheaper telemetry. Soil moisture probes that once cost $1,500 now retail for under $200, allowing standard programmable logic controllers to automate the pulse timing economically.[4]

These sensors transmit volumetric water content data over low-power LoRaWAN networks directly to the pump station. The controller then calculates the exact deficit required to maintain the gradient, shutting off the flow precisely when the soil near the emitter reaches field capacity.[4]

The "smart" algorithms are simply executing basic deficit irrigation formulas based on real-time sensor data. If a vendor claims their software prevents root intrusion without requiring accurate soil texture inputs or live moisture readings, they are selling marketing language, not agronomy.[5]

Yield Impacts and Root Architecture

Beyond protecting the hardware, deficit pulsing fundamentally alters the crop's root architecture. By forcing roots to chase the expanding moisture halo, the plant develops a larger, more distributed root mass than it would under continuous, localized watering.

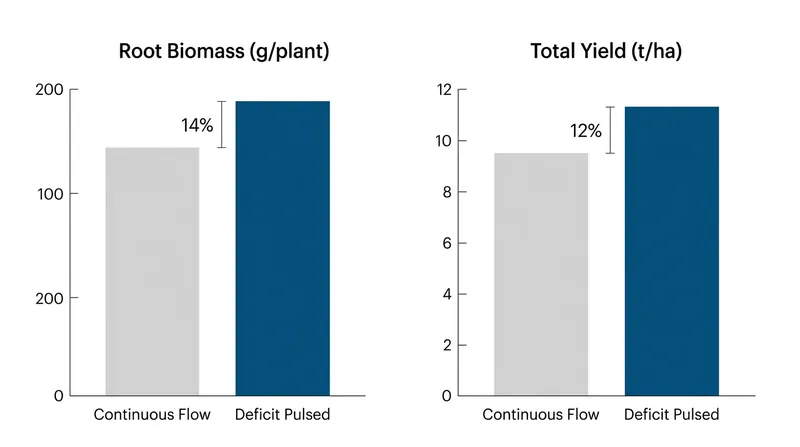

Field trials conducted by Texas A&M AgriLife in 2023 showed that cotton crops subjected to deficit pulsing exhibited a 14 percent increase in total root biomass compared to continuously irrigated control plots in identical soil conditions.

This expanded root network allows the crop to access a greater volume of soil nutrients that would otherwise remain stranded. Consequently, optimized pulsing protocols have been correlated with yield increases of 10 to 15 percent in row crops like corn and soybeans.

The technique works best on deep-rooted crops that can tolerate brief periods of localized drying. Shallow-rooted specialty crops, such as strawberries, require much tighter pulse intervals to prevent stress, shrinking the margin of error for the farm manager.[2]

The Limits of Hydraulic Control

Deficit pulsing is not a universal safeguard; it requires a highly uniform irrigation system to function. If pressure drops at the end of a long lateral line, the emitters in that sector will not push the water far enough away to create the necessary dry zone.

During extreme heat waves, the crop's evapotranspiration rate can exceed the system's capacity to deliver water via intermittent pulses. Farm managers are often forced to revert to continuous flow just to keep the plants alive, temporarily abandoning the root-repelling gradient.[2]

When a system is forced into continuous operation for more than 72 hours, the risk of root intrusion spikes dramatically. The hydraulic defense mechanism only works when the farm can afford to let the hardware dry out between cycles.[1]

The longevity of a subsurface system relies entirely on operational discipline. The physics of the moisture gradient are absolute, but they require a farm manager willing to withhold water precisely when the instinct is to flood the field.[5]
