How the Breather Hole in an Aircraft Window Keeps the Structural Fail-Safe Unloaded

At 35,000 feet, the environment outside a commercial airliner is entirely inhospitable to human life, with temperatures plunging below freezing and oxygen levels too low to sustain consciousness. To keep passengers safe, the aircraft pumps conditioned air into the cabin, creating an artificial atmosphere equivalent to an elevation of about 8,000 feet.

This life-saving pressurization creates a massive physical imbalance between the inside and the outside of the fuselage. The aircraft's skin, including its transparent passenger windows, must constantly hold back that outward force to maintain the structural integrity of the cabin.[1]

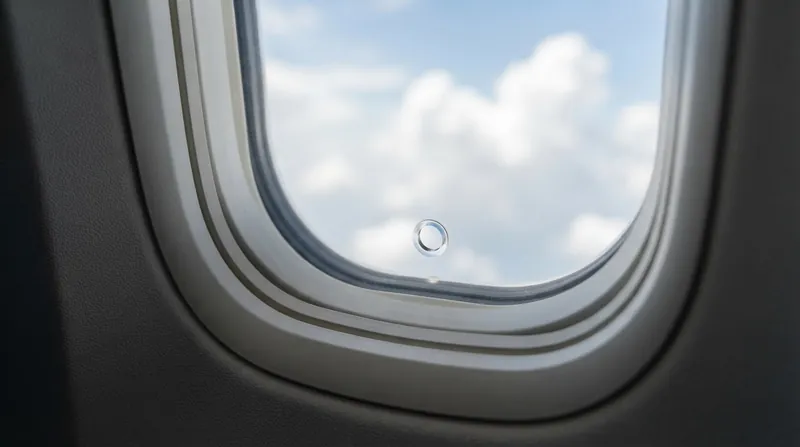

Passengers staring out at the clouds often notice a tiny, deliberate puncture near the bottom of the window glass. Far from a manufacturing defect, this small feature—known in aviation engineering as a bleed hole or breather hole—is the linchpin of the entire window assembly.

"The holes don't regulate cabin pressure but instead regulate the rate of air pressure loading on the window glazings," explains Wayne Maltry, a consulting engineer at Engineering Design & Testing Corp. By managing where the air pushes, the hole dictates which piece of plastic does the heavy lifting.

The Three-Pane Architecture

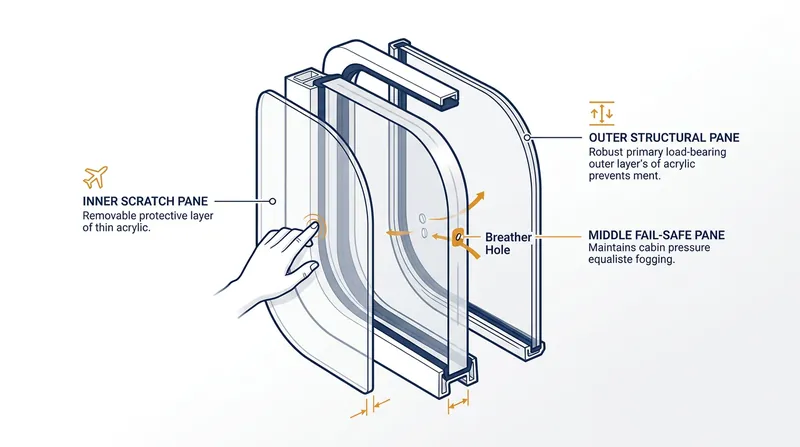

A modern commercial aircraft window is not a single sheet of glass, but rather a highly engineered stack of three distinct layers of stretched acrylic. Each layer serves a specific, isolated function in the barrier between the passenger and the stratosphere.[1]

The innermost layer, which passengers can physically touch from their seats, is known as the scratch pane. It carries no structural load and exists purely to protect the more critical outer layers from luggage impacts, rings, or accidental damage from the cabin interior.

Behind the scratch pane sits the middle pane, which contains the breather hole. This layer acts as a redundant fail-safe, designed to hold the cabin pressure only if the primary barrier is compromised during the flight.[1]

The outermost pane is the true structural workhorse of the assembly. It is sealed tightly against the aircraft's fuselage and is built to withstand the extreme temperature gradients and the full outward force of the pressurized cabin air.[1]

Aircraft windshields and passenger windows function as structural components, not simple transparent panels, notes the Factlen Editorial Team's analysis. The passenger windows follow a rigorous philosophy, utilizing multiple plies to manage pressure differentials and thermal stress.[2]

The Physics of Cabin Pressurization

To understand the breather hole's job, one must quantify the invisible forces at play during a routine flight. When an aircraft reaches its cruising altitude, the ambient atmospheric pressure drops significantly, while the cabin remains artificially dense.

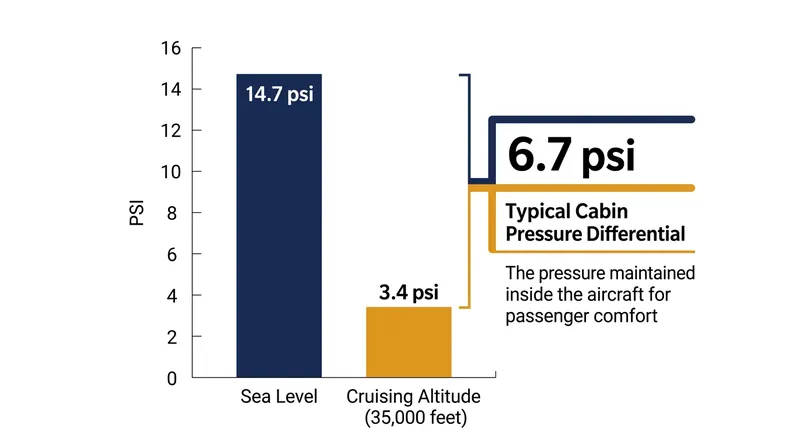

According to technical specifications from the Airnet Team, the cabin-to-ambient pressure differential routinely reaches 6.7 pounds per square inch (psi) during high-altitude operations. Every square inch of the aircraft's interior is constantly pushing outward with that exact amount of force.

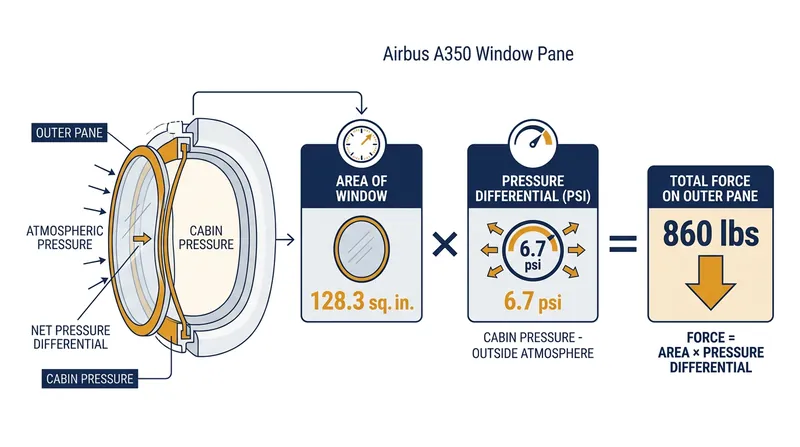

The total load on a single window depends entirely on its surface area. For example, the passenger windows on an Airbus A350 measure 9.5 by 13.5 inches, yielding a total surface area of 128.3 square inches.

Multiplying that 128.3-square-inch area by the 6.7 psi differential reveals that a single A350 window must hold back approximately 860 pounds of continuous outward force. Without a way to manage that load, the pressure would strain every layer of the acrylic stack simultaneously.[2]

If the middle pane and the outer pane were completely sealed off from one another, the trapped air between them would expand and compress as the aircraft climbed and descended. This would put unnecessary, fatiguing strain on the middle layer.

Diverting the Structural Load

The breather hole solves this problem by intentionally leaking cabin air into the small gap between the middle and outer panes. This equalization ensures that the pressure inside the gap perfectly matches the pressure inside the passenger cabin.

Because the pressure on both sides of the middle pane is identical, the net force acting upon it drops to zero. The middle pane simply rests in place, completely unloaded and unstressed, while the outer pane absorbs the entire 860-pound burden.[2]

The outer pane is the primary structural window, which means it bears all the stress of cabin pressurization under normal conditions. The inner pane remains a redundant failsafe, designed to hold the cabin pressure in the extremely rare event that the outer pane fractures.[1]

By keeping the middle pane pristine and free from the microscopic fatigue that comes with repeated pressurization cycles, engineers guarantee its strength. If a piece of debris were to shatter the outer pane, the middle pane would instantly take over the load.[1]

In that emergency scenario, the breather hole is small enough that the aircraft's pressurization system can easily compensate for the minor air leak. This gives the flight crew ample time to descend to a safe, breathable altitude without losing cabin pressure.[1]

Managing Condensation and Frost

Beyond its critical structural role, the breather hole performs a secondary function that directly impacts the passenger experience. It acts as a moisture management system for the entire window assembly.

The air inside a commercial aircraft cabin carries humidity from the breath and bodies of hundreds of passengers. Meanwhile, the outer pane is exposed to stratospheric temperatures that routinely plunge below minus 60 degrees Fahrenheit.

If stagnant, humid air were trapped between the panes, the extreme cold radiating from the outer acrylic would cause that moisture to condense and freeze. The window would quickly become completely opaque with frost, ruining the view.

"These holes also aid in preventing condensation or fog from forming between the panes," explains Captain Joe, an aviation expert and pilot. "Which could obstruct the view for the passenger who paid extra for a window seat."

The breather hole allows the dry, conditioned air from the cabin's environmental control system to circulate into the gap. This continuous airflow purges any moisture and keeps the acrylic transparent for the duration of the flight.

Testing the Fail-Safe

The guidelines for the composition and stress testing of these critical components are strictly governed by regulatory bodies. The FAA's Advisory Circular 25.775-1 outlines the accepted methods for proving a window's structural integrity before it ever takes flight.[1]

"The windows have to withstand all of that," says Brent Wright, a global business director for aerospace transparencies at PPG. "Not only that but they may be tested in different conditions… where one of the structural plies is damaged, to determine and certify the fail-safe aspect of the design."[1]

During certification, manufacturers must intentionally saw-cut or crack the outer structural ply of a test window. They then subject the compromised assembly to the maximum aerodynamic pressure and temperature effects to ensure the middle pane holds the load.[1]

Because the breather hole has kept the middle pane completely unloaded throughout its service life, the acrylic retains its original factory strength. It easily absorbs the sudden shock of the pressure transfer without shattering or buckling.[1][2]

The Legacy of Window Design

The sophisticated three-pane system and its tiny pressure valve represent decades of hard-learned lessons in aerospace engineering. Early high-altitude passenger jets did not fully account for the fatiguing effects of pressurization cycles on the fuselage.

In the 1950s, the de Havilland Comet—the world's first commercial jetliner—suffered a series of catastrophic structural failures. Investigators eventually traced the breakups to the aircraft's square windows, whose sharp corners concentrated the stress of the pressure differential until the metal tore.

"Engineers then determined that rounded windows with bleed holes were necessary to reduce pressure issues and structural stress caused by repeated pressurization and depressurization cycles," Maltry notes. That fundamental shift reshaped the entire aviation industry.

Today, the Federal Aviation Administration mandates that commercial aircraft windows must withstand the maximum cabin pressure differential even after the failure of any single load-carrying element. The breather hole is the exact mechanism that makes that redundancy possible.[1]

The next time you secure a window seat, take a moment to locate the small dot near the bottom edge. It is not a flaw, but a brilliant piece of passive engineering that quietly manages hundreds of pounds of force while keeping the view perfectly clear.
