Why the Freeman-Tukey Double Arcsine Transformation Projects Meta-Analyses Outside Reality

Statistical software packages routinely claim that the Freeman-Tukey double arcsine transformation perfectly stabilizes variances for meta-analyses of proportions, allowing researchers to pool studies of vastly different sizes without distortion. But when those pooled results are back-transformed using a harmonic mean, the mathematical projection can synthesize a prevalence rate that falls completely outside the bounds of every single empirical study observed.[1][2]

This mathematical artifact sits at the center of a quiet crisis in evidence-based medicine. When epidemiologists attempt to calculate the global prevalence of a disease, they rarely find perfectly uniform data. Instead, they must synthesize dozens of distinct studies, ranging from massive national registries to tiny rural clinics.[3]

Combining these disparate figures requires a weighting mechanism. Standard meta-analytic models assign weight based on the inverse of a study's variance, meaning larger, more precise studies pull the final average toward their results. However, raw proportions behave poorly in these models, particularly when an event is extremely rare or extremely common.[2]

If a clinical trial observes zero adverse events in a sample of 50 patients, its raw variance mathematically collapses to zero. Inverse-variance pooling cannot handle a zero denominator, forcing the software to either drop the study entirely or artificially add 0.5 to the cell count, which severely distorts the actual clinical finding.[1]

The double arcsine mechanism

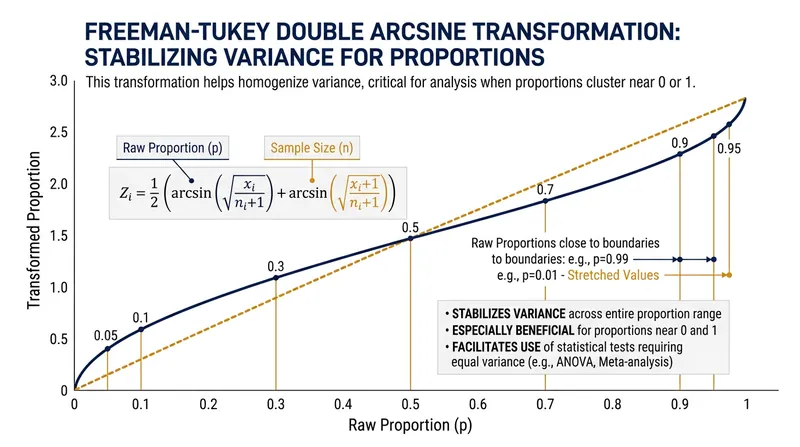

To bypass this zero-variance trap, researchers in 1950 developed the Freeman-Tukey double arcsine transformation. This trigonometric function converts raw proportions into a stretched angular scale, decoupling the variance from the mean. In this transformed space, the variance of any study is dictated almost entirely by its sample size.[4]

Throughout the late twentieth century, this transformation became the default mechanism for pooling prevalence rates. Software packages like R's metafor project and Stata's metaprop integrated it seamlessly, allowing analysts to feed in raw counts and receive a neatly synthesized average. The transformation effectively protected zero-event studies from being discarded by the algorithm.[5]

"The transformation stabilizes the variances and ensures that the confidence intervals remain within the 0 to 1 bounds," notes Wolfgang Viechtbauer, author of the metafor package, in his 2026 documentation. This bounded stability made it an incredibly popular tool for synthesizing messy, real-world epidemiological data.[5]

But the pooled estimate generated by this method exists in an abstract trigonometric space. To be useful to a doctor or a policymaker, that angular value must be converted back into a standard percentage. This is where the mathematical machinery begins to break down.[1]

The harmonic mean trap

The inverse formula required to back-transform the pooled estimate was derived by John Miller in 1978. Miller's equation requires two inputs: the pooled angular value and the sample size of the population. But a meta-analysis does not have a single sample size; it is an amalgamation of many different cohorts.[4]

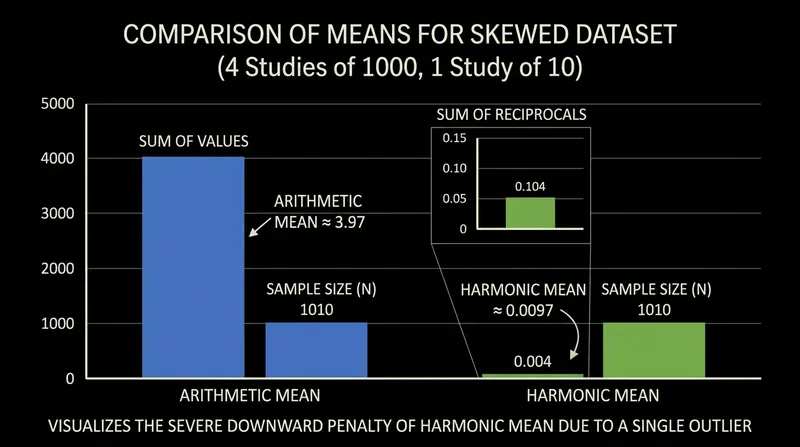

To solve this missing variable problem, statistical software typically calculates the harmonic mean of all the individual study sample sizes. The harmonic mean is a specific type of average that heavily penalizes large outliers, pulling the final number aggressively toward the smallest values in the dataset.[3]

If a meta-analysis includes four studies with 1,000 patients each and one study with 10 patients, the arithmetic mean is 802. The harmonic mean of that same group is just 49. When this artificially low number is fed into Miller's inverse equation, it severely distorts the back-transformation.[1]

This distortion creates a severe mismatch. The initial pooling phase gave massive weight to the 1,000-patient studies because of their low variance. But the back-transformation phase uses a harmonic mean dictated almost entirely by the 10-patient study, effectively applying two contradictory weighting schemes to the exact same dataset.[2]

Projecting outside empirical reality

The consequences of this mathematical contradiction were laid bare in a 2019 methodological review by Guido Schwarzer and colleagues. They demonstrated that the harmonic mean back-transformation can project a final prevalence rate that completely contradicts the underlying data. The algorithm synthesizes a reality that no individual researcher actually observed.[1]

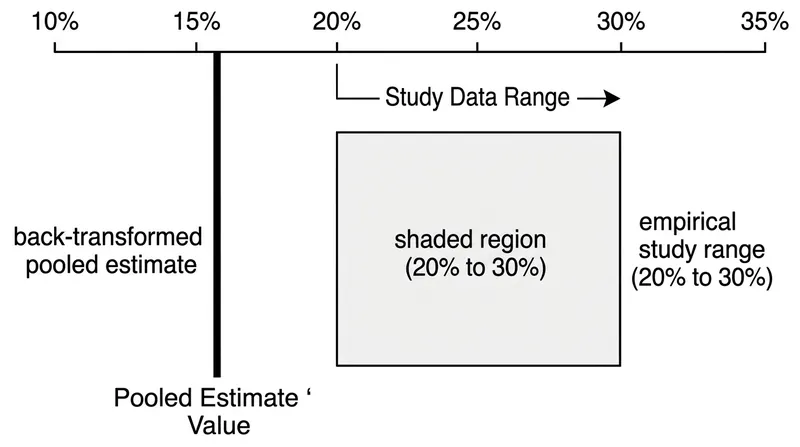

In one striking example, researchers pooled studies reporting disease prevalence rates between 20% and 30%. Because the sample sizes varied by more than an order of magnitude, the harmonic mean back-transformation shifted the final pooled estimate down to 15%. The synthesized average was lower than the lowest empirical observation.[1]

"We show that the Freeman-Tukey double arcsine transformation can lead to seriously misleading results," Schwarzer's team wrote, warning that the back-transformed proportions "can be outside the range of the individual study proportions." They urged the scientific community to abandon the method entirely.[1]

This boundary violation is not a rare edge case. A 2022 preprint by Lin and Chu confirmed that the inverse double arcsine transformation is fundamentally inappropriate for meta-analysis whenever study sizes are highly heterogeneous. The mathematical domain of the inverse function simply cannot accommodate the harmonic mean without warping the output.[2][7]

The methodological pushback

Not all statisticians agree that the transformation should be discarded. In 2021, Suhail Doi and colleagues published a fierce defense of the Freeman-Tukey method, arguing that the criticisms were themselves flawed. They maintained that the transformation remains valid if the back-transformation is handled with different weighting protocols.[6]

"Recent criticisms were seriously misleading," Doi's team countered in their PubMed-indexed response. They argued that the boundary violations only occur when analysts blindly trust default software settings without understanding the underlying trigonometric domain limits. When properly calibrated, they claim the transformation still outperforms raw pooling.[6]

Despite this defense, the consensus among biostatisticians is rapidly shifting away from trigonometric fixes. The mathematical overhead required to safely navigate the inverse domain of the double arcsine function is simply too high for the average clinical researcher using off-the-shelf software.[7]

The risk of publishing an impossible prevalence rate—one that falls outside the bounds of all collected evidence—outweighs the benefits of variance stabilization. When a synthesized estimate cannot be traced back to the empirical data, it ceases to be a summary of evidence and becomes a pure mathematical artifact.[1]

The shift to mixed models

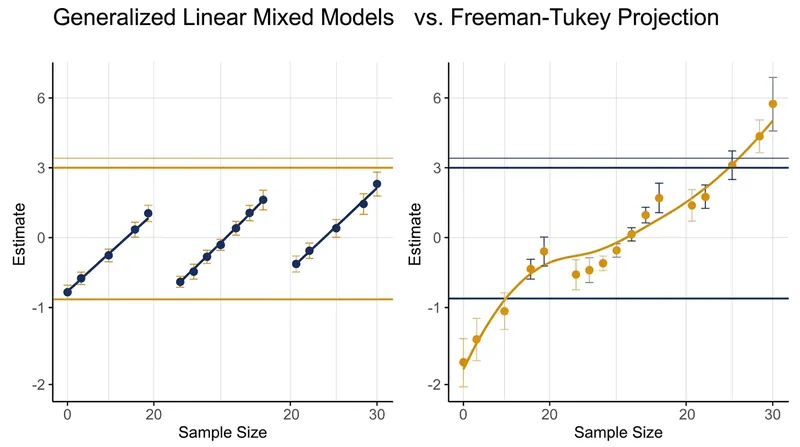

To replace the Freeman-Tukey method, epidemiologists are increasingly turning to generalized linear mixed models. Instead of transforming the data to fit a linear equation, these models use logistic regression to evaluate the raw binary outcomes directly. This approach respects the natural boundaries of proportion data without requiring a back-transformation.[2]

Because these mixed models operate on the log-odds scale, they naturally handle zero-event studies without requiring artificial continuity corrections. A study with zero adverse events simply contributes its raw binomial data to the overarching model, allowing the algorithm to calculate a pooled prevalence that remains strictly within the empirical range.[1]

The computational cost of running a mixed model is significantly higher than executing a simple trigonometric transformation. In 1978, when Miller published his inverse equation, calculating a mixed-effects logistic regression across fifty studies would have overwhelmed standard mainframe computers. The double arcsine was a necessary computational shortcut for its era.[4]

Today, that computational barrier no longer exists. A standard laptop can fit a complex binomial mixed model in a fraction of a second, rendering the trigonometric approximations obsolete. The persistence of the Freeman-Tukey method in modern research is largely a product of institutional inertia and legacy software defaults.[2]

Software developers are now actively patching those defaults. The metafor package in R explicitly warns users about the harmonic mean trap, and Cochrane guidelines increasingly recommend mixed models for pooling proportions. The era of trigonometric variance stabilization is quietly drawing to a close.[5]

This methodological shift ensures that future clinical guidelines will be built on mathematical models that reflect reality. When a health ministry asks for the global prevalence of a condition, the synthesized answer will finally remain anchored within the bounds of what doctors actually observed in the field.[3]
