How PyTorch's DistributedDataParallel Overlaps AllReduce With Backward Passes

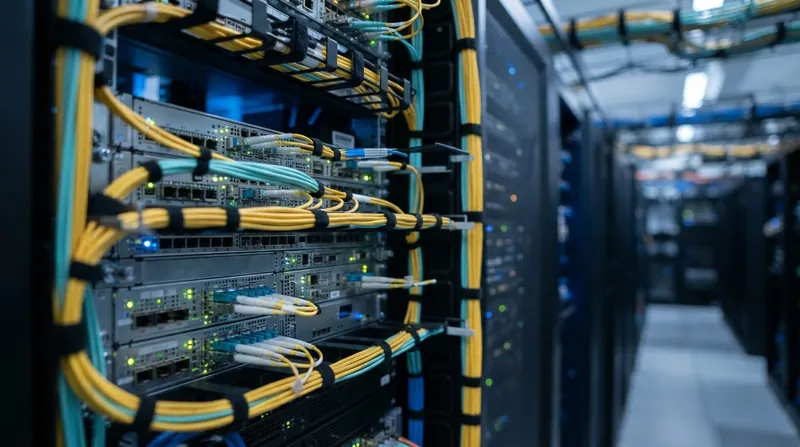

Hardware vendors market 400-gigabit interconnects with the promise that distributed training scales linearly as long as the network is fast enough. But empirical profiling tells a different story. Without software intervention, even the fastest network leaves expensive GPUs idling while they wait for mathematical operations to finish.

The standard narrative assumes that data transfer is the sole bottleneck in multi-node machine learning. This claim ignores the sequential nature of neural network training. If a system waits for the entire backward pass to complete before synchronizing data, the network sits dormant during computation.

PyTorch’s DistributedDataParallel (DDP) module rejects this sequential approach entirely. Instead of treating computation and communication as isolated phases, it forces them to run concurrently. The framework achieves this by hooking directly into the autograd engine to intercept gradients as they are calculated.[1]

This mechanism relies on a specific memory threshold rather than arbitrary timing. By default, PyTorch groups these intercepted gradients into 25-megabyte buckets. This precise sizing prevents the network from being overwhelmed by millions of tiny messages while ensuring it does not wait for the whole model.[1]

“DDP overlaps AllReduce communication with backward pass computation to speed up training,” the original PyTorch Distributed authors noted in their 2020 VLDB paper. This overlap is the functional difference between a cluster that scales efficiently and one that wastes half its cycles waiting for data.[2]

The Sequential Bottleneck

To understand why overlapping is necessary, one must look at how standard backpropagation moves through a network. The backward pass calculates gradients starting from the final output layer and moving toward the first input layer. This creates a strict mathematical dependency chain.

In a naive distributed setup, each GPU computes this entire chain locally before talking to its peers. Once the final gradient is calculated, all GPUs simultaneously broadcast their results across the network. This creates a massive, instantaneous spike in network traffic.

During this synchronization phase, the GPUs cannot begin the next training step. They sit completely idle, waiting for the network to average the gradients and return the updated weights. At 400 gigabits per second, the network clears the backlog quickly, but the idle time still accumulates.

Conversely, during the computation phase, the high-speed network interconnects transmit nothing. This alternating pattern of 100-percent compute utilization followed by 100-percent network utilization halves the theoretical throughput of the cluster. Hardware vendors rarely highlight this software-induced ceiling in their marketing materials.

The solution requires breaking the synchronization phase into smaller pieces. If the network can begin averaging the gradients of the final layers while the GPU is still computing the earlier layers, the two phases can execute simultaneously. This is where PyTorch’s autograd hooks intervene.[1]

Intercepting the Backward Pass

PyTorch’s autograd engine dynamically builds a computational graph during the forward pass. This graph tracks every mathematical operation applied to the input tensors. During the backward pass, the engine traverses this graph in reverse to calculate the gradients for each parameter.[1]

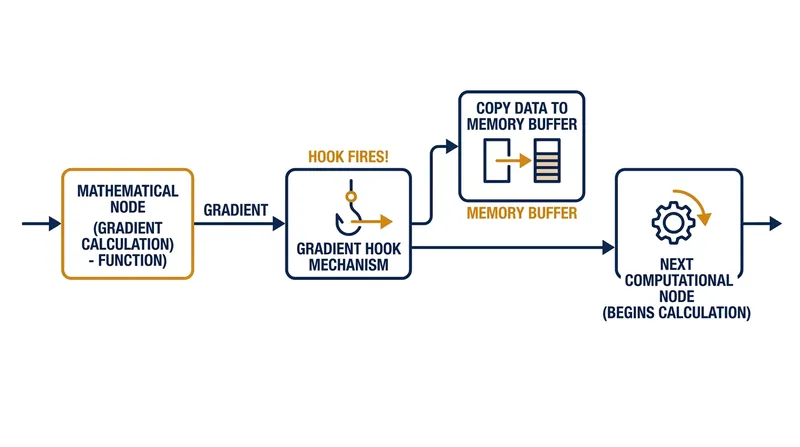

DistributedDataParallel exploits this graph traversal by registering custom execution hooks on every parameter. An autograd hook is simply a callback function that triggers the moment a specific gradient calculation finishes. It acts as a tripwire embedded directly inside the mathematical sequence.[1][2]

When the backward pass computes the gradient for a specific layer, the hook fires immediately. It does not wait for the rest of the network to finish its calculations. Instead, it alerts the DDP backend that a new piece of data is ready for network transmission.[1]

This interception happens entirely in the background, invisible to the machine learning practitioner writing the training script. The user simply wraps their model in the DDP class, and PyTorch handles the hook registration automatically. This abstraction separates the mathematical logic from the distributed systems engineering.[1]

However, firing a network transmission for every single parameter would be disastrous. A standard ResNet-50 model contains over 25 million parameters, and initiating millions of individual network calls introduces crippling overhead. The system needs a way to batch these ready gradients together.

The 25-Megabyte Threshold

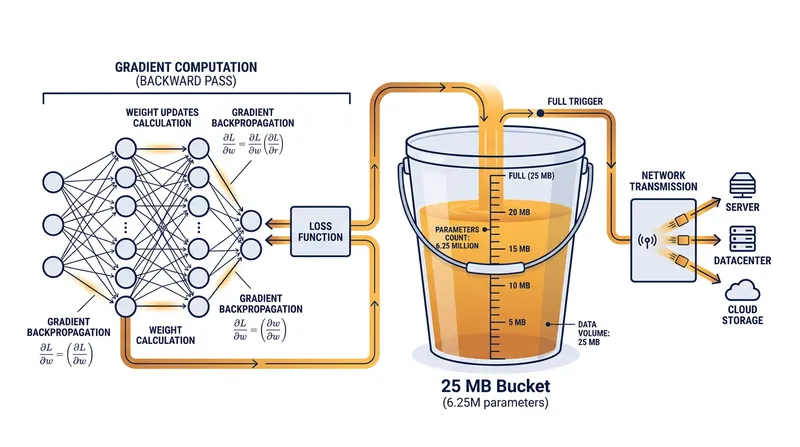

To solve the overhead problem, PyTorch introduces the concept of gradient bucketing. Instead of transmitting each gradient as it becomes available, the autograd hooks copy the gradients into a contiguous buffer in the GPU's memory. This buffer is known as a bucket.[1]

By default, PyTorch sizes these buckets at exactly 25 megabytes. For a model using standard 32-bit floating-point precision, a 25-megabyte bucket holds precisely 6.25 million parameters. The hooks continue filling this bucket as the backward pass progresses through the neural network layers.[1]

The 25-megabyte figure was not chosen at random. It represents a carefully calculated mathematical sweet spot between network latency and compute duration. A smaller bucket would trigger too many network calls, while a larger bucket would delay the start of the synchronization phase.[2]

Once the total size of the accumulated gradients crosses the 25-megabyte threshold, the bucket is marked as full. The DDP backend immediately dispatches this full bucket to the network interface for synchronization. Meanwhile, the autograd engine seamlessly begins filling the next bucket.[1]

This bucketing strategy transforms a chaotic stream of millions of tiny updates into a steady, predictable pipeline of uniform data chunks. It maximizes the bandwidth utilization of modern InfiniBand and Ethernet interconnects without overwhelming the network interface controllers with excessive message headers.

Executing the AllReduce Operation

The actual synchronization across the cluster uses a collective communication algorithm called Ring AllReduce. In this algorithm, GPUs are arranged in a logical ring topology across the network. Each GPU sends a fraction of its bucket to its right neighbor while receiving a fraction from its left.[4]

This peer-to-peer architecture prevents the network switch from becoming a centralized bottleneck. The AllReduce operation ensures that every GPU in the cluster ends up with the exact same averaged gradients for that specific 25-megabyte bucket. The mathematical equivalence of the model is perfectly maintained.[4]

Because the AllReduce operation runs asynchronously on a separate CUDA stream, it does not block the main computation thread. The GPU continues executing the backward pass for the remaining layers while the network hardware handles the synchronization of the completed layers.[1]

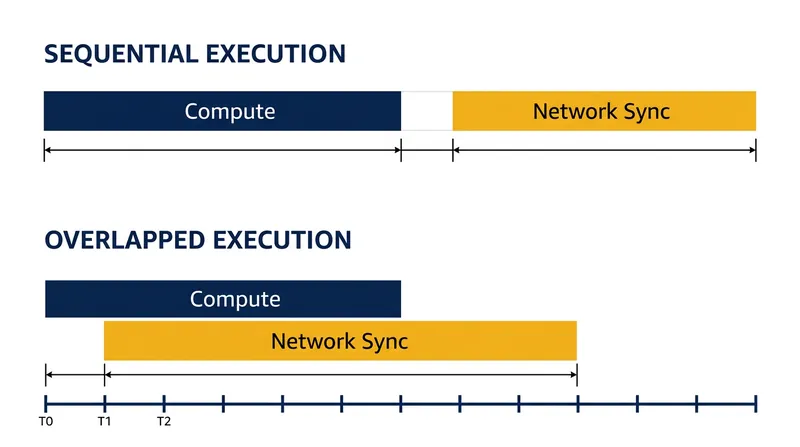

This is the exact point where communication and computation overlap. The network latency is effectively hidden behind the ongoing mathematical operations. By the time the GPU finishes calculating the final gradients of the first layer, the network has already synchronized the bulk of the model.[2]

The empirical results of this overlap are substantial. Profiling tools routinely show that DDP reduces the total communication overhead to near zero for models that fit comfortably within a single GPU's memory. The training loop runs almost as fast as if the network synchronization did not exist.[2]

Limits of the Architecture

Despite its elegance, the DDP bucketing architecture has strict physical limitations. It requires the entire model, along with its gradients and optimizer states, to fit inside the memory of a single GPU. It only distributes the data batches, not the model parameters themselves.

As models scale past 10 billion parameters, this memory constraint becomes an insurmountable wall. A 70-billion parameter language model simply cannot fit on an 80-gigabyte H100 GPU, regardless of how efficiently the gradients are bucketed. The DDP paradigm breaks down entirely at this scale.

This limitation forced the development of Fully Sharded Data Parallel architectures, which slice the model parameters across the cluster. These architectures introduce significantly more complex communication patterns, requiring AllGather operations before the forward pass and ReduceScatter operations after the backward pass.[1]

Yet even within these advanced sharded architectures, the fundamental principle of overlapping compute and communication remains intact. The autograd hooks and memory buffers pioneered by DDP still form the foundation of modern distributed training. The 25-megabyte bucket taught the industry how to hide the network.[1]

Scaling machine learning is a software engineering problem, not just a hardware procurement exercise. Buying faster interconnects only yields returns if the framework knows how to keep the cables saturated. PyTorch’s autograd hooks ensure the network never waits for the math to finish.[3]
