Why Concert Stages Stagger Wireless Microphones to Dodge Third-Order Intermodulation

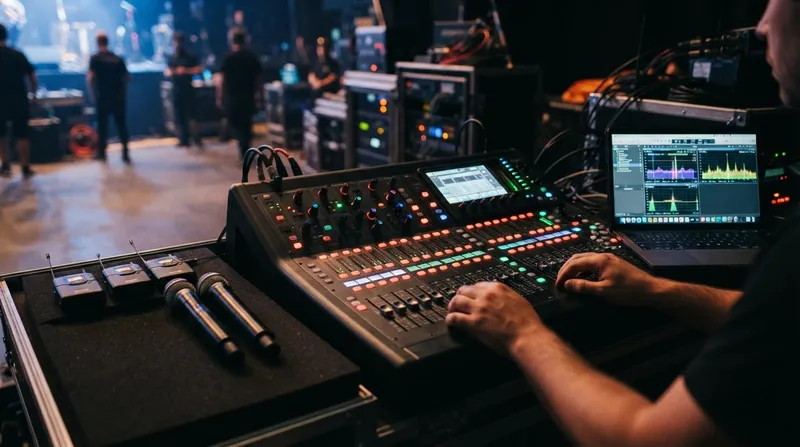

A sound engineer at a stadium concert does not just watch audio levels; they monitor a chaotic, invisible spray of radio frequencies. Standing behind a rack of Shure or Sennheiser receivers, they are tasked with fitting 40 wireless microphones into a shrinking slice of the ultra-high frequency (UHF) spectrum.[1]

The intuitive approach to organizing those 40 microphones would be to space them evenly across the dial. If the lead vocalist is assigned to 500.000 MHz, the logical step is to put the guitarist at 501.000 MHz, and the bassist at 502.000 MHz. On a spreadsheet, a perfectly linear 1 MHz grid looks clean, efficient, and entirely reasonable.[3]

But in the physical world of radio frequency, that neat grid guarantees a catastrophic failure. As soon as the singer and the guitarist stand next to each other on stage, their microphone transmitters interact. The result is a sudden burst of static or a complete audio dropout, ruining the performance in front of thousands of fans.[1]

The culprit behind this interference is a phenomenon called intermodulation distortion, or IMD. It is an unavoidable quirk of physics that occurs whenever multiple radio transmitters operate in close proximity, forcing engineers to abandon linear spacing entirely.[1]

The Physics of Phantom Frequencies

To understand IMD, you have to look at how radio transmitters actually amplify their signals. No electronic component is perfectly linear. When a transmitter's output stage boosts a signal for broadcast, it introduces microscopic imperfections into the wave.[2]

When two wireless microphones are within a few feet of each other, their antennas do not just transmit; they also receive a tiny amount of each other's energy. This stray radio frequency travels backward into the neighboring transmitter's output amplifier.[1]

Inside that non-linear amplifier, the two distinct frequencies crash into each other and mix. The circuit inadvertently acts as a multiplier, spawning entirely new radio signals that radiate outward.[2]

These products are ghost carriers that the sound engineer never programmed, but they broadcast just as strongly as the real microphones. "These products can interfere with wireless microphone and IEM systems, especially when transmitters operate at high power in close proximity," notes a 2018 technical brief from Shure.[1]

The Third-Order Threat

The most destructive of these ghosts are the third-order intermodulation products. They are mathematically predictable, appearing at exactly two times the first frequency minus the second. Because they land so close to the original carriers, they cannot be easily filtered out by the receiver's antennas.[2]

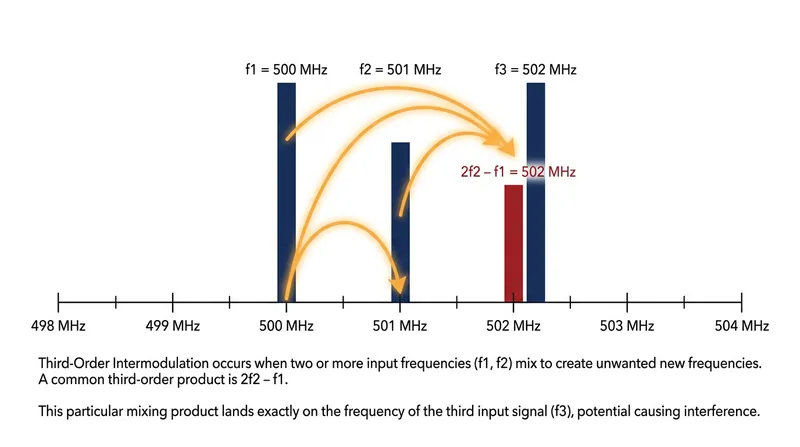

If we apply the third-order formula—2A minus B, and 2B minus A—to our evenly spaced grid, the disaster becomes obvious. Take microphone A at 500.000 MHz and microphone B at 501.000 MHz.

Two times 501 is 1002. Subtract 500, and the result is exactly 502.000 MHz. The ghost frequency generated by the first two performers lands precisely on the channel assigned to the third microphone.[3]

If the bassist's microphone is active on 502.000 MHz, its receiver is suddenly hit by two competing signals: the actual instrument and the phantom product of the singer and guitarist. The receiver cannot tell them apart, causing the audio to aggressively drop out.[1]

Staggering the Spectrum

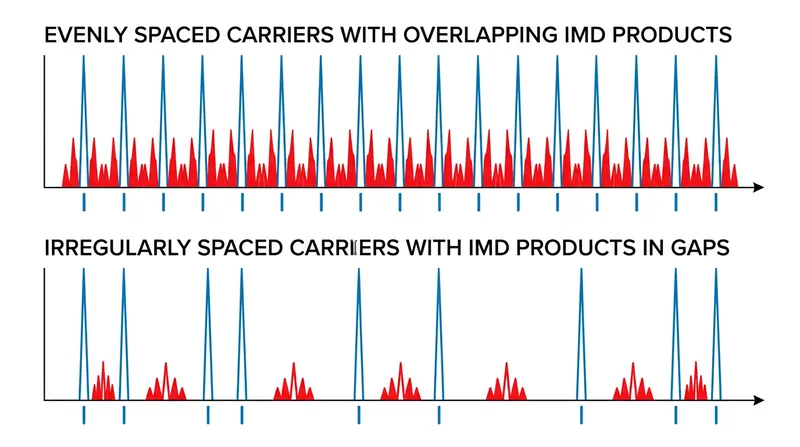

Because of this mathematical certainty, live sound engineers can never use evenly spaced frequencies. Instead, they must stagger the carriers at irregular intervals to ensure the math never aligns with an active channel.

By assigning microphone A to 500.000 MHz, microphone B to 501.200 MHz, and microphone C to 503.700 MHz, the third-order products are pushed into empty space. The ghost of A and B lands at 502.400 MHz, safely missing microphone C by a wide margin.[3]

Most manufacturers recommend maintaining a minimum buffer of 250 kilohertz between any third-order IMD product and a tuned carrier frequency. Calculating these safe zones by hand is impossible for a large show, as a 40-channel system generates thousands of potential intermodulation products.[1]

Today, engineers rely on specialized frequency coordination software, like Shure's Wireless Workbench or Sennheiser's Wireless Systems Manager. These programs scan the local RF environment and compute massive IMD-free sets in seconds.

Navigating a Crowded Dial

The software must also account for local television broadcasts, which occupy the exact same UHF bands as professional audio gear. The available spectrum is a minefield of digital TV signals, forcing the software to thread the staggered microphones through the remaining gaps.

"Frequency coordination is essential in managing wireless systems," explains a 2024 guide from AV Network. "The goal is to avoid not only third-party transmitters but also the harmful effects of intermodulation distortion."

The complexity of this coordination has only increased as the Federal Communications Commission and international regulators have auctioned off large portions of the 600 MHz and 700 MHz bands to cellular providers. Engineers have far less spectrum to work with than they did a decade ago.

The Digital Exception

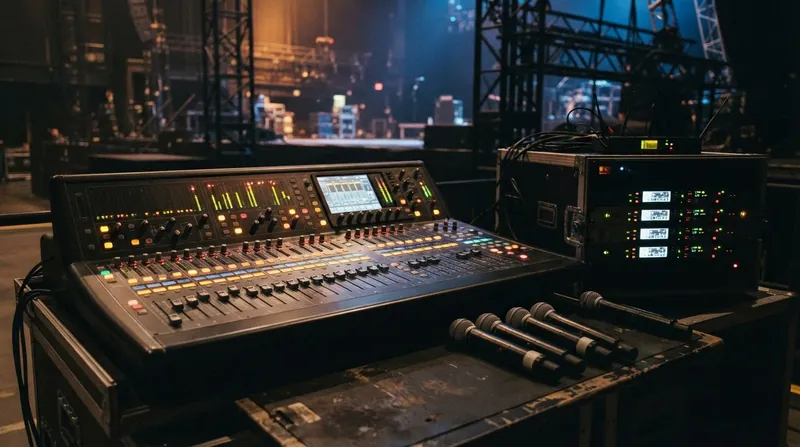

The rules of the game are slowly changing as the industry shifts from traditional analog FM to pure digital transmission. High-end digital wireless systems use highly linear transmitters that actively suppress the generation of intermodulation products.

Flagship systems like the Shure Axient Digital or the Sennheiser 6000 series produce so little intermodulation that they can actually be spaced evenly. This equidistant spacing packs far more microphones into the same bandwidth, maximizing spectral efficiency.

However, these top-tier digital systems represent a massive capital investment, and the vast majority of regional stages, theaters, and touring acts still rely on traditional analog or hybrid wireless gear. For them, the math of third-order products remains absolute.[3]

As long as non-linear amplifiers exist in the signal chain, the phantom frequencies will keep appearing. The only way to keep the show running is to outsmart the physics, one staggered and carefully calculated frequency at a time.[3]
