How Equal-Loudness Contours Force Live Sound Engineers to Boost Sub-Bass at High Volumes

The defining moment of a live concert's sound does not happen when the band walks onstage. It happens hours earlier, when the front-of-house engineer pushes the sub-bass faders during the system tuning. This single calibration step dictates whether the audience will experience a powerful, immersive show or a painfully grating wall of noise.[5]

At concert volumes, human hearing becomes a hostile environment for midrange frequencies. Pushing a mix to 100 decibels without altering its frequency balance results in a sound that physically hurts the ear canal. To achieve massive scale without causing pain, engineers must deliberately shift the acoustic energy into the sub-bass.

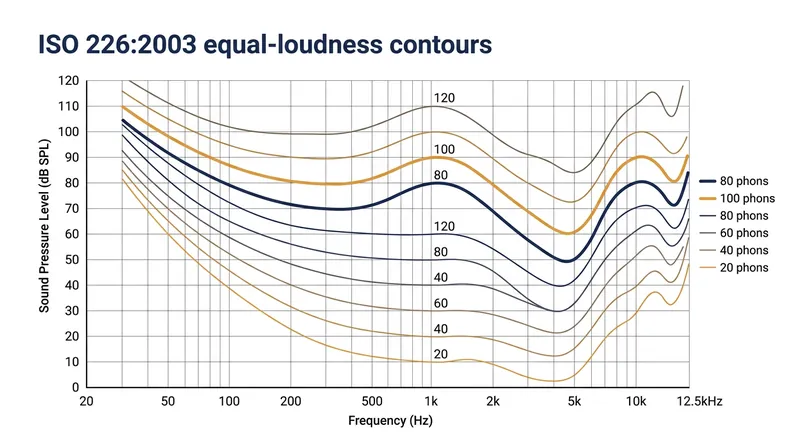

This practice is rooted in psychoacoustics, specifically the equal-loudness contours defined by the ISO 226:2003 standard. These contours map how the human ear perceives different frequencies at varying sound pressure levels. They reveal a biological quirk that live sound engineers exploit every night to protect the audience while delivering maximum impact.[1][2]

The Biology of High-Decibel Hearing

Human hearing is not a flat, objective microphone. Evolution has tuned our ears to be hyper-sensitive to the midrange, specifically between 2 and 5 kilohertz, where human speech and vocal consonants reside. At low volumes, this evolutionary advantage allows us to understand whispers, while bass and treble frequencies fade into the background.

The original research into this phenomenon was published in 1933 by Harvey Fletcher and Wilden Munson. Their work demonstrated that the ear requires vastly different amounts of acoustic energy to perceive different frequencies as equally loud. The modern ISO 226:2003 standard refines this data, providing exact decibel requirements for perceived loudness across the spectrum.[1]

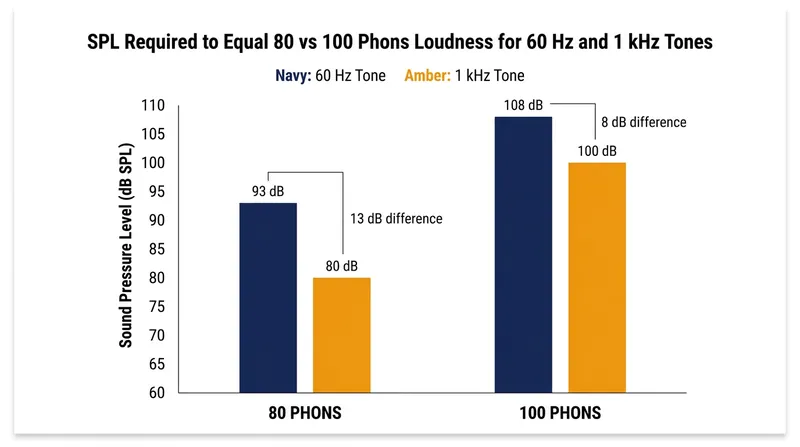

At a moderate listening level of 80 phons, a 1-kilohertz tone requires exactly 80 decibels of sound pressure to hit the target loudness. However, to make a deep 60-hertz bass note sound equally loud, the system must output roughly 93 decibels. The ear simply ignores low frequencies unless they are pushed significantly harder.[2][5]

When the overall volume increases to concert levels, the curves begin to flatten, but they never become truly linear. At 100 phons, the 1-kilohertz tone sits at 100 decibels, while the 60-hertz tone requires about 108 decibels to match it. The gap shrinks, but the absolute energy required for the bass becomes massive.[2][5]

Crossing the Tactile Threshold

That massive energy requirement is the secret weapon of live sound engineering. When a PA system pushes 108 decibels of sub-bass into an arena, the sound crosses a critical biological boundary. It stops being something the audience merely hears and becomes something they physically feel in their chest cavities.[3]

This tactile sensation is what concertgoers interpret as power and scale. Because the ear's sensitivity to bass improves at high volumes, simply turning up the master fader makes the mix sound inherently bassier. Yet engineers actively boost the sub-bass even further to anchor the physical experience of the music.

"At quiet levels, a mix will sound thin and lacking bass," notes the audio engineering platform Roast Your Mix. "The same mix played louder will sound bassier and brighter."

If an engineer does not account for this shift, the live mix will quickly lose its intended emotional weight. By intentionally exaggerating the frequencies below 80 hertz, the engineer provides the visceral impact the audience expects.[3][5]

The sub-bass frequencies carry the physical weight of the kick drum and the bass guitar, moving massive amounts of air. This drives the rhythm directly into the listener's body without overwhelming their delicate auditory mechanics.[3][4]

Masking the Pain With Power

Boosting the sub-bass is not just about adding thump; it is a defensive maneuver against the harshness of the midrange. At 100 decibels, the ear's peak sensitivity between 2 and 5 kilohertz becomes a liability.

Frequencies in this range can quickly become piercing, causing immediate listener fatigue and physical discomfort. To counteract this biological vulnerability, engineers use the boosted sub-bass to psychoacoustically mask the aggressive upper midrange.[4]

"From a psychological point of view, an audience may perceive a mix with too much bass as powerful," explains the audio publication Gearnews. "However, this can result in a reduction of clarity."

The engineer's job is to balance this immense low-end power against the need for vocal intelligibility. If the midrange is left unchecked at high volumes, the audience will perceive the show as tense and grating.[5]

By shifting the spectral balance downward, the engineer tricks the brain into perceiving the music as incredibly loud and full. The actual ear-damaging frequencies are kept under strict control, hidden behind the wall of bass.[4]

The Translation Trap in the Studio

This psychoacoustic reality creates a notorious trap for studio engineers mixing the tracks before they ever reach a stage. If a producer mixes a song at a quiet 70 decibels, they will inevitably boost the bass and treble to compensate for their ear's natural lack of sensitivity.

When that same track is played through a massive festival PA system at 105 decibels, the equal-loudness contours flatten out. The bass and treble boosts that sounded perfect in the studio suddenly become overwhelming and uncontrollable.

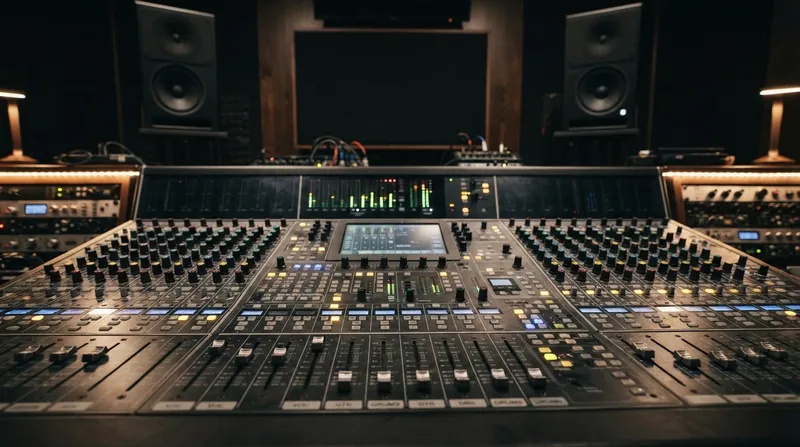

To avoid this, professional mastering engineers calibrate their studio monitors to a consistent 80 to 85 decibels. At this specific volume, the human ear's frequency response is flat enough to make accurate decisions that translate predictably to arenas.

Live engineers must then reverse-engineer the studio mix for the venue. They use high-pass filters and dynamic equalizers to carve out the muddy low-midrange frequencies, ensuring the sub-bass has enough room to breathe.[4]

Engineering the Physical Experience

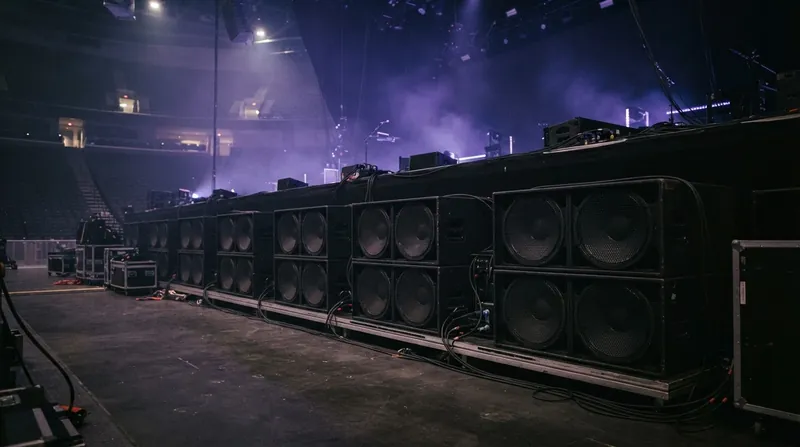

Modern line-array speaker systems are explicitly designed to handle this unequal distribution of acoustic energy. The massive subwoofer arrays deployed at festivals are there to generate the immense physical air displacement required to satisfy the ISO 226 contours.[3]

The industry is increasingly recognizing that sheer volume is a blunt instrument. Advanced manufacturers are rethinking how acoustic energy is deployed across the audience to maximize impact without causing fatigue.[3][5]

"It's a shift from 'louder is better' to 'smarter is better'—a new principle for sound design," notes L-Acoustics in a recent publication on psychoacoustics.[3]

By understanding how the human brain processes different frequencies at extreme volumes, engineers can manipulate the emotional and physical impact of a concert. They use the sub-bass as a psychoacoustic tool to deliver scale, power, and immersion.[3][4]

The next time the bass at a live show rattles your ribcage, recognize that it is not an accident of excessive volume. It is a calculated, biologically targeted calibration, designed to give you the physical thrill of the music while protecting your ears.[5]
