How Forward Footplates Use Audience Weight to Anchor Concert Barricades During Crowd Surges

A dense concert crowd behaves less like a group of individuals and more like fluid dynamics. When density reaches four to five people per square meter, a single forward surge can generate thousands of pounds of horizontal force against the front row.[1]

The Occupational Safety and Health Administration warns that pressure at this density can easily snap standard steel fencing or uproot concrete anchors. Yet the barricades separating the audience from the stage at major festivals are entirely unanchored.[1][2]

They sit flat on the grass or arena floor, secured by nothing but gravity and geometry. The secret to their immovability lies in a simple mechanical trick: they force the crowd to stand on the very structure they are pushing against.[2]

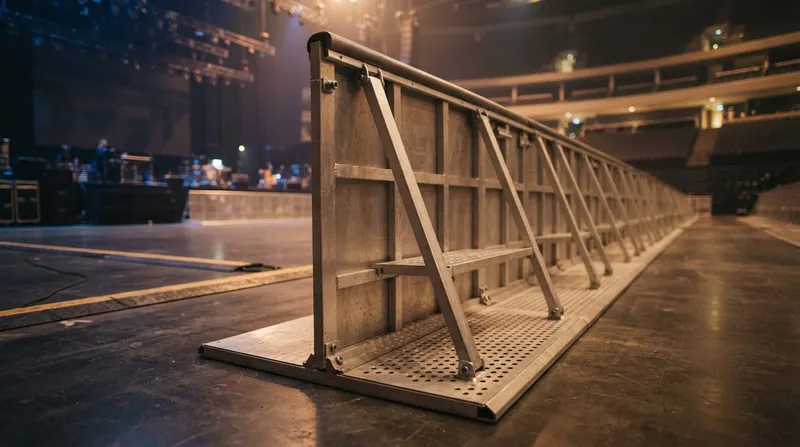

Known in the live events industry as a "Mojo barrier" or front-of-stage barrier, this specialized fencing relies on an A-frame design. Instead of a flat vertical wall, the barricade features a heavy aluminum or steel footplate that extends roughly three feet forward, directly into the audience area.[2][3]

The Physics of the A-Frame

As fans rush the stage to get closer to the performer, they inevitably step onto this extended metal floorplate. That positioning transforms the audience's own body weight into a massive vertical anchor.[4]

The harder the crowd pushes horizontally, the more densely they pack onto the plate, increasing the downward force that holds the barrier in place. The mechanics of the system operate as a self-scaling counterweight.[5]

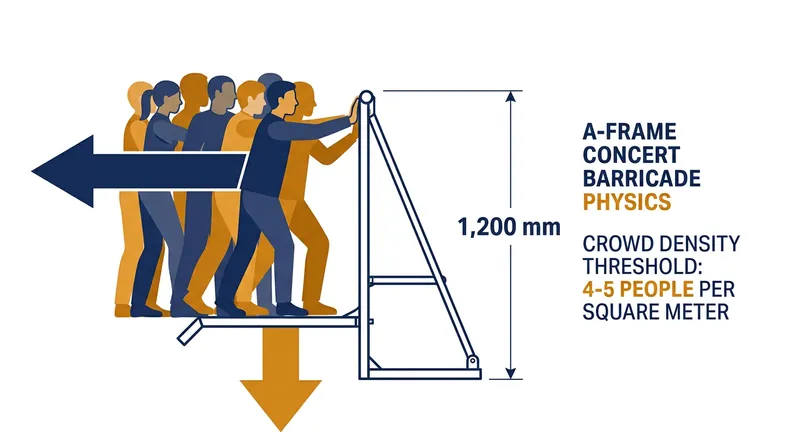

A standard barrier section measures 1,200 millimeters high and one meter wide. When a crowd surge occurs, the horizontal pressure strikes the top rail, creating a lever effect that wants to tip the barricade backward toward the stage.[2][3]

If the barrier were a simple flat fence, that horizontal force would easily overturn it. But the A-frame design redirects that kinetic energy diagonally down into the ground.[2]

Simultaneously, the combined mass of the dozen or so people crammed onto that one-meter-wide footplate applies an immense counter-rotational force. Because the crowd's mass acts on the front of the lever, the structure becomes mathematically impossible to tip using human force alone.[6]

"The footplate that the audience stands on serves the dual function of providing stability against overturning under crowd pressure and creating a physical separation between the audience and the barrier base," notes the Event Safety Alliance.[2]

This design emerged in 1988 after a series of severe crowd-crush incidents at major rock concerts. Promoters had previously relied on makeshift solutions like police fencing, scaffolding, or even wooden planks tied to flight cases.[4]

Dissipating Horizontal Pressure

Those rigid, unyielding walls frequently collapsed or trapped fans during high-energy performances. The introduction of the forward footplate revolutionized live music safety.[4]

By utilizing the crowd's own momentum to secure the perimeter, production crews could deploy miles of fencing across uneven festival grounds without needing to drill a single anchor bolt into the turf.[4]

While the footplate prevents the barricade from tipping, event organizers must still manage the sheer horizontal pressure that builds up within the crowd itself. At high densities, compressive forces can easily exceed human physical tolerance, leading to compression asphyxia even if the barrier holds firm.[6]

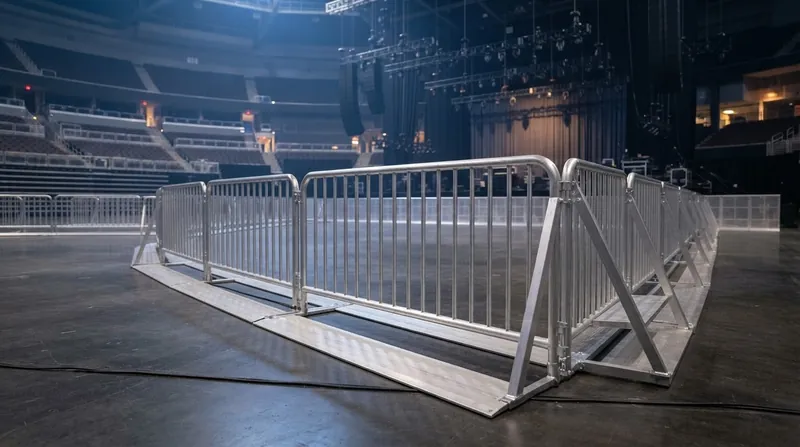

To combat this, modern stage barriers are rarely deployed in a single, straight line. Instead, production designers configure the barricades into convex curves or angled thrusts that bow outward toward the center of the audience.[2]

A convex front face acts like the hull of a ship, breaking the wave of crowd energy. It transfers lateral movement and pressure to the sides of the barrier rather than allowing it to focus entirely at the center.[2]

The Security Step and Extraction

This prevents the formation of a uniform, stage-wide pressure wave that could trap front-row fans. Conversely, concave shapes are strictly avoided in professional site design.[2]

A concave layout would concentrate crowd pressure at the lowest point of the curve, funneling the entire weight of the surge directly into the center of the stage where audience density is already at its peak.[2]

The modular nature of these barriers allows for rapid reconfiguration. Individual one-meter sections interlock using high-tensile steel bolts or locating tenon pins, ensuring the entire barricade line acts as a single, continuous structural unit.[2]

The audience side of the barrier is only half of the engineering equation. The rear of the barricade, facing the stage, is designed specifically as a working zone for security personnel, medical teams, and production crews.[3]

Every standard front-of-stage barrier features an integrated step on the stage side, elevated roughly halfway up the A-frame. This platform gives security guards a clear, unobstructed sightline over the crowd, allowing them to spot distressed fans or building pressure pockets before they escalate.[2][3]

Standardizing Festival Safety

More importantly, the step provides the mechanical leverage needed for crowd extraction. If a fan at the front becomes overwhelmed, faints, or is injured, security personnel can stand on the rear step, reach over the smooth, rounded top rail, and physically lift the person out of the crush.[2]

The top rail itself is engineered to be perfectly flush with the front vertical face. This prevents the rail from acting as a fulcrum that fans could use to climb over, while also eliminating shear hazards and sharp edges that could cause injury during a surge.[2]

Specialized gate sections are also integrated directly into the barricade line. These heavy-duty swing doors allow medical teams to quickly enter the crowd or provide a rapid exit route if a section of the audience needs to be evacuated.[1]

Today, the use of purpose-built, load-bearing stage barricades is a non-negotiable requirement for major tours and festivals. Artists and event organizers routinely mandate "mojo-style barriers" in their safety riders, refusing to perform if venues attempt to substitute them with standard street barricades or plastic fencing.[5]

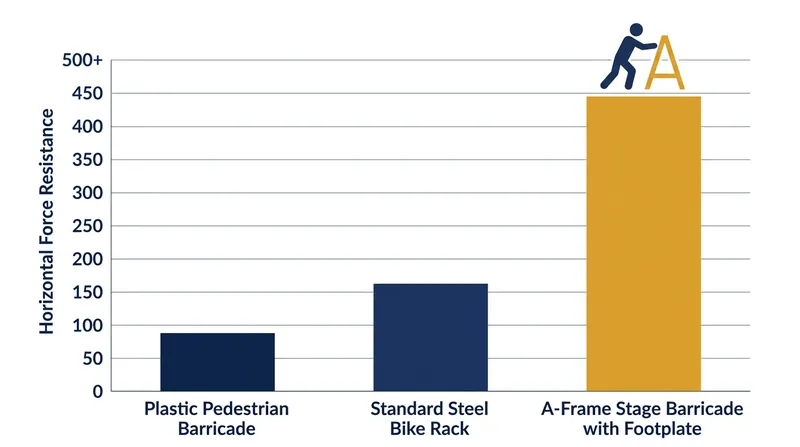

Plastic barricades, while useful for low-pressure perimeter control, lack the structural integrity to withstand a concert surge. They are prone to bending or separating under mass horizontal force, making them entirely unsuitable for the high-density environment of a general admission pit.[5]

"The stage pressure barrier is a life safety system, and it should be treated with the same attention to specification, installation quality, and pre-use verification that any life safety system receives," safety experts at Entertaining Safety emphasize.[2]

By turning the crowd's own mass into a stabilizing anchor, the forward footplate remains one of the most elegant engineering solutions in live entertainment. It is a quiet, passive system that allows tens of thousands of fans to safely experience the chaotic energy of a live performance.[7]
