Why BGP Path Hunting Delays Global Internet Route Convergence

In the default configuration of a Cisco ASR 9000 core router, the Minimum Route Advertisement Interval for external peers sits at exactly 30 seconds. That single hardcoded delay is the heartbeat of global internet routing. When a fiber cut severs a primary connection, this timer dictates how quickly the rest of the world finds out.[3]

But the internet does not simply switch to a backup link the moment a primary path fails. Instead, the Border Gateway Protocol enters a cascading state of confusion known as path hunting. Routers systematically test progressively longer, often already-dead alternate routes before finally accepting that a destination is unreachable.

This blind search mechanism is a fundamental limitation of how distance-vector routing protocols operate at scale. Because BGP routers only know the paths advertised by their immediate neighbors, they lack a complete map of the global topology. When the best path vanishes, they grasp at the next available option in their routing table.[1]

The problem arises when that second-best option actually relied on the exact same severed link further upstream. The router has no way of knowing this until it tries the path, advertises it to its peers, and waits for the network to reject it. This cycle repeats for every available alternative.

The Mechanics of the Hunt

To understand why this happens, consider a network destination connected through a primary provider and a backup provider. If the destination goes offline completely, the primary provider immediately withdraws its route. The neighboring router receives this withdrawal and deletes its best path.

However, that same router still holds a backup route advertised by the secondary provider. It immediately installs this backup route and announces the new path to its own downstream peers. The router believes it has solved the outage, but it has actually just routed traffic into a black hole.

The secondary provider's route is a ghost path. It only existed because the secondary provider was previously learning the route from the primary provider. Because BGP updates propagate hop-by-hop, the secondary provider has not yet received the memo that the original destination is dead.

The advertisement timer actively worsens this synchronization failure. To prevent the global routing table from melting down under constant updates, BGP intentionally delays sending new path information. A router must wait for the 30-second window to expire before it can tell its neighbors about the new, broken backup path.[1]

Amplification Across the Topology

Once the timer expires, the router broadcasts its new, longer AS-path. Its neighbors receive the update, run their own best-path selection algorithms, and update their forwarding tables. Traffic flows toward the secondary provider, only to be dropped when it reaches the dead end.

Eventually, the secondary provider's own timer expires, and it finally sends a withdrawal message for the ghost route. The router receives this second withdrawal, deletes the backup path, and looks for a third option. If a tertiary path exists, the entire 30-second waiting game begins again.

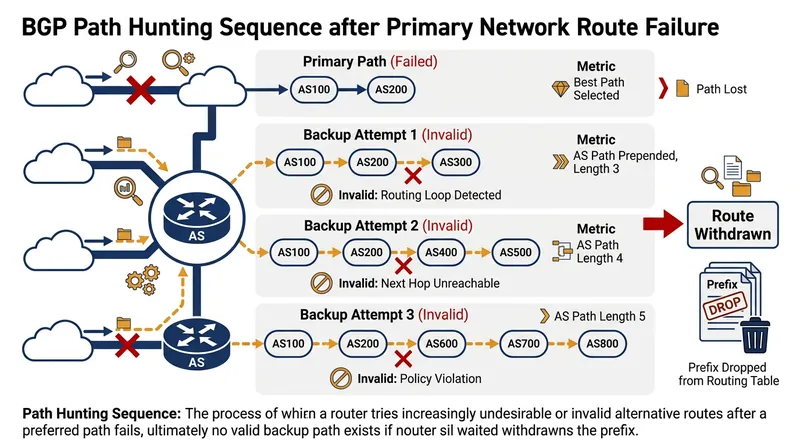

This sequential exploration of invalid paths is what network engineers call path hunting. The router hunts through every possible AS-path length, from shortest to longest, before finally concluding that the prefix is entirely unreachable. The more interconnected the network, the more ghost paths exist to be hunted.

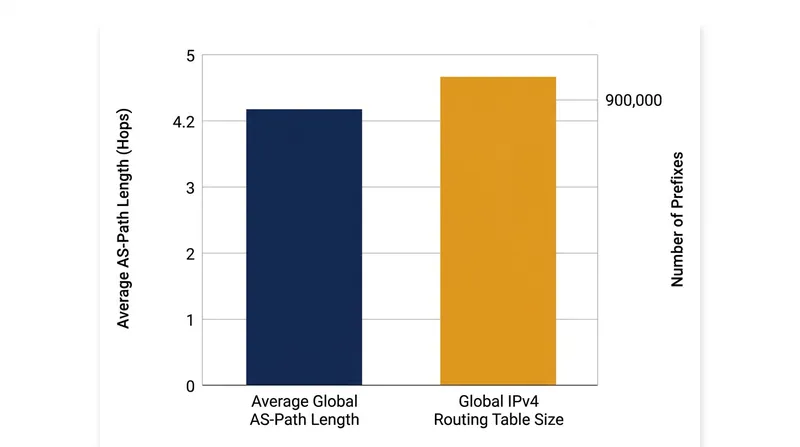

Data from the University of Oregon's RouteViews project shows that the average global AS-path length is currently 4.2 hops. In a highly meshed topology, a single prefix withdrawal can trigger a dozen sequential path explorations across different transit providers. Each exploration adds another delay to the convergence time.

"The protocol is doing exactly what it was designed to do, which is to exhaust all possibilities before giving up," explains a 2024 APNIC Labs research brief on routing anomalies. "But in a densely peered internet, exhausting all possibilities can take two to three minutes of continuous packet loss."

The CPU Toll on Core Infrastructure

The impact of path hunting extends beyond dropped packets and delayed convergence. Every time a router installs a new path and generates an update, it consumes CPU cycles and memory bandwidth. During a major fiber cut affecting thousands of prefixes, this processing load scales exponentially.

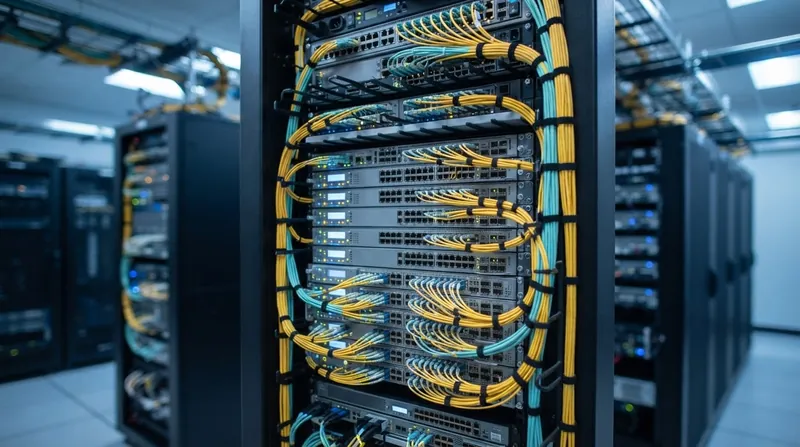

A single link failure can force a core router to process hundreds of thousands of BGP updates as the network hunts for alternate paths. This update storm can spike the router's control-plane CPU utilization to 100 percent, delaying the processing of legitimate routing changes and exacerbating the outage.

To protect against these storms, network operators rely on Route Flap Damping. This mechanism assigns a penalty score to a prefix every time its path changes. If the prefix flaps too many times during a path hunt, the router suppresses it entirely, refusing to route traffic to it until the network stabilizes.[4]

While damping prevents CPU exhaustion, it actively punishes destinations that are simply caught in a path hunt. A perfectly valid backup route might be suppressed because the intermediate routers generated too many updates while exploring ghost paths. The cure often extends the duration of the disease.

Modern Mitigation Strategies

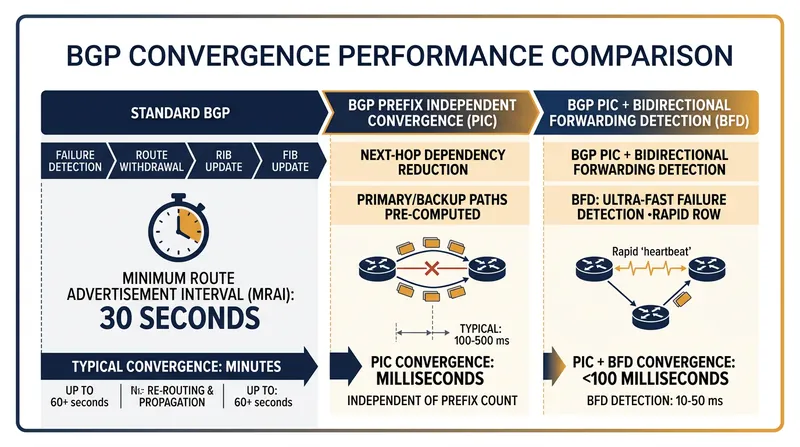

Network vendors have introduced several extensions to mitigate the effects of path hunting, though none eliminate the underlying distance-vector limitation. The most widely deployed solution is BGP Prefix Independent Convergence, which separates the control plane's path calculation from the data plane's forwarding table.

This convergence feature allows a router to pre-program a backup path into its forwarding hardware. When the primary link fails, the router can switch traffic to the backup path in milliseconds, long before the BGP control plane finishes processing the withdrawal. This masks the path hunt from the actual user traffic.

However, this only works if the backup path is genuinely valid. If the backup path is a ghost route sharing the same failed upstream link, the feature simply accelerates the process of blackholing traffic. The router switches to the dead path instantly, but still has to wait for the control plane to hunt for a working route.

Another critical tool is Bidirectional Forwarding Detection. This lightweight protocol sends sub-second keepalive packets between adjacent routers. If a link fails, the protocol detects the outage in milliseconds and immediately tears down the BGP session, bypassing the standard hold timers.

This detection drastically reduces the time it takes to initiate a route withdrawal, but it does nothing to speed up the subsequent path hunt. Once the withdrawal enters the global topology, it is still subject to the 30-second advertisement delays and the sequential exploration of longer AS-paths.

The Architectural Trade-Off

The persistence of path hunting highlights a fundamental architectural trade-off in the design of the internet. BGP was built to prioritize scalability and policy control over rapid convergence. By hiding the internal topology of each Autonomous System, the protocol allows the internet to scale to nearly a million prefixes.[1]

If BGP were replaced by a link-state protocol, routers would have a complete map of the global network. They could instantly calculate that a backup path relies on a severed link, eliminating path hunting entirely. But a global link-state database would require impossible amounts of memory and processing power.

"You cannot have a protocol that hides topology for scalability while simultaneously demanding perfect visibility for convergence," notes the Factlen Editorial Team in its analysis of routing protocols. "Path hunting is the tax the internet pays to remain decentralized."[2]

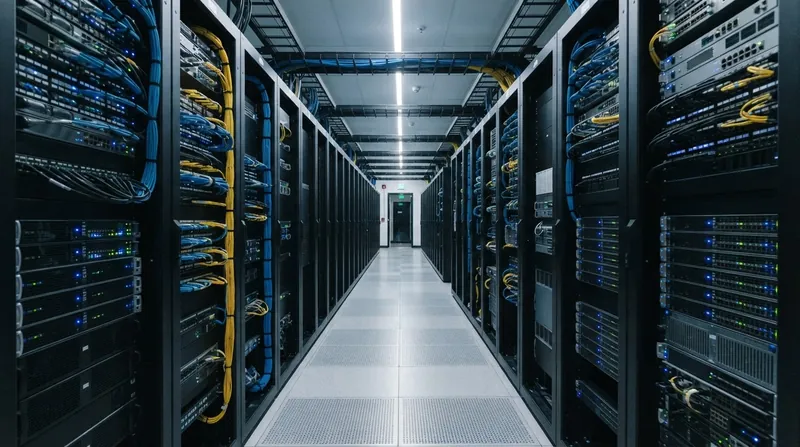

Some hyperscale cloud providers have attempted to bypass this limitation by building their own centralized traffic engineering controllers. These controllers monitor the global topology in real-time and inject specific routes into edge routers, overriding the default path-hunting behavior.

This centralized approach works well for traffic flowing into a single provider's network, but it cannot fix the broader internet. The vast majority of global traffic still relies on decentralized, hop-by-hop decision making. For these networks, the 30-second timer remains the ultimate arbiter of truth.

As the internet continues to grow denser, with more peering connections and longer AS-paths, the mathematical probability of path hunting increases. Every new backup link creates another potential ghost route, adding another cycle of exploration to the next inevitable outage.

Network engineers accept this delay as a necessary friction. The alternative is a fragile, tightly coupled global routing table that collapses under its own weight. The internet survives link failures not by being fast, but by being relentlessly, methodically stubborn in its search for a path.
