Why 24 FPS Film Looks Smoother Than 30 FPS Video Games: The Mechanics of the 180-Degree Shutter

When early computer animators at Lucasfilm and Pixar projected their pristine digital renders in the 1980s, they noticed a glaring flaw. Even when running at a mathematically superior 30 frames per second, their creations stuttered across the screen. The footage looked brittle and jittery compared to the 24-frame-per-second celluloid playing next door.

The discrepancy baffled engineers who assumed that more frames automatically meant smoother motion. A 30 FPS digital sequence delivers 25 percent more visual information per second than a 24 FPS film print. Yet, the human eye consistently rejected the faster digital playback as artificial, while accepting the slower film as perfectly fluid.

The answer to this optical mystery lay not in the number of frames, but in what happened between them. Traditional film cameras do not capture instantaneous snapshots of reality. They record a continuous smear of time, governed by a mechanical component called a rotary shutter.

Inside a classic motion picture camera, a physical disc spins between the lens and the film strip. This disc has a wedge cut out of it, allowing light to pass through and expose the negative. The size of that opening is measured in degrees, and it dictates exactly how long each frame sees the world.

The mechanics of this system were standardized in the late 1920s with the advent of synchronized sound. Before audio tracks were printed directly onto the film strip, silent era camera operators hand-cranked their footage at variable speeds. Sound demanded absolute mechanical consistency, forcing the industry to agree on a universal frame rate.

Hollywood studios settled on 24 frames per second because it was the slowest speed that still produced intelligible audio fidelity. To accommodate this new standard, camera manufacturers like Panavision engineered their rotary shutters to spin at exactly 24 revolutions per second. This locked the visual cadence of cinema in place for a century.

The Mechanics of the Rotary Shutter

"The 'shutter angle' is a useful way of describing the shutter speed relative to the frame rate," explains RED Digital Cinema's technical documentation. "This term is a conceptual relic of rotary shutters, where a disc with an angled opening would spin and let in light once per revolution to expose each frame."[1]

For nearly a century, the cinematic standard has been a 180-degree shutter angle. Because 180 degrees is exactly half of a 360-degree circle, the camera exposes the film for exactly half the duration of a single frame. At the industry standard of 24 frames per second, each frame lasts for 1/24th of a second.[1]

With a 180-degree shutter, the actual exposure time becomes 1/48th of a second. During that fraction of a moment, any object moving across the frame is recorded as a directional smear. This optical blur acts as a visual bridge, connecting the position of an object in one frame to its new position in the next.[1]

This 1/48th-of-a-second exposure is the exact threshold where human vision accepts the illusion. If a director uses a narrower shutter angle—like the 45-degree shutter famously employed by Steven Spielberg in the 1998 film Saving Private Ryan—the exposure time drops to 1/192nd of a second. The resulting footage becomes hyper-sharp, chaotic, and intentionally jarring.

The Zero-Exposure Problem

Video game engines, by contrast, operate in a state of perfect, unnatural clarity. When a graphics processor renders a frame in a three-dimensional environment, it calculates the exact geometry and lighting for a single, frozen mathematical instant. There is no physical shutter, no exposure time, and no natural smear.

"If an object is in motion, it covers more ground in that time frame, which creates a smearing effect in the final image," notes Autodesk's animation documentation. "For computers and game engines, motion blur doesn't happen automatically. Instead, animators must add a motion blur effect."[2]

Because a raw video game frame has an exposure time of exactly zero seconds, a character running across the screen at 30 FPS is just 30 perfectly sharp, static statues flashing sequentially. The human brain detects the gaps between these pristine statues, interpreting the sequence as a rapid strobe light rather than continuous movement.[2]

Without that built-in smear, the brain is forced to process a series of disconnected data points. When a digital camera pans across a landscape with a zero-exposure equivalent, the vertical lines of buildings and trees appear to jump or judder across the screen. The eye searches for a continuous flow but only finds discrete moments.

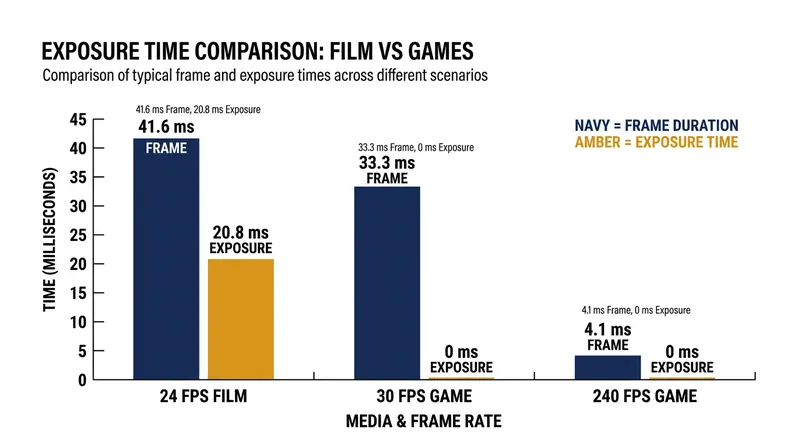

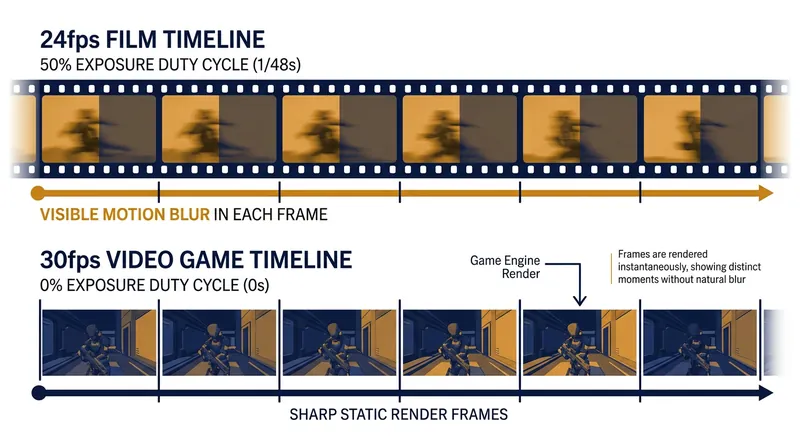

This creates a paradox where a 30 FPS video game looks significantly choppier than a 24 FPS movie. The film frame is essentially a 50 percent duty cycle—half exposure, half darkness—which perfectly mimics how the human retina retains light. The video game frame is a zero percent duty cycle, offering no optical bridge.[4]

Faking the Optical Smear

To fix this, modern game engines have to artificially simulate the mechanical flaws of a 1920s film camera. Developers use post-processing algorithms to track the velocity of every pixel on the screen. They then artificially smear those pixels along their trajectory before the frame is sent to the monitor.

"Motion Blur is a common post-processing effect that simulates the image blur that happens when an object is moving faster than the camera's exposure time," according to Unity's engine documentation. "Motion Blur can help a Scene look more natural because it replicates what the human eye sees."[3]

The math required to fake this optical phenomenon is staggering. A modern graphics processor running a game at 4K resolution must calculate the velocity vectors for over 8.2 million individual pixels. It then has to stretch and blend those pixels along their predicted paths, all within the 33.3 milliseconds allotted for a 30 FPS render.

This computational fake is incredibly resource-intensive. Simulating a 180-degree shutter angle requires the game engine to calculate the past and future positions of complex geometry in real time. For decades, home consoles simply lacked the processing power to perform this math, leaving older 30 FPS games looking notoriously rigid.

The Cost of Absolute Clarity

Even today, the implementation of artificial motion blur remains highly divisive among players. While it successfully bridges the visual gap and makes 30 FPS console games appear cinematic, it actively degrades the absolute clarity required for fast-paced interactive media. A smeared enemy is harder to aim at than a perfectly sharp one.

As a result, competitive players routinely dive into their settings menus to disable motion blur entirely. They willingly sacrifice cinematic fluidity to ensure that every frame remains a pristine, zero-exposure snapshot. To compensate for the resulting strobe effect, they rely on brute-forcing the frame rate up to 120 or 240 FPS.

At those extreme frame rates, the gaps between the static images become so microscopically small that the brain no longer needs optical blur to connect them. A 240 FPS game provides a new image every 4.16 milliseconds. This overwhelms the visual cortex with enough raw data to simulate reality without smearing it.

Why the Cinematic Illusion Endures

Yet, for narrative filmmaking, the 180-degree rule remains undefeated. When directors attempt to shoot movies at higher frame rates with narrower shutter angles—such as Peter Jackson's 48 FPS presentation of The Hobbit in 2012—audiences frequently complain. Viewers report that the footage looks cheap, resembling a live television broadcast rather than cinema.

The pushback against high-frame-rate cinema proves that our definition of smoothness is deeply cultural as well as biological. We have been conditioned by a century of 180-degree rotary shutters to associate 1/48th-of-a-second motion blur with high-budget storytelling. When that blur is removed, the illusion shatters, and we are left looking at actors on a soundstage.

The magic of the movies relies entirely on withholding information. By capturing the world in 1/48th-of-a-second smears and hiding the rest in darkness, the rotary shutter forces the viewer's brain to fill in the blanks. That active neurological participation is what transforms a sequence of photographs into a living, breathing story.
