Perlin Noise and Cellular Automata: How Common Procedural Generation Algorithms Create Game Worlds

A player steps out of a procedurally generated drop pod in a modern survival game, looking across a sprawling mountain range that fades into a dense, winding cave system. That seamless transition from towering peaks to claustrophobic tunnels feels like the work of a dedicated level designer. In reality, it is the mathematical handshake between two algorithms that have quietly built the virtual worlds of the last four decades: Perlin noise and cellular automata.[6]

Procedural generation is often misunderstood as pure randomness. But pure randomness is chaotic and unplayable. If a developer assigns a purely random height value to every point on a grid, the result is a jagged, static-filled mess of spikes that no virtual character could navigate. To create organic, lifelike environments, developers rely on structured randomness.[1][4]

Ken Perlin developed his namesake noise algorithm in 1982 while working at the Mathematical Applications Group on the Disney film Tron. Frustrated by the sterile, machine-like look of early computer-generated imagery, he wanted a mathematical function that mimicked the organic imperfections of nature.[4]

The result was Perlin noise, a gradient noise algorithm that earned him an Academy Award for Technical Achievement in 1997. The Academy's citation praised the algorithm as "a technique used to produce natural appearing textures on computer generated surfaces for motion picture visual effects."[4]

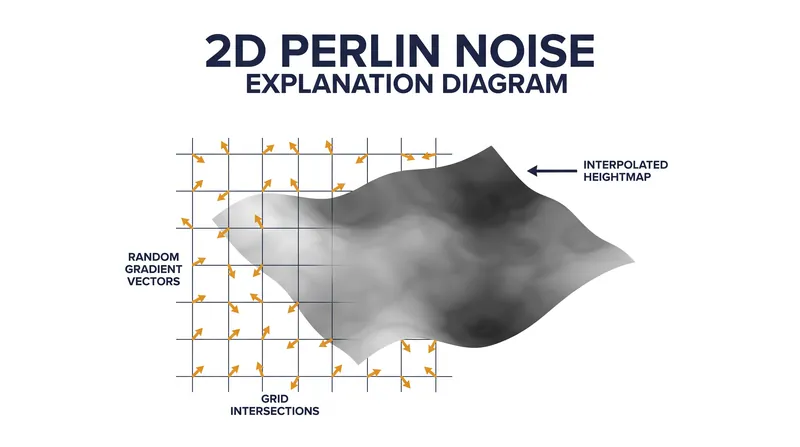

Instead of generating random values at every pixel, Perlin noise generates a grid of random gradient vectors at fixed intervals. The algorithm then computes the dot product between these gradient vectors and the distance to the point being evaluated, interpolating the results. This creates a smooth, continuous curve of pseudo-random values.[1][2]

Because the output is continuous, it is perfect for generating heightmaps. A value of -1.0 might represent the ocean floor, while +1.0 represents a snow-capped peak. The smooth transitions ensure that the terrain slopes naturally rather than jumping erratically from a deep trench to a high summit in a single step.[1]

To add realism, developers use a technique called fractional Brownian motion, layering multiple frequencies of Perlin noise. These layers are called octaves. The first octave defines the macro-structure, such as continents and oceans. The second octave, applied at a higher frequency and lower amplitude, adds mountain ranges. Successive octaves add hills, boulders, and finally the rough texture of dirt.[1][2]

But while Perlin noise excels at continuous surfaces, it struggles with binary, enclosed spaces. If a developer wants to generate a sprawling underground cave network, continuous heightmaps often produce unnatural, intersecting tubes or completely blocked passages.[3]

This is where cellular automata step in. Originally conceived in the 1940s by Stanislaw Ulam and John von Neumann at Los Alamos National Laboratory, a cellular automaton is, as researchers define it, "a deterministic dynamical system that evolves in discrete time on a discrete space, usually a regular lattice or grid."[5]

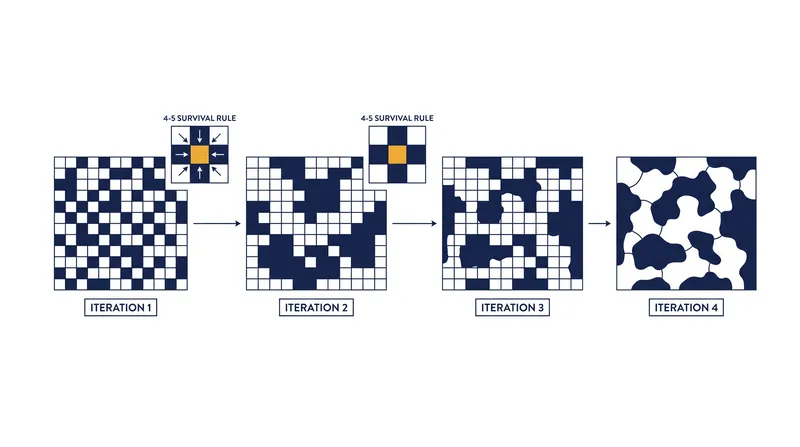

In procedural level generation, developers typically use a two-dimensional grid where each cell is either a 1, representing a solid wall, or a 0, representing an empty floor. The grid is initially seeded with pure randomness, often set to a 45 percent to 50 percent fill rate.[3]

The algorithm then applies a set of survival and birth rules, evaluating each cell against its eight immediate neighbors. A common rule for cave generation is the 4-5 rule: if a cell is surrounded by five or more walls, it becomes a wall. If it is surrounded by fewer than four walls, it becomes a floor.[3]

When this rule is applied simultaneously to the entire grid over several iterations—usually four to five steps—the chaotic static organically coalesces. Small, isolated walls disappear, and large clusters merge into solid rock formations.[3]

The result is a network of organic, winding caverns that look remarkably like natural water-eroded limestone. Because the rules evaluate local neighbors, the algorithm naturally prevents impossibly thin walls or jagged, single-pixel corridors, ensuring the space is actually navigable for players.[3]

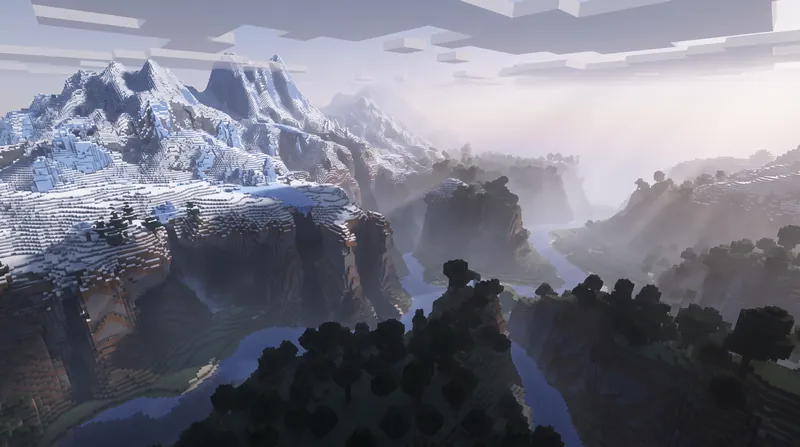

Modern game engines frequently combine these two algorithms to build comprehensive worlds. A developer might use two-dimensional Perlin noise to determine the overall biome and surface elevation, while using a cellular automaton to carve out the subterranean spaces beneath that exact surface.[2]

The computational efficiency of both models allows them to run in real-time. Perlin noise can be calculated on the fly for any given coordinate, meaning the world can theoretically extend infinitely without its geography needing to be permanently stored in memory.[1][2]

Cellular automata, while requiring a discrete grid to evaluate neighbor states, can be processed in localized chunks. As a player moves toward the edge of a loaded area, the engine initializes and smooths the next chunk of the cave system just before the player enters it.[3]

The enduring legacy of these algorithms is their mathematical simplicity. Despite the massive leaps in graphics processing and machine learning over the last forty years, the foundational architecture of procedural worlds remains rooted in these elegant rules. The next time a virtual horizon stretches infinitely into the distance, it is not magic rendering the landscape—it is just a gradient vector and a survival rule, executing perfectly in the dark.[6]
