Municipal Water Treatment: Stacking Physical Removal and Chemical Inactivation

In a standard municipal water plant processing 50 million gallons a day, raw river water is transformed into a potable supply through a highly engineered sequence of interventions. Before a single drop reaches a residential tap, it must pass through a gauntlet designed to reduce microbial populations by factors of up to 99.99%.[1]

This transformation relies on the multi-barrier approach. Rather than depending on a single, infallible filter or a massive dose of chemicals, modern infrastructure stacks distinct mechanical and chemical processes in series. If one barrier experiences a temporary failure or a sudden spike in raw water turbidity, the subsequent stages provide necessary redundancy.[2][3]

The sequence begins with a problem of physics. Raw water is laden with suspended solids, clay, and organic matter that carry negative electrical charges. Because these microscopic particles repel each other like the matching poles of magnets, they remain suspended indefinitely and will not settle out of the water column on their own.[2]

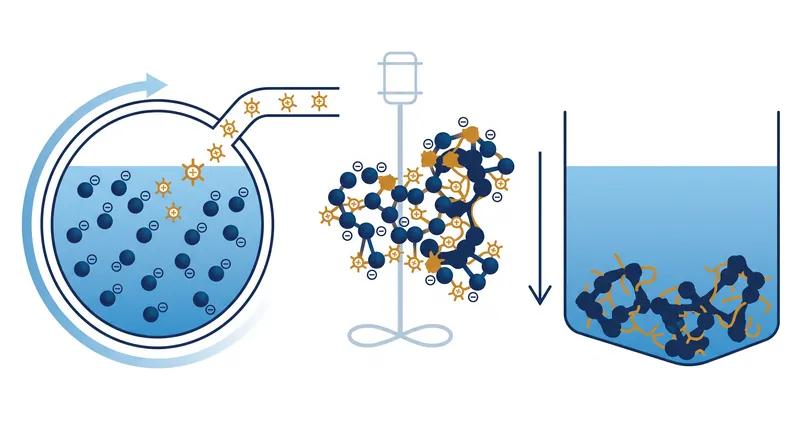

To break this suspension, operators initiate coagulation. They inject positively charged chemical coagulants—typically aluminum sulfate (alum) or ferric chloride—into the rapid-mix basins. These chemicals instantly neutralize the negative charges on the suspended particles, stripping away their repulsive forces and allowing them to physically interact.[1][2]

Once neutralized, the water flows into flocculation basins for gentle, mechanical agitation. Large paddles slowly stir the water, encouraging the neutralized particles to collide and bind together. As they collide, they form larger, heavier, and increasingly visible clusters known as "floc."[1]

The water then drifts into massive, calm sedimentation clarifiers. Here, the mechanics shift entirely to gravity. The heavy floc clusters sink to the bottom of the basin as a dense sludge, which is continuously scraped away, while the clarified water gently spills over the top weirs. This purely physical step removes the vast majority of suspended solids and a significant portion of the microbial load.[2]

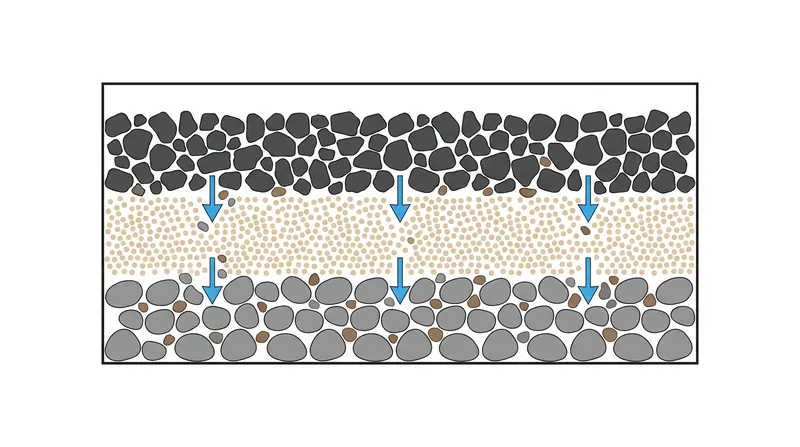

Despite its clarity, the water leaving the sedimentation basins still harbors microscopic impurities and resilient pathogens. It next enters the filtration stage, percolating downward through deep, engineered beds of porous media. A standard municipal filter bed consists of layered anthracite coal, fine silica sand, and a supporting base of coarse gravel.[1]

Filtration operates through multiple mechanisms simultaneously. It is not merely a microscopic sieve; it relies heavily on depth filtration. As water navigates the tortuous, microscopic pathways between the sand grains, particles become trapped in the interstitial spaces. Simultaneously, adsorption causes dissolved impurities to physically stick to the surface area of the media.[2][3]

This physical barrier is the critical defense against protozoan cysts, such as Cryptosporidium and Giardia. These specific pathogens possess thick outer shells that render them highly resistant to standard chemical disinfectants, making the physical trapping mechanism of the filter bed the primary means of their removal from the public supply.[3]

With the physical bulk of contaminants and resilient cysts removed, the water is finally ready for primary disinfection. This chemical stage is designed to inactivate any remaining bacteria and viruses that managed to slip through the microscopic pores of the filter media.[1][3]

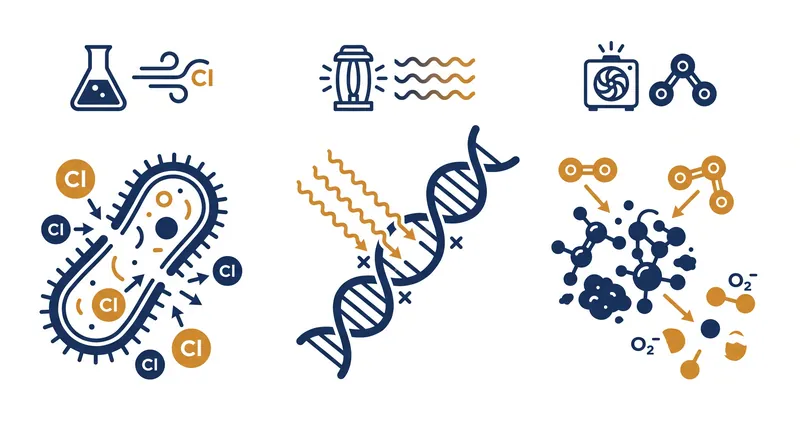

Chlorine remains the foundational standard for global municipal disinfection due to its cost-effectiveness and scalability. When introduced into the clarified water, chlorine aggressively attacks the cell walls of microorganisms, disrupting their structural integrity and interfering with the enzymatic processes required for their survival and reproduction.[1]

Many advanced facilities now supplement or replace primary chlorination with alternative technologies like ozone gas or ultraviolet (UV) light. UV reactors bombard the water with intense light that scrambles the DNA of pathogens, rendering them sterile, while ozone acts as a powerful oxidant that physically shreds organic molecules.[3]

However, UV and ozone share a critical limitation: they leave no lasting protection in the water once it exits the plant. To ensure the water remains safe as it travels through miles of underground distribution mains, facilities must still add a secondary chemical disinfectant—usually a chlorine or chloramine compound—to maintain a protective "residual" all the way to the tap.[1]

The entire sequence is a carefully calibrated balancing act. If the upstream coagulation and filtration stages fail to remove enough naturally occurring organic matter, the subsequent addition of chlorine will trigger a chemical reaction that forms disinfection byproducts (DBPs), such as trihalomethanes, which carry long-term chronic health risks.[3]

Ultimately, the success of municipal water treatment lies in its systemic integration. By maximizing the physical removal of contaminants through precise coagulation and deep-bed filtration, engineers minimize the chemical burden required at the final disinfection stage, delivering water that is both microbiologically safe and chemically stable.[2][4]
