The Physics of Heat Pumps: How Refrigerant Cycles Actually Move Heat Instead of Generating It

The most common misconception about heat pumps is right there in the name. When a homeowner hears "heat pump," they often picture a device that generates heat, much like a space heater or a gas furnace. In reality, a heat pump does not create heat at all.

Instead, it acts as a thermal sponge, soaking up existing heat from one location and squeezing it out in another. This fundamental misunderstanding leads many buyers to question how a system can claim to operate at 300% efficiency—a figure that sounds like a violation of the laws of thermodynamics.[6]

To understand why that efficiency is real, you have to stop thinking about combustion and start thinking about transportation. A traditional gas furnace burns fuel to create new thermal energy, meaning it can never be more than 100% efficient; you get out slightly less heat than the energy contained in the gas. A heat pump, however, uses electricity merely to power a compressor and fans that move a refrigerant fluid through a closed loop.[1]

This process relies on a core principle of physics: even in freezing weather, the outside air contains thermal energy. Absolute zero—the point where all molecular motion stops and no heat exists—is -459.67°F (-273.15°C). On a brisk 30°F (-1°C) winter day in Ohio or Massachusetts, the air is still teeming with heat energy. The heat pump's job is simply to gather that diffuse energy, concentrate it, and move it inside your living room.[2][6]

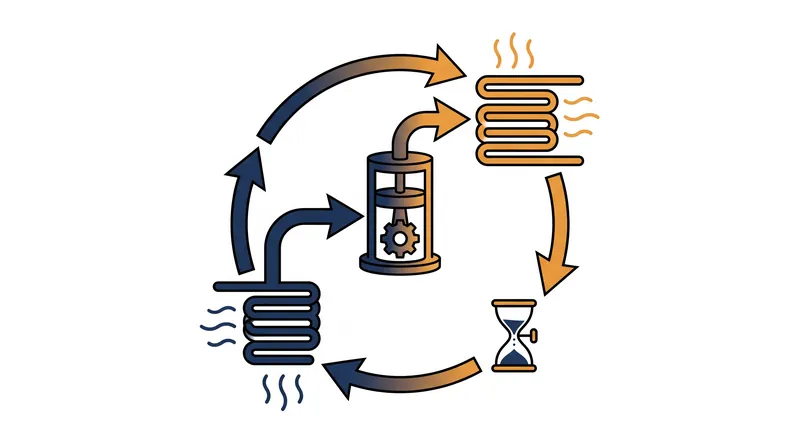

The magic behind this thermal relocation is the refrigerant cycle, a continuous loop of phase changes. The cycle begins at the evaporator coil located in the outdoor unit. Here, the liquid refrigerant is allowed to expand into a low-pressure gas. Because the boiling point of this specialized fluid is incredibly low—often well below freezing—it instantly absorbs heat from the surrounding outdoor air as it evaporates.[3][4]

Once the refrigerant has absorbed this ambient heat, it travels as a warm gas to the compressor. The compressor is the heart of the system and the primary consumer of electricity. It squeezes the gas, drastically increasing its pressure. According to the principles of thermodynamics, increasing the pressure of a gas also increases its temperature. The compressor effectively takes the lukewarm heat absorbed from the winter air and concentrates it into a high-temperature, high-pressure gas.[2][4]

This superheated gas is then pumped to the indoor unit's condenser coil. As the indoor fan blows cooler house air over this hot coil, the heat transfers from the refrigerant into the home. Because it is losing heat, the high-pressure gas condenses back into a liquid. The heat that was outside is now warming the living space, and the refrigerant is ready to start the journey again.[1][4]

Finally, the liquid refrigerant passes through an expansion valve on its way back outside. This valve acts like a nozzle on an aerosol can, rapidly dropping the pressure of the fluid. The sudden pressure drop causes the temperature of the refrigerant to plummet, making it colder than the outdoor air once again, ready to absorb more heat and repeat the cycle.[2]

Because the electricity is only used to run the compressor and fans—not to generate the heat itself—the system can deliver significantly more thermal energy into the home than the electrical energy it consumes. This ratio of heat output to electrical input is known as the Coefficient of Performance (COP). A COP of 3.0 means that for every one unit of electricity used, three units of heat are delivered to the home, effectively making the system 300% efficient.[2][3]

This efficiency translates directly into operational savings for homeowners, though the exact return on investment depends heavily on local electricity rates and the fuel being replaced. Replacing an aging electric resistance heater or a propane furnace with a heat pump almost always yields immediate, dramatic savings. However, in regions where natural gas is exceptionally cheap and electricity is expensive, the monthly financial advantage can be narrower, even if the energy efficiency is vastly superior.[5][6]

The primary uncertainty for buyers has historically been cold-weather performance. Older heat pumps struggled when temperatures dropped below freezing, as the compressor had to work harder to extract heat from the increasingly cold air, causing efficiency to plummet. This led to the widespread use of "auxiliary" electric resistance strips, which are notoriously expensive to run.[5]

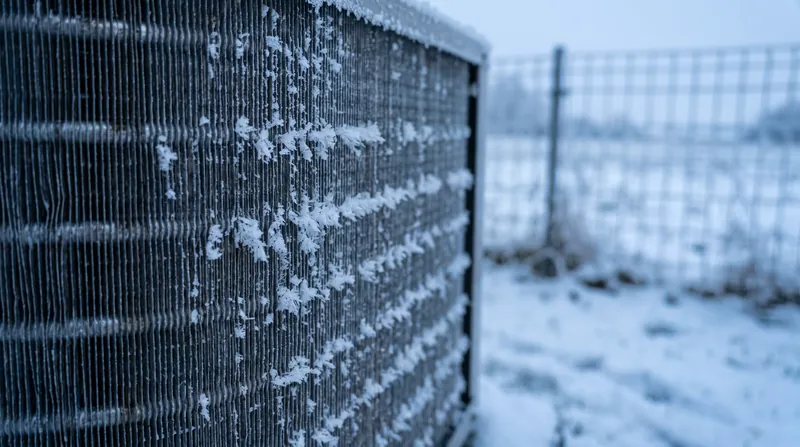

However, modern cold-climate heat pumps utilize advanced inverter-driven compressors. Unlike traditional single-stage compressors that only turn on at 100% capacity or off completely, inverter compressors can modulate their speed. They can ramp up to extract heat even when outdoor temperatures plunge to -15°F (-26°C), maintaining high efficiency without relying on backup resistance heating.[1][5]

Another critical factor for homeowners is the reversing valve. This simple mechanical component allows the entire refrigeration cycle to run backward. In the summer, the indoor coil becomes the evaporator, absorbing heat from the house, and the outdoor coil becomes the condenser, dumping that heat outside. A heat pump is, fundamentally, an air conditioner that can operate in reverse, providing year-round climate control from a single piece of equipment.[3]

As building codes evolve and incentives push electrification, understanding the physics of heat pumps moves from academic curiosity to practical necessity. Homeowners are no longer just buying a box that makes hot air; they are investing in a thermodynamic transport system. Recognizing how that system leverages ambient energy is the first step in making an informed, future-proof upgrade to a home's infrastructure.[5][6]
