The Mechanics of Steer-by-Wire Systems: How Removing the Mechanical Column Transforms Vehicle Architecture

For over a century, every production automobile has relied on a single, fundamental architecture for directional control: a physical, mechanical shaft connecting the driver's hands to the front wheels. In the mid-2020s, the automotive industry is severing that link. Steer-by-wire (SbW) technology removes the steering column entirely, replacing it with sensors, electronic control units, and electric motors. After years of prototype testing and limited deployments, the technology is now crossing into mainstream mass production, fundamentally altering vehicle design, crash safety, and the integration of autonomous driving systems.[3]

The concept is not entirely new; it borrows heavily from the aviation industry. Commercial aircraft have utilized "fly-by-wire" technology for decades, replacing mechanical flight controls with electronic interfaces to improve reliability and reduce weight. Translating this to the automotive sector, however, required solving unique challenges regarding cost, packaging, and the tactile feedback necessary for driving on unpredictable road surfaces.[4][5]

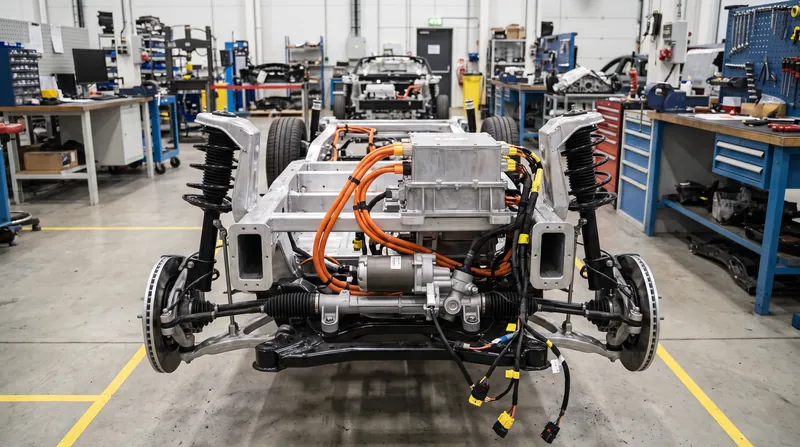

The mechanism itself divides steering into two isolated domains: the cabin input and the chassis output. When a driver turns a steer-by-wire wheel, they are not physically moving a rack. Instead, angle and torque sensors measure the driver's intent and transmit that data as an electrical signal to a road-wheel actuator mounted on the front axle. Simultaneously, a force-feedback actuator inside the steering wheel artificially generates the physical resistance and road feel that drivers expect, calculating tire-to-road contact forces and transmitting them back to the driver's hands.[1][6]

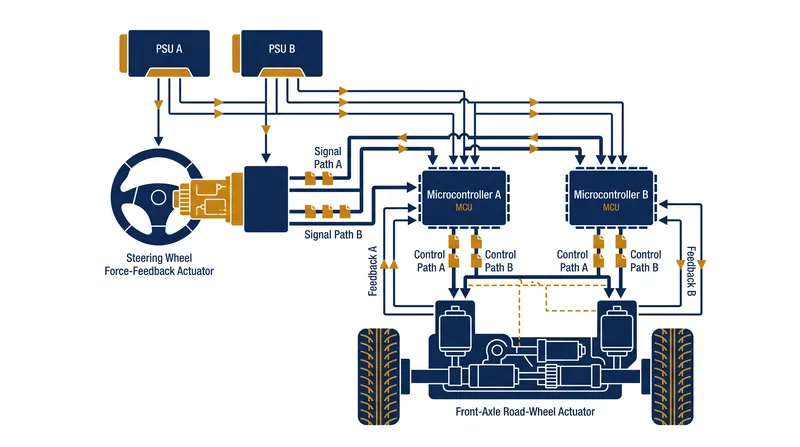

Because this architecture eliminates the mechanical fallback, the safety case relies entirely on electronic redundancy. Steer-by-wire systems are designed to be fail-operational, meaning a single component failure cannot result in a loss of steering control. To achieve the automotive industry's highest safety ratings, manufacturers duplicate the critical pathways. The systems utilize dual electronic signal paths, redundant microcontrollers, and independent power supplies. If the primary circuit fails, the secondary circuit instantly assumes control.[1][2]

In extreme edge cases where total system failure occurs, manufacturers have developed secondary mitigation strategies. Some automakers utilize the vehicle's electronic stability program and rear-axle steering as a final fallback. By applying targeted, wheel-specific braking, the vehicle can maintain lateral control and safely bring the car to a halt even if the primary front steering actuators lose all power.[1]

Removing the rigid steel column unlocks immediate packaging and safety benefits within the cabin. Without a shaft dictating the steering wheel's position, interior designers can utilize flatter, yoke-style wheels that improve visibility of the instrument cluster and increase legroom. Furthermore, the absence of a solid column pointing directly at the driver's chest alters crash dynamics, requiring new airbag architectures that deploy without bracing against a traditional closed steering wheel rim.[2]

The most significant engineering advantage, however, lies in the decoupling of the steering ratio. In a mechanical system, the ratio of steering wheel rotation to road wheel rotation is fixed by the physical gearing. Steer-by-wire allows this ratio to be entirely software-defined and variable. At highway speeds, the system can require larger steering inputs for small wheel movements, ensuring stability. At low speeds, such as during parking, the ratio can be sharpened dramatically, allowing the vehicle to reach full lock with only a partial turn of the wheel, eliminating the need for hand-over-hand maneuvers.[2]

This software-defined authority is also the critical enabling layer for advanced driver assistance systems (ADAS) and future autonomous driving. In conventional electric power steering, an ADAS controller and a human driver can physically fight over the same mechanical column, creating a jerky, conflicting torque overlay. Steer-by-wire moves that conflict from the physical realm to software arbitration. The vehicle's central computer can execute evasive maneuvers or lane-keeping corrections with millisecond latency, without the driver's hands being violently jerked by a spinning wheel.[2]

The regulatory environment governing this technology is currently fracturing along regional lines, dictating where these systems can be deployed. In Europe, the legal framework was established by UNECE regulations, which permit steer-by-wire provided the system maintains fail-operational capabilities and allows the driver to regain control. This has enabled the rollout of systems from luxury manufacturers offering electronic steering as a premium option.[1][3]

The United States presents a more complex regulatory landscape. Federal motor vehicle safety standards do not currently have a single provision dedicated exclusively to steer-by-wire. Instead, early deployments have navigated approval through direct agency engagement and compliance with existing performance-based stability standards. Industry groups are actively petitioning regulators to update vestigial rules that implicitly assume the presence of a mechanical column.[3]

The transition to electronic steering also fundamentally changes vehicle maintenance and repair. Traditional mechanical alignments and hydraulic fluid flushes are replaced by software diagnostics and sensor recalibrations. For independent repair shops, servicing a steer-by-wire chassis requires specialized dealer-level software tools, shifting the aftermarket economy away from mechanical labor and toward digital troubleshooting.[3]

As the technology matures, the automotive supply chain is undergoing a structural realignment. Tier-one suppliers are consolidating their chassis and software divisions to offer complete motion-by-wire portfolios. By integrating steer-by-wire with electro-mechanical brake-by-wire systems, these suppliers are selling automakers a fully decoupled, software-controllable chassis platform.[2]

This shift represents a fundamental migration of vehicle value. The defining characteristics of a car's handling—its weight, its feedback, its responsiveness—are no longer forged in steel and hydraulics. They are written in code. For the automotive industry, the steering wheel is no longer a mechanical lever; it is a peripheral device interfacing with a rolling computer network.[3]
