The Mechanics of Nuclear Reactor Safety Systems: How the Defense-in-Depth Strategy Works

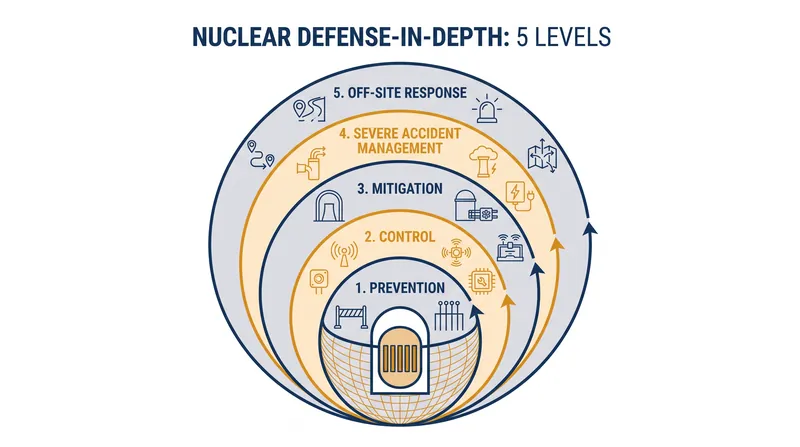

Nuclear reactor safety is not achieved by a single, unbreakable shield, but by a philosophy of assumed failure. This strategy, known as defense-in-depth, operates on the premise that equipment will malfunction, operators will make mistakes, and natural disasters will occur. By layering five independent levels of protection—ranging from normal operational controls to physical containment and emergency response—the system ensures that no single error or breach can cascade into a catastrophic release of radiation.[6]

The defense-in-depth concept was formalized by the International Atomic Energy Agency (IAEA) and has since become the global standard for nuclear safety architecture. It is a systems-minded approach that treats a nuclear power plant as a series of concentric, independent barriers. If one barrier fails, the next one is already in place to arrest the progression of the event, ensuring that the downstream consequences are contained before they can threaten public health.[1][2][4]

The first layer of defense is the prevention of abnormal operation and failures. This is achieved through conservative design, high-quality construction, and rigorous operational procedures. The goal is to ensure the plant operates within its intended parameters, minimizing the frequency of initiating events that could challenge the plant's safety systems. By over-engineering components and enforcing strict maintenance schedules, operators create a robust baseline of stable operation.[1][5]

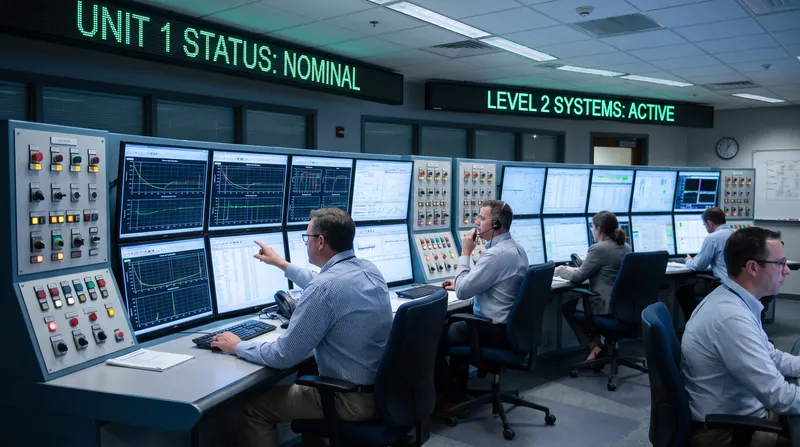

Despite the best preventive measures, deviations from normal operation will inevitably occur. Level 2 focuses on detecting these deviations early and intercepting them before they escalate into true emergencies. This involves automated control systems, continuous digital monitoring, and built-in safety margins that allow operators to correct anomalies and return the plant to a state of normal operation.[1][4]

If a deviation cannot be controlled and escalates into an accident, Level 3 systems are activated. These are engineered safety features designed specifically to control "design basis accidents"—events the plant is explicitly built to withstand, such as a sudden loss of primary coolant. Systems like emergency core cooling and backup diesel generators fall into this category, working to prevent core damage and maintain the integrity of the physical barriers.[2][3]

Interwoven with these operational levels are the physical barriers themselves, which act as the ultimate backstop against radiation release. The first is the ceramic uranium fuel matrix, which traps most fission products internally. The second is the zirconium alloy cladding surrounding the fuel pellets. The third is the heavy steel reactor pressure vessel and the primary coolant system piping.[5]

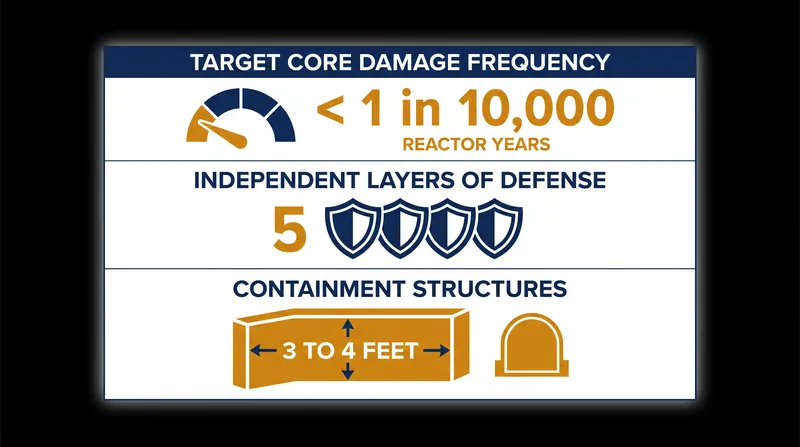

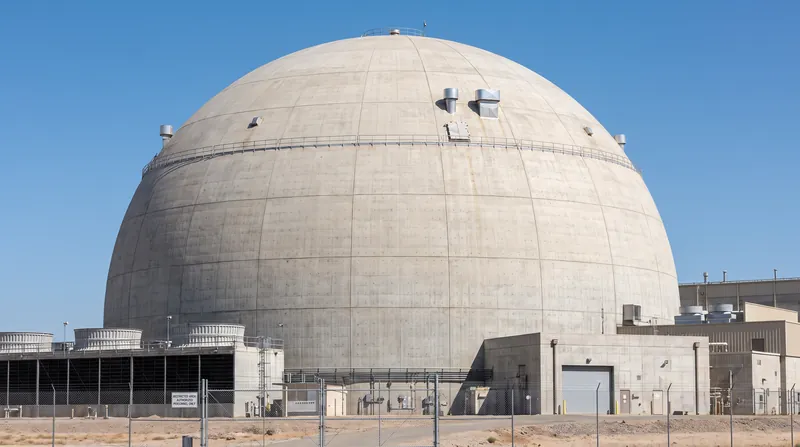

The fourth physical barrier, and the most visible, is the containment building. This is a massive structure of steel-reinforced concrete, often three to four feet thick, designed to withstand immense internal pressure and extreme external impacts, such as commercial aircraft crashes or severe seismic events. This structure is the primary focus of the fourth level of defense-in-depth.[5]

Level 4 addresses the highly unlikely scenario where both the preventive and mitigative systems fail, leading to severe core damage. The objective here is to ensure the containment building remains intact, preventing a significant release of radioactive materials into the environment. This involves severe accident management guidelines (SAMGs) and specialized equipment designed to depressurize the containment, manage hydrogen generation to prevent explosions, and cool the molten core.[1][2]

The final layer of defense acknowledges that, despite all previous layers, a release of radiation remains theoretically possible. Level 5 encompasses off-site emergency response planning. This includes evacuation protocols, sheltering guidelines, and the distribution of potassium iodide, all coordinated with local and national authorities to protect the public and the environment in the absolute worst-case scenario.[1][4]

Modern reactor designs, particularly Generation III+ and Generation IV, are evolving the defense-in-depth strategy by heavily incorporating "passive" safety systems. Unlike active systems that require electrical power and operator intervention—such as motor-driven pumps and manual valves—passive systems rely on fundamental laws of physics like gravity, natural circulation, and compressed gas to cool the reactor in an emergency. This significantly reduces the reliance on human action and external power grids.[3][5]

Historically, defense-in-depth focused primarily on safety—preventing accidents caused by internal mechanical failures or natural events. Today, the framework is increasingly integrated with security protocols to protect against intentional physical and cyber threats. This convergence ensures that the layers of defense are resilient against malicious actors attempting to bypass or disable safety systems through digital intrusion or physical sabotage.[3]

The implementation of defense-in-depth is continuously audited and enforced by national regulatory bodies and international organizations like the Nuclear Energy Agency (NEA). These institutions conduct rigorous stress tests and peer reviews to verify that the independence of the five layers is maintained and that plants are continuously upgrading their systems to reflect the latest safety research and operational experience.[2][4]

While defense-in-depth provides a highly robust framework, the nuclear industry continuously refines its probabilistic risk assessments to identify and mitigate complex vulnerabilities. The primary ongoing challenge lies in anticipating "common-cause failures"—events that could simultaneously disable multiple layers of defense, such as an extreme seismic event coupled with a massive flooding scenario. By systematically assuming failure at every step, the industry maintains an infrastructure where catastrophic outcomes require the simultaneous, highly improbable collapse of multiple, diverse protective layers.[2][5]
