The Mechanics of EV Range Ratings: Comparing EPA, WLTP, and CLTC Cycles and Their Real-World Accuracy

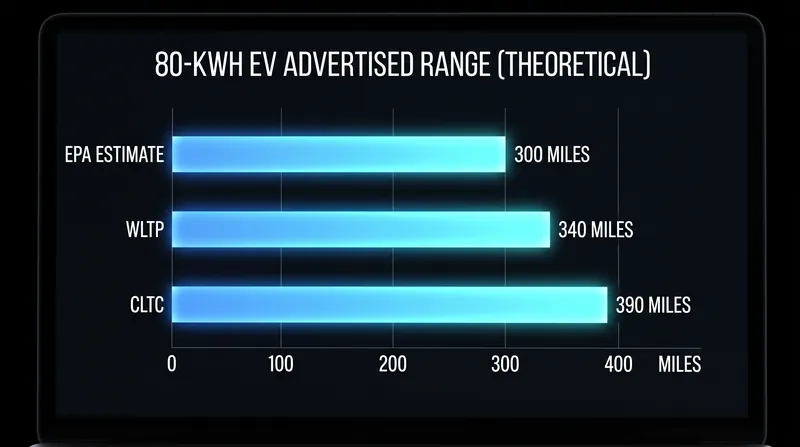

An electric vehicle with an 80-kWh battery might advertise 300 miles of range in the United States, 340 miles in Europe, and nearly 400 miles in China. The battery chemistry is identical, the vehicle mass is unchanged, and the electric motors operate with the same efficiency. The divergence lies entirely in the laboratory testing cycles—EPA, WLTP, and CLTC—used to certify them. These cycles do not merely measure raw efficiency; they reflect regional driving habits, regulatory priorities, and the mathematical penalties applied to dynamometer data to simulate the real world.[3][4]

Range ratings function as a critical node in the global electric vehicle infrastructure. They dictate consumer expectations, influence battery sizing decisions by automakers, and determine compliance with national efficiency mandates. When a testing cycle diverges significantly from real-world conditions, the downstream consequence is consumer anxiety and a mismatch between advertised capability and actual charging network density requirements. A standardized metric is impossible when the physical realities of driving in Los Angeles, Paris, and Beijing demand entirely different vehicle behaviors.[6]

The U.S. Environmental Protection Agency (EPA) cycle is widely regarded as the most conservative and realistic of the three major standards. It subjects vehicles to a multi-phase dynamometer test that includes simulated city driving, highway cruising, and aggressive acceleration. Crucially, the EPA mandates a blanket 30 percent reduction factor—or a more complex five-cycle test including HVAC use and cold temperatures—to account for aerodynamic drag, climate control, and real-world inefficiencies. This systemic penalty ensures that the final brochure number closely aligns with what a driver will experience on an interstate highway.[3][5]

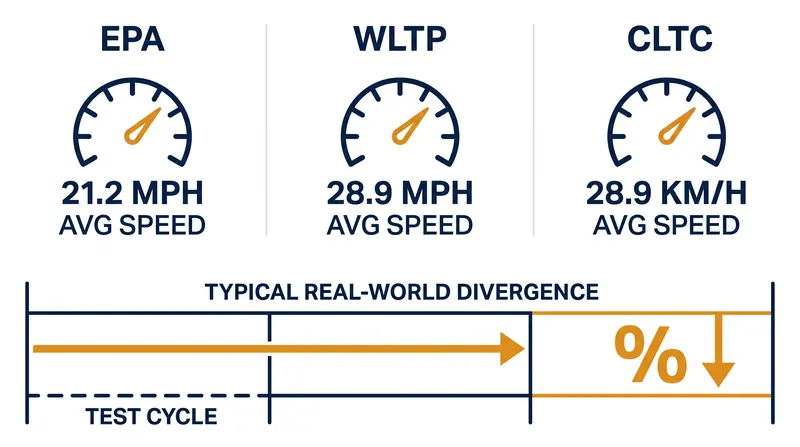

The Worldwide Harmonized Light Vehicles Test Procedure (WLTP), adopted by Europe and much of the globe, replaced the heavily criticized and highly optimistic NEDC standard. It features a longer test duration, higher average speeds of 28.9 mph, and dynamic acceleration phases that better mimic modern suburban driving. However, the WLTP applies a less aggressive real-world penalty than the EPA. Because it assumes a more moderate climate and less sustained high-speed cruising, WLTP range estimates are typically 10 to 22 percent higher than U.S. figures for the exact same vehicle.[1][4]

China's Light-Duty Vehicle Test Cycle (CLTC) was developed specifically to reflect domestic driving conditions, which are characterized by dense urban traffic, frequent stop-and-go patterns, and lower overall highway speeds. The CLTC features a low average speed of 28.9 km/h and a peak speed limit of 114 km/h. Because aerodynamic drag increases exponentially with speed, the CLTC's slower profile yields highly optimistic range figures, often overstating real-world highway range by up to 35 percent compared to the EPA rating.[2][4]

The divergence among these cycles is primarily driven by two physical factors: aerodynamic drag and auxiliary load. The EPA cycle explicitly tests for or mathematically penalizes the use of air conditioning and heating, which can drain an EV battery by up to 30 percent in extreme temperatures. The CLTC, optimized for urban efficiency where aerodynamic drag is minimal and speeds are low, flatters vehicles with poor high-speed aerodynamics. This makes the Chinese standard an excellent predictor for city commuting but a poor metric for long-distance highway travel.[2][3]

Automakers must navigate this fragmented regulatory landscape by calibrating their battery management systems and marketing strategies to regional standards. A vehicle engineered primarily for the Chinese market may prioritize low-speed efficiency and aggressive regenerative braking, maximizing its CLTC score. Conversely, vehicles designed for the U.S. market often require larger battery packs to achieve a competitive EPA rating, which inherently increases vehicle weight, manufacturing cost, and upstream mineral requirements.[4][6]

Ultimately, no single laboratory cycle can perfectly encapsulate the infinite variables of real-world driving. The EPA cycle provides a reliable baseline for mixed driving and varied climates, the WLTP offers a standardized comparative metric for the global market, and the CLTC accurately reflects the realities of congested megacities. As battery technology matures and charging infrastructure densifies, the reliance on these laboratory estimates will likely decrease, but for now, they remain the foundational metrics governing the electric transition.[5][6]
