The Mechanics of Circuit Breakers: Comparing Thermal, Magnetic, and Electronic Trip Units

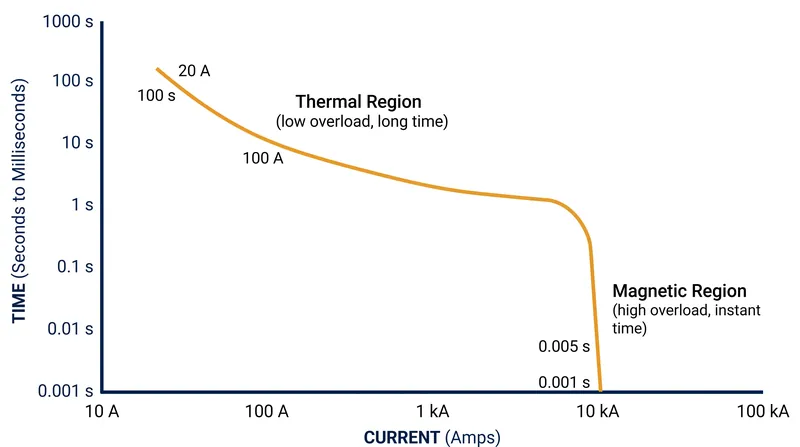

Most homeowners assume a circuit breaker is a simple gatekeeper—either the power is safe, or the breaker flips instantly to stop it. In reality, the breaker in your basement is constantly making calculated, time-delayed decisions. When you plug in a space heater and a vacuum on the same circuit, the breaker doesn't trip the millisecond the current exceeds 15 amps. Instead, it waits, measures the heat, and decides if the overload is a temporary surge or a sustained fire risk. This deliberate delay is the foundation of modern electrical safety, designed to keep the lights on through harmless fluctuations while instantly severing power during a catastrophic short.[4][6]

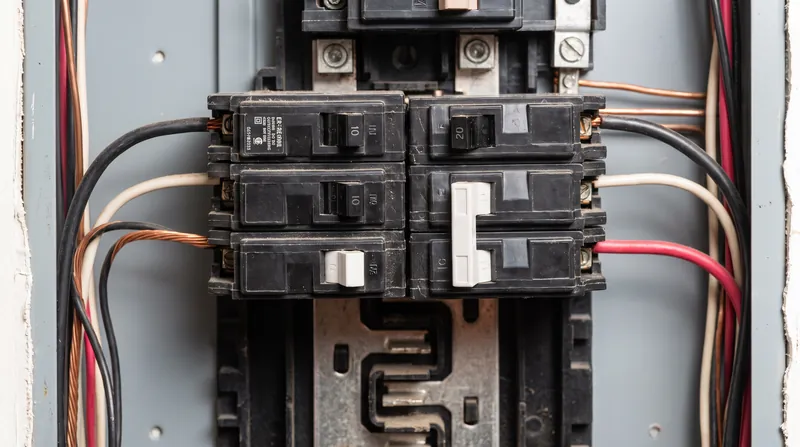

For an owner or renter trying to manage an aging electrical panel, understanding how these decisions are made changes how you interact with your home's infrastructure. The standard residential breaker is not a single mechanism, but a hybrid device known as a thermal-magnetic breaker. It houses two entirely separate physical systems working in parallel to monitor the wire hidden behind your drywall. One system watches for slow, creeping heat, while the other watches for sudden, violent spikes in electromagnetic force.[3][4]

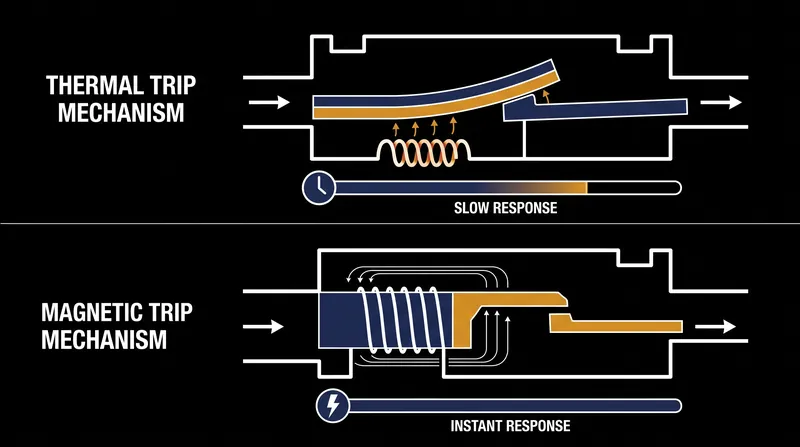

The thermal component is the workhorse of everyday overloads. Inside the breaker sits a bimetallic strip—two different metals welded together that expand at different rates when heated. As electrical current flows through this strip, it naturally generates heat. If you run a 12-amp microwave and an 8-amp toaster on a 15-amp circuit, the total 20-amp draw slowly heats the strip. Because the metals expand differently, the strip begins to bend. After several seconds or even minutes, it bends far enough to unlatch the spring-loaded contact, breaking the circuit. This is why a breaker might trip five minutes after you turn on a heavy appliance, rather than immediately.[4]

However, a bimetallic strip is far too slow to stop a dead short circuit—like a dropped hairdryer or a severed wire. In those scenarios, the current doesn't rise to 20 amps; it spikes to thousands of amps in a fraction of a second, threatening to melt the wire and start an immediate fire. This is where the magnetic trip unit takes over. The breaker routes the current through a small electromagnet. Under normal loads, the magnetic field is too weak to do anything. But during a massive short-circuit spike, the magnetic force multiplies instantly, pulling a metal armature that trips the breaker in milliseconds, long before the thermal strip has time to warm up.[3][4]

While thermal-magnetic breakers have protected homes for decades, the electrical industry is undergoing a quiet revolution driven by electronic trip units. Unlike their mechanical predecessors, electronic breakers use solid-state sensors and microprocessors to measure current digitally. Instead of waiting for a piece of metal to bend or a magnet to pull, an electronic unit calculates the exact waveform of the electricity. If the current deviates from the programmed safety curve, the microprocessor fires a signal to open the circuit.[1][5]

Historically, electronic trip units were strictly the domain of heavy commercial and industrial applications. Facilities with massive air circuit breakers and molded case circuit breakers (MCCBs) require pinpoint accuracy to ensure that a fault in one machine doesn't trip the main building supply. Electronic units allow engineers to dial in exact trip curves, adjusting the delay down to the millisecond to coordinate multiple layers of protection. A mechanical bimetallic strip simply cannot offer that level of programmable precision.[1][2][5]

Today, that commercial technology is trickling down to the residential market, fundamentally changing the economics of home renovations. The push for smart electrical panels and advanced Arc Fault Circuit Interrupters (AFCIs) relies heavily on electronic monitoring. When a homeowner upgrades to a smart panel to manage solar, battery storage, and EV charging, they are essentially replacing mechanical thermal-magnetic sensors with solid-state electronic trip units. These modern breakers don't just trip; they log data, identify the specific appliance causing the fault, and allow for remote management.[6]

Yet, this transition comes with significant trade-offs. A standard thermal-magnetic breaker is a purely physical device that costs roughly $15, consumes zero phantom power, and can sit in a damp basement for forty years and still function. An electronic smart breaker can cost upwards of $150, requires its own tiny power draw to run the microprocessor, and introduces complex solid-state components into a harsh environment. For the average homeowner, the decision between mechanical reliability and electronic precision is no longer just an engineering question—it is a major budget line item in any modern home upgrade.[2][6]
