The 4-Degree Pitch and the Outboard-to-Inboard Ratio That Define Oar Gearing

The outcome of a 2,000-meter sprint is not decided in the final 250 meters, nor is it decided in the weight room. It is determined on the dock, in the exact moment a rower locks the oar's collar against the pin and tightens the gate. That millimeter-precise connection point dictates the mechanical reality of the entire race. If the geometry is wrong by a single degree, the strongest athlete in the world will either spin their wheels helplessly or hit a wall of immovable water.

This geometry is governed by two uncompromising numbers: the four-degree stern pitch and the outboard-to-inboard ratio. Together, they define the boat's gearing. In rowing, gearing is not a set of cogs; it is a lever system that translates human horsepower into horizontal boat speed.

The stakes of getting this right are absolute. A crew pulling a perfectly geared oar will maximize their physiological output, converting every watt of energy into propulsion. A crew with a mismatched outboard-to-inboard ratio will exhaust themselves fighting the equipment rather than the competition.

To understand the mechanism, one must first look at the lever. An oar is a Class 1 lever, where the pin—housed inside the oarlock—acts as the fulcrum. The inboard is the distance from the handle to the collar, and the outboard is the distance from the collar to the extreme tip of the blade.

The ratio between these two lengths dictates the load. According to biomechanical data, a standard sculling oar measures 288 centimeters in total length, with an inboard of 88 centimeters. This leaves an outboard of 200 centimeters.

This specific outboard-to-inboard ratio means the blade travels significantly faster and further than the rower's hands. It is a heavy gear. If a coach moves the collar to shorten the inboard and lengthen the outboard, the gear becomes even heavier—requiring more force to move the handle, but moving the boat further per stroke if the athlete can sustain the load.

Conversely, lengthening the inboard lightens the gear. This allows a crew rowing into a heavy headwind to maintain a high stroke rate without their muscles failing prematurely. As biomechanics researchers at BioRow detailed in a 2025 analysis, "At the optimal gearing ratio, rowers should be able to achieve the target racing stroke rate, stroke length, and force application while maintaining a comfortable rhythm."[3]

Leverage, however, is only half the equation. Once the oar enters the water, it must stay there, anchored at the correct depth to maintain the pressure face against the water. This is where the four-degree pitch becomes the most critical angle in the sport.

Pitch is the angle at which the blade tilts away from true vertical during the drive phase. In modern rowing, a four-degree stern pitch is the universal standard. As the Durham Boat Company noted in a 2022 technical review, "Today with the stiffer composite boats, carbon oars and riggers, the pitch of 4 degrees is molded into the face of the oarlock and the pin that the lock swivels about is set at zero degrees in all directions."[1]

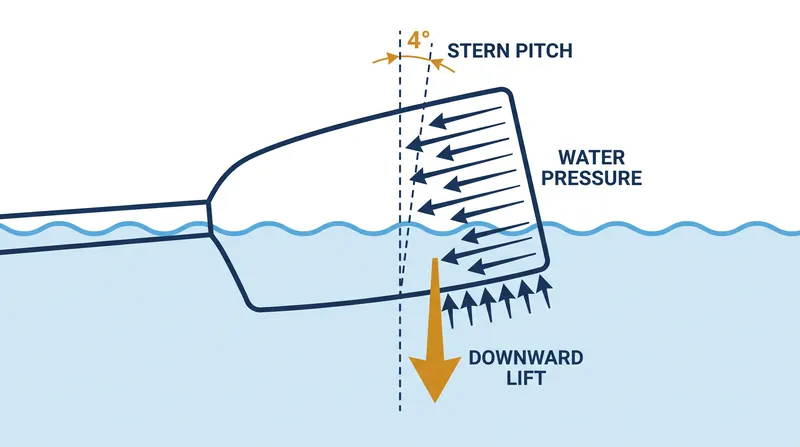

Why exactly four degrees? The blade does not move squarely through the water; it is angled slightly downward. This four-degree tilt counteracts the upward lift generated by the water pressure as the boat accelerates. It acts as an anchor, pulling the blade down just enough to keep it fully submerged.

If the pitch drops below four degrees—approaching zero—the blade will dig violently into the depths. The rower will catch a "crab," a catastrophic error where the water takes control of the oar, often ejecting the handle into the athlete's chest and stopping the boat dead.

If the pitch exceeds seven degrees, the opposite failure occurs. The blade will skip over the surface of the water at the finish of the stroke. A 2013 analysis by Ready All, Row explains the stakes: "Too much pitch (7+ degrees) will cause the blade to wash out at the finish, whereas not enough (less than 4 degrees) will cause the blade to dig in too deep."

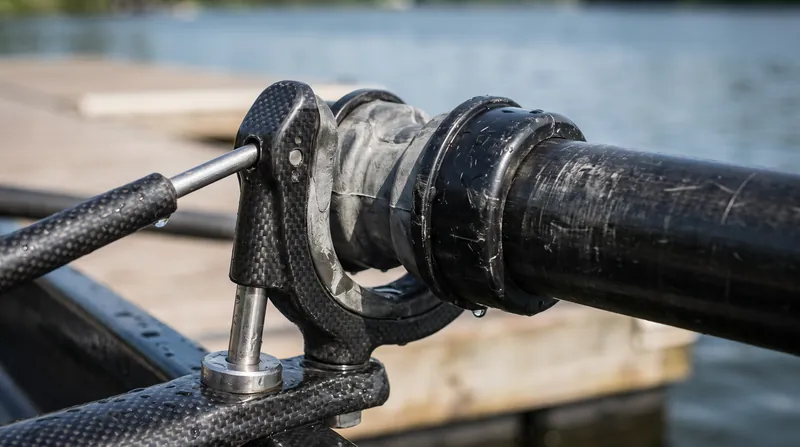

Historically, wooden boats and oars required up to eight degrees of pitch to account for the bending and twisting of the materials under load. Today, ultra-stiff carbon fiber riggers and shafts do not deform, allowing engineers to lock the standard at a highly efficient four degrees.

AI

The precision required to maintain this angle is staggering. Mechanics use specialized pitch meters to calibrate the pin, ensuring it sits at exactly zero degrees relative to the boat's hull. Any deviation in the pin's verticality will corrupt the four-degree pitch built into the oarlock, destroying the rower's connection to the water.

The interaction between the outboard-to-inboard ratio and the four-degree pitch creates a dynamic environment. As the blade sweeps through its arc—from the catch to the finish—the effective gearing changes. The load is heaviest when the oar is perpendicular to the hull and lighter at the extreme angles.

Advanced blade designs, such as Randall Foils or modern smooth-face blades, interact with this pitch differently. Some designs require a reduction in pitch to three degrees because their shape inherently holds the water better, proving that the four-degree rule is a baseline rather than an absolute ceiling.

The mastery of oar gearing separates Olympic champions from the rest of the field. The athletes provide the engine, but the four-degree pitch and the precise millimeter calibration of the inboard ratio serve as the transmission. When the geometry is flawless, the boat translates every ounce of human suffering into pure velocity.
