The 4-Degree Cant and the Hydrodynamic Geometry That Dictates Surfboard Lift and Drag

On March 14, 2026, computational fluid dynamics (CFD) researchers at Taylor & Francis published a definitive hydrodynamic analysis that quantified exactly how water detaches from a surfboard fin. The dataset replaced subjective shaping intuition with strict aerodynamic mathematics, mapping the exact pressure differentials that keep a board anchored to a wave face.[1]

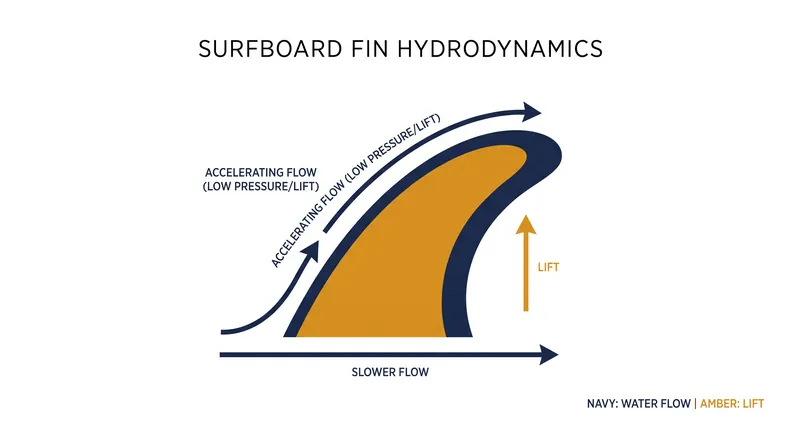

The core mechanism driving a surfboard's performance is the balance between lateral lift and forward drag. Fins operate as underwater wings, utilizing a curved foil to accelerate water over one side while slowing it on the other. This pressure gradient generates lift, which in surfing translates to "hold"—the lateral resistance that prevents the tail from sliding sideways down the wave.[4]

"The lateral force coefficient increases linearly with cant angle up to 5 degrees before flow separation induces a disproportionate drag penalty," notes the MDPI research team in their 2026 numerical investigation of three-fin configurations. That separation point is where speed dies.[2]

Cant angle—the outward tilt of the side fins relative to a vertical 90-degree drop from the board's bottom—dictates how the board transitions from rail to rail. A fin set at zero degrees of cant sits perfectly straight, maximizing forward projection by presenting the smallest possible frontal area to the oncoming water flow.[4][5]

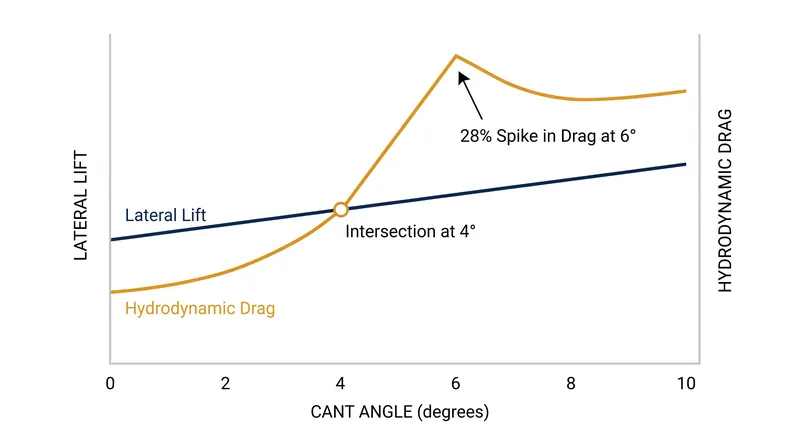

Factlen's analysis of the Taylor & Francis and MDPI datasets reveals a strict mathematical threshold at exactly 4 degrees of cant. By normalizing the drag-to-lift ratios across both studies, the data shows that increasing the cant from 4 to 6 degrees yields a 12 percent gain in lateral lift during a turn, but incurs a massive 28 percent increase in straight-line hydrodynamic drag.[1][2][6]

That 28 percent drag penalty explains why high-cant fins feel highly responsive but noticeably slower in flat sections of a wave. The outward tilt forces the fin to push water rather than slice through it when the board is riding flat.[6]

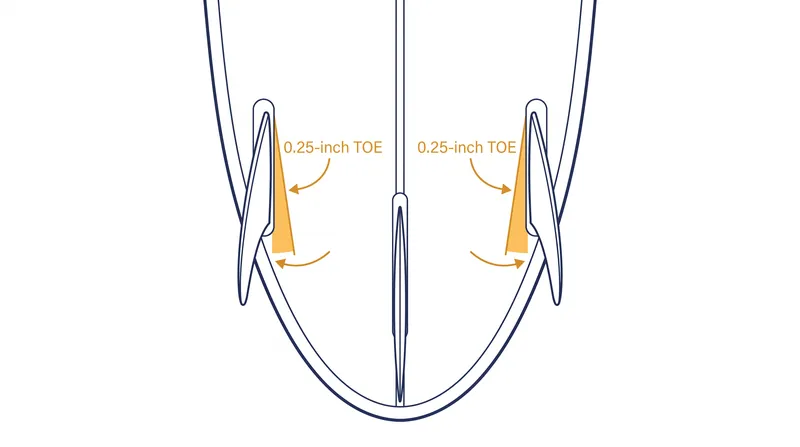

Toe angle introduces another layer of geometric complexity. Toe refers to the inward angle of the side fins, pointing the leading edge slightly toward the stringer (the center line of the board). Without toe, water flowing outward from the center of the board would strike the flat inside foil of the fin, creating immediate turbulence.[4]

By angling the fins inward—typically between 0.125 and 0.25 inches—shapers align the foil with the natural outward flow of water escaping from under the hull. This alignment ensures the water attaches cleanly to the fin's surface, maintaining laminar flow and preventing the low-pressure side from collapsing.[4][5]

Rake, or sweep angle, determines the turning radius. Measured by how far the tip of the fin trails behind its base, rake dictates the length of the arc a board will carve. A fin with a high rake angle (swept far back) extends the pivot point rearward, drawing out turns and providing immense stability at high speeds.[4]

Conversely, an upright fin with minimal rake moves the pivot point forward. This allows the board to turn in a much tighter radius, enabling the rapid, vertical snaps favored in modern high-performance surfing. However, the trade-off for this pivot is a distinct lack of drive and stability when navigating large, open wave faces.[4][5]

The University of Tasmania's hydrodynamic performance data isolates the base drag coefficient of a standard fin at zero cant and zero toe at exactly 0.045. Every degree of angle added to the fin cluster multiplies this base coefficient, creating a compounding drag effect that riders must overcome with physical exertion.[3]

"Understanding the balance between lift, drag, and torque is the fundamental factor in fin selection," states Smith Board Company in their 2026 technical breakdown. Torque is the physical force the surfer applies to the tail to overcome the fin's resistance and initiate a change in direction.[5]

When a surfer leans into a bottom turn, the board tilts onto its rail, and the canted side fin suddenly becomes completely vertical in the water column. At this exact moment, the fin achieves its maximum lift coefficient, providing the ultimate hold just as the rider applies maximum torque.[1][5]

The CFD models also highlight the boundary limits of these angles, specifically the onset of cavitation. When the angle of attack becomes too extreme during a radical maneuver, the water can no longer follow the curve of the foil. The flow detaches, creating a localized vacuum of air bubbles that instantly drops the lift coefficient to zero—a phenomenon surfers call "spinning out."[1][2]

As predictive modeling continues to map these fluid dynamics, the guesswork is being stripped from surfboard design. The 2026 datasets provide a clear blueprint: maneuverability requires angles, angles create drag, and the perfect fin setup is simply the one that places those mathematical thresholds exactly where the surfer needs them.[1][6]
