Satellite Mapping and Statistical Models Reveal Hidden Groundwater Depletion

Municipal water managers have long operated under the assumption that mapping the physical structure of deep aquifers requires expensive, widespread physical drilling and years of continuous GPS monitoring. This conventional wisdom held that subterranean permeability and fluid dynamics could only be accurately understood by measuring them directly from the ground down.[2][4]

But new research published in Geophysical Research Letters and the Proceedings of the National Academy of Sciences sets satellite evidence directly against that assumption. By integrating remote sensing data with Bayesian statistical models, scientists have demonstrated that they can map underground water flow and storage changes highly accurately from space.[1][2]

The breakthrough offers a low-cost, highly precise alternative for monitoring global groundwater reserves, bypassing the need for extensive physical infrastructure. "We think this is a really promising technique for aquifer characterization and management that could be tremendously useful and essentially free," said Marc Hesse, a professor at the University of Texas at Austin.[2][3]

This new orbital approach arrives as communities worldwide face increasing pressure to balance heavy agricultural irrigation with municipal drinking water supplies. Traditional physical methods often fail to detect structural changes in the subterranean rock until an aquifer is already collapsing, making early orbital detection critical for sustainable long-term management.[1][5]

Measuring permeability from orbit

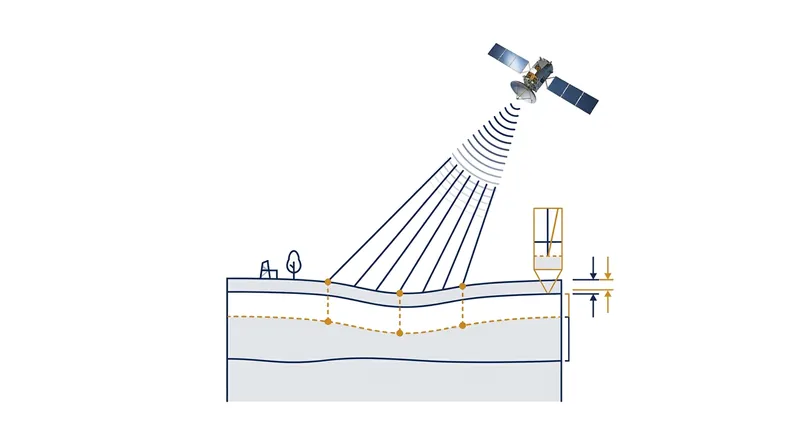

The University of Texas research team focused their initial efforts on a municipal aquifer in Nevada, testing whether space-based instruments could fully replace ground-level sensors. They utilized publicly available Interferometric Synthetic Aperture Radar data, a technology that measures minute topographical shifts in the Earth's surface from low Earth orbit.[2][4]

As groundwater is pumped out for agricultural or urban use, the land above the aquifer subtly subsides. The radar satellites capture these millimeter-scale deformations, providing a high-resolution topographical map of the surface settling over a six-month period without requiring the installation of any physical monitoring stations.[2][3]

To translate that surface movement into underground fluid dynamics, the researchers applied a Bayesian inference algorithm developed at the university's Oden Institute. This advanced statistical framework generated a three-dimensional model of how water flows, drains, and spreads laterally through the subterranean rock layers.[2][4]

The results demonstrated that a single high-resolution radar map delivered more detailed and accurate permeability data than multiple physical GPS readings taken over the exact same timeframe. The satellite method effectively mapped a wide range of possible permeability fields without the expense of sinking a single new test well.[2][3]

By quantifying exactly how easily water moves through the deep sediment, the statistical models allow local water authorities to see precisely where recharge is occurring. This enables managers to identify the specific zones where extraction is outpacing nature's ability to refill the basin before permanent structural damage occurs.[2][5]

High-resolution global tracking

While the Texas team focused on local permeability, researchers at NASA's Goddard Space Flight Center and the University of Maryland applied similar statistical advances to track global freshwater storage. They analyzed extensive data from the GRACE and GRACE-FO satellite missions spanning from April 2002 through November 2025.[1]

The twin GRACE satellites measure regional water fluctuations by detecting minute spatiotemporal variations in Earth's gravity field caused by water mass. However, historically, this data could not reliably detect groundwater changes in areas smaller than 150,000 square kilometers, severely limiting its utility for localized municipal conservation policies.[1]

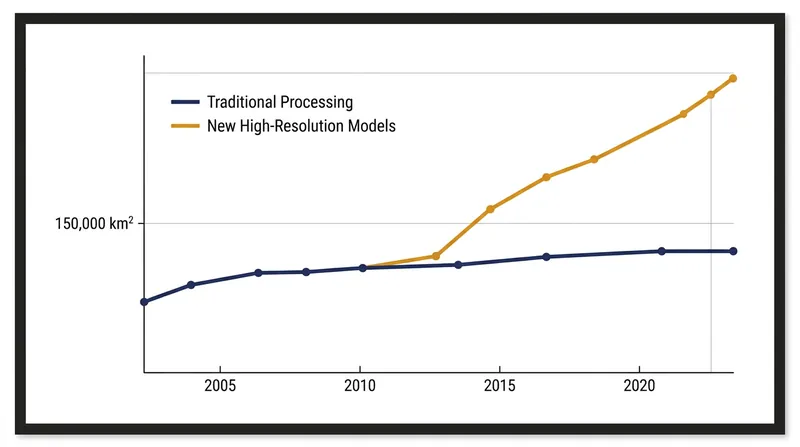

To overcome this severe spatial limitation, the NASA research team applied an innovative processing method to the raw terrestrial water storage data. The refined statistical technique produced global groundwater maps with five to ten times the spatial resolution of traditional gravity-based models, unlocking actionable data for regional managers.[1]

The enhanced resolution revealed that freshwater storage trends in heavily managed agricultural basins are significantly more acute than previously estimated. Mary Michael O'Neill, an assistant research scientist at NASA, noted that the greatest unseen losses are occurring in regions that are already recognized globally as highly water-stressed.[1]

"A key conclusion from this study is that freshwater storage trends in many heavily managed basins and aquifers are more acute than previously estimated," the researchers wrote. This granular, high-resolution data is now considered critical for updating hydrological and climate modeling worldwide.[1]

Preventing structural collapse

The primary danger of severe over-extraction is not merely running out of usable water, but permanently destroying the aquifer's internal architecture. When water is removed too quickly, the porous rock and sediment can compress, leading to a point of no return where the aquifer physically collapses and cannot be refilled.[5]

The integration of surface deformation tracking and gravity-based mass-balance data provides a crucial early warning system for this kind of structural collapse. Water managers can now visualize the pressure changes within the deep rock layers and adjust extraction rates before the subterranean damage becomes irreversible.[2][5]

Because the underlying satellite data is freely available to the public, the financial barrier to advanced groundwater modeling has been effectively eliminated. Municipalities and agricultural districts that previously could not afford extensive hydrological surveys can now access top-tier diagnostic tools to guide their water policies.[2][3]

As climate variability continues to alter the historical timing of rainfall and snowmelt, these remote sensing techniques will become foundational to global water security. The ability to monitor subterranean reserves accurately from orbit ensures that communities can adjust their pumping rates dynamically to match actual recharge rates.[1][5]

This shift from reactive ground-level measurements to proactive orbital monitoring represents a fundamental upgrade in natural resource management. By leveraging existing satellite infrastructure and advanced Bayesian statistics, researchers have provided a highly scalable, cost-effective blueprint for preserving the world's hidden freshwater supplies.[2][5]
