Samsung Unveils UFS 5.0 Storage, Doubling Smartphone Speeds for On-Device AI

Samsung Electronics has officially unveiled the industry's first Universal Flash Storage (UFS) 5.0 solution, a breakthrough memory chip that promises to fundamentally alter the performance ceiling of next-generation mobile devices. Announced in late June 2026, the new storage standard is explicitly designed to eliminate the data bottlenecks that have historically constrained smartphones, paving the way for a new era of instantaneous, on-device artificial intelligence. As mobile hardware continues to mature, the engineering focus has shifted from simply adding more processor cores to ensuring that massive amounts of data can move through the device's internal architecture at unprecedented speeds.[1]

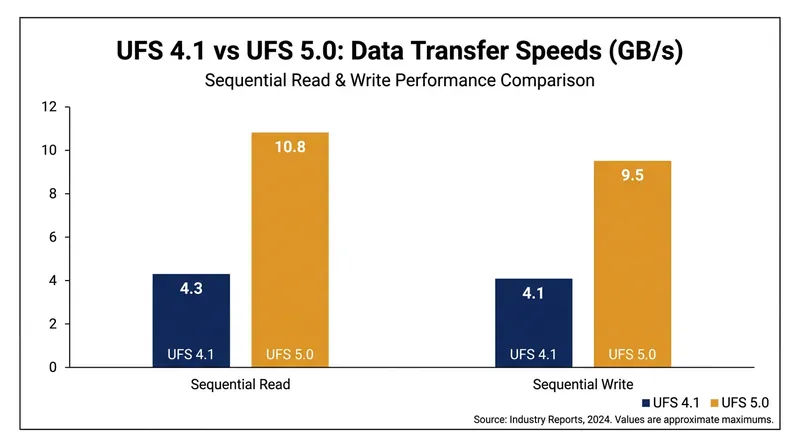

The raw performance metrics of the new chip represent a generational leap in mobile computing. Built upon the latest embedded storage interface standards established by the Joint Electron Device Engineering Council (JEDEC), the UFS 5.0 module achieves sequential read speeds of up to 10.8 gigabytes per second (GB/s) and sequential write speeds of up to 9.5 GB/s. To put this into perspective, the current UFS 4.1 standard—which powers top-tier 2026 flagships like the Galaxy S26 Ultra—tops out at roughly 4.3 GB/s. By more than doubling the data transfer rate, Samsung has effectively rewritten the rules for how quickly a smartphone can access its own internal memory.[1][2]

The primary catalyst driving this aggressive push for speed is the rapid evolution of generative artificial intelligence. Over the past year, the tech industry has aggressively pivoted from relying on cloud-based servers to executing complex AI tasks locally on the user's device. Running large language models (LLMs) natively on a smartphone offers massive advantages in terms of user privacy, offline availability, and reduced latency, but it requires an immense amount of data throughput that older storage standards simply cannot provide without causing severe system lag.[1]

"In the era of on-device AI, storage devices are evolving into a key driver defining AI experiences," said Jangseok Choi, head of Memory Product Planning at Samsung Electronics, during the official announcement. Choi emphasized that the role of mobile memory is undergoing a fundamental transition across the industry. Rather than serving merely as a passive data locker for high-resolution photos and applications, modern storage must act as core infrastructure, actively supporting the heavy computational demands of real-time AI processing without faltering.[1]

The mechanics of on-device AI illustrate exactly why this bandwidth is so critical. To execute an AI command—such as generating an image or translating a live conversation—a smartphone must rapidly read the multi-gigabyte AI model from its storage drive and transfer it into the device's active RAM. From there, the neural processing unit (NPU) can perform the necessary inferences. At 10.8 GB/s, UFS 5.0 allows these massive data sets to load into memory in a fraction of a second, ensuring that the AI responds instantly to user inputs without the frustrating lag associated with cloud processing.[1]

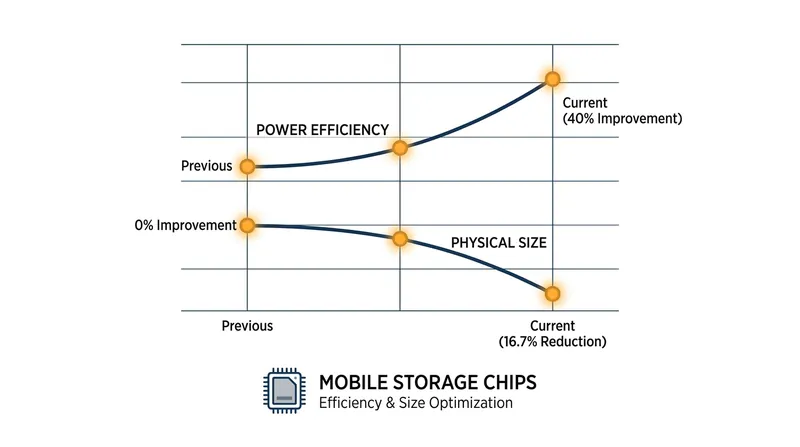

Beyond raw speed, the new standard delivers significant gains in power efficiency, addressing a critical concern for mobile users who rely on their devices throughout the day. Samsung engineered the UFS 5.0 chip to be 40 percent more power-efficient than its UFS 4.1 predecessor. This is a vital improvement for the mobile ecosystem, as the heavy computational loads required by on-device AI are notoriously taxing on smartphone batteries, often leading to rapid drain and thermal throttling during extended use.

This dramatic increase in efficiency was achieved through the implementation of advanced architectural innovations, including clock gating and multi-voltage technologies. Clock gating allows the chip to intelligently shut off the clock signal to specific circuits when they are not actively in use, preventing unnecessary power drain. For the end user, these under-the-hood optimizations mean that demanding workloads will consume significantly less energy, extending the device's battery life even during heavy AI usage.[1]

In addition to being faster and more efficient, the physical footprint of the memory module has been notably reduced. The UFS 5.0 package measures just 7.5 millimeters by 13 millimeters, with a thickness of only 0.9 millimeters. This makes the new chip 16.7 percent smaller than the previous UFS 4.1 module. In the tightly constrained environment of a modern smartphone chassis, every millimeter of reclaimed space is highly valuable, giving manufacturers the flexibility to incorporate larger batteries, better cooling systems, or additional camera sensors.[1]

The broader mobile processor ecosystem is already laying the groundwork to support the new storage standard, ensuring a smooth rollout when the hardware becomes available. Industry trackers note that upcoming flagship silicon, including Qualcomm's highly anticipated Snapdragon 8 Elite Gen 6 and MediaTek's Dimensity 9600 Pro, have been designed from the ground up with UFS 5.0 compatibility in mind. This coordinated engineering effort ensures that when the new storage chips hit the consumer market, the processors will be fully equipped to handle the doubled bandwidth without introducing new architectural bottlenecks.[3]

Leaks emerging from the semiconductor supply chain suggest that Samsung's own in-development Exynos 2700 processor will also natively support the new storage architecture right out of the box. This internal synergy has fueled widespread industry speculation that the Galaxy S27 series, which is expected to make its global debut in early 2027, will be among the very first consumer devices to feature UFS 5.0 technology, giving it a distinct edge in the highly competitive flagship smartphone market.[3]

To meet the anticipated demand from smartphone manufacturers, Samsung has confirmed that mass production of the UFS 5.0 chips is scheduled to begin in the fourth quarter of 2026. At launch, the advanced storage modules will be available in a variety of capacities, scaling up to a massive maximum of 1 terabyte (TB). This high capacity is specifically intended to accommodate the massive file sizes associated with downloading local AI models, as well as the storage demands of 8K video recording and high-fidelity mobile gaming.[1][2]

While flagship smartphones are the most obvious application for the new technology, its impact will extend far beyond traditional handsets. Samsung explicitly noted that the high bandwidth and compact size of UFS 5.0 make it an ideal solution for next-generation wearables, automotive systems, and extended reality (XR) headsets. As these emerging form factors increasingly rely on real-time data processing to render immersive environments, the arrival of UFS 5.0 provides the foundational infrastructure needed to make untethered, high-performance edge computing a reality.[1]
