Navigating Global Engine Oil Standards: Where API SP, ACEA C3, and ILSAC GF-6 Diverge

The introduction of ultra-low viscosity oils and strict emissions hardware has transformed engine lubricant from a generic commodity into a highly specialized component, forcing automakers to engineer engines around specific chemical standards. A modern engine block relies on the fluid flowing through it not just for lubrication, but as a structural element of its thermal management, emissions control, and combustion timing systems. When a vehicle requires a specific oil standard, it is dictating the chemical boundaries within which the engine was designed to survive.

The global automotive market operates under three primary regulatory frameworks for engine oil: the American Petroleum Institute (API), the International Lubricant Specification Advisory Committee (ILSAC), and the European Automobile Manufacturers' Association (ACEA). While these bodies share the overarching goal of engine protection, their engineering priorities diverge sharply based on regional emissions legislation and driving habits.[1][2][3]

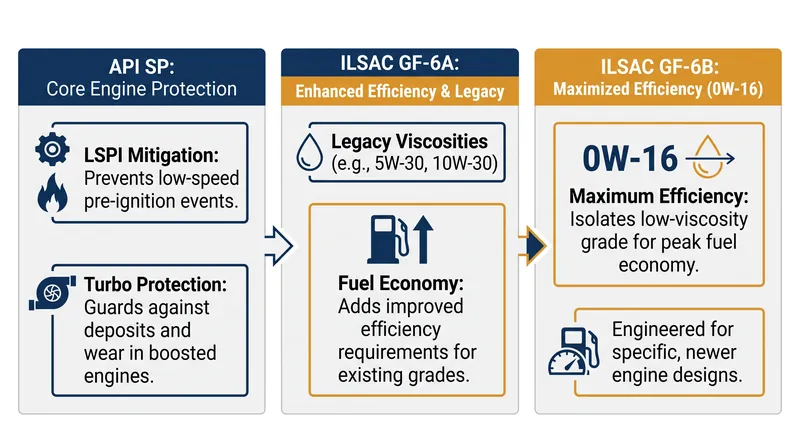

API SP and ILSAC GF-6, implemented in May 2020 after seven years of development, were engineered specifically to address the vulnerabilities of downsized, turbocharged gasoline direct injection (TGDI) engines. As North American automakers shrank engine displacements while increasing turbocharger boost to meet fuel economy mandates, they encountered a destructive phenomenon known as Low-Speed Pre-Ignition (LSPI).[1][3]

LSPI occurs when the fuel-air mixture ignites prematurely during the compression stroke, creating massive cylinder pressures that can shatter pistons and bend connecting rods. Research demonstrated that calcium-based detergents in older oil formulations were acting as an ignition source. API SP mandated a chemical reformulation, replacing calcium with magnesium-based detergents to suppress these premature detonations.[4][5]

Beyond LSPI mitigation, the American Petroleum Institute notes that the API SP standard provides "improved high temperature deposit protection for pistons and turbochargers, and more stringent sludge and varnish control." This ensures that the oil can withstand the extreme thermal loads generated by modern turbochargers without breaking down into abrasive carbon deposits.[1]

ILSAC GF-6 mirrors the protective requirements of API SP but adds strict, quantifiable fuel economy mandates. To accommodate the physical realities of different engine designs, ILSAC split the standard into two distinct tiers. GF-6A is backward compatible and covers legacy viscosity grades such as 5W-30 and 0W-20. GF-6B, however, was created exclusively for ultra-low viscosity 0W-16 oils and is not backward compatible with older engines.[3]

Across the Atlantic, the European standard ACEA C3 operates on a fundamentally different engineering philosophy, prioritizing the survival of exhaust after-treatment systems over maximum internal fluid efficiency. European emissions regulations have long mandated the use of particulate filters on both diesel and gasoline vehicles, hardware that is highly sensitive to the chemical composition of engine exhaust.[2][6]

ACEA C3 mandates a "mid-SAPS" chemical profile, strictly limiting the levels of Sulphated Ash, Phosphorus, and Sulphur in the oil. Specifically, Sulphated Ash is capped at 0.8 percent, while Phosphorus is restricted to a narrow band between 0.07 percent and 0.09 percent. According to Lubrizol, ACEA C3 is designed for "high performance gasoline and light duty diesel engines where advanced aftertreatment systems such as Diesel Particulate Filters (DPFs) and Three Way Catalysts (TWC) are used."[2]

If a high-SAPS oil—such as a traditional API-rated lubricant without European approvals—is used in a modern European engine, the metallic ash generated during normal oil consumption permanently blinds the particulate filter. Replacing a clogged DPF or GPF often exceeds $2,000, making the chemical compliance of the oil a critical financial factor for vehicle owners.[6]

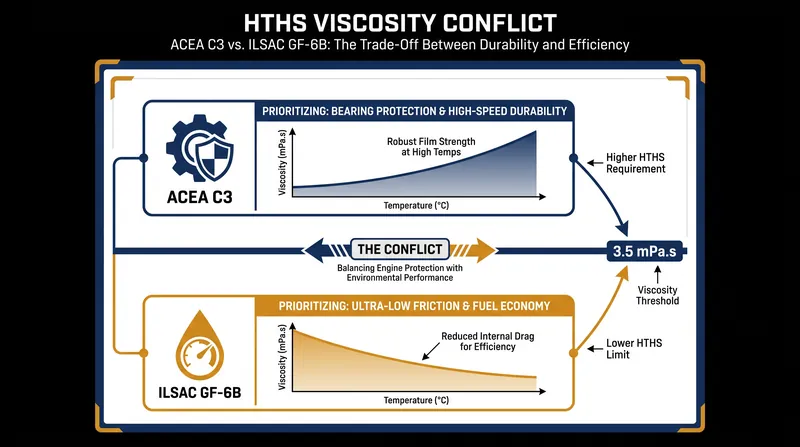

The structural conflict between the North American and European standards lies in High Temperature High Shear (HTHS) viscosity. HTHS measures an oil's resistance to flow and mechanical shearing under extreme heat (150 degrees Celsius) and high engine speeds, simulating the conditions inside the engine bearings and cylinder walls.[2][7]

ACEA C3 requires a minimum HTHS viscosity of 3.5 millipascal-seconds (mPa.s). This high-shear floor ensures a thick, protective hydrodynamic film during sustained high-speed driving on European motorways, prioritizing bearing protection and long-term durability over incremental fuel savings.[2][6]

Conversely, ILSAC GF-6B targets maximum fuel efficiency by reducing internal fluid friction, utilizing HTHS viscosities well below the 3.5 mPa.s threshold. Consequently, an oil cannot physically meet both ACEA C3 and ILSAC GF-6B simultaneously; the high-shear protection required by Europe directly violates the low-friction mandates of North America.[3][7]

While API SP and ACEA C3 both mandate timing chain wear protection—a critical requirement as soot and contaminants can stretch the chain over time—their testing methodologies differ, reflecting the distinct operational environments and engine architectures of their respective vehicle fleets.[1][2]

The divergence in these standards means that independent repair shops and vehicle owners can no longer rely on viscosity grade alone. A 5W-30 API SP oil lacks the strict SAPS constraints and HTHS minimums of a 5W-30 ACEA C3 oil, meaning the two fluids are chemically distinct despite sharing the same viscosity label on the bottle.[4]

Looking ahead, the industry faces the challenge of developing the next generation of standards, such as the proposed ILSAC GF-7, which will push viscosities even lower to 0W-8. As these targets become more extreme, the engineering gap between North American fuel economy goals and European durability requirements will only widen.[3][7]

The chemical boundaries established by these standards dictate the operational limits of modern engines. Until materials science can bridge the gap between high-shear protection and ultra-low friction, the global lubricant market will remain permanently divided by regional engineering priorities, requiring exact compliance to keep vehicles on the road.[7]
