Metamaterial MRI Antenna Delivers Sharper, Faster Scans of Brain and Eye

Magnetic resonance imaging (MRI) is the gold standard for non-invasive medical diagnostics, yet it harbors persistent blind spots. Tissues located deep within the body, or anatomically intricate regions like the eye and the occipital lobe of the brain, often yield blurry images or require agonizingly long scan times. The bottleneck is rarely the scanner's primary magnet; rather, it is the radiofrequency antennas—or coils—that transmit and receive the signals.

In a landmark study published in Advanced Materials, researchers from the Max Delbrück Center for Molecular Medicine and Rostock University Medical Center have demonstrated a revolutionary solution. By integrating engineered metamaterials directly into the MRI antenna, they have successfully manipulated electromagnetic fields to drastically boost image clarity and scan speed.[1]

The primary claim of the evidence pack is that metamaterial integration significantly enhances MRI signal strength and spatial resolution without requiring stronger, more expensive primary magnets. For decades, the conventional method for improving MRI resolution was brute force: increasing the scanner's magnetic field strength from 1.5 Tesla to 3.0 Tesla, or even 7.0 Tesla. This approach is prohibitively expensive and introduces safety complexities regarding tissue heating. The new data demonstrates that smart materials can achieve similar gains at a fraction of the cost.[2]

The research team, led by doctoral student Nandita Saha and Professor Thoralf Niendorf, designed a metamaterial-integrated radio frequency antenna. Metamaterials are artificially manufactured structures composed of subwavelength unit cells that interact with electromagnetic waves in unnatural ways. The team utilized a double-square split-ring resonator design.

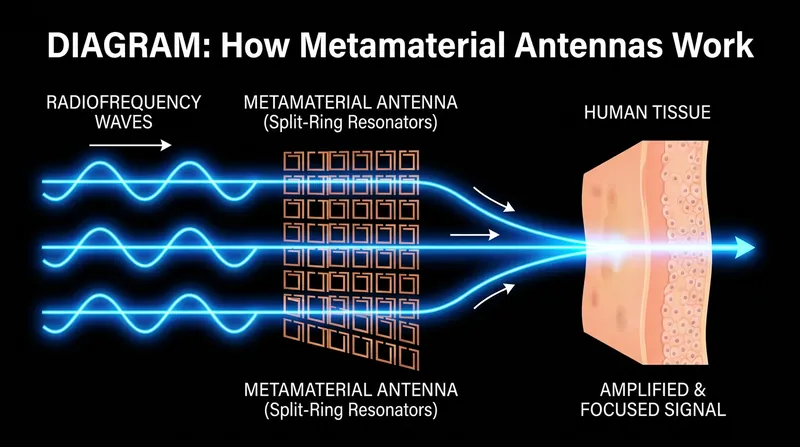

When placed near the body, these passive copper-and-plastic structures resonate with the MRI's radiofrequency fields, focusing the energy and amplifying the local signal sensitivity. In phantom tests and human trials at 7.0 Tesla, the planar configuration demonstrated between 14% and 20% higher transmit efficiency than standard loop antennas.[1][2]

A secondary claim centers on solving the historical challenge of high-resolution ocular and orbital imaging. The eye and its surrounding orbit are notoriously difficult to scan. They require exceptionally high spatial resolution and a small field-of-view, which standard radiofrequency coils struggle to deliver without introducing severe image noise. To address this, the researchers developed a specific configuration called the Bend-MTMA, featuring a 90-degree bend designed to conform perfectly to the human face.[3]

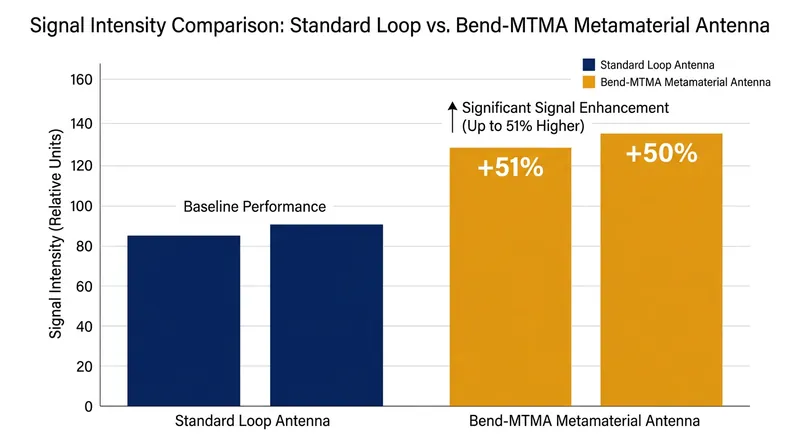

In trials involving healthy volunteers and patients with retinal pathology, the bend configuration provided unprecedented signal coverage. Quantitative assessments using T2-weighted turbo spin-echo imaging revealed massive signal increases compared to conventional bend-loop antennas. Researchers recorded signal boosts of up to 51% in the ocular regions of volunteers.

The enhanced sensitivity captured the extraocular muscles and the optic nerve in stunning detail. In one striking demonstration of the antenna's diagnostic power, the scan unexpectedly revealed a sinus cyst adjacent to a volunteer's left orbit, proving the antenna's ability to penetrate beyond the immediate eye socket and into the paranasal sinuses.[1][2]

The evidence pack also claims that metamaterial antennas dramatically improve the visualization of posterior brain regions, specifically the occipital lobe. The occipital lobe, responsible for visual processing, is a critical target for neuro-ophthalmic examinations, stroke assessment, and migraine research. However, its position at the back of the skull often places it at the edge of standard coil sensitivity profiles.

To target the brain, the team utilized a planar configuration placed behind the patient's head. B1+ mapping—a technique used to measure the efficiency of the transmitted radiofrequency field—confirmed that the metamaterial antenna generated up to 21% higher intensity in the axial plane compared to standard planar loops.

This superior signal coverage enhanced the anatomical depiction of the primary and association visual cortex. By capturing more signal in less time, the technology reduces the likelihood of motion artifacts—blurring caused by the patient moving during a long scan—which is a primary reason MRI scans have to be repeated.[1][2]

Crucially, the researchers claim that the metamaterial antennas are safe for immediate human clinical translation. A persistent concern with modifying MRI radiofrequency fields is the specific absorption rate, or the rate at which radiofrequency energy is absorbed by the body, which can cause dangerous tissue heating.[1]

The published paper includes a rigorous safety validation framework. The team conducted extensive specific absorption rate simulations using human voxel models, followed by bio-thermal modeling. They confirmed these models experimentally using magnetic resonance thermometry and fiber-optic temperature sensors during the scans. The data conclusively showed that the metamaterial antennas operate well within established international safety guidelines, paving the way for regulatory approval and clinical use.[1]

Despite the robust evidence for signal enhancement, the current data pack contains transparent uncertainty: it is built entirely on trials conducted at 7.0 Tesla. Ultra-high field scanners are primarily confined to elite research institutions, whereas the vast majority of global hospitals rely on 1.5 or 3.0 Tesla machines.

It remains to be seen exactly how much signal enhancement the metamaterial unit cells will provide at these lower, standard frequencies, though the physics principles suggest the gains will still be clinically significant. Furthermore, the timeline for commercial manufacturing and the final cost of these aftermarket coils remain undisclosed.[2]

The implications of this breakthrough extend far beyond ophthalmology and neurology. If metamaterial antennas can be mass-produced and retrofitted onto existing MRI fleets, it could fundamentally alter healthcare economics. Hospitals could effectively upgrade the resolution and speed of their aging 1.5 Tesla scanners without spending millions of dollars on new primary magnets or facility renovations.[3]

The Max Delbrück Center team is already working on the next iteration of the technology. Because the unit cells are modular, their geometry can be tuned to different magnetic field strengths and different organs. Future configurations are being designed to image the heart, kidneys, and abdomen. Additionally, researchers are exploring thermal magnetic resonance, a pioneering application where metamaterial antennas could be used not just to image a tumor, but to precisely focus radiofrequency energy to heat and destroy it, combining diagnosis and therapy into a single, non-invasive procedure.[1][2]
