How Truncating Choropleth Maps at the 95th Percentile Prevents Outlier Distortion

A single extreme data point in a geographic dataset can instantly render a map unreadable for every other region. When a spatial visualization relies on a strict linear color scale from the lowest to the highest value, one extreme outlier forces the remaining 99 percent of the map into a single, indistinguishable baseline color.[3]

Choropleth maps rely on color gradients to communicate spatial data across defined regions, such as counties, states, or census tracts. They are the standard visual tool for showing rates, percentages, and densities.

However, their reliance on color interpolation makes them highly vulnerable to skewed distributions. Consider a national map of median property values where one specific county features prices twenty times higher than the national average.

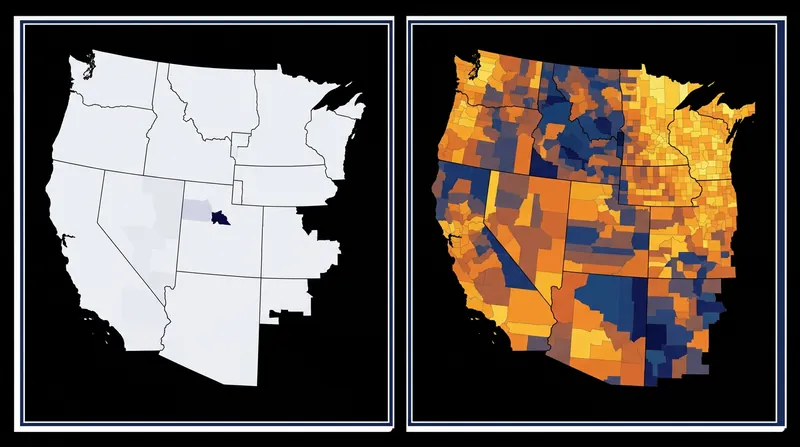

If the mapping software applies a linear interpolation from the absolute minimum to the absolute maximum, that single wealthy county receives the darkest shade of blue. Because the color scale is stretched all the way to that extreme peak, every other county is compressed into the bottom five percent of the gradient.[3]

To the human eye, the rest of the country appears as a uniform, pale wash, completely erasing the actual regional variations that the map was built to show. "The colors we choose have a massive impact on our map: How it is perceived, how well our statement is communicated and how honest we present the data," writes Lisa Charlotte Muth in Datawrapper's cartography guidelines.[3]

The Mechanics of Truncation

Truncating the color scale at the 95th or 99th percentile offers a mathematical rescue for skewed geographic data. Instead of anchoring the top of the color gradient to the absolute maximum value, the cartographer anchors it to a specific percentile threshold.[1]

Any geographic region with a value above that threshold is simply assigned the maximum color. If the 95th percentile for property values is $800,000, then a county averaging $900,000 and the extreme outlier averaging $4 million both receive the exact same dark blue fill.[3]

By capping the color scale below the extreme outlier, the mapping software is freed to distribute the rest of the color gradient across the normal range of the data. The visual contrast is restored to the 95 percent of regions that actually represent the median experience.

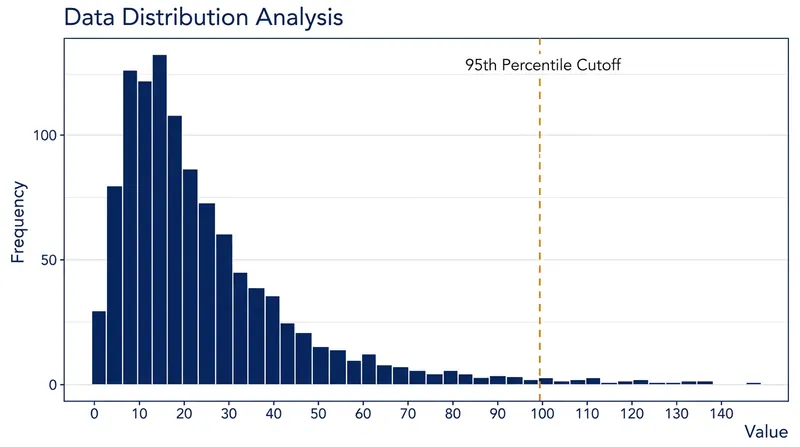

This technique directly addresses the reality of right-skewed distributions, which are ubiquitous in demographic and economic data. Wealth, population density, and industrial output rarely follow a neat bell curve; they cluster heavily at the bottom and trail off into a long, thin tail of extreme highs.

Before choosing an interpolation method, analysts must examine the underlying distribution. "Make decisions with the best interests of your readers in mind, to represent your data in honest and insightful ways," advise the authors of Hands-On Data Visualization, recommending a histogram check before mapping.

Real-World Applications

Public health agencies frequently rely on scale truncation to map disease incidence and mortality rates. When mapping rare conditions, a single localized outbreak can produce a rate exponentially higher than the national baseline, skewing the entire visual narrative.[2]

The Centers for Disease Control and Prevention explicitly utilizes this technique for mortality mapping. "For causes with extremely high outliers, the highest category on the plot is truncated at the 99th percentile of the distribution," the CDC notes in its guidelines for spatial data visualization.[2]

This ensures that the reader can still see the shape of the distribution across the vast majority of health service areas. Without truncation, a localized spike in a single county would visually flatten the subtle but vital regional health trends occurring across neighboring states.[2]

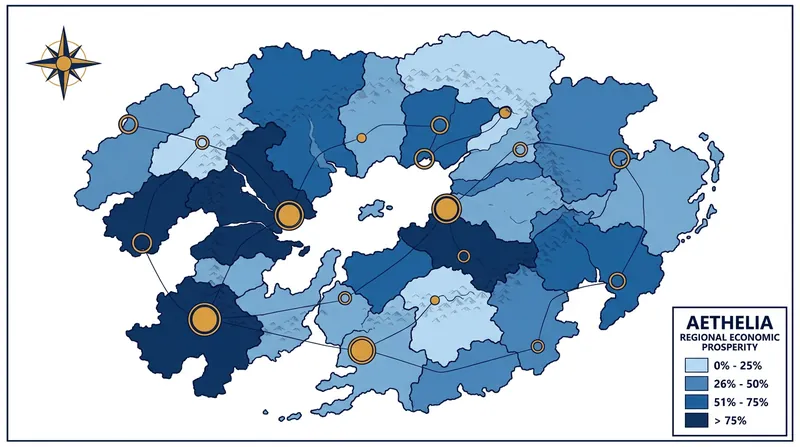

Economic mapping faces identical challenges. When visualizing corporate revenue by municipality, a headquarters city might report figures in the billions, while surrounding towns report in the millions.[3]

A linear scale makes the headquarters black and the rest of the state white. Truncating the scale at the 95th percentile allows the map to show the gradient of economic activity in the suburbs and rural areas.[3]

Alternative Classification Schemes

Truncation is not the only method for handling outliers, though it is often the most transparent. Cartographers frequently employ algorithmic classification schemes, such as Natural Breaks or Quantiles, to group data into discrete color bins.[1]

"The choice of the classification scheme should take into consideration the statistical distribution of the attribute values as well as the goal of our map," note the authors of Geographic Data Science with Python. Each method carries its own mathematical assumptions.[1]

Quantile classification divides the data evenly, placing the exact same number of geographic regions into each color bin. While this guarantees high visual contrast across the map, it can artificially force regions with nearly identical values into different color categories simply to meet the quota.[1]

Natural Breaks, or the Jenks optimization method, seeks to minimize variance within classes and maximize variance between them. It is highly effective at isolating outliers into their own distinct bins, but because the breaks are unique to each dataset, it makes comparing multiple maps nearly impossible.

Truncation combined with a linear or equal-interval scale offers a middle ground. It preserves the proportional relationships between values in the main body of the data, avoiding the artificial boundaries of Quantiles, while cleanly handling the disruptive extremes.[3]

The Trade-Offs of Capping

The primary limitation of percentile truncation is the deliberate loss of peak magnitude visibility. By assigning the exact same color to the 96th percentile and the 99.9th percentile, the map visually equates values that might be millions of dollars or thousands of people apart.[3]

For a data analyst, this is a calculated sacrifice. The goal of a choropleth map is to show regional patterns and spatial autocorrelation, not to serve as a lookup table for exact figures.

If absolute precision is required, a map is the wrong visualization tool entirely. To mitigate this loss of extreme detail, cartographers must rely on secondary labeling.

The map legend should clearly indicate the truncation, often using a "greater than" symbol for the top color bin, signaling to the reader that the scale has been capped. Additionally, the extreme outliers themselves can be directly annotated on the map canvas.[3]

Software platforms have increasingly automated these outlier management tools. Modern geographic information systems, including ArcGIS and QGIS, allow users to set custom upper and lower bounds on symbology histograms, instantly recalculating the color ramp for the remaining data.[1]

Preserving Analytical Integrity

The decision to truncate must always be documented in the visualization's methodology. Hiding an outlier without disclosing the scale adjustment crosses the line from data simplification into data manipulation, violating core principles of analytical integrity.[3]

When applied transparently, however, truncation is a vital instrument for clarity. It acknowledges that human visual perception is limited, and that a color gradient can only communicate a finite amount of variance before it becomes indistinguishable noise.

By cutting off the extreme tail of a skewed distribution, analysts ensure that the map actually serves its intended audience. The 95th percentile truncation rescues the geographic narrative, allowing the true regional variations to emerge from the shadow of a single dominant data point.[3]

In an era where automated dashboards instantly generate maps from raw data feeds, understanding these cartographic mechanics is crucial. Default software settings often default to strict linear scales, blindly mapping outliers and producing useless visualizations until a human intervenes.

Ultimately, the 95th percentile truncation is a reminder that effective data visualization requires editorial judgment. The cartographer must actively decide which part of the data distribution holds the most valuable insights, and calibrate the visual tools to bring that specific story into focus.[3]
