How Bin-Width Artifacts Invert Histogram Modality and Hide Data Clusters

Like a moving average that smooths out daily stock market volatility to reveal a long-term trend, a histogram groups individual data points into intervals to expose an underlying distribution. Both techniques trade raw precision for structural clarity.[1]

But where a moving average merely delays a signal, a poorly chosen histogram bin width can actively invert it. By forcing data into arbitrary intervals, the visualization can manufacture false peaks or erase genuine clusters entirely.[1]

This structural distortion is not a rare edge case. It is the mathematical default in millions of analytical environments, driven by a century-old formula that quietly shapes how modern software renders data.[1][5]

The Mechanics of Interval Artifacts

A histogram does not plot raw data; it plots a summary of data. The algorithm divides the entire range of values into a series of consecutive, non-overlapping intervals, counting how many observations fall into each bucket.[1]

In mathematical terms, the histogram serves as a non-parametric density estimator. It attempts to reconstruct the continuous probability distribution of a population using only a finite, discrete sample of observations.[3]

The area of each drawn rectangle is proportional to the frequency of the data it contains. When interval widths are uniform, the height alone communicates the density, making it instantly readable to the human eye.[1]

The width of these buckets dictates the shape of the resulting chart. If the bins are too narrow, the visualization becomes a noisy barcode of isolated spikes, capturing random variance rather than meaningful structure.[1][6]

If the bins are too wide, the opposite failure occurs. The algorithm aggressively smooths the data, averaging out distinct local features into massive, featureless blocks that hide the true mechanics of the dataset.[1][4]

"The histogram is the simplest and most widely used density estimator," wrote statisticians David Freedman and Persi Diaconis in their foundational 1981 paper. "However, its performance depends crucially on the choice of bin width."[3]

When a dataset contains multiple distinct clusters—a property known as bimodality or multimodality—an overly wide bin will swallow the valley between the peaks. The chart will falsely report a single, unified mass of data.[1]

The Century-Old Default

To prevent users from having to guess the correct interval, statistical software relies on automated rules. The most pervasive of these was published exactly one hundred years ago, in 1926, by Herbert Sturges.[2]

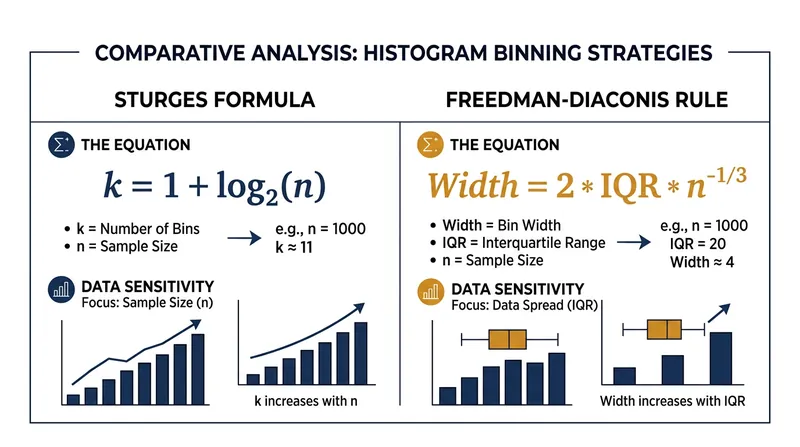

Sturges' formula calculates the number of bins by taking the base-2 logarithm of the sample size and adding one. For a dataset of 100 observations, the rule dictates roughly eight intervals.[2]

The formula was designed for the computational realities of the 1920s. It assumes that the underlying data perfectly follows a normal, bell-shaped distribution, and it scales extremely slowly as the sample size grows.[2][4]

"Sturges' rule implicitly assumes a normal distribution," noted Monash University statistician Rob J. Hyndman in a 1995 critique. "For non-normal data, or large samples, it performs poorly and produces oversmoothed histograms."[4]

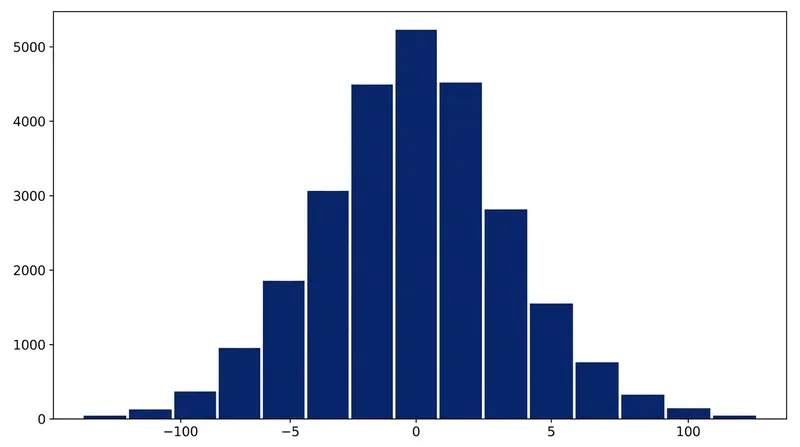

Because the logarithm function flattens out rapidly, Sturges' formula fails spectacularly on modern, large-scale datasets. A sample of 10,000 observations is forced into just 15 bins, regardless of how complex the underlying distribution might be.[1][2]

If those 10,000 observations represent human incomes, with a massive cluster at the median and a secondary cluster of high earners, Sturges' 15 bins will average the two groups together. The visual evidence of inequality simply vanishes.[1]

The Interquartile Solution

Recognizing the mathematical limits of the 1926 standard, Freedman and Diaconis developed a robust alternative in 1981. Rather than calculating the number of bins, their rule directly calculates the optimal bin width.[3]

The Freedman-Diaconis rule multiplies the interquartile range of the data by two, and then divides that figure by the cube root of the sample size. This approach fundamentally changes how the visualization scales.[3]

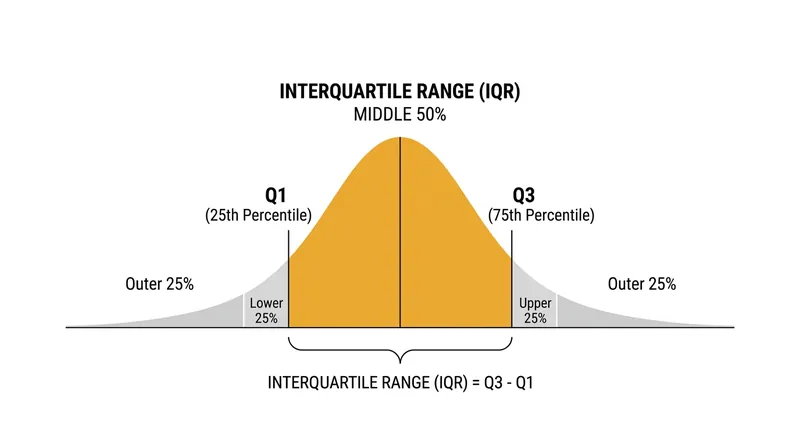

By relying on the interquartile range—the distance between the 25th and 75th percentiles—the formula ignores extreme outliers. A single billionaire in an income dataset will not stretch the bins into uselessly wide intervals.[1][3]

Because the interquartile range measures the spread of the middle 50 percent of the data, it provides a stable anchor. A dataset corrupted by a handful of extreme measurement errors will still yield a mathematically sound bin width.[1]

This resistance to outliers makes the Freedman-Diaconis rule particularly valuable in financial and biological datasets. Income distributions and gene expression levels frequently exhibit heavy tails that completely destabilize traditional variance-based calculations.[1]

Furthermore, the cube-root scaling ensures that the bins narrow appropriately as the sample size increases. More data translates directly into higher visual resolution, allowing the histogram to reveal finer structural details.[3]

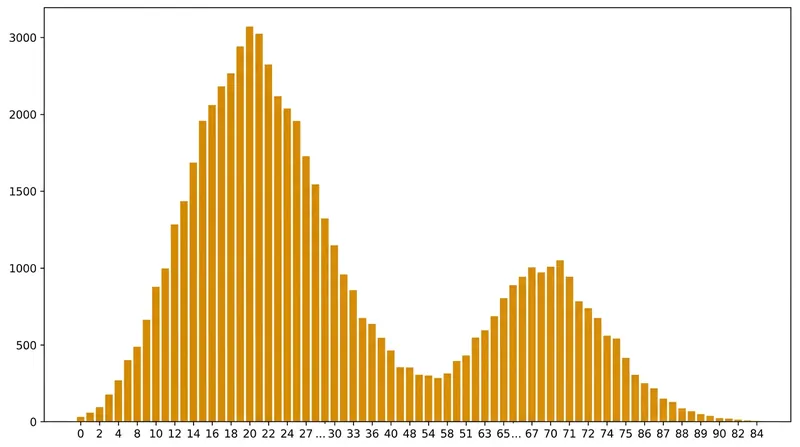

For that same synthetic dataset of 10,000 observations, the Freedman-Diaconis rule calculates 84 distinct bins. This higher resolution cleanly separates the median cluster from the secondary peak, preserving the true bimodal shape.[1]

The difference is not merely aesthetic; it alters the analytical conclusion. An analyst looking at the 15-bin Sturges chart will diagnose a single, skewed population, while the 84-bin chart reveals two distinct populations requiring different interventions.[1]

Software Implementation and Inertia

Despite the mathematical superiority of the Freedman-Diaconis approach for heavy-tailed data, Sturges' formula remains deeply embedded in analytical infrastructure. Its simplicity made it the default in early computing.[4][5]

Base R, a cornerstone language for statistical computing, still defaults to Sturges' rule for its standard histogram function. Analysts must explicitly override the default parameter to utilize the 1981 method for complex datasets.[4]

Python's NumPy library has taken a more progressive approach. Its default automatic binning algorithm calculates the results of both Sturges and Freedman-Diaconis, and then selects the method that produces the higher number of bins.[5]

This maximum-bin heuristic effectively uses Sturges for small, normally distributed samples where it performs adequately, while allowing Freedman-Diaconis to take over for large or heavily skewed datasets.[5]

Commercial spreadsheet software often obscures the binning mathematics entirely. Excel's automatic histogram feature relies on proprietary internal logic, frequently resulting in arbitrary interval widths that analysts cannot easily trace to a published statistical rule.[1]

The Limits of Automated Binning

While the Freedman-Diaconis rule protects against the severe oversmoothing of Sturges' formula, no single mathematical heuristic can perfectly capture the nuances of every dataset. Density estimation remains an iterative process.[6]

"The optimal bin width depends on the unknown density function," explains the American Statistician literature on density estimation. "Heuristics provide a starting point, but rigorous visual exploration requires testing multiple interval widths."[6]

If a dataset contains severe digit preference—such as survey respondents rounding their ages to the nearest zero or five—even a robust formula might select a bin width that interacts poorly with the rounding artifacts.[1]

In these scenarios, a bin width of 4.9 years will create a chaotic, jagged histogram as the rounded values fall unevenly across the boundaries. The analyst must manually override the formula to a clean 5.0 interval.[1]

Some modern visualization libraries have introduced adaptive binning techniques that vary the interval width across the same chart. These algorithms deploy narrow bins in dense regions to capture peaks, and wide bins in sparse tails to reduce noise.[1]

However, variable-width histograms require the reader to judge the area of the bars rather than just their height. This cognitive overhead often defeats the primary purpose of the visualization, leading most analysts back to fixed-width solutions.[1]

The ultimate defense against bin-width artifacts is interactive exploration. Modern visual analytics platforms increasingly replace static formulas with slider controls, allowing the analyst to sweep across a range of widths and watch how the modality shifts.[1]

By treating the interval width as a variable rather than a fixed parameter, data scientists can identify which peaks are durable structural realities and which are merely temporary illusions created by the boundaries of a mathematical bucket.[1]
