How Pilot Injection Allows Dual-Fuel Marine Engines to Burn Green Methanol

The decarbonization of global shipping is not decided in a boardroom or a shipyard, but in the final milliseconds of a piston’s upward stroke. Inside the cylinder of a modern marine engine, green methanol—a renewable fuel capable of cutting lifecycle emissions by up to 96 percent—faces a fundamental physics problem: it will not ignite under pressure. With an auto-ignition temperature of roughly 450 degrees Celsius, methanol resists the compression-ignition cycle that has powered cargo vessels for a century. The outcome of the maritime energy transition therefore hinges entirely on a mechanism known as pilot injection.

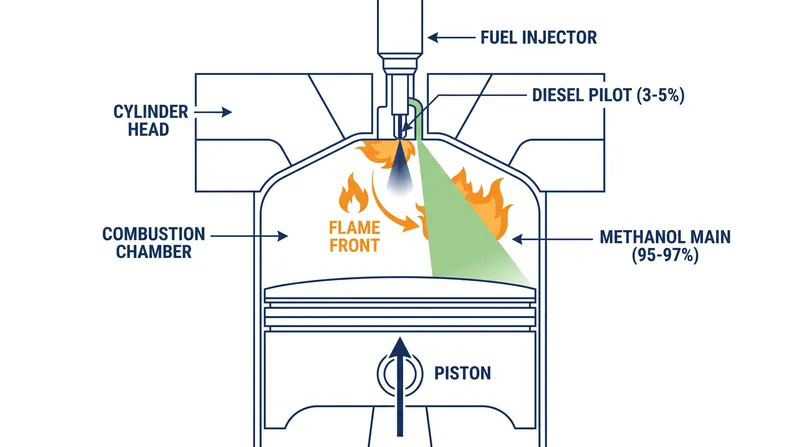

By firing a microscopic mist of conventional marine diesel into the chamber just before the methanol arrives, engineers create a liquid spark plug. That pilot fuel ignites under the intense pressure of the rising piston, triggering a controlled flame front that consumes the main methanol charge and propels the ship. Without this precise sequencing, the methanol would simply fail to combust, rendering the zero-carbon fuel useless for heavy maritime transport.

This dual-fuel architecture has rapidly become the default pathway for decarbonizing the global fleet, which currently accounts for approximately 3 percent of worldwide greenhouse gas emissions. Engine manufacturers have engineered systems where the pilot diesel accounts for just 3 to 5 percent of the total energy consumed during a voyage. The remaining 95 to 97 percent is provided by the methanol, drastically altering the vessel's carbon footprint while maintaining the mechanical force required to move 24,000 containers across the Pacific.[1]

The appeal of methanol lies in its basic chemistry. As an alcohol with the chemical formula CH3OH, it contains the least carbon and the most hydrogen of any liquid fuel. Unlike cryogenic liquefied natural gas (LNG), which must be stored at minus 162 degrees Celsius, methanol remains a stable liquid at ambient temperatures. This physical property allows shipbuilders to store the fuel in traditional hull tanks rather than the complex, pressurized spheres that define the profile of LNG carriers.

However, handling methanol at sea introduces strict new safety protocols. The fuel has a low flashpoint of just 11 degrees Celsius, meaning it can produce explosive vapors at room temperature. Furthermore, it burns with a near-invisible flame and is highly toxic if absorbed through the skin. To mitigate these risks, modern dual-fuel engines are equipped with double-walled fuel distribution systems that are continuously purged with nitrogen, ensuring that any microscopic leak is contained and neutralized before it reaches the engine room.

The primary engineering trade-off for shipowners is energy density. Methanol contains less than half the energy per kilogram of conventional heavy fuel oil. To travel the same distance, a methanol-powered container ship requires fuel tanks roughly 2.3 to 2.5 times larger than a diesel equivalent. This volumetric penalty forces naval architects to fundamentally redesign the lower decks of new vessels.

For commercial shipping lines, this transition is a geometric problem as much as an environmental one. Every cubic meter allocated to expanded bunker tanks is a cubic meter that cannot be used to carry revenue-generating cargo. Operators are accepting this loss of capacity based on the assumption that the premium charged for zero-carbon shipping, combined with impending international carbon taxes, will offset the reduction in container volume.

Despite the storage challenges, the emissions math heavily favors the transition. When synthesized using renewable electricity and captured carbon dioxide, green methanol offers a near-zero carbon profile on a well-to-wake basis. This lifecycle measurement accounts for all greenhouse gases emitted during the fuel's production, transportation, and final combustion, ensuring that the carbon released at sea was originally pulled from the atmosphere.[2]

The local air quality benefits are equally stark. Because the methanol molecule contains no sulfur, these engines eliminate sulfur oxide (SOx) emissions entirely. They also reduce nitrogen oxide (NOx) output by up to 60 percent compared to legacy fuels, allowing vessels to operate in strict coastal emission control areas without relying on complex exhaust scrubbers. Crucially, methanol combustion produces zero methane slip—the escape of unburned greenhouse gas that plagues the LNG sector.[2]

The dual-fuel design also functions as a critical insurance policy for the maritime industry. Because the engines retain their conventional diesel injection systems, a vessel can seamlessly switch back to burning standard marine gas oil if green methanol is unavailable at a specific port. The transition happens instantly, without any loss of power or speed, allowing a ship to cross the ocean on green fuel and maneuver into a legacy port on diesel.[1]

This operational flexibility has triggered a wave of orders from major carriers. "With a proven record of more than 600,000 operating hours on methanol alone, the engine concept is proven and provides a high degree of reliability," states MAN Energy Solutions, which has seen its ME-LGIM platform become the default for new large container vessels. Wärtsilä has similarly scaled its 4-stroke Wärtsilä 32 Methanol engines to power ferries and roll-on/roll-off cargo ships.[1]

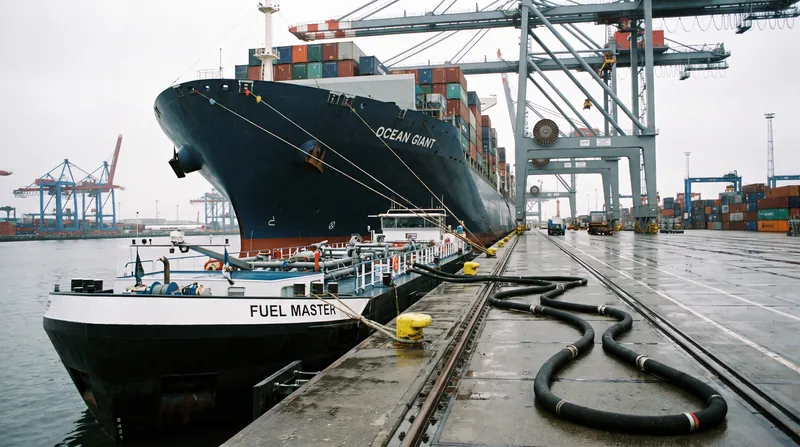

The mechanism inside the cylinder is fully proven, but the supply chain outside the ship remains the limiting factor. While the global fleet is rapidly equipping itself to burn green methanol, the shoreside infrastructure required to synthesize, transport, and bunker millions of tons of the renewable fuel is still in its infancy. The hardware is ready; the challenge now is scaling the fuel to feed it.[3]
