How Per-Channel Outlier Scaling Protects AI Models From 4-Bit Accuracy Collapse

Hardware engineers argue that shrinking large language models to 4-bit precision is a strict mathematical necessity to fit them on consumer graphics cards, accepting that some reasoning accuracy will inevitably be lost.

Artificial intelligence researchers counter that dropping from 16 bits to 4 bits fundamentally destroys a model's capabilities, pointing to catastrophic accuracy collapse when standard rounding algorithms are applied to complex neural networks.

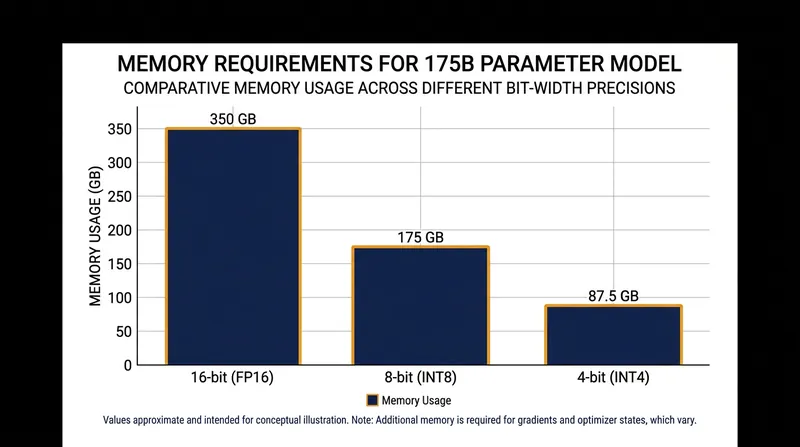

Both camps are describing the exact same mathematical bottleneck. A standard 175-billion parameter model requires roughly 350 gigabytes of memory just to load its weights in standard 16-bit floating-point precision.[3]

That massive footprint restricts advanced artificial intelligence to enterprise data centers. Quantization attempts to solve this by rounding those high-precision numbers into smaller data types, reducing the memory requirement to 175 gigabytes at 8-bit, or just 87.5 gigabytes at 4-bit.[4]

Yet standard 4-bit quantization routinely breaks large language models. The text they generate devolves into repetitive loops, their mathematical reasoning fails, and their comprehension scores plummet compared to their 16-bit originals.[1][6]

The Outlier Phenomenon

The culprit behind this degradation is not the average parameter, but a structural anomaly inside the transformer architecture known as an emergent outlier feature.[5]

During inference, neural networks multiply stored weights by dynamic activations. While weights remain relatively uniform, activations can spike dramatically when the model processes specific tokens or concepts.[2]

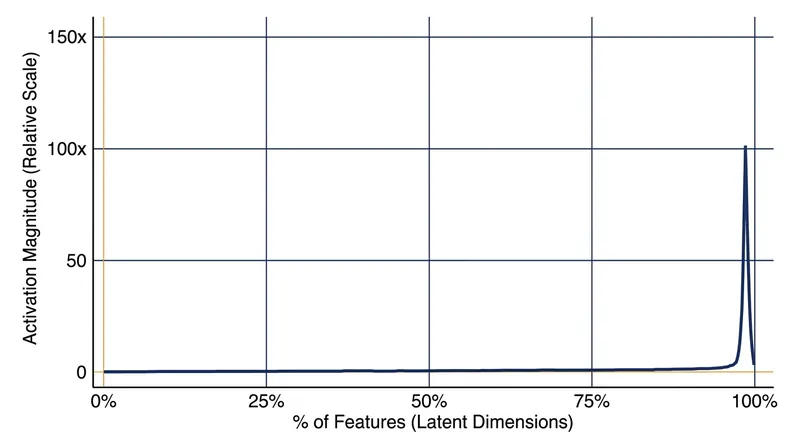

In 2022, researchers discovered that once a language model scales past 6.7 billion parameters, extreme outliers begin to appear in these activation layers. Roughly 99.9 percent of activation values remain small, but the remaining 0.1 percent explode in magnitude.[3][5]

These rare spikes can reach values up to 100 times larger than the median activation. They are not errors; they are critical pathways the model uses to route attention and maintain context over long passages of text.[5]

A direct quotation from researcher Tim Dettmers clarifies their importance. "Emergent features are outliers," Dettmers writes regarding the phenomenon. "They are highly systematic and drive the predictive performance of the model."[5]

The Mathematics of Accuracy Collapse

When a quantization algorithm attempts to compress these layers into a 4-bit format, it only has 16 distinct numerical buckets available to represent the entire range of values.[1]

If the algorithm sets the maximum bucket to accommodate the massive outliers, the other 99.9 percent of normal values get crushed into a single bucket near zero, destroying the model's subtle feature distinctions.[2][4]

Conversely, if the algorithm optimizes the buckets for the normal values, the massive outliers get clipped and rounded down. Because these outliers drive the model's predictive performance, clipping them triggers a cascading failure across subsequent transformer layers.[3][5]

This creates an impossible trade-off in standard quantization. "Activations are much harder to quantize than weights," the SmoothQuant research team noted in their 2023 publication, highlighting this core asymmetry in neural network compression.[2]

The solution requires decoupling the mathematical operation from the raw magnitude of the numbers. This is achieved through a technique called per-channel outlier scaling, which manipulates the equation before quantization ever occurs.[1][2]

Per-Channel Scaling as a Solution

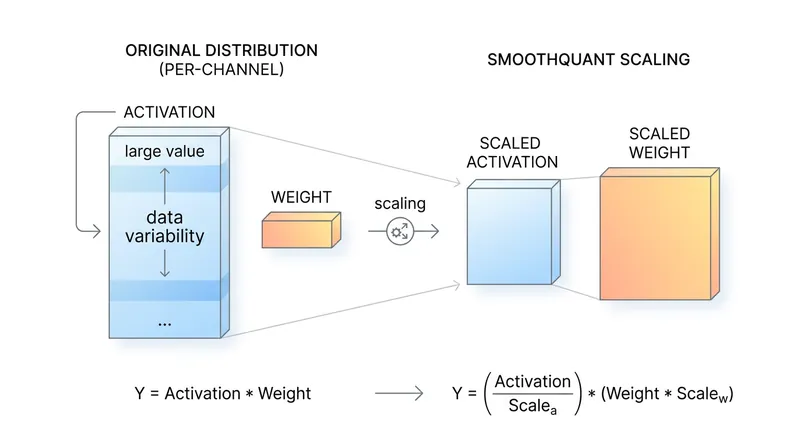

Because neural network layers compute outputs by multiplying activations by weights, the mathematical result remains identical if you divide the activation by a scaling factor and multiply the corresponding weight by that exact same factor.[2][7]

Algorithms like SmoothQuant and AWQ exploit this equivalence. They scan the model to identify the specific channels where activation outliers occur, then mathematically smooth them out.[1][2]

By dividing the massive activation spikes by a calculated factor, the outliers are brought down to a normal range. The algorithm then multiplies the corresponding weights by that same factor to preserve the final mathematical product.[2]

This shifts the quantization difficulty away from the highly volatile activations and onto the static weights, which are significantly easier to compress into 4-bit buckets without losing critical information.[1][2]

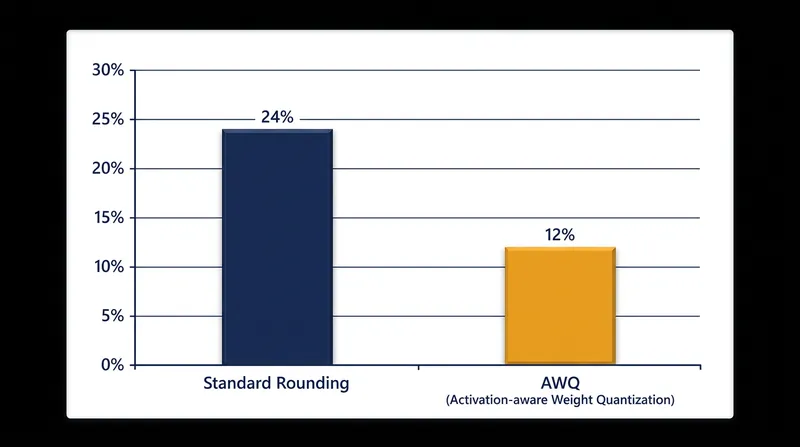

The AWQ framework specifically targets the weights that interact with these high-magnitude activations. "Weights are not equally important," the AWQ authors explain. "Protecting only 1% of salient weights can greatly reduce quantization error."[1]

By keeping just that crucial 1 percent of weights in higher precision, or scaling them carefully, AWQ allows the remaining 99 percent of the model to be aggressively quantized to 4 bits with virtually no performance degradation.[1][7]

The 4-Bit Horizon

While scaling solves the immediate problem, newer research published in 2024 pushes the boundary further. A framework called QuaRot attempts to eliminate the outliers entirely rather than just scaling them.[6]

QuaRot applies orthogonal rotation matrices to the model's hidden states. This mathematical transformation spreads the magnitude of the outliers evenly across all features, effectively flattening the spikes before they form.[6]

By rotating the data space, QuaRot allows every single weight, activation, and key-value cache element to be quantized to 4 bits without requiring any high-precision exceptions or complex scaling factors.[6]

These techniques represent a fundamental shift in artificial intelligence deployment. They prove that the massive memory footprints of early language models were not a strict requirement for intelligence, but an artifact of inefficient data representation.[7]

As these scaling and rotation methods become standardized in inference engines, the hardware barrier to entry continues to fall. Models that once required specialized server racks can now run locally on consumer workstations.[4][7]

The next frontier for researchers is pushing this logic even further down the precision scale. If 4-bit quantization can be solved by managing outliers, the mathematical foundations are now being laid for 2-bit and even 1-bit neural networks.[6][7]
