How Laser Rangefinders Use Last-Pulse Logic to See Through Smoke and Fog

Armored vehicle crews and infantry squads can now accurately measure target distances through dense smoke screens and heavy fog. The optical systems they rely on no longer return false readings from the air itself.

This capability stems from a shift in how laser rangefinders process returning light. Instead of accepting the first reflection that bounces back to the sensor, modern systems isolate the final photon return.[1][5]

A laser rangefinder calculates distance by measuring the time of flight of a light pulse. Because light travels at a constant 300,000 kilometers per second, the time it takes for a pulse to leave the emitter and return dictates the exact range.[4]

However, the atmosphere is rarely empty. Dust, water droplets, and artificial obscurants suspended in the air reflect portions of the laser energy back to the receiver long before the pulse reaches its intended solid target.[2]

The Physics of Aerosol Backscatter

When a 1,550-nanometer laser pulse fires into a smoke plume, the suspended particles scatter the light in multiple directions. A fraction of that scattered light reflects directly back into the rangefinder's receiving aperture.

This phenomenon is known as aerosol backscatter. To the optical sensor, this scattered light appears as a continuous, low-amplitude noise floor that begins almost immediately after the laser fires.[4]

Early laser rangefinders operated on a simple first-pulse logic. The system's timer would stop the moment the receiver detected any returning light energy that crossed a predefined intensity threshold.[5]

In clear conditions, this first-pulse logic worked perfectly. The first reflection the sensor detected was the solid target, providing an accurate distance measurement for fire control systems.[3]

But in degraded visual environments, the first reflection comes from the smoke or fog itself. A tank aiming at a target 1,500 meters away might receive a distance reading of just 40 meters because the laser bounced off an intervening smoke screen.[3]

Isolating the Final Return

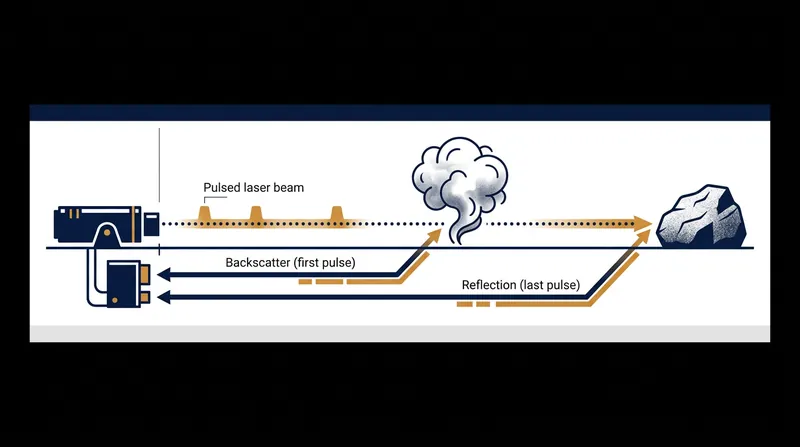

To solve this blinding effect, optical engineers implemented multi-echo processing. Modern receivers record the entire timeline of returning light energy rather than shutting off after the first detection.[2][5]

A single laser pulse traveling through foliage or smoke will generate multiple distinct reflections. The receiver logs each of these echoes, creating a temporal map of everything between the emitter and the final solid object.[4]

By switching the system to last-pulse logic, the rangefinder ignores the early, continuous reflections generated by aerosols. The internal processor instead looks for the final discrete spike in the return signal.[5]

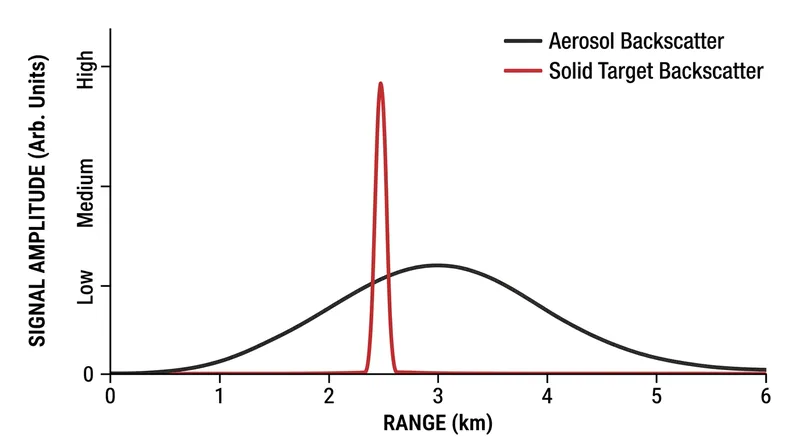

"The backscatter from smoke produces a wide, messy return signal that decays over distance," notes a 2024 Army Research Laboratory evaluation. "A solid target produces a sharp, narrow Gaussian pulse."

This difference in signal shape allows the software to distinguish between a cloud of dust and a steel plate. The final sharp pulse represents the remaining laser energy striking the actual target and bouncing back.[1][4]

Penetrating Foliage and Canopies

Foliage penetration presents a similar but distinct challenge. When a laser fires into a forest canopy, the beam physically splits, with portions reflecting off leaves while the remainder travels through the gaps.[3][5]

Unlike the continuous backscatter of smoke, foliage produces a series of sharp, discrete echoes. The rangefinder's processor must differentiate between a leaf at 400 meters, a branch at 410 meters, and the vehicle hull at 425 meters.[4]

Last-pulse logic handles foliage exceptionally well because the final solid object still returns the last distinct spike. The system simply ignores the earlier spikes, treating the leaves exactly as it would treat a cloud of dust.[5]

Signal Processing and Thresholds

Implementing this logic requires highly sensitive avalanche photodiodes. These sensors must detect the final return pulse even after the intervening smoke has absorbed or scattered up to 90 percent of the original laser energy.[2][4]

The receiver applies a dynamic thresholding algorithm to the incoming data. It continuously adjusts its sensitivity based on the ambient noise level, ensuring that the faint final pulse is not lost in the background radiation.[4][5]

Evidence from Defense Technical Information Center field tests demonstrates the effectiveness of this approach. In environments with 70 percent optical obscuration, last-pulse logic maintained range accuracy to within one meter at a distance of two kilometers.[3]

However, the evidence also highlights the physical limits of this technique. If the aerosol density is high enough to completely absorb the laser energy, no light reaches the target, and no final pulse returns.[2]

"Last-pulse logic cannot see through a brick wall, and a sufficiently dense smoke screen acts exactly like a brick wall," researchers wrote in the SPIE Digital Library proceedings. "It requires at least some photons to make the round trip."[2]

Operational Limitations and Edge Cases

The system also struggles when the target itself is highly absorptive or angled away from the emitter. If the final solid object reflects less energy than the densest part of the smoke cloud, the processor may misidentify the target.[4][5]

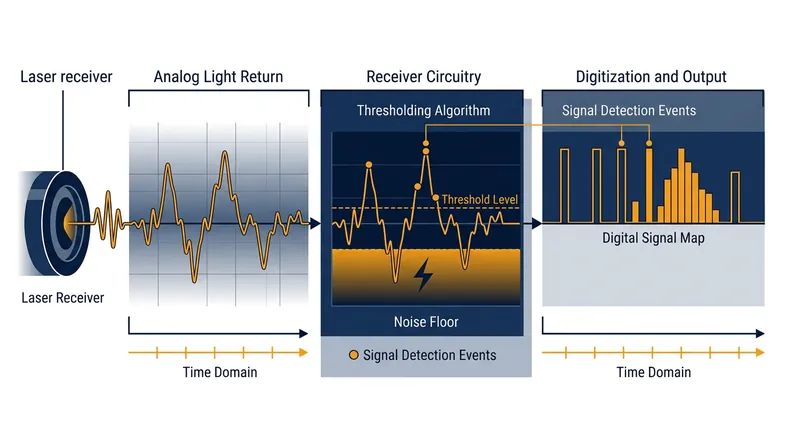

To mitigate this, advanced rangefinders now employ waveform digitization. Instead of just recording the timing of the peaks, the system digitizes the entire return signal and analyzes the amplitude and width of every echo.[1][4]

This digitized analysis allows the rangefinder to confidently reject the broad, low-amplitude returns characteristic of aerosols. It isolates the narrow, high-amplitude spike that indicates a solid surface, even when that spike is buried deep in the timeline.[5]

The transition to 1,550-nanometer lasers has further improved this capability. This specific wavelength penetrates certain types of battlefield smoke more effectively than legacy 1,064-nanometer systems, delivering more energy to the final target.[3]

While radar systems use Doppler notching to filter out stationary ground clutter, laser rangefinders rely entirely on this temporal and spatial isolation. The two mechanisms solve similar environmental problems using fundamentally different physics.[1]

The Future of Optical Targeting

Ultimately, the effectiveness of last-pulse logic depends on the specific characteristics of the obscurant. White phosphorus smoke, which contains large, highly reflective particles, remains significantly harder to penetrate than standard fog or dust.[2]

As optical processing speeds increase, future systems will likely combine last-pulse logic with artificial intelligence. These algorithms will instantly compare the return waveform against a library of known aerosol signatures to further reduce false readings.[4][5]

For now, the isolation of the final reflected pulse remains the standard method for optical clutter suppression. It ensures that when a crew needs an exact distance in the worst possible conditions, the number they receive is the target, not the air.[1][3]
