High Refractive Index Polymers Cut Planar Waveguide Losses to Shrink Augmented Reality Optics

The fundamental bottleneck in augmented reality hardware is not computing power, but physics. To overlay digital images onto the real world, a headset must project light from a hidden micro-display into a lens, bounce that light internally across the glass, and then eject it into the user's eye. This process relies on planar waveguides.[3]

For years, the only materials capable of trapping light efficiently at the steep angles required for a wide field of view were heavy, expensive inorganic glasses with high refractive indices. But recent breakthroughs in polymer science have produced optical plastics that match the light-bending power of glass at a fraction of the weight, fundamentally changing how AR optics are manufactured.[1]

The Physics of Trapped Light

The core mechanism governing a waveguide is total internal reflection. When light travels through a medium like glass or plastic and hits the boundary with air, it will either pass through or reflect back inside, depending on the angle.

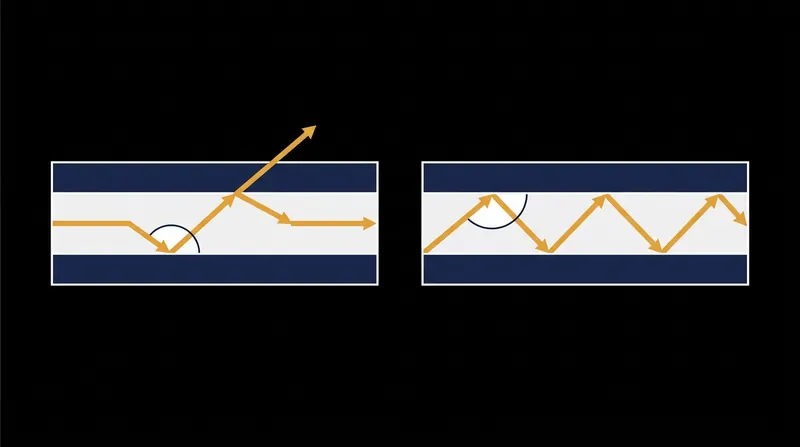

The critical angle—the threshold at which light is perfectly trapped—is dictated by the material's refractive index (RI). A higher RI means a lower critical angle, allowing the waveguide to trap light entering from a wider range of angles. This directly translates to a wider field of view (FOV) for the user.[2]

Standard optical plastics, like polycarbonate, have an RI around 1.58. This limits the FOV to roughly 30 degrees before the light begins to leak out of the lens, creating a narrow "window" effect. To achieve the 50-degree or larger FOV demanded by modern AR, manufacturers have relied on specialized glasses with an RI of 1.8 or 1.9.[1][2]

However, high-index glass is dense, brittle, and difficult to process. "The industry has been trapped in a compromise between optical performance and wearable ergonomics," notes a 2026 review in Nature Photonics. "Glass waveguides thick enough to be durable are too heavy for all-day use, while thin glass is too fragile for consumer electronics."

Nanoparticles in a Polymer Matrix

The solution lies in high refractive index polymers (HRIPs). By embedding inorganic nanoparticles—such as titanium dioxide or zirconium dioxide—into a polymer matrix, materials scientists have created hybrid nanocomposites that combine the optical properties of glass with the mechanical flexibility of plastic.[1]

These new HRIPs achieve refractive indices exceeding 1.9, matching the best optical glasses. Crucially, they weigh up to 50 percent less than their glass counterparts. This weight reduction is critical for shifting the center of gravity of an AR headset closer to the user's face, preventing the device from sliding down the nose.[2]

Beyond weight, HRIPs solve a major manufacturing bottleneck. Glass waveguides require slow, expensive etching processes to create the microscopic surface relief gratings that couple light into and out of the lens. HRIPs, by contrast, can be patterned using nano-imprint lithography (NIL).[1][2]

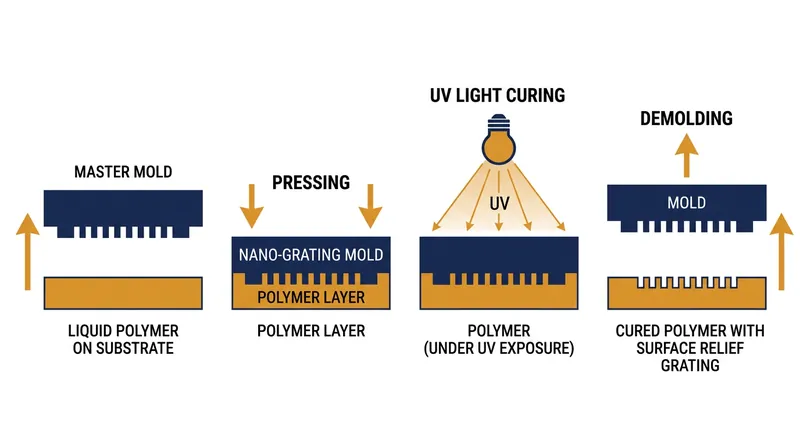

In the NIL process, a liquid polymer is dispensed onto a substrate, and a master mold is pressed into it to form the gratings. The polymer is then cured with UV light, instantly locking the microscopic structures in place. This roll-to-roll compatible process allows for the rapid, high-volume production of complex optical structures that would be cost-prohibitive in glass.[1]

Overcoming Propagation Loss

The primary challenge in developing HRIPs has been managing propagation loss. When light bounces through a waveguide, any scattering or absorption reduces the brightness of the final image. Early nanocomposites suffered from high scattering losses because the embedded nanoparticles tended to clump together, creating optical defects.[1]

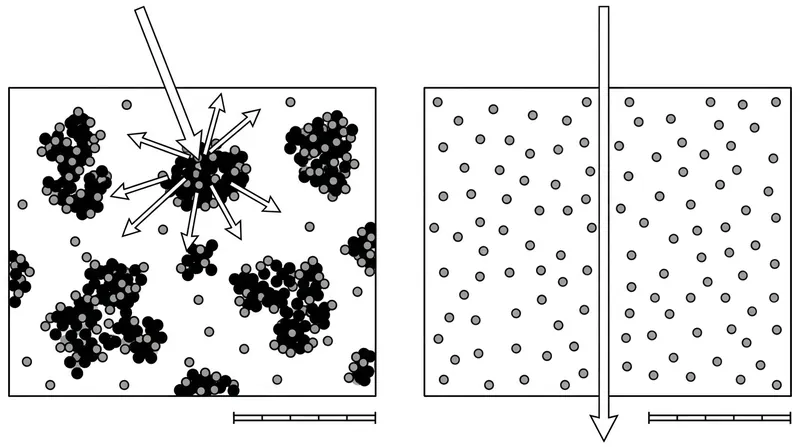

Recent advances in surface ligand engineering have solved this agglomeration problem. By coating the nanoparticles with specialized organic molecules, researchers can ensure they disperse evenly throughout the polymer matrix. This uniform dispersion prevents the nanoparticles from scattering the light, drastically reducing propagation loss.

According to Optics Express, the latest generation of HRIP waveguides demonstrates propagation losses below 0.5 decibels per centimeter, a threshold previously only achievable with pristine glass. This efficiency means the micro-display does not need to be driven as hard to produce a bright image, saving battery life and reducing thermal output.[1]

The transition to polymer waveguides also opens the door to curved optics. Glass waveguides must be perfectly flat to maintain total internal reflection, forcing AR glasses to adopt a rigid, planar aesthetic. HRIPs can be thermoformed into curved shapes after the gratings are imprinted, allowing for AR lenses that look and feel like traditional prescription eyewear.[2]

The Path to Consumer AR

While the optical performance of HRIPs now rivals glass, durability remains an area of active research. Polymers are inherently softer than glass and more susceptible to scratching and environmental degradation. Manufacturers are developing advanced hard-coatings to protect the delicate surface relief gratings from abrasion and moisture.[2]

The shift from inorganic glass to nano-imprinted polymers represents a fundamental maturation of AR hardware. By breaking the dependency on heavy, expensive glass, HRIPs provide the optical foundation necessary to shrink augmented reality from a bulky headset into a pair of everyday glasses.[3]
