Google Launches 8th-Gen Dual-TPU Architecture With 121 Exaflops for AI Training

Google has introduced its 8th-generation Tensor Processing Unit (TPU), a custom-designed AI chip that fundamentally changes how massive artificial intelligence models are trained and run. By placing two processing cores on a single chip and networking them into massive "pods" capable of 121 exaflops of computing power, Google has drastically reduced the time and cost required to build frontier AI. [1][6][1][3]

To understand why this matters, one must first look at the physical bottleneck of modern artificial intelligence. The most advanced large language models are no longer constrained by algorithmic theory, but by the sheer physics of moving data through silicon. [2]

For years, the industry standard has been the Graphics Processing Unit (GPU), pioneered and dominated by Nvidia. GPUs are incredibly versatile, capable of rendering video games and training neural networks alike. But Google's TPUs are Application-Specific Integrated Circuits (ASICs)—chips stripped of all general-purpose functionality and hardwired exclusively for the matrix multiplication math that underpins machine learning. [7]

The 8th-generation TPU represents a radical architectural shift from its predecessors. Instead of a single massive processing core, Google has implemented a "Dual-TPU" design. [3]

In this setup, two independent Tensor Cores sit on the same piece of silicon, sharing a massive pool of ultra-fast High Bandwidth Memory (HBM4). This allows the chip to juggle the two distinct phases of AI development simultaneously: training, which is the process of teaching the model, and inference, which is the process of running the model for users. [4][2]

When a model is being trained, it requires massive, continuous streams of data. The Dual-TPU architecture allows one core to fetch and prepare the next batch of data from memory while the other core performs the mathematical calculations, effectively eliminating the idle time that plagues traditional chip designs. [3][6][3]

But a single chip, no matter how efficient, cannot train a frontier AI model. The true engineering feat of the 8th-gen TPU lies in how Google connects them. [5]

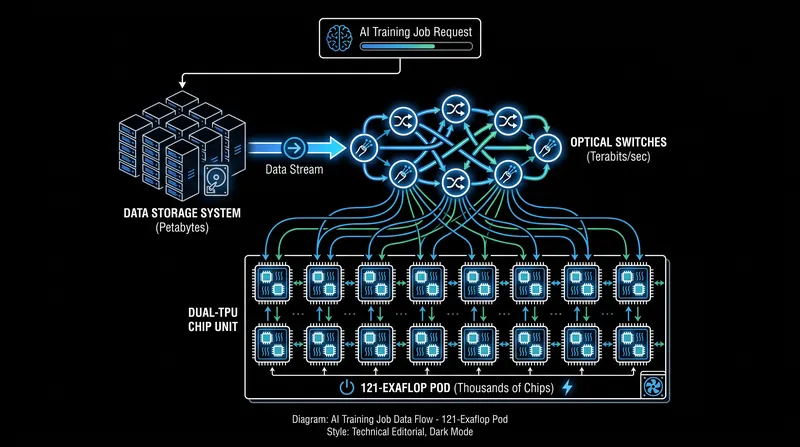

Google deploys these chips in massive clusters called "pods." For the 8th generation, a single pod contains thousands of Dual-TPU chips, connected not by traditional copper wires, but by Optical Circuit Switches (OCS). [6][3]

These optical switches use tiny, adjustable mirrors to bounce lasers between servers, transmitting data at the speed of light. Because there are no physical cables to unplug and reroute, the topology of the supercomputer can be reconfigured in software in milliseconds to bypass failed chips or optimize for a specific AI model's architecture. [2][7]

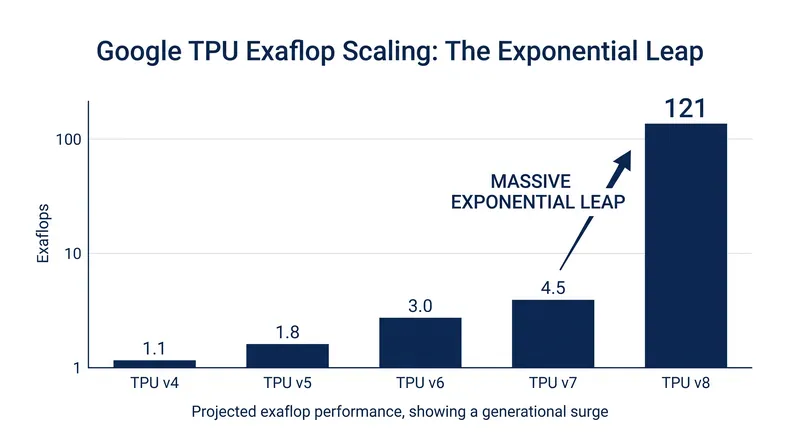

The result of this optical networking is a single pod capable of 121 exaflops of computing power. An exaflop is one quintillion—a billion billion—floating-point operations per second. [1][1]

To put 121 exaflops into perspective, if every human on Earth performed one calculation per second, it would take the global population over four years to complete what a single TPU v8 pod can calculate in one second. [8]

This scale of compute fundamentally alters the economics of artificial intelligence. Training a trillion-parameter model, which previously took months and hundreds of millions of dollars on older hardware, can now theoretically be completed in weeks at a fraction of the energy cost. [4][2]

Energy efficiency is perhaps the most critical metric for the 8th-gen TPU. As AI data centers consume increasingly vast amounts of electricity, straining regional power grids, Google claims the new architecture delivers a 3x improvement in performance-per-watt compared to the previous generation. [1][5][1]

This efficiency is achieved partly through the transition to a 2-nanometer manufacturing process, packing more transistors into a smaller space, and partly through advanced liquid cooling systems that circulate chilled water directly over the silicon. [3]

However, raw hardware power is only half the equation. The software ecosystem required to program these chips remains a significant hurdle for broader industry adoption. [7]

While Nvidia's CUDA software platform has spent nearly two decades becoming the default language of AI developers, Google relies on its own frameworks, primarily JAX and XLA. While highly optimized for Google's internal workloads, external developers have historically found them steeper to learn and harder to debug. [3][8]

Google is aggressively addressing this by open-sourcing more of its compiler stack and partnering with platforms like Hugging Face to make TPU training as seamless as GPU training. [8]

Ultimately, the launch of the 121-exaflop Dual-TPU pod is not just a technical milestone; it is a strategic maneuver in the most expensive arms race in corporate history. By reducing its reliance on third-party silicon, Google secures its own supply chain for the next generation of AI models, ensuring that the physical limits of computation do not throttle the pace of discovery. [2][4][2]
