From Heavy Leather to Microchips: The Technological Evolution of the World Cup Ball

At the center of every iconic FIFA World Cup moment—every soaring volley, every desperate save, every controversial offside call—sits a sphere roughly 22 centimeters in diameter. While the rules of football have remained remarkably stable over the last century, the ball itself has undergone a radical, continuous metamorphosis. It has evolved from a stitched leather bladder that absorbed water like a sponge into a highly engineered, aerodynamically tuned, sensor-equipped node of data collection.[1][4]

The story of the World Cup ball begins with a dispute. Before the inaugural 1930 final in Montevideo, finalists Argentina and Uruguay could not agree on which ball to use. FIFA intervened with a Solomonic compromise: Argentina would provide the ball for the first half (the 'Tiento'), and Uruguay would provide theirs (the 'T-Model') for the second. Uruguay overturned a 2-1 halftime deficit with their familiar ball to win 4-2, establishing early on that the physical properties of the match ball could dictate the fate of nations.[1]

For the first few decades of the tournament, balls were heavy, unpredictable, and often dangerous. Constructed from thick leather panels stitched together with thick laces, they absorbed moisture rapidly. A rainy match could double the ball's weight, turning a simple header into a concussive event. It was not until the 1950 World Cup in Brazil that the 'Super Duplo T' introduced a hidden inflation valve, finally eliminating the heavy, erratic laces that had defined the sport's early era.[1]

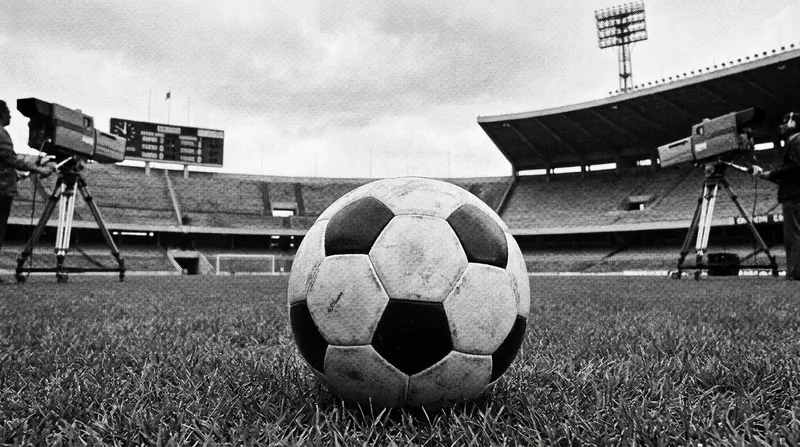

The true modern era of the football began in 1970, driven not by players, but by broadcasters. As the World Cup in Mexico prepared for widespread global television coverage, FIFA partnered with Adidas to create a ball that would be visible on grainy, black-and-white television sets. The result was the Telstar, a truncated icosahedron made of 32 panels—12 black pentagons and 20 white hexagons.[1][2]

The Telstar's geometric design was a masterstroke of industrial design. It provided unprecedented spherical perfection for the era, but more importantly, it created a high-contrast visual pattern that allowed viewers at home to track the ball's spin and trajectory across the screen. The 32-panel black-and-white design became the universal archetype of a soccer ball, an icon still used in clip art and emojis today.[2][4]

Throughout the 1980s, the focus shifted from visibility to durability. The 1986 Azteca, used in Mexico, was the first fully synthetic World Cup ball. By replacing natural leather with polyurethane, engineers finally solved the water-absorption problem that had plagued the sport for fifty years. The ball retained its weight and shape regardless of the weather, allowing for a faster, more consistent style of play.[1][2]

In the 1990s, manufacturers realized that a faster ball meant more goals, and more goals meant better entertainment. The Questra, introduced in 1994, featured a layer of polystyrene foam that made the ball softer to the touch but significantly more explosive off the foot. Attackers reveled in the new technology, while goalkeepers began to voice their first quiet complaints about the ball's unnatural acceleration.[2]

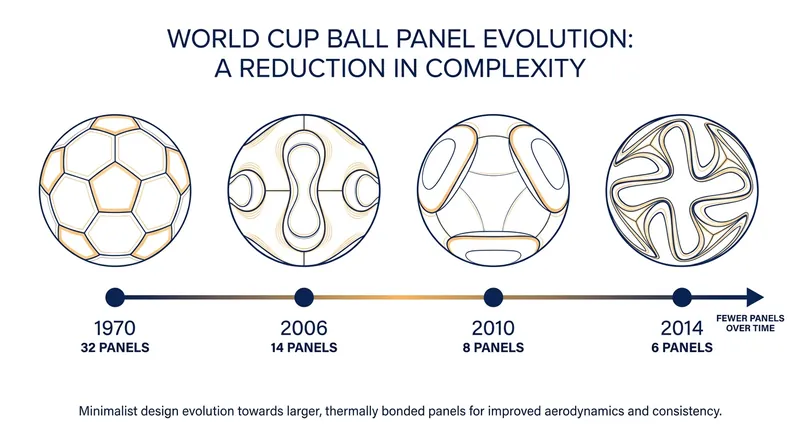

The pursuit of the perfect sphere led to a radical departure in 2006. For decades, the 32-panel design had been the unquestioned standard. But for the tournament in Germany, the Teamgeist ball reduced the panel count to just 14. Fewer panels meant fewer seams, which in turn meant a smoother surface. Engineers believed this would create a truer flight path, but they inadvertently unlocked an aerodynamic phenomenon that would cause chaos.[2][3]

A perfectly smooth sphere moving through the air experiences a sudden shift in drag—known in fluid dynamics as the 'drag crisis'—at specific speeds. Because the Teamgeist had fewer seams to trip the boundary layer of air into turbulence, it became prone to the 'knuckleball' effect. When struck with little to no spin, the ball would catch asymmetrical air currents, causing it to dart and dip unpredictably in mid-air.[3]

This aerodynamic instability reached its infamous peak at the 2010 World Cup in South Africa with the Jabulani. Reduced to just eight thermally bonded panels, the Jabulani was the roundest ball ever manufactured. It was also, according to the world's goalkeepers, a nightmare. Julio Cesar compared it to a cheap ball bought in a supermarket, while Iker Casillas called its flight path 'appalling.'

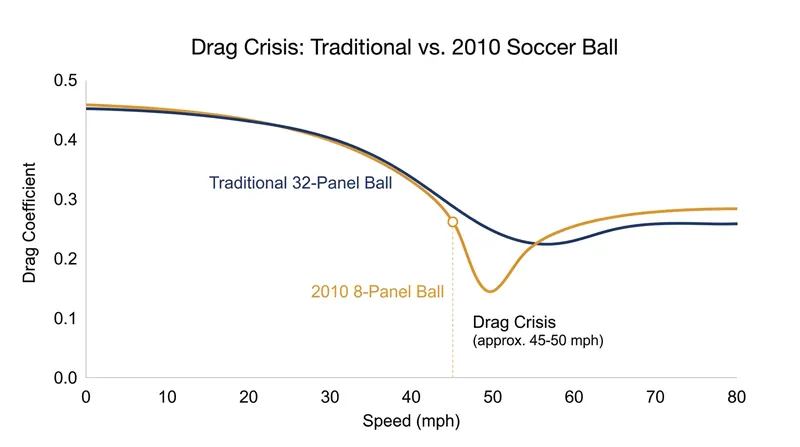

Sports physicists quickly diagnosed the Jabulani's problem. MIT researchers demonstrated that the ball's ultra-smooth surface and shallow seams caused the drag crisis to occur at roughly 45 to 50 miles per hour—the exact speed of a typical professional free kick or long-range shot. At this crucial velocity, the air flowing around the ball became highly unstable, causing sudden, erratic swerves that left goalkeepers grasping at thin air.[3]

Chastened by the global backlash, engineers recalibrated. The 2014 Brazuca featured only six panels, but they were shaped like complex interlocking propellers, and crucially, the seams were made significantly deeper. These deeper grooves acted like the dimples on a golf ball, intentionally creating micro-turbulence that stabilized the ball's flight path and eliminated the unpredictable knuckleball effect.[2][3]

Having solved the aerodynamic crisis, the next frontier was data. The 2018 Telstar 18 paid visual homage to the 1970 original but quietly introduced a Near-Field Communication (NFC) chip. While this initial chip was mostly for consumer engagement, allowing fans to interact with the ball via smartphones, it laid the groundwork for a much more profound technological leap.[1][2]

At the 2022 tournament, the ball ceased to be merely a physical object and became an active participant in officiating. The Al Rihla ball contained a suspension system at its exact center, housing an Inertial Measurement Unit (IMU) sensor. This sensor transmitted spatial data and impact metrics at a staggering rate of 500 times per second to antennas positioned around the stadium.[2][4]

This internal sensor was the missing link for semi-automated offside technology. By precisely identifying the exact millisecond the ball was kicked, the sensor data was synchronized with optical tracking cameras monitoring the players' limbs. This eliminated human error in determining the 'kick point,' allowing algorithms to generate definitive offside rulings in seconds.[4]

The integration of internal hardware presented a massive engineering challenge. The sensor and its suspension system had to be virtually weightless and perfectly balanced so as not to alter the ball's center of gravity or its behavior upon impact. Players needed to be completely unaware that they were kicking a piece of delicate telemetry equipment at 80 miles per hour.[2]

As the tournament moves into its expanded 48-team era in 2026, the match ball represents the pinnacle of sports engineering. It must satisfy the conflicting demands of multiple stakeholders: it must be fast enough to entertain fans, stable enough to satisfy goalkeepers, durable enough to withstand elite physical forces, and precise enough to feed data to artificial intelligence.[4]

Looking back at the heavy, laced leather spheres of 1930, the modern connected ball is almost unrecognizable. Yet, its core purpose remains identical. It is the singular focal point of the world's attention, a canvas for technological innovation, and the ultimate arbiter of joy and heartbreak on the global stage.[1][4]
